OEM Parts Polaris 2020 Polaris General 1000 XP 4P (R05) Front Shock Mounting

2020 Polaris General 1000 XP 4P (R05) G20GMD99AP/AG/BP/BG - Front Shock Mounting

FRONT SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

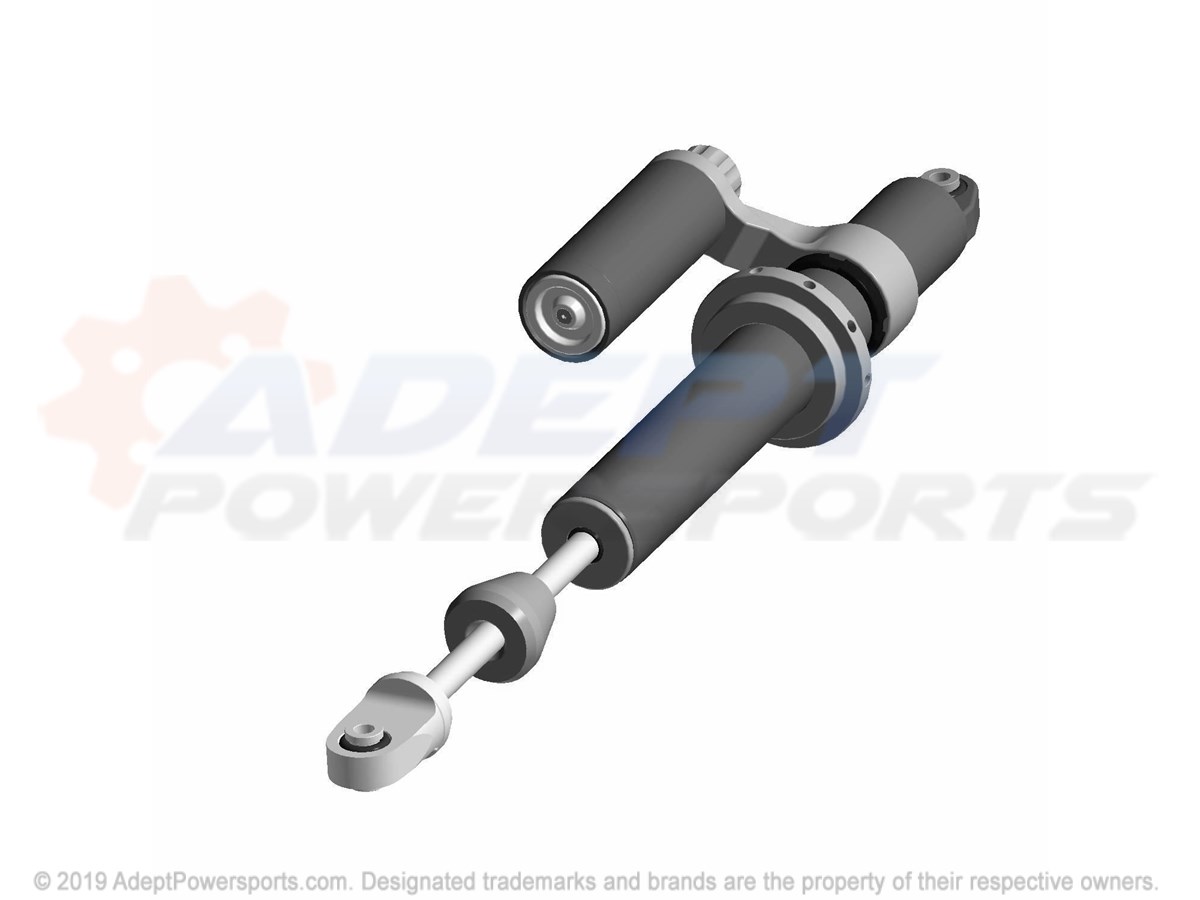

Polaris 7045311 Shock-Front, 2.00, Lh

SHOCK-FRONT, 2.00, LH

Part #: 7045311 Required per assembly: 1
Currently Not Available
2

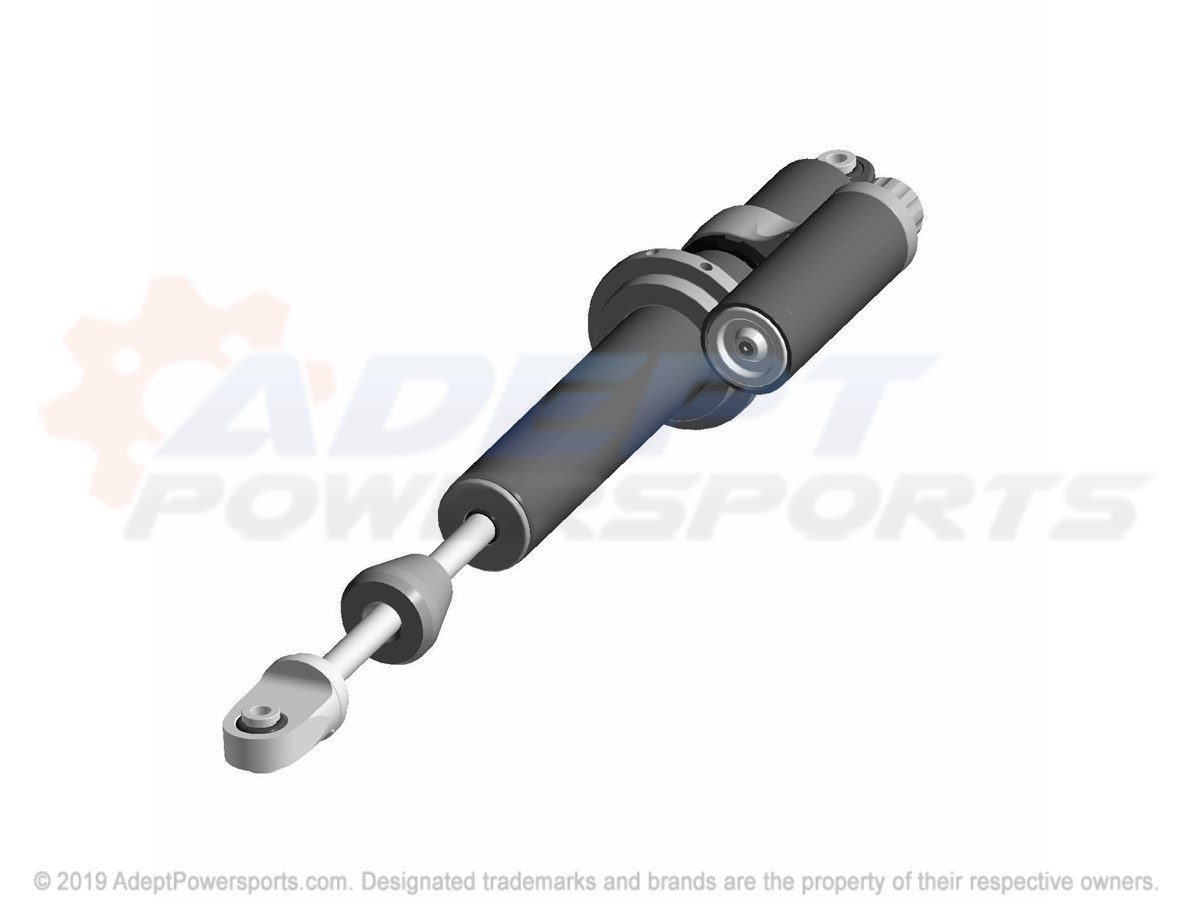

Polaris 7045312 Shock-Front, 2.00, Rh

SHOCK-FRONT, 2.00, RH

Part #: 7045312 Required per assembly: 1
Currently Not Available
3

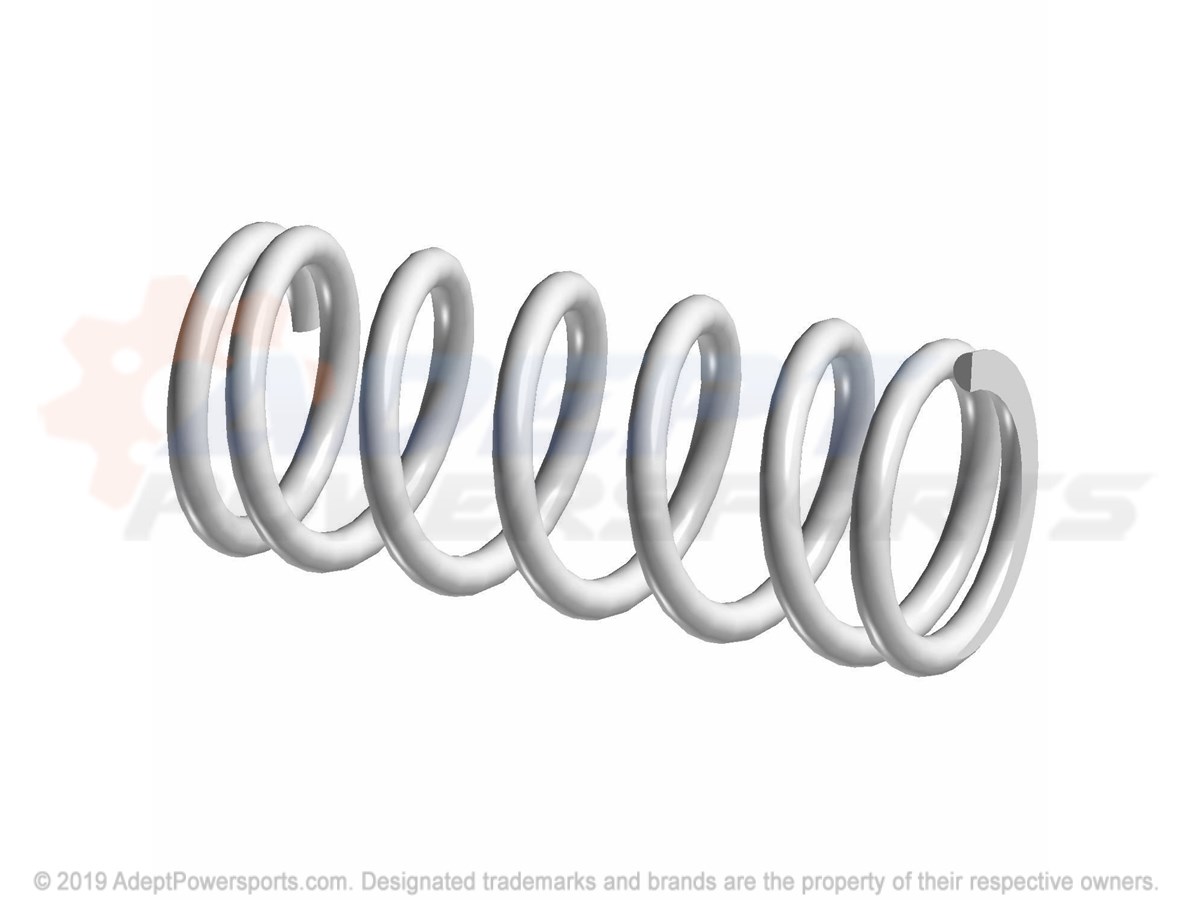

Polaris 7045309-647 Spr-350#, 10Fl, 3.04Id, Org

SPR-350#, 10FL, 3.04ID, ORG

Part #: 7045309-647 Required per assembly: 2 Note: AG
Currently Not Available
3
Polaris 7045309-385 Spr-350#, 10Fl, 3.04Id, Slvr

SPR-350#, 10FL, 3.04ID, SLVR

Part #: 7045309-385 Required per assembly: 2 Note: AP
Currently Not Available
4

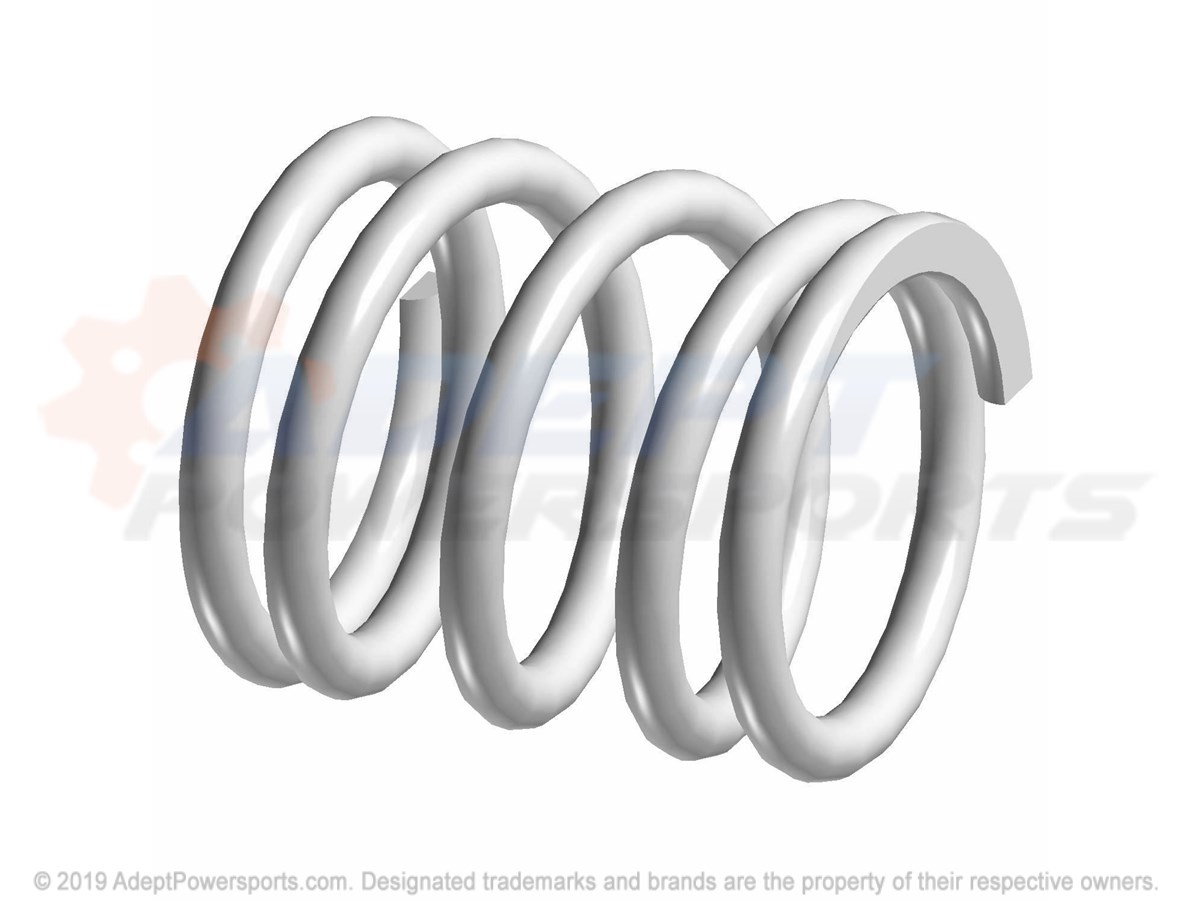

Polaris 7045310-647 Spr-450#, 4.46Fl, 3.04Id, Org

SPR-450#, 4.46FL, 3.04ID, ORG

Part #: 7045310-647 Required per assembly: 2 Note: AG
Currently Not Available
4
Polaris 7045310-385 Spr-450#, 4.46Fl, 3.04Id, Slv

SPR-450#, 4.46FL, 3.04ID, SLV

Part #: 7045310-385 Required per assembly: 2 Note: AP
Currently Not Available
5
Polaris 5450644 Spacer, Spring

SPACER, SPRING

Part #: 5450644 Required per assembly: 2
Currently Not Available
6
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 4
Currently Not Available
7
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
8
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
9

RETAINER-SPRING, CAST

Part #: 5634606 Required per assembly: 2
Currently Not Available
