2020 Polaris General 1000 XP 4P (R05) G20GMD99AP/AG/BP/BG - Front Facia

FRONT FACIA Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

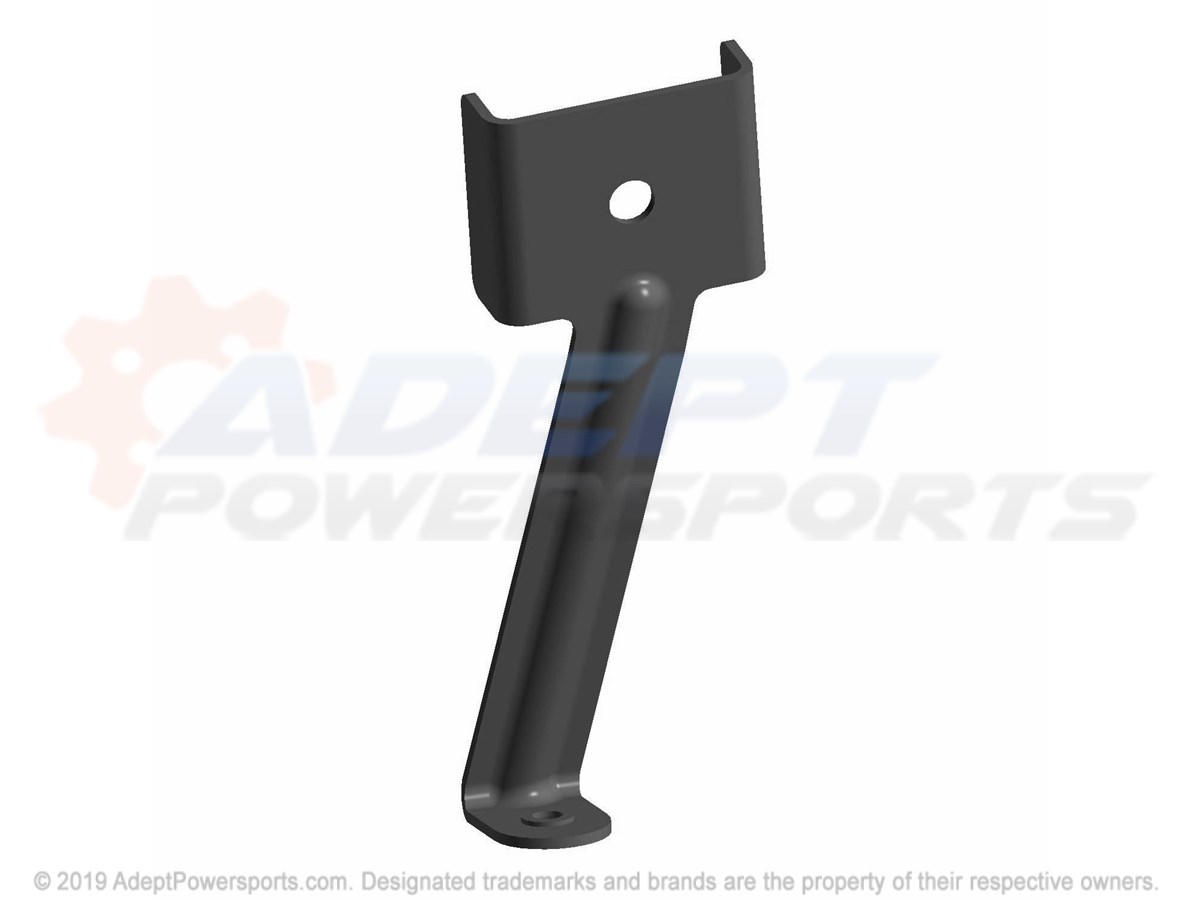

Polaris 5260920 Brkt-Fascia, Lower, Lh

BRKT-FASCIA, LOWER, LH

Part #: 5260920 Required per assembly: 1
Currently Not Available
2
Polaris 5260921 Brkt-Fascia, Lower, Rh

BRKT-FASCIA, LOWER, RH

Part #: 5260921 Required per assembly: 1
Currently Not Available
3
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
4
Polaris 5452177-070 Fascia-Front, Upper, Blk

FASCIA-FRONT, UPPER, BLK

Part #: 5452177-070 Required per assembly: 1
Currently Not Available
5
Polaris 7519650 Screw

SCREW

Part #: 7519650
Currently Not Available
6
Polaris 5456152-070 Shroud-Radiator, Front, Blk

SHROUD-RADIATOR, FRONT, BLK

Part #: 5456152-070 Required per assembly: 1
Currently Not Available
7
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 6
Currently Not Available
8

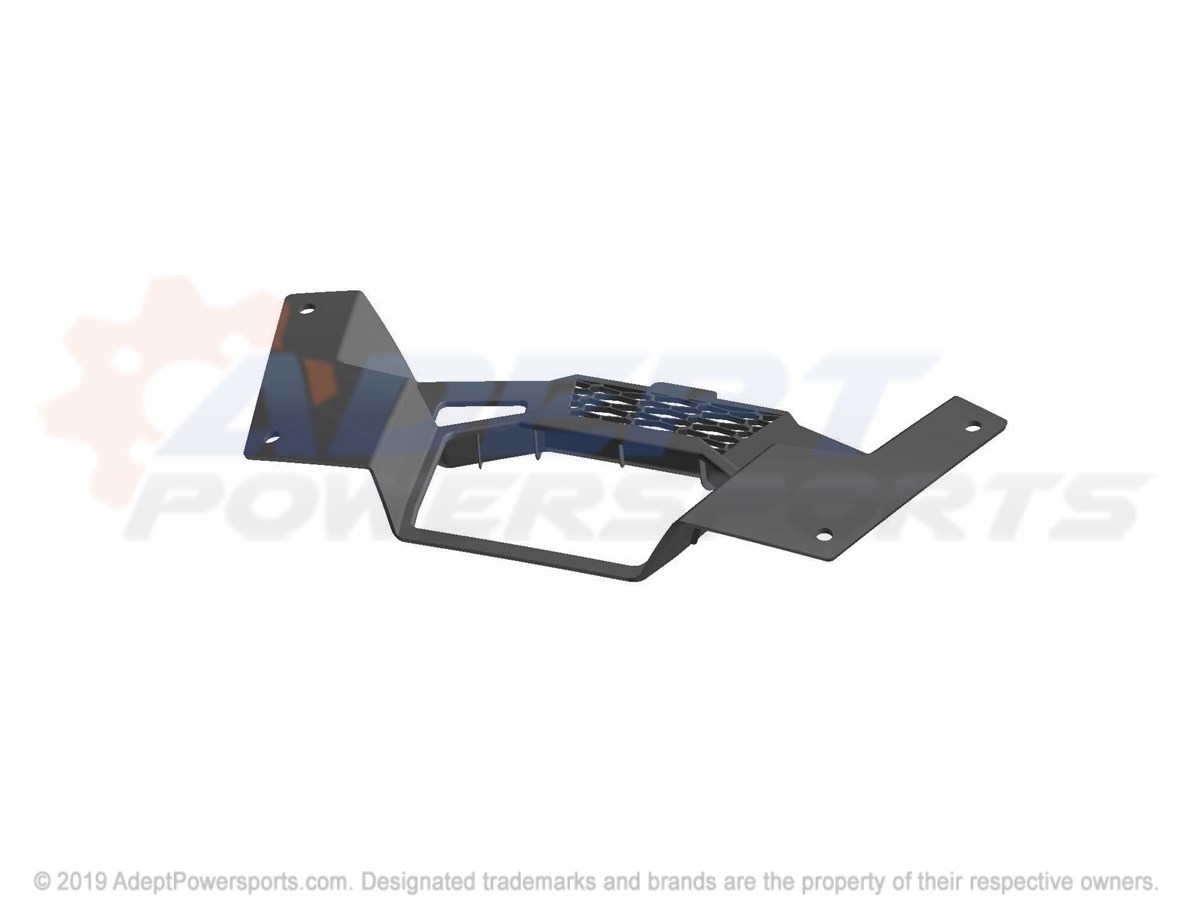

Polaris 5452178-070 Fascia-Front, Lower, Blk

FASCIA-FRONT, LOWER, BLK

Part #: 5452178-070 Required per assembly: 1
Currently Not Available
9
Polaris 7661855 Rivet

RIVET

Part #: 7661855
$2.99
$1.73
-
+
Add to cart
10

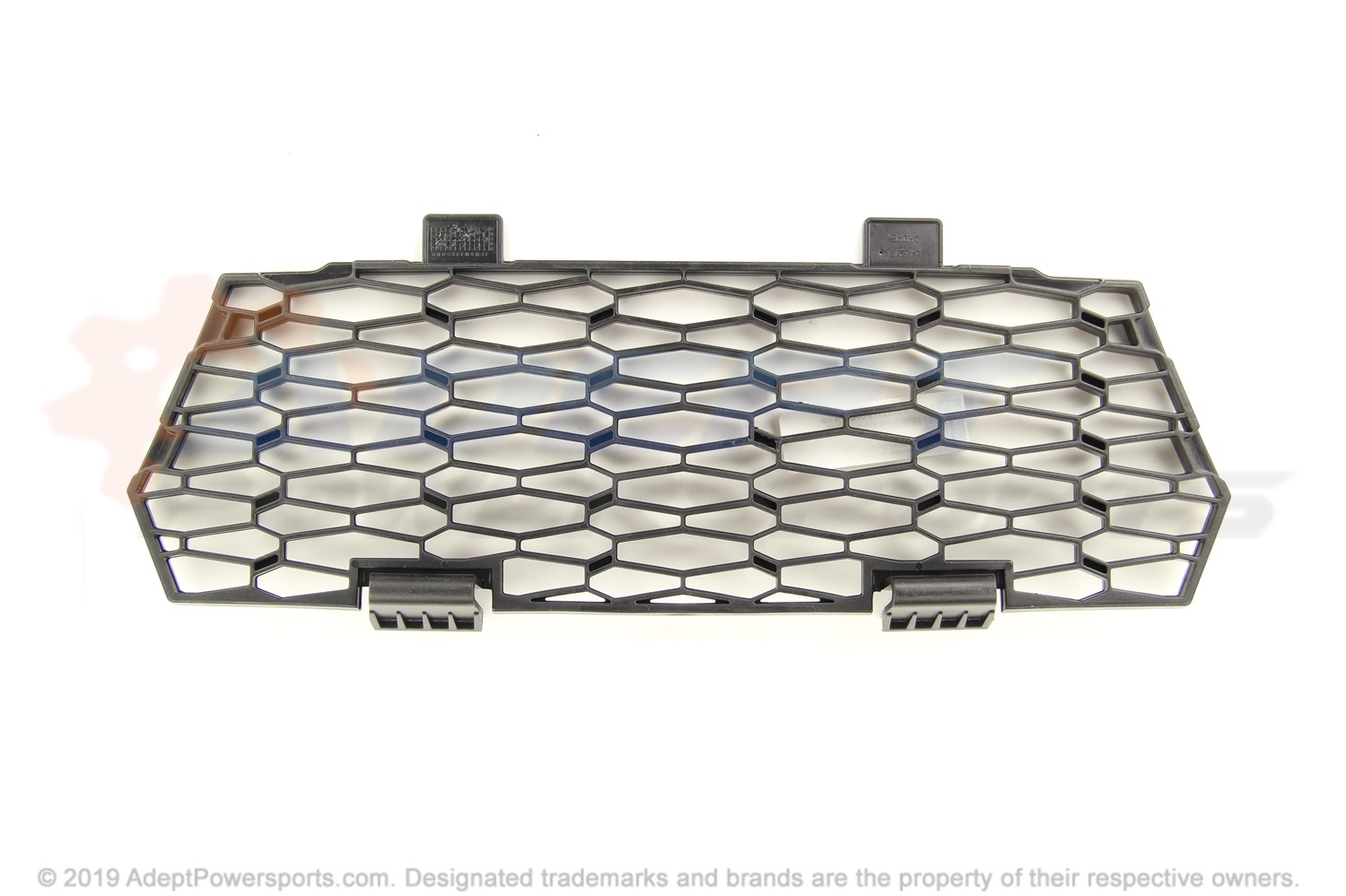

Polaris 5452179-070 Screen-Bumper, Blk

SCREEN-BUMPER, BLK

Part #: 5452179-070 Required per assembly: 1
Currently Not Available
