Crankcase And Crankshaft replacement parts for 2020 Polaris General 1000 DLX (R06)

OEM Parts Polaris 2020 Polaris General 1000 DLX (R06) Crankcase And Crankshaft

CRANKCASE AND CRANKSHAFT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

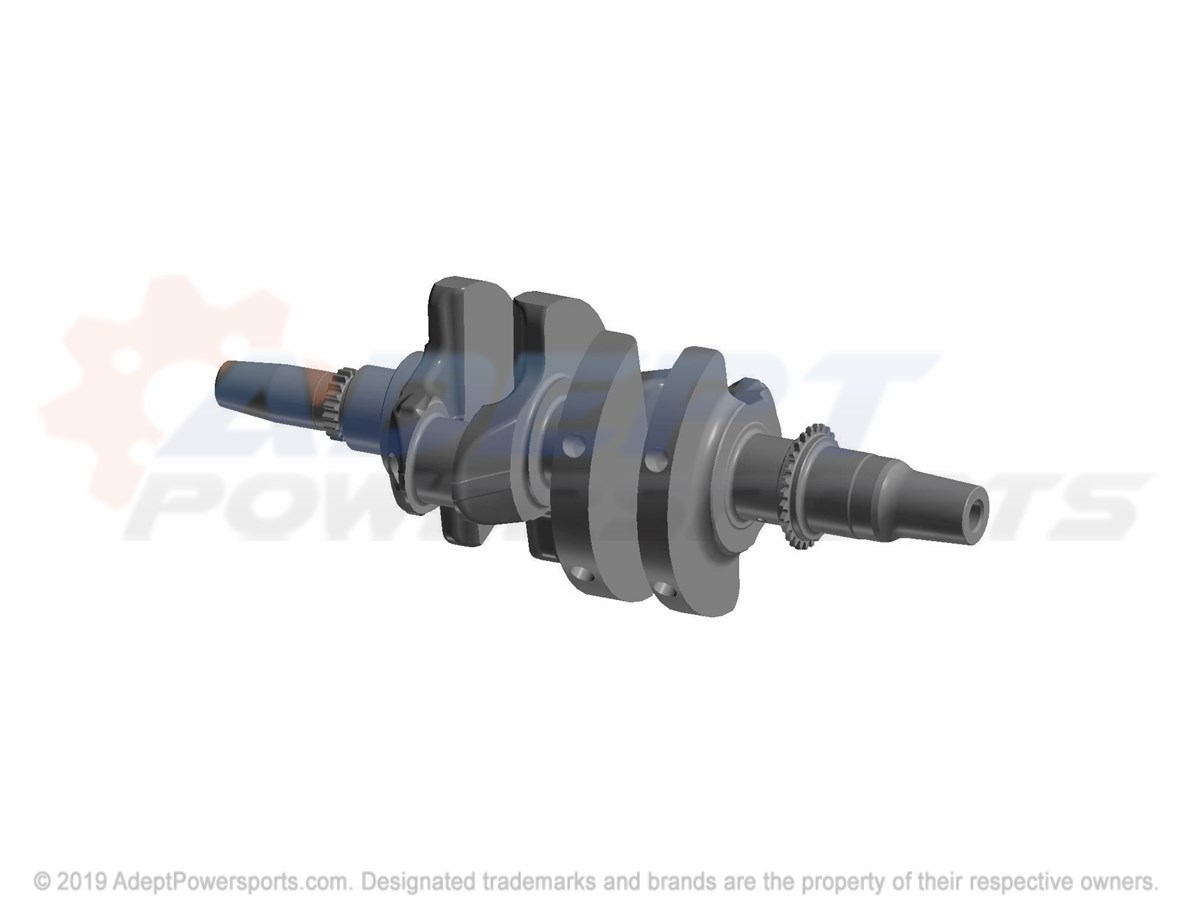

1	ASM-CRANKSHAFT Part #: 3023103 Required per assembly: 1 Currently Not Available
2	ASSEMBLY, BALANCE, SHAFT Part #: 1204835 Required per assembly: 1 Currently Not Available
3	ASM-CONNECTING ROD Part #: 3024355 Required per assembly: 2 Note: INCL. 4 Currently Not Available
4	SCR-ROD, MJ9X1X40-4H6H, 12.9 Part #: 7520378 Required per assembly: 4 Currently Not Available
5	BEARING-MAIN G-90 41MM BLU Part #: 3514662-002 Required per assembly: 7 Currently Not Available
5	BEARING-MAIN G-90 41MM GRN Part #: 3514662-003 Required per assembly: 7 $9.79 $6.90 - + Add to cart
5	BEARING-MAIN G-90 41MM RED Part #: 3514662-005 Required per assembly: 7 Currently Not Available
5	BEARING-MAIN G-90 41MM YLW Part #: 3514662-004 Required per assembly: 7 Currently Not Available
5	BEARING-MAIN G-90 41MM WHT Part #: 3514662-001 Required per assembly: 7 Currently Not Available
6	BEARING-CON ROD G-90 41MM WHT Part #: 3514663-001 Required per assembly: 4 Currently Not Available
6	BEARING-CON ROD G-90 41MM YLW Part #: 3514663-004 Required per assembly: 4 Currently Not Available
6	BEARING-CON ROD G-90 41MM GRN Part #: 3514663-003 Required per assembly: 4 Currently Not Available
6	BEARING-CON ROD G-90 41MM BLU Part #: 3514663-002 Required per assembly: 4 Currently Not Available
7	BEARING, BALANCE, SHAFT Part #: 3514756 Required per assembly: 4 Currently Not Available
8	BEARING-MAIN, CNTR, LWR, YEL Part #: 3514803-004 Required per assembly: 1 Currently Not Available
8	BEARING-MAIN, CNTR, LWR, BLU Part #: 3514803-002 Required per assembly: 1 Currently Not Available
8	BEARING-MAIN, CNTR, LWR, GRN Part #: 3514803-003 Required per assembly: 1 Currently Not Available
9	SEAL-CRANKSHAFT Part #: 3610284 Required per assembly: 1 Currently Not Available
10	SCREW Part #: 7519186 Required per assembly: 2 Currently Not Available
11	SCREW Part #: 7519297 Required per assembly: 13 Currently Not Available
12	KEY, WOODRUFF Part #: 7721122 Required per assembly: 1 Currently Not Available
13	KIT, CRANKCASE Part #: 2207373 Required per assembly: 1 Note: INCL. 14-19 Currently Not Available
14	PIN, DOWEL Part #: 5132835 Required per assembly: 8 Currently Not Available
15	DIVERTER-OIL DRAIN Part #: 5452616 Required per assembly: 1 Currently Not Available
16	PLUG Part #: 7052413 Required per assembly: 2 Currently Not Available
17	PLUG, SOCKET Part #: 7518835 Required per assembly: 2 Currently Not Available
18	SCR-HXFL, M10X1.25X113MM, 10.9 Part #: 7521267 Required per assembly: 8 Note: FROM 12/1/2019 Currently Not Available
18	SCR-HXFL, M10X1.25X113MM, 10.9 Part #: 7521267 Required per assembly: 8 Note: TO 12/1/2019 Currently Not Available
19	PLUG Part #: 7052642 Required per assembly: 3 Currently Not Available
20	COVER-SUMP, MACH Part #: 5143719 Required per assembly: 1 Currently Not Available
21	PLUG-HEX, SCKT, W/O-RING, M20X1.5 Part #: 7052643 Required per assembly: 1 Currently Not Available
22	SCREW Part #: 7517793 Required per assembly: 3 Currently Not Available
23	SCREW Part #: 7518578 Required per assembly: 12 Currently Not Available
24	SCREW Part #: 7519154 Required per assembly: 2 $6.99 $4.03 - + Add to cart
25	BRKT-TRANSJOINT, MACH Part #: 5143718 Required per assembly: 1 Currently Not Available
26	JET-PISTON Part #: 3022856 Required per assembly: 1 Currently Not Available
27	BOLT-M10X1.5X60MM8.8HEXDRILOCK Part #: 7520467 Required per assembly: 6 Currently Not Available
