Front Control Arms replacement parts for 2020 Polaris General 1000 DLX (R06)

OEM Parts Polaris 2020 Polaris General 1000 DLX (R06) Front Control Arms

FRONT CONTROL ARMS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

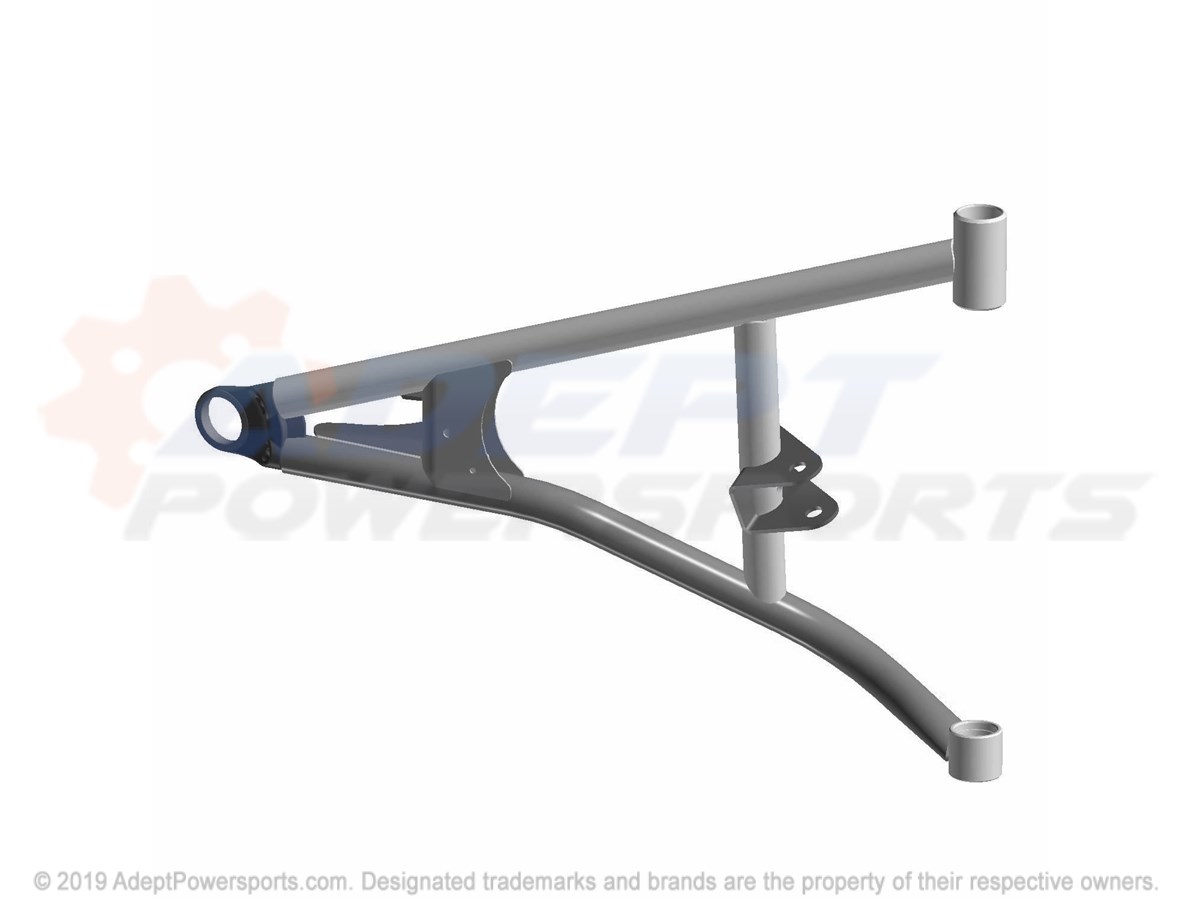

1	WELD-CTRLARM, HC, LWR, FR, LH, 64, G Part #: 1025114-804 Required per assembly: 1 Note: AG Currently Not Available
1	WELD-CTRLARM, HC, LW, FR, LH, 64, NB Part #: 1025114-727 Required per assembly: 1 Note: AP Currently Not Available

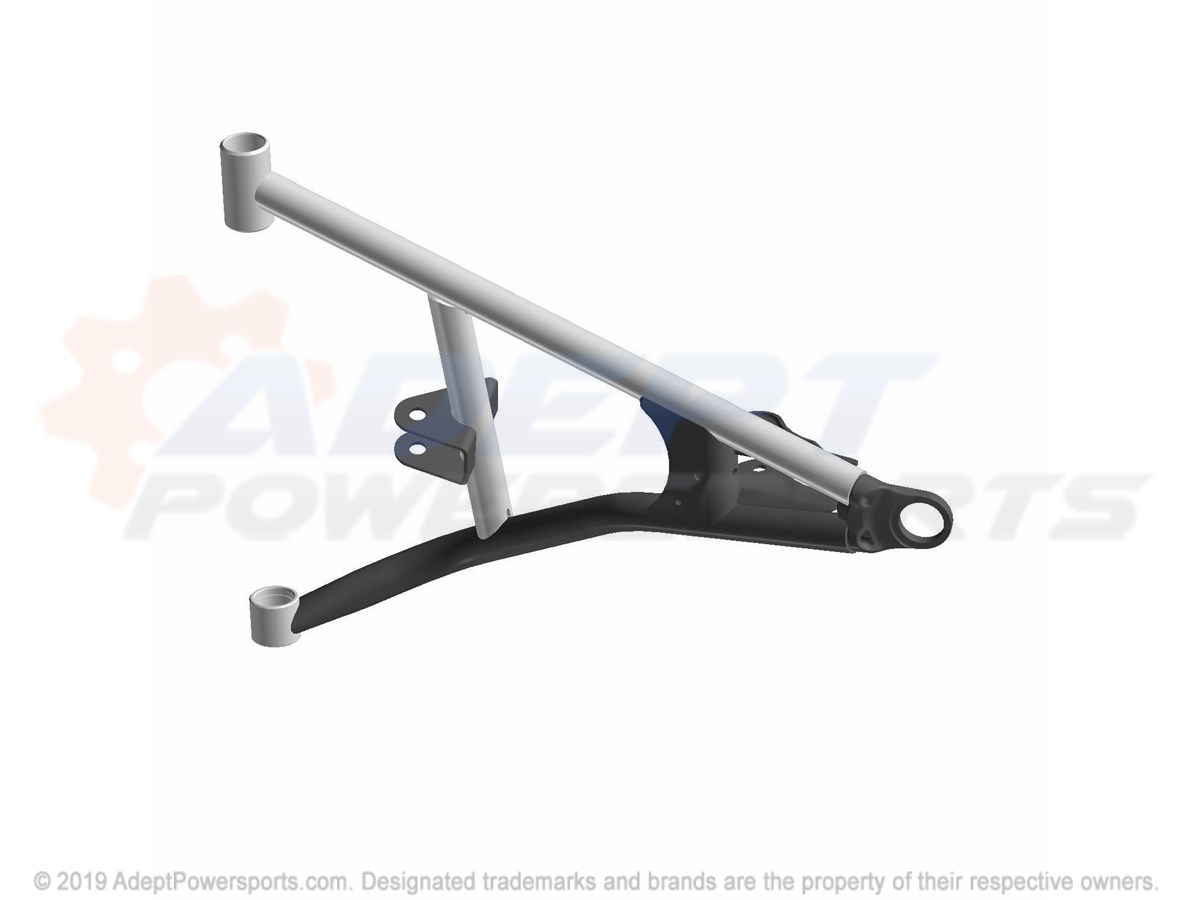

2	WELD-CTRLARM, HC, LWR, FR, RH, 64, G Part #: 1025115-804 Required per assembly: 1 Note: AG Currently Not Available
2	WELD-CTRLARM, HC, LW, FR, RH, 64, NB Part #: 1025115-727 Required per assembly: 1 Note: AP Currently Not Available
3	ASM-PIVOT, CAP, SEALED, M12 Part #: 1543612 Required per assembly: 8 Currently Not Available
4	SHAFT-PIVOT, SHORT, M12 Part #: 5140555 Required per assembly: 4 Currently Not Available
5	BUSHING-STANDARD, SUSP, M12 Part #: 5452271 Required per assembly: 12 Currently Not Available
6	SCR-HXFL-M12X1.5X80 10.9 ZOD Part #: 7520478 Required per assembly: 2 Currently Not Available
7	SCR-HXFL-M12X1.5X105 10.9 ZOD Part #: 7520479 Required per assembly: 4 Currently Not Available
8	SCR-HXFL-M12X1.5X65 10.9 ZOD Part #: 7520477 Required per assembly: 4 Currently Not Available
9	WASHER-FL, 13X2.5 Part #: 7556287 Required per assembly: 8 Currently Not Available

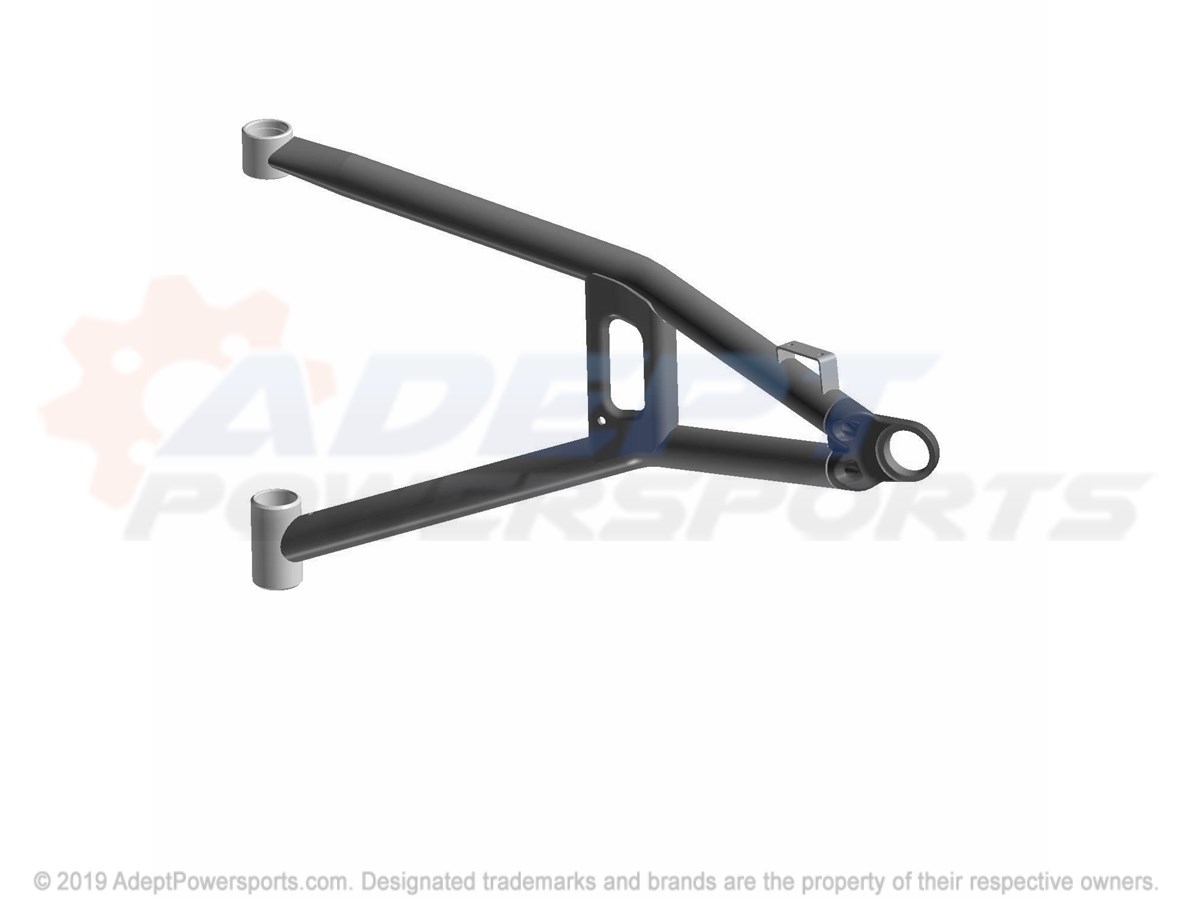

10	WELD-CTRL, ARM, UPR, FR, LH, 64, GRY Part #: 1025116-804 Required per assembly: 1 Note: AG Currently Not Available
10	WELD-CTRLARM, HC, LW, FR, RH, 64, NB Part #: 1025116-727 Required per assembly: 1 Note: AP Currently Not Available

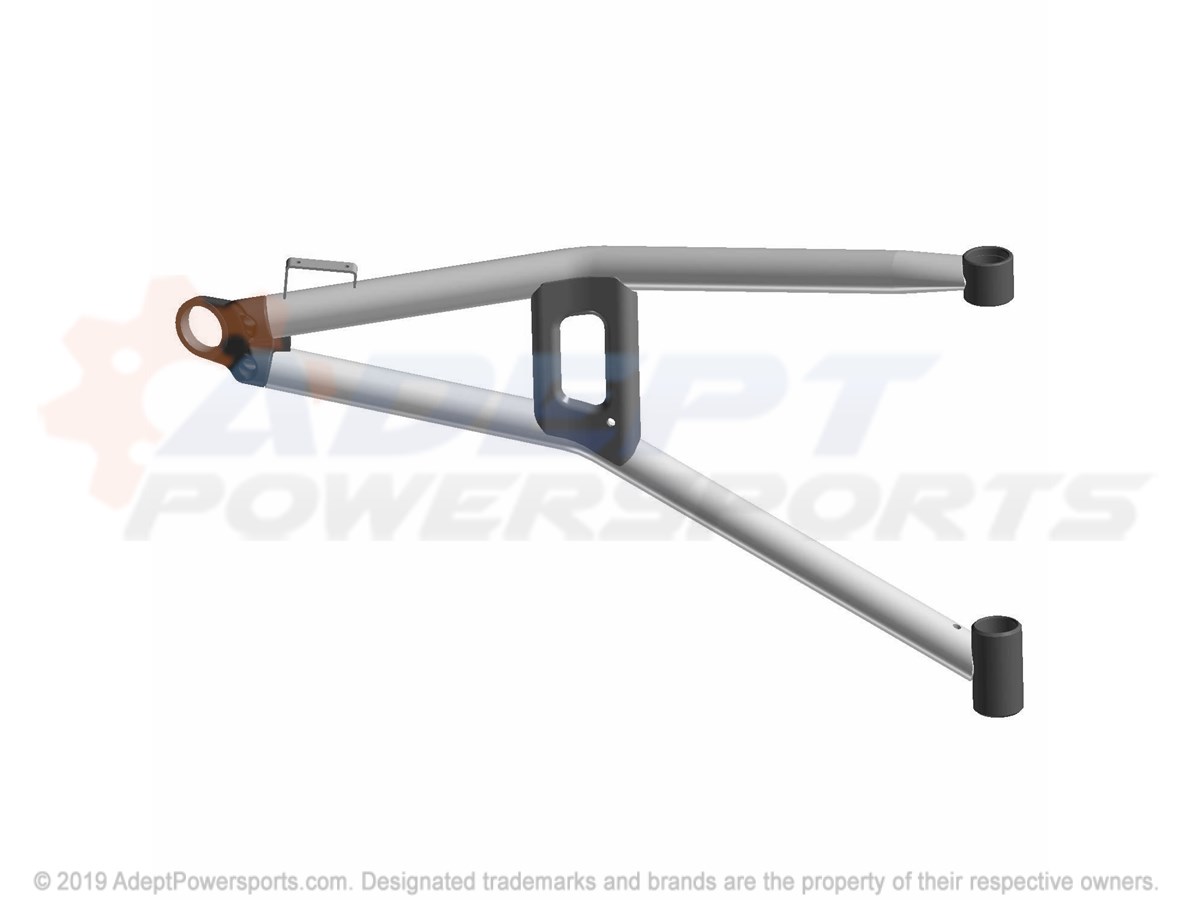

11	WELD-CTRL, ARM, UPR, FR, RH, 64 Part #: 1025117-804 Required per assembly: 1 Note: AG Currently Not Available
11	WLD-CTRL, ARM, UPR, FR, RH, 64, NBLU Part #: 1025117-727 Required per assembly: 1 Note: AP Currently Not Available
12	30MM, SPIRAL, RING, STEEL Part #: 7710869 Required per assembly: 4 Currently Not Available
13	SHIELD-CV FRONT BLK Part #: 5438641-070 Required per assembly: 2 Currently Not Available
14	ASM-PIVOT, CAP, SEALED, M12, MINI Part #: 1543998 Required per assembly: 8 Currently Not Available
15	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
16	NUT, NYLOK Part #: 7547334 Required per assembly: 8 Currently Not Available
