OEM Parts Polaris 2020 Polaris General 1000 DLX (R06) Front Shock Mounting

2020 Polaris General 1000 DLX (R06) G20GXD99AP/AG - Front Shock Mounting

FRONT SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

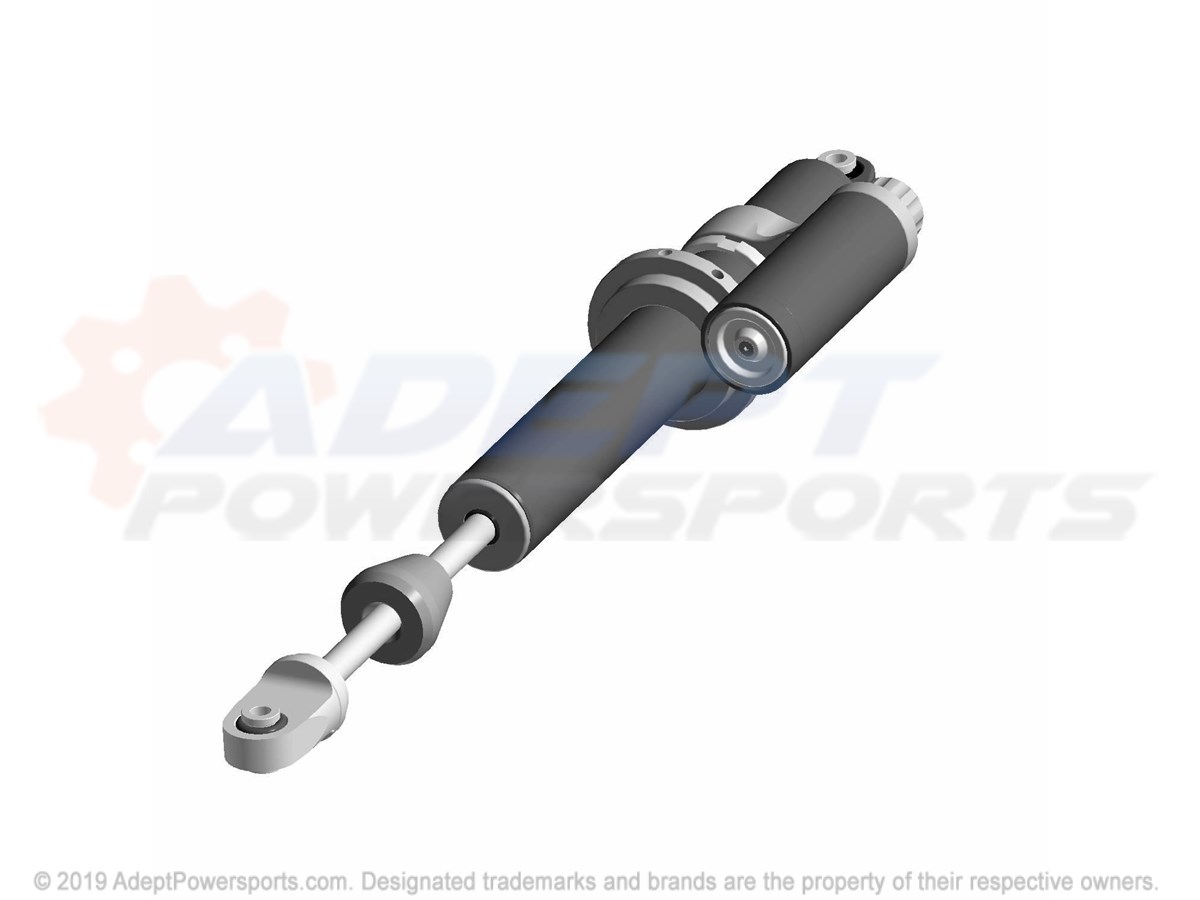

Polaris 7045321 Shock Front 2.00 Lh

SHOCK FRONT 2.00 LH

Part #: 7045321 Required per assembly: 1
Currently Not Available
2

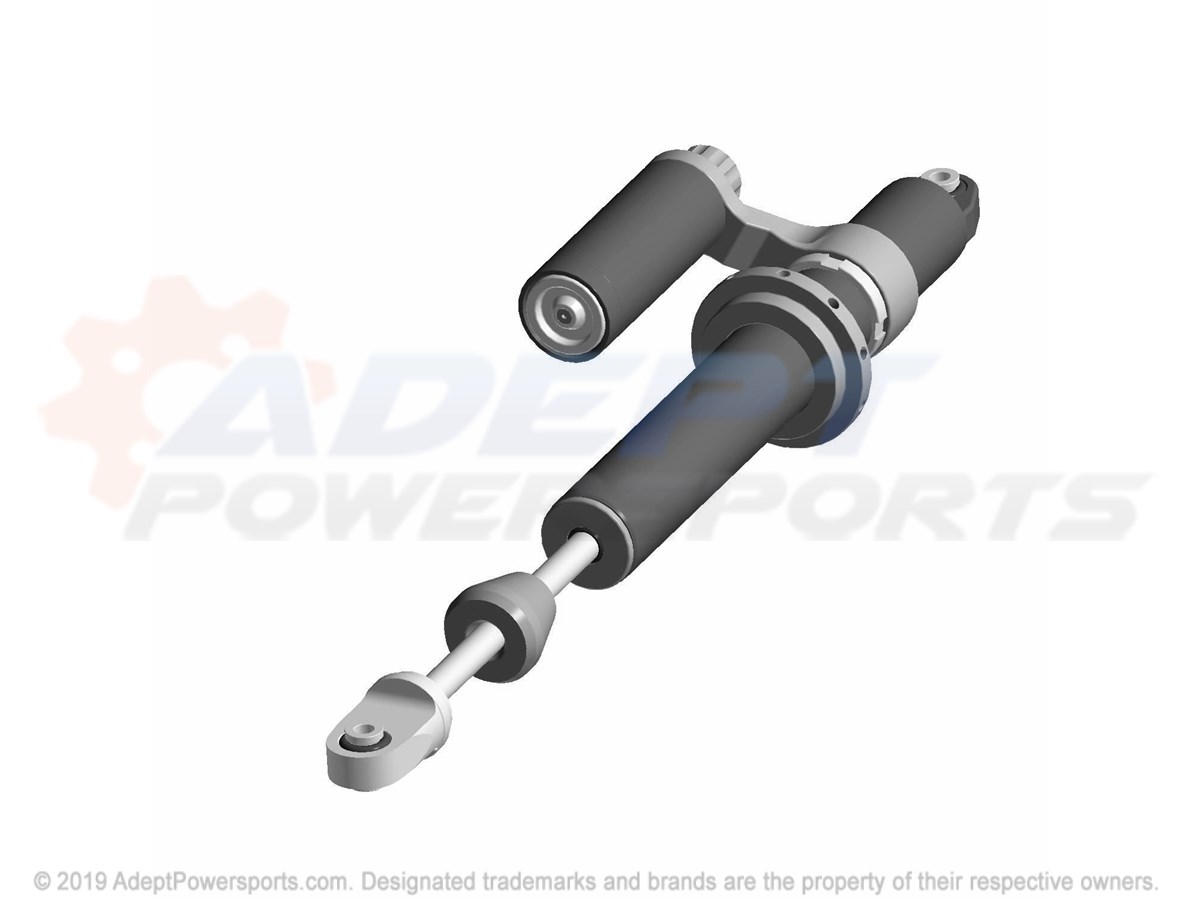

Polaris 7045322 Shock Front 2.00 Rh

SHOCK FRONT 2.00 RH

Part #: 7045322 Required per assembly: 1
Currently Not Available
3

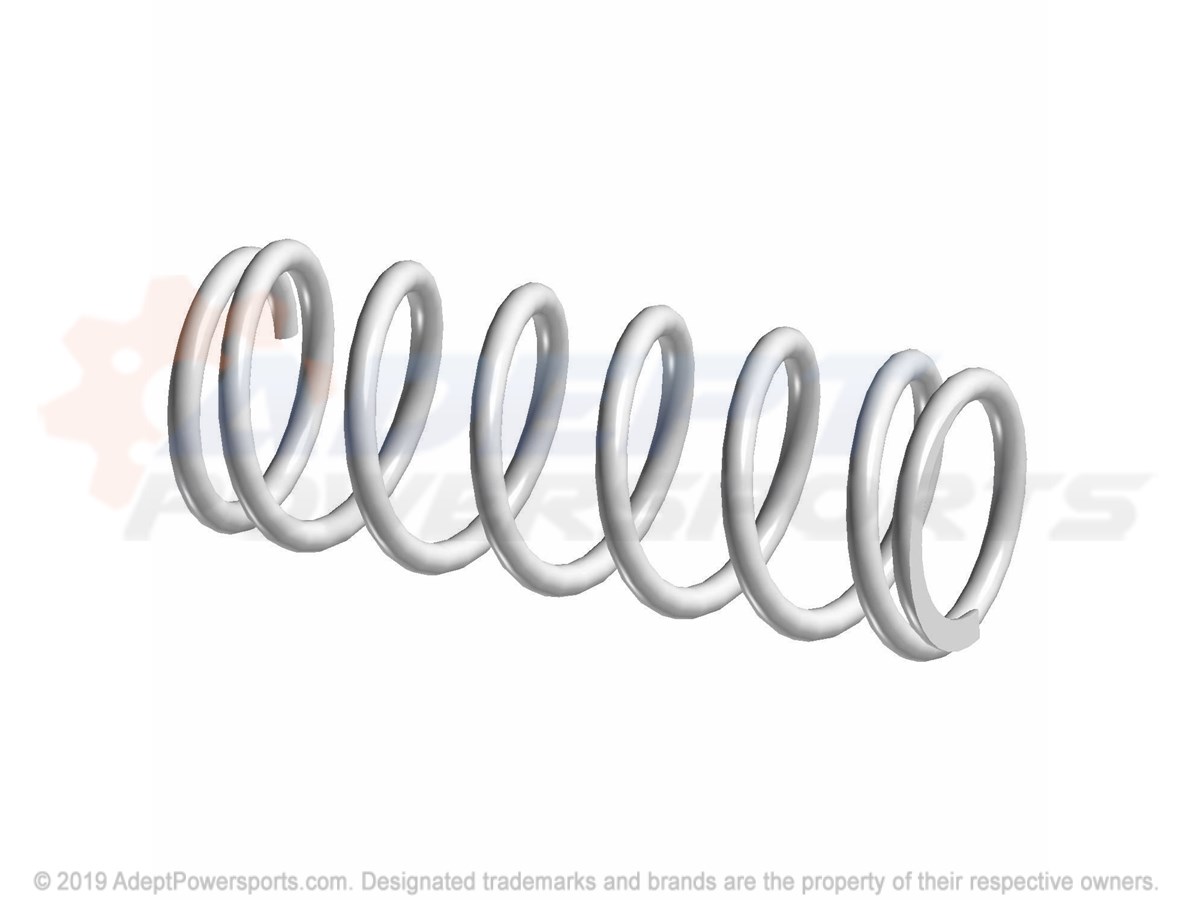

Polaris 7045319-647 Spr-200#, 12.05Fl, 3.04Id, Org

SPR-200#, 12.05FL, 3.04ID, ORG

Part #: 7045319-647 Required per assembly: 2 Note: AG
Currently Not Available
3
Polaris 7045319-385 Spr-200#, 12.05Fl, 3.04Id, C.Slv

SPR-200#, 12.05FL, 3.04ID, C.SLV

Part #: 7045319-385 Required per assembly: 2 Note: AP
Currently Not Available
4

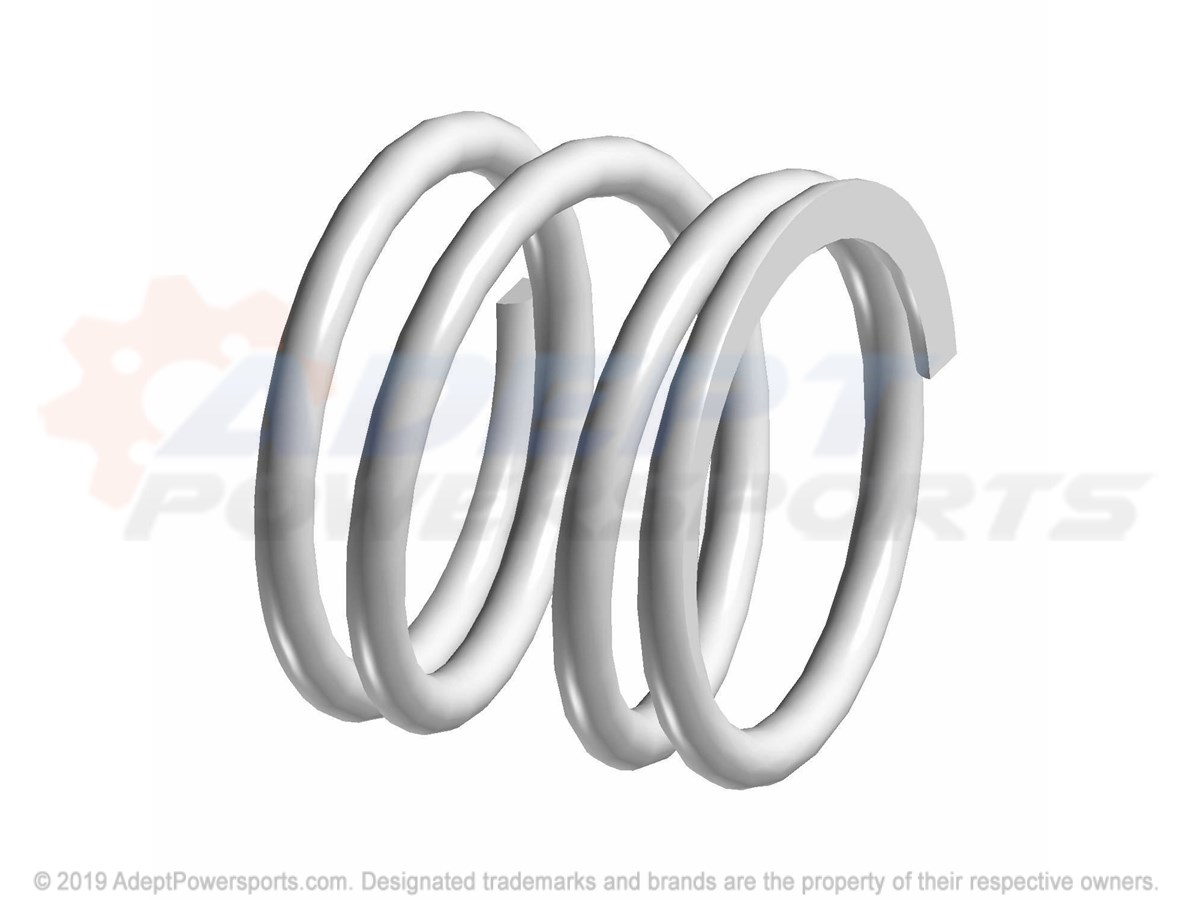

Polaris 7045320-647 Spr-400#, 2.83Fl, 3.04Id, Org

SPR-400#, 2.83FL, 3.04ID, ORG

Part #: 7045320-647 Required per assembly: 2 Note: AG
Currently Not Available
4
Polaris 7045320-385 Spr-400#, 2.83Fl, 3.04Id, C.Slv

SPR-400#, 2.83FL, 3.04ID, C.SLV

Part #: 7045320-385 Required per assembly: 2 Note: AP
Currently Not Available
5
Polaris 5450644 Spacer, Spring

SPACER, SPRING

Part #: 5450644 Required per assembly: 2
Currently Not Available
6
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 4
Currently Not Available
7
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
8
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
9

RETAINER-SPRING, CAST

Part #: 5634606 Required per assembly: 2
Currently Not Available
