OEM Parts Polaris 2020 Polaris RZR XP Turbo 3PC (R01) Rear Caliper

2020 Polaris RZR XP Turbo 3PC (R01) Z20NAE92KL - Rear Caliper

REAR CALIPER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

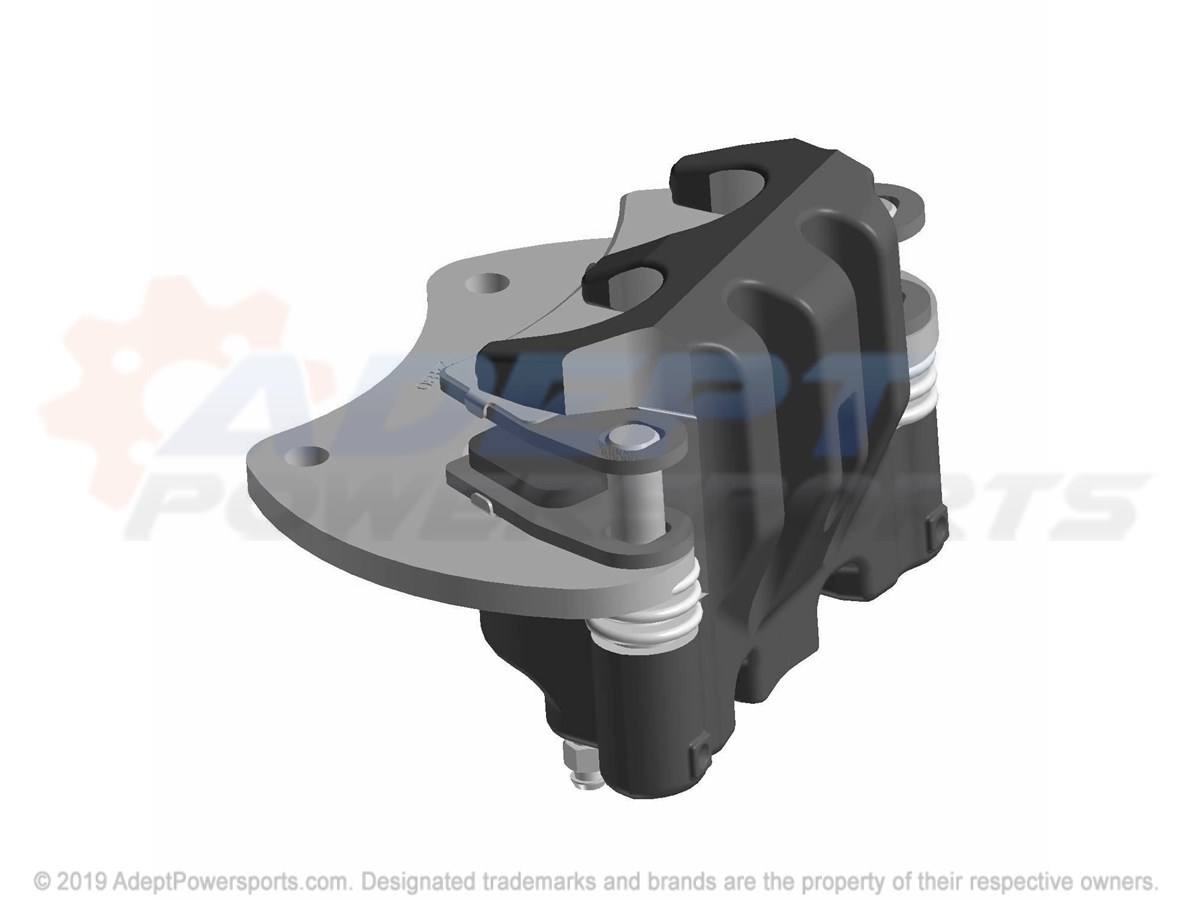

Polaris 1912479 Asm-Brk-Cal-Rr, Db1-3/16, Wt

ASM-BRK-CAL-RR, DB1-3/16, WT

Part #: 1912479 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
1

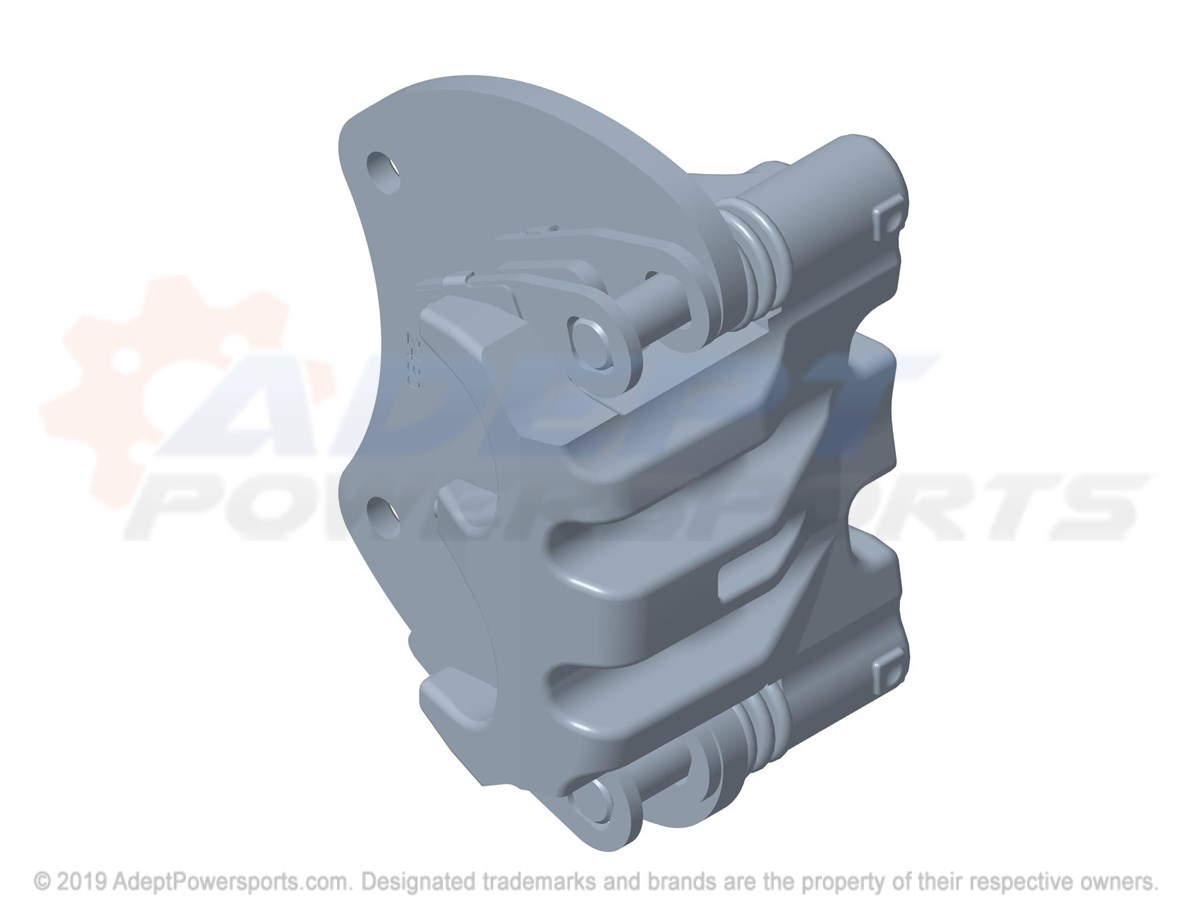

Polaris 1912478 Asm-Brk-Cal-Rl, Db1-3/16, Wt

ASM-BRK-CAL-RL, DB1-3/16, WT

Part #: 1912478 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
2

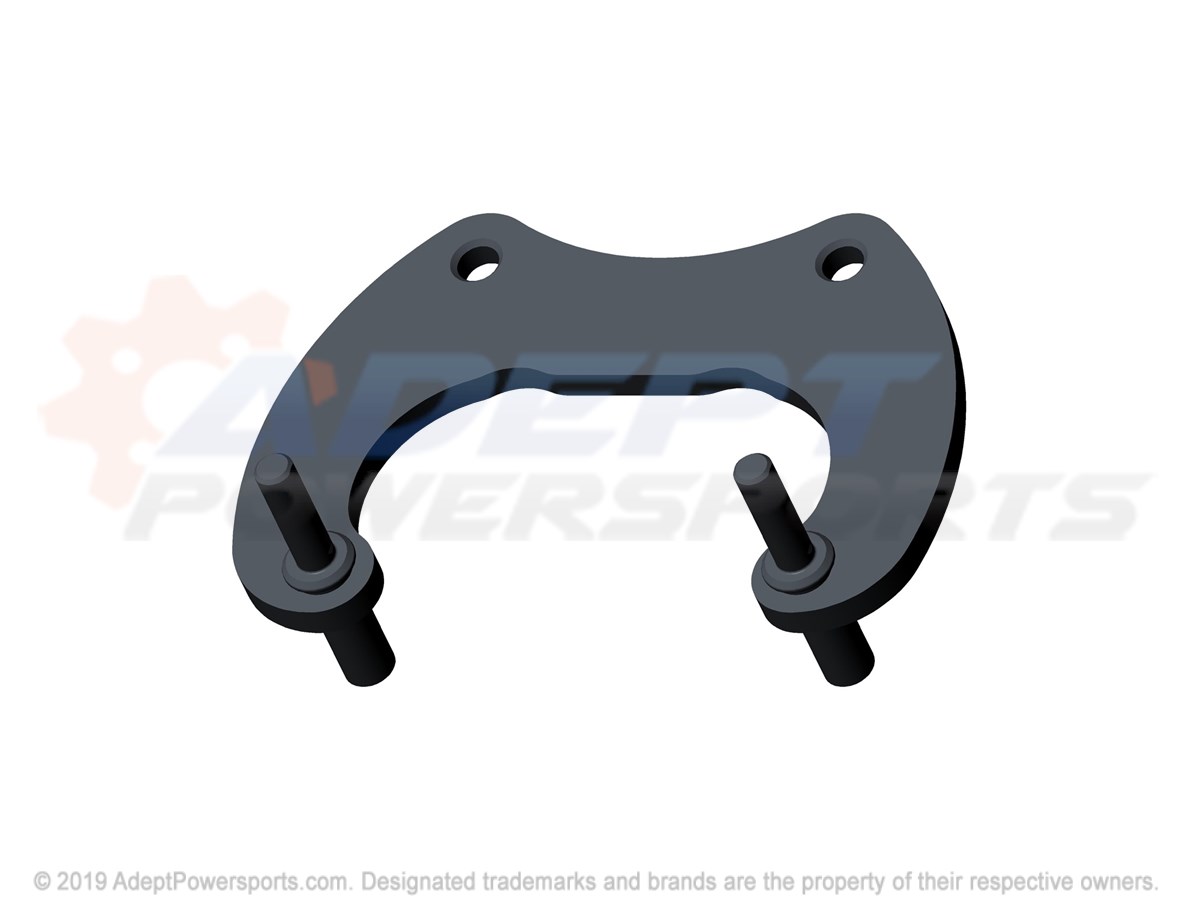

Polaris 1912480 Asm-Cal/Mnt, Db, Wt

ASM-CAL/MNT, DB, WT

Part #: 1912480 Required per assembly: 1
Currently Not Available
3
Polaris 5139188 Piston-Clpr, 1.188", Ss

PISTON-CLPR, 1.188", SS

Part #: 5139188 Required per assembly: 2
Currently Not Available
4
Polaris 5410779 Ring, Square, Molded, (.099)

RING, SQUARE, MOLDED, (.099)

Part #: 5410779 Required per assembly: 2
Currently Not Available
5
Polaris 5410780 Ring, Square, Molded, (.134)

RING, SQUARE, MOLDED, (.134)

Part #: 5410780 Required per assembly: 2
$9.99
$5.75
-
+
Add to cart
6
Polaris 5412505 Boot, Bushing

BOOT, BUSHING

Part #: 5412505 Required per assembly: 1
Currently Not Available
7
Polaris 5412506 Boot, Pin, Seal

BOOT, PIN, SEAL

Part #: 5412506 Required per assembly: 1
Currently Not Available
8

SCREW, BLEEDER

Part #: 7081343 Required per assembly: 1
Currently Not Available
9
Polaris 7518863 Screw, Socket, Set

SCREW, SOCKET, SET

Part #: 7518863 Required per assembly: 1
Currently Not Available
10

K-ASM, HD, PAD, BRK, DB, 1.375

Part #: 2208933 Required per assembly: 1 Note: OPTIONAL
Currently Not Available
10
Polaris 2205949 K-Asm, Pad, Brake, Db, 1.375

K-ASM, PAD, BRAKE, DB, 1.375

Part #: 2205949 Required per assembly: 1 Note: INCL. 2 PADS
Currently Not Available
