Secondary Clutch replacement parts for 2020 Polaris RZR XP Turbo 3PC (R01)

OEM Parts Polaris 2020 Polaris RZR XP Turbo 3PC (R01) Secondary Clutch

SECONDARY CLUTCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

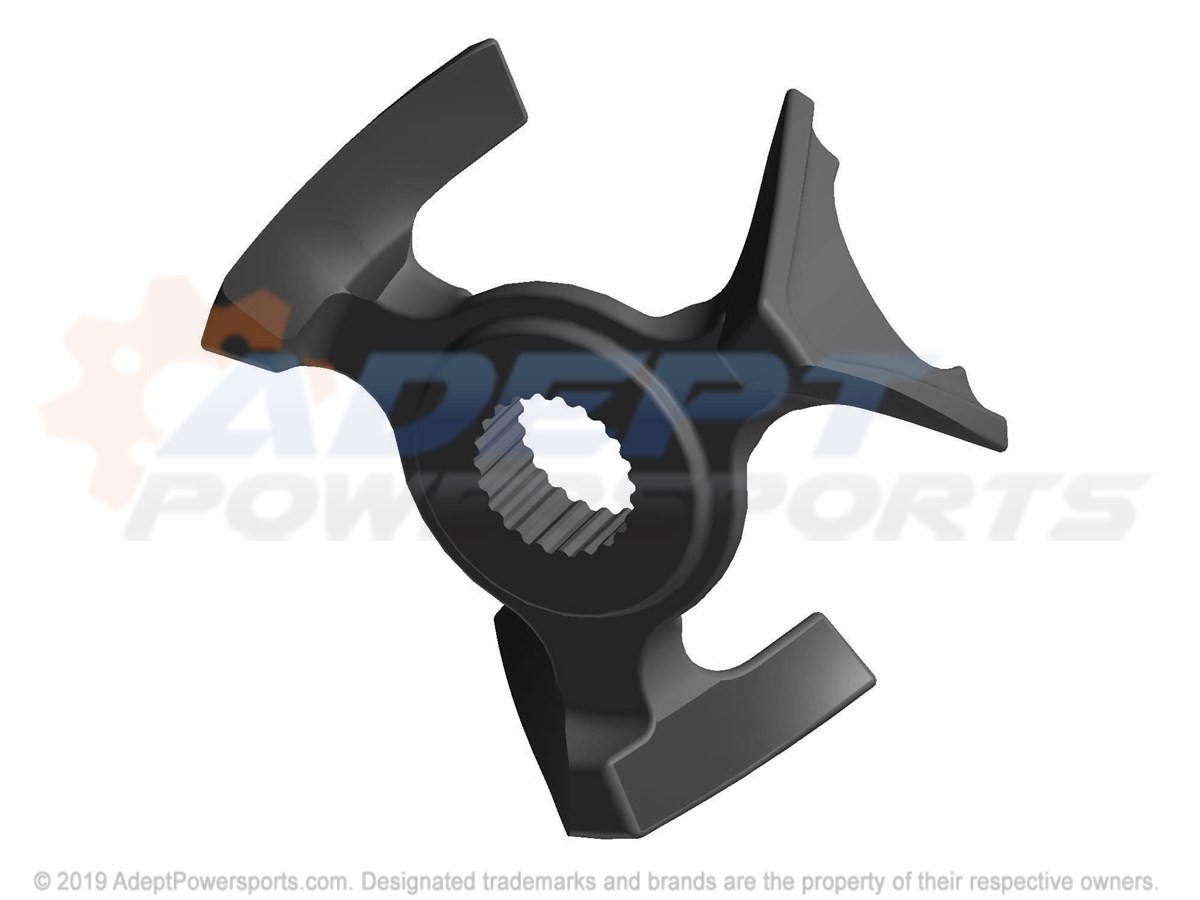

1	HELIX-DRIVEN, HD, MACH-53/49 Part #: 5140924 Required per assembly: 1 Currently Not Available
2	ASM-DRIVEN, CLUTCH, BASIC Part #: 1323394 Required per assembly: 1 Note: INCL. 3-11 Currently Not Available
3	BEARING-DU, 22X25 Part #: 3514902 Required per assembly: 2 Currently Not Available
4	BEARING-DU, 30X15 Part #: 3514904 Required per assembly: 1 Currently Not Available
5	BEARING-DU, 30X20 Part #: 3514919 Required per assembly: 1 Currently Not Available
6	COVER-DRIVEN, MACH, HD Part #: 5139820 Required per assembly: 1 Currently Not Available
7	POST-CLUTCH, DRIVEN Part #: 5140678 Required per assembly: 1 Currently Not Available
8	SLIDER-DRIVEN, HD Part #: 5452016 Required per assembly: 3 Currently Not Available
9	SCR-TXBH-M5X0.8X12 10.9ZPC P30 Part #: 7520385 Required per assembly: 6 Currently Not Available
10	SCR-TXFH-M6X1.0X20 8.8ZOD Part #: 7520219 Required per assembly: 3 Currently Not Available
11	BUTTON-HELIX, HD Part #: 5453660 Required per assembly: 3 Currently Not Available

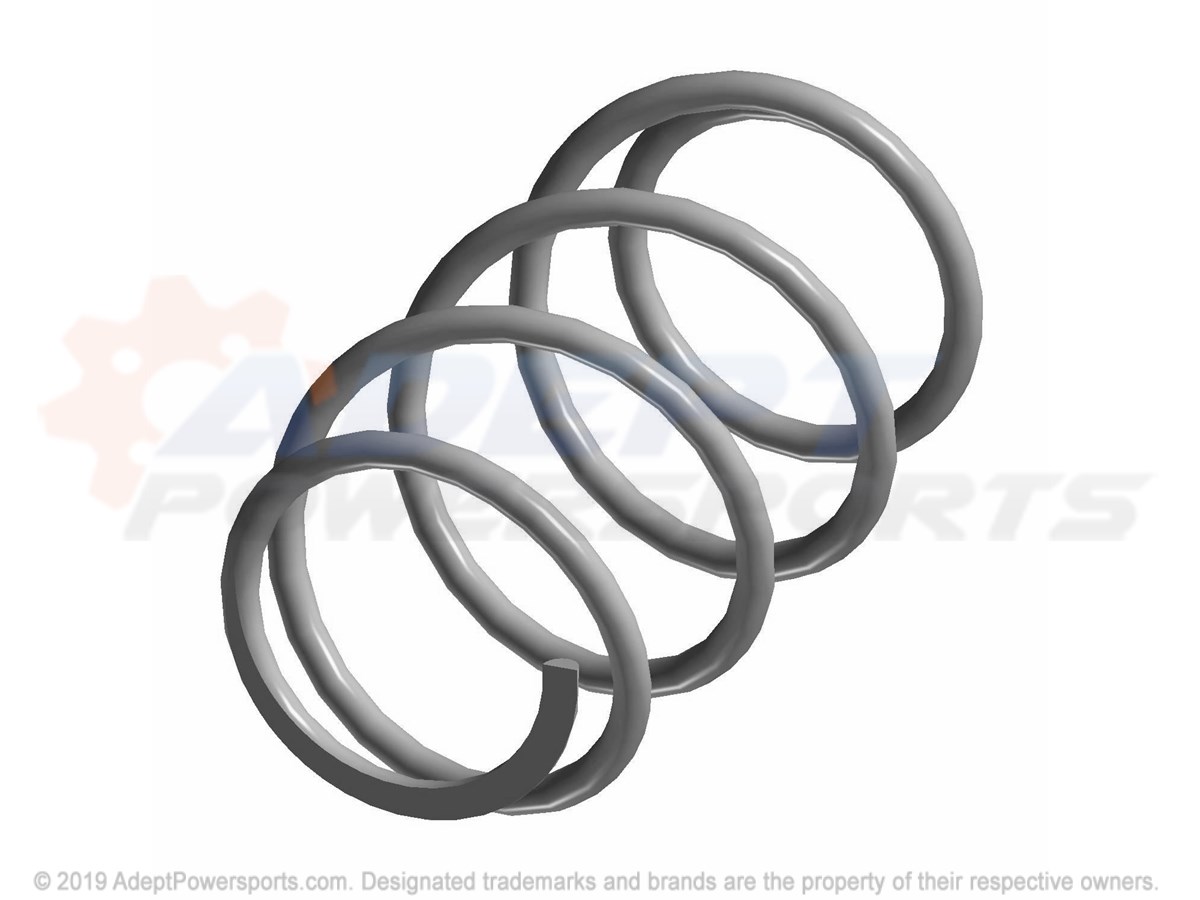

12	SPRING-DRIVEN, HD, 140-200 Part #: 7044369 Required per assembly: 1 Currently Not Available
13	SPACER-CLUTCH, LIMITER Part #: 5453070 Required per assembly: 1 Currently Not Available
14	BELT-DRIVE Part #: 3211202 Required per assembly: 1 Currently Not Available
15	BRG-THRUST, DU, 20 Part #: 3514905 Required per assembly: 1 Currently Not Available
16	WASHER-CUP Part #: 7557154 Required per assembly: 1 Currently Not Available
17	SCR-HXFL-M10X1.25X75 10.9 ZOD Part #: 7519286 Required per assembly: 1 Currently Not Available
