OEM Parts Polaris 2020 Polaris RZR XP Turbo 3PC (R01) Turbo Charger

2020 Polaris RZR XP Turbo 3PC (R01) Z20NAE92KL - Turbo Charger

TURBO CHARGER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1205689 Asm-Turbo, Complete

ASM-TURBO, COMPLETE

Part #: 1205689 Required per assembly: 1 Note: INCL. ALL
Currently Not Available
2

K-ACTUATOR HARDWARE

Part #: 2205930 Required per assembly: 1
Currently Not Available
3

K-BANJO, BOOST, REF

Part #: 2205932 Required per assembly: 1
Currently Not Available
4

K-ACTUATOR

Part #: 2205929 Required per assembly: 1
Currently Not Available
5

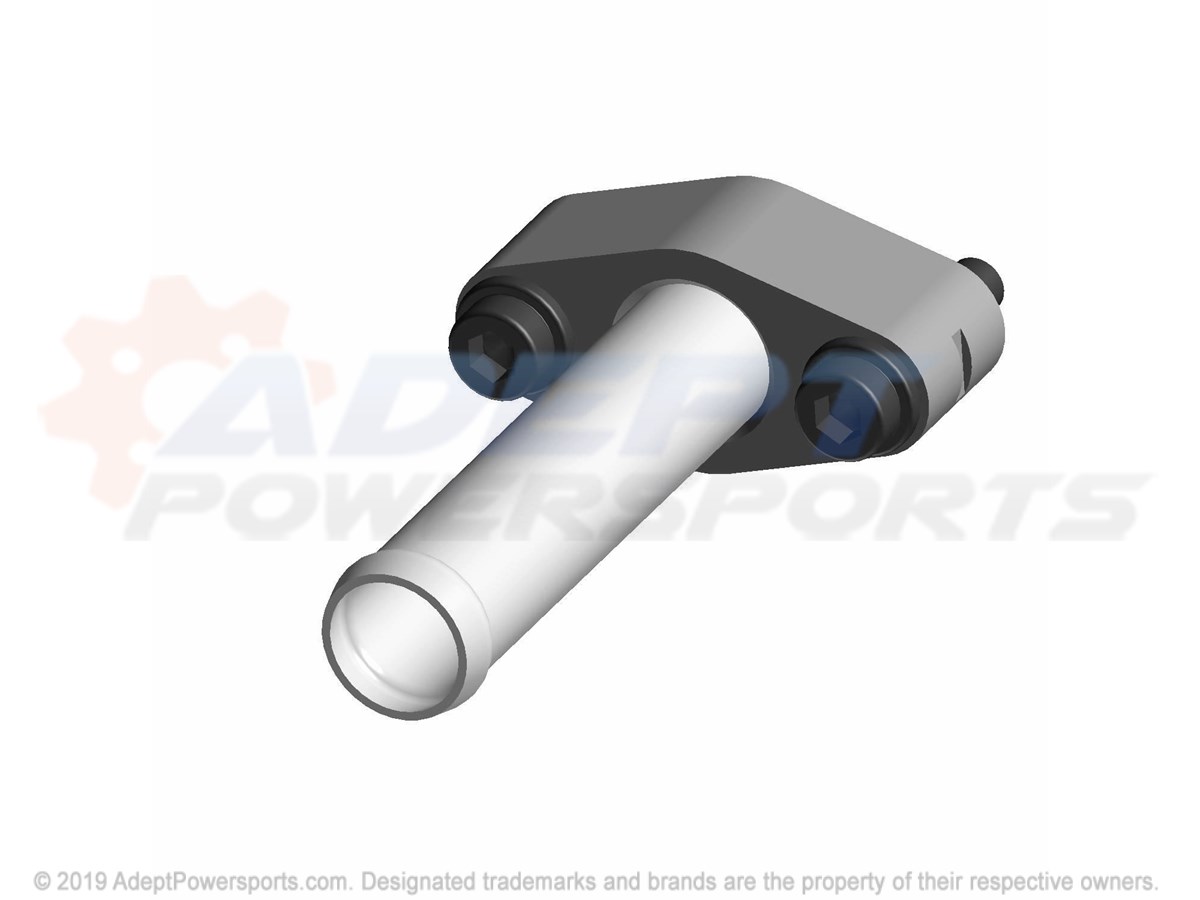

Polaris 2206689 K-Turbo Drain Tube

K-TURBO DRAIN TUBE

Part #: 2206689 Required per assembly: 1 Note: INCL. 6, TUBE
Currently Not Available
6

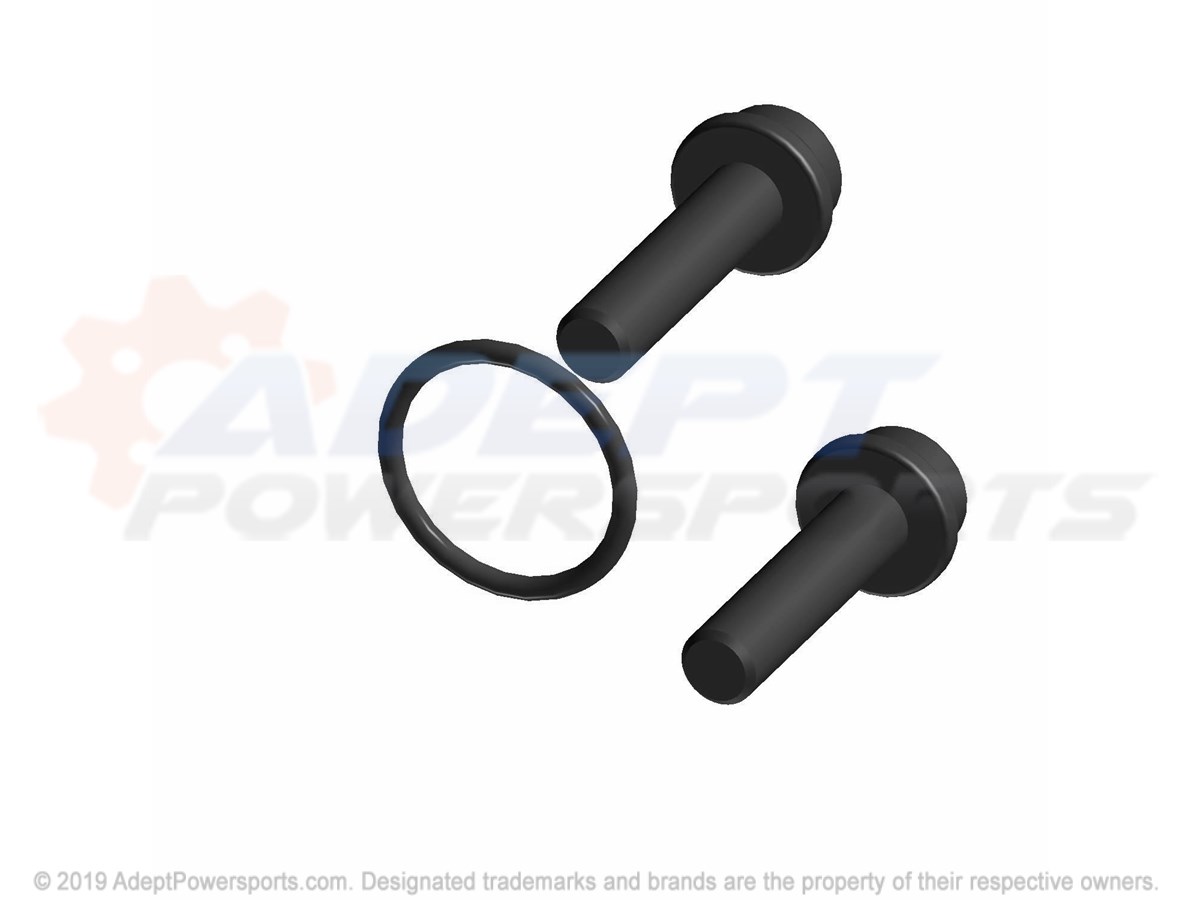

Polaris 2207069 K-Oring

K-ORING

Part #: 2207069 Required per assembly: 1 Note: INCL. BOLTS, O-RING
Currently Not Available
