Front Bumper replacement parts for 2020 Polaris RZR XP 4 Turbo S (R04)

OEM Parts Polaris 2020 Polaris RZR XP 4 Turbo S (R04) Front Bumper

FRONT BUMPER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GRILLE-FRONT, FASCIA, T, BLK Part #: 5455542-070 Required per assembly: 1 Note: M99AL Currently Not Available
2	GRILLE-FRONT, FASCIA, LH, BLK Part #: 5454587-070 Required per assembly: 1 Currently Not Available
3	GRILLE-FRONT, FASCIA, RH, BLK Part #: 5454588-070 Required per assembly: 1 Currently Not Available
4	FASCIA-FRONT, PNTD, GH.GRAY Part #: 5454743-728 Required per assembly: 1 Note: L92AG Currently Not Available
4	FASCIA-FRONT, PNTD, MT, NAVY, BLUE Part #: 5454743-726 Required per assembly: 1 Note: L92AP Currently Not Available

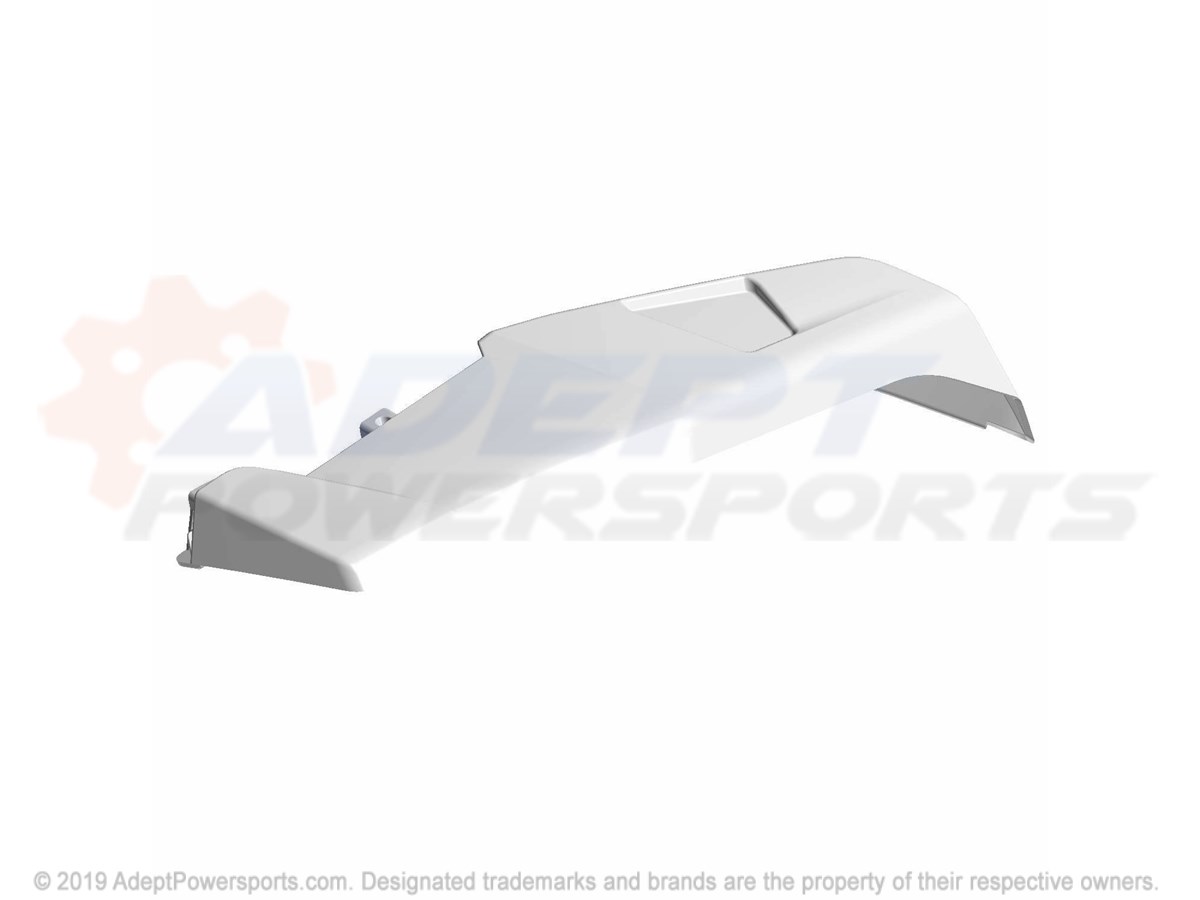

5	PANEL-DFLCTR, LH, PNTD, M, NVY, BLU Part #: 5454744-726 Required per assembly: 1 Note: L92AP Currently Not Available
5	PANEL-DFLCTR, LH, PNTD, CR.BLK Part #: 5454744-266 Required per assembly: 1 Note: L92AG Currently Not Available
5	PANEL-DFLCTR, LH, TXT, BLK Part #: 5455472-070 Required per assembly: 1 Note: L92AG Currently Not Available
6	PANEL-DFLCTR, RH, TXT, BLK Part #: 5455473-070 Required per assembly: 1 Note: L92AG Currently Not Available
6	PANEL-DFLCTR, RH, PNTD, M, NVY, BLU Part #: 5454745-726 Required per assembly: 1 Note: L92AP Currently Not Available
6	PANEL-DFLCTR, RH, PNTD, CR.BLK Part #: 5454745-266 Required per assembly: 1 Note: L92AG Currently Not Available

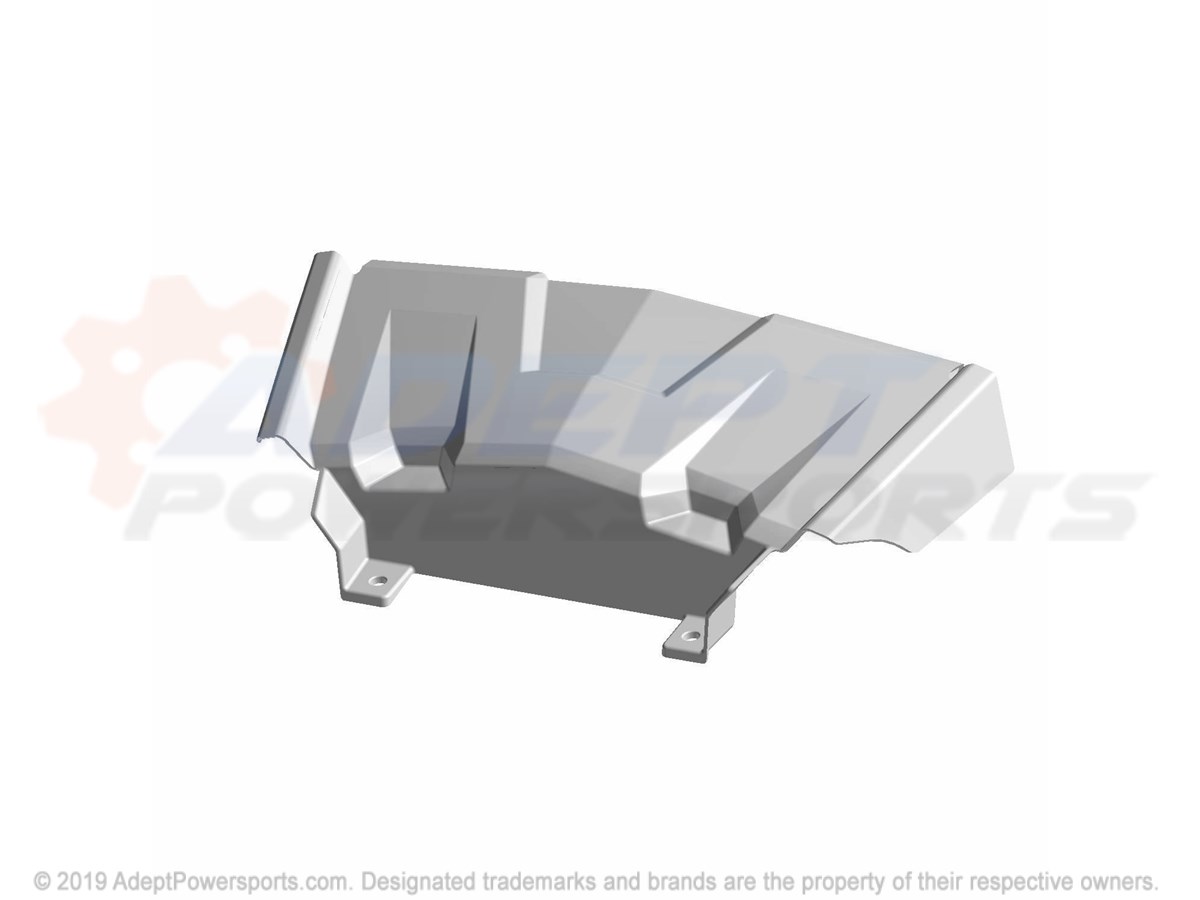

7	COVER-WINCH, PNT, G.GRAY Part #: 5455020-728 Required per assembly: 1 Note: L92AG Currently Not Available
7	COVER-WINCH, PNT, TTM, M, NVY, BLU Part #: 5455020-726 Required per assembly: 1 Note: L92AP Currently Not Available
8	SCREW Part #: 7519045 Required per assembly: 8 Currently Not Available
9	SCREW Part #: 7519650 Currently Not Available
10	SCREW Part #: 7518238 Required per assembly: 4 ~~$3.79~~ $1.73 - + Add to cart
