Front Caliper replacement parts for 2020 Polaris RZR XP 4 Turbo S (R04)

OEM Parts Polaris 2020 Polaris RZR XP 4 Turbo S (R04) Front Caliper

FRONT CALIPER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

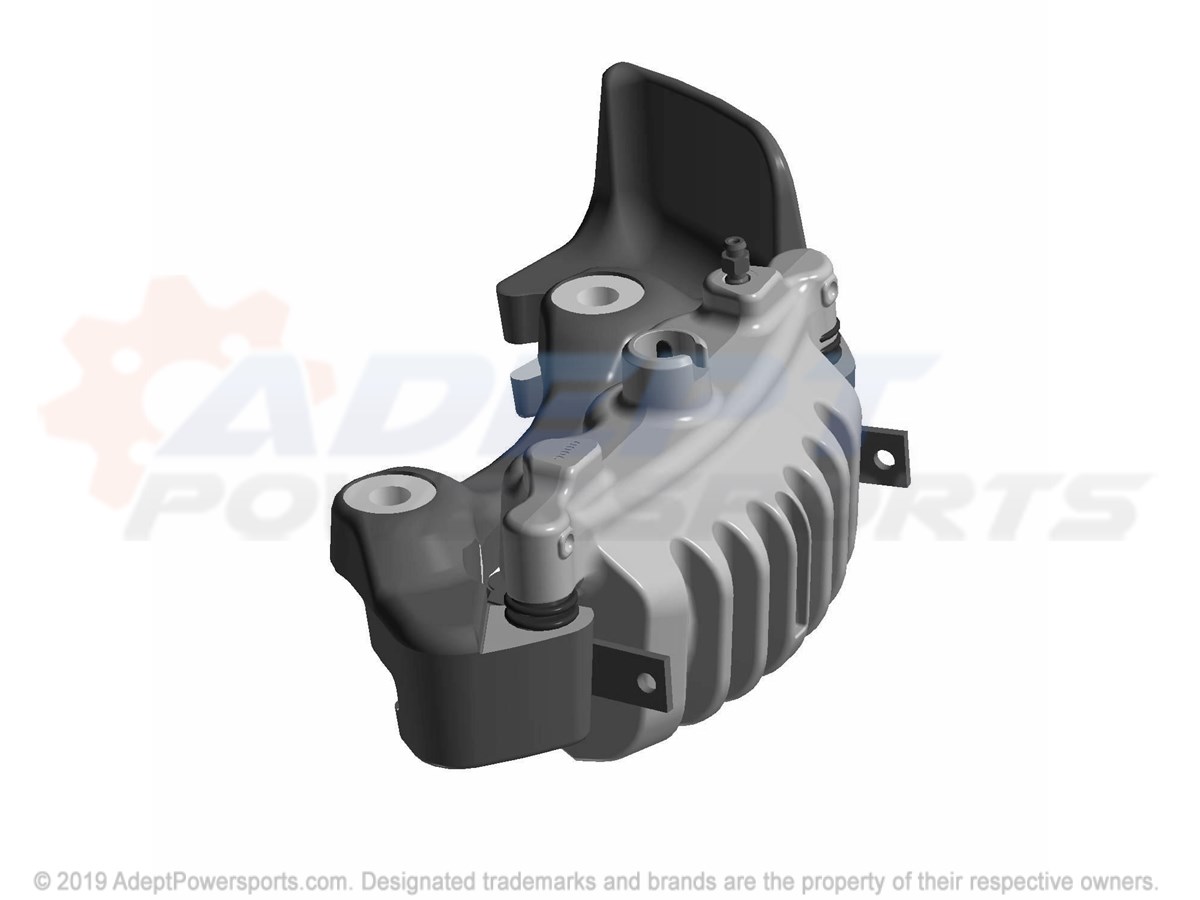

1	ASM-BRK-CAL-FL-3-PISTON, WT Part #: 1913766 Required per assembly: 1 Note: INCL. ALL Currently Not Available

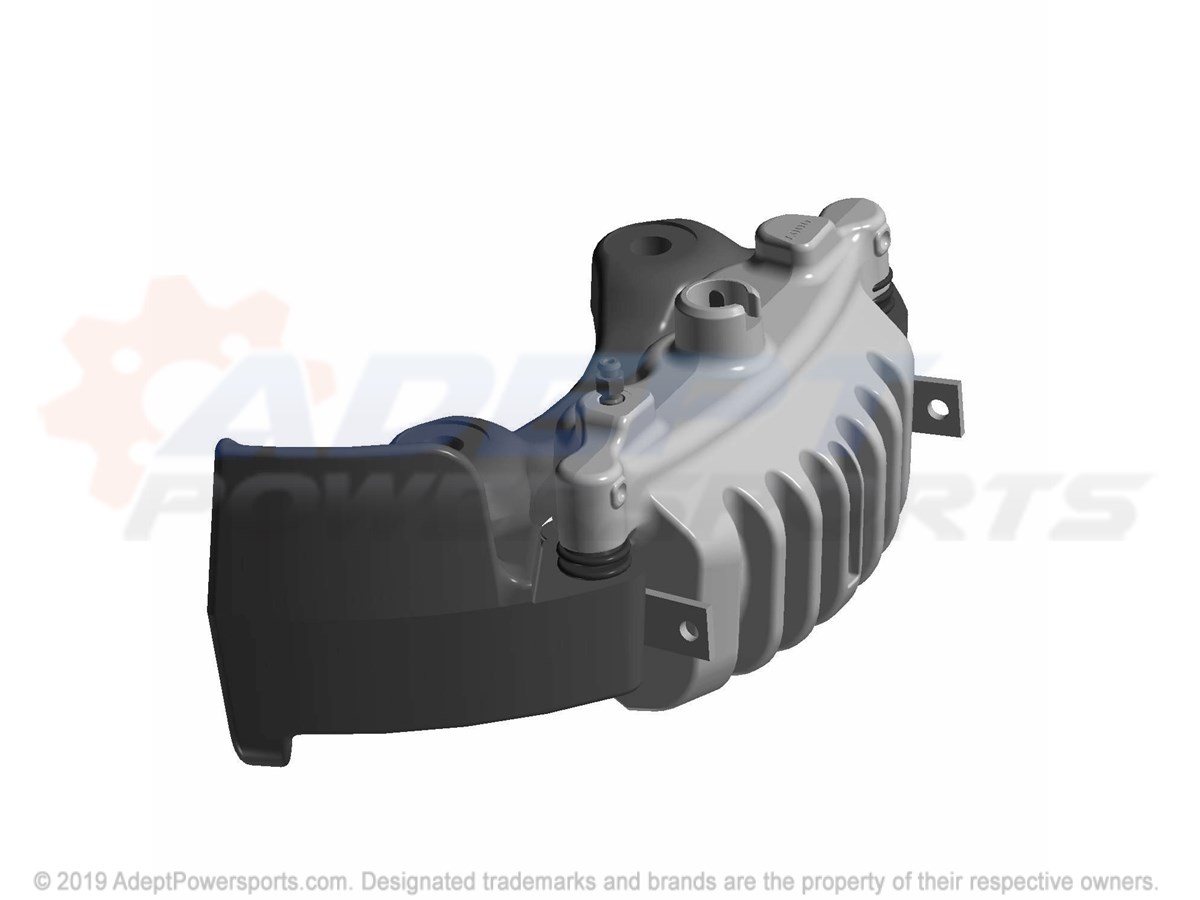

1	ASM-BRK-CAL-FR-3-PISTON, WT Part #: 1913767 Required per assembly: 1 Note: INCL. ALL Currently Not Available

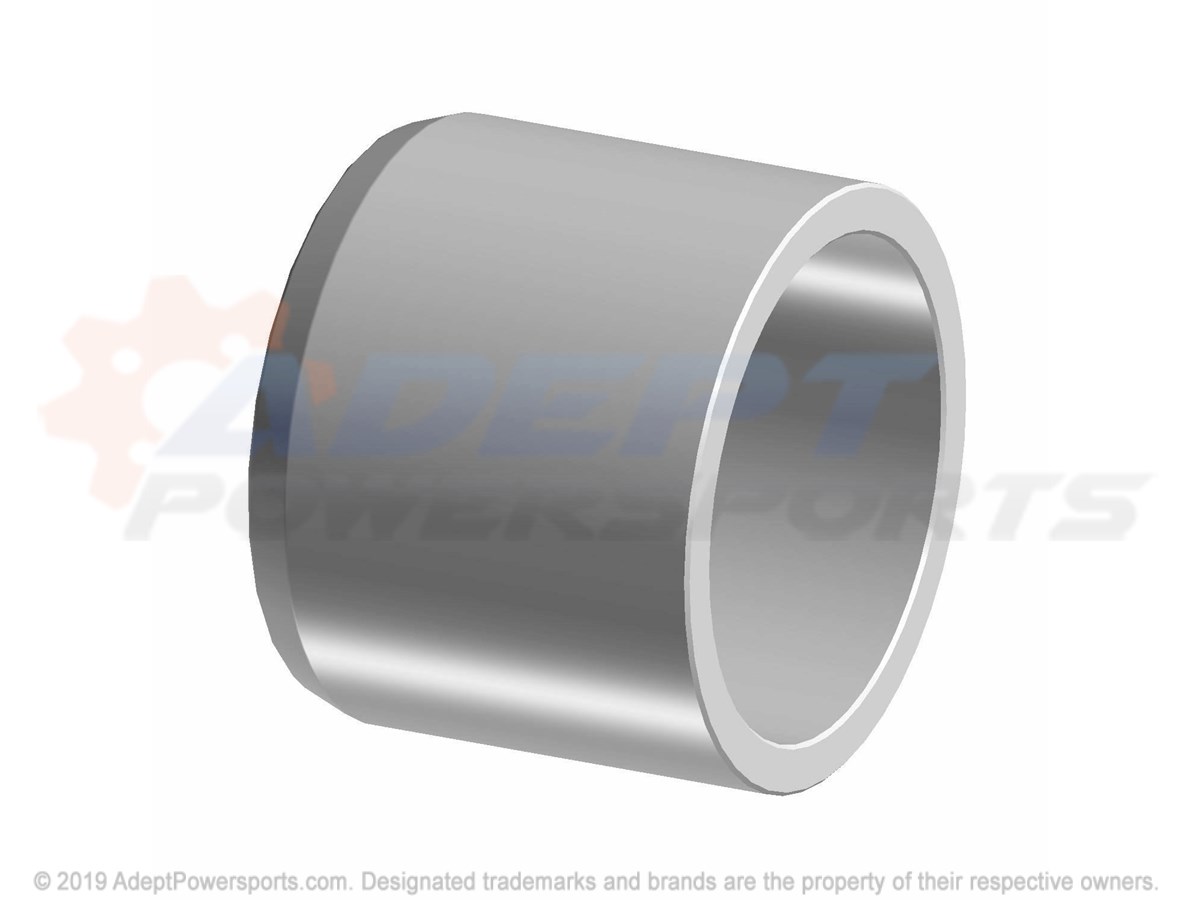

2	PISTON-CLPR, 1.5", SS, 303 Part #: 5143050 Required per assembly: 1 Currently Not Available
3	PISTON, CALIPER Part #: 5139187 Required per assembly: 2 Currently Not Available
4	SEAL, CALIPER, INNER Part #: 5412010 Required per assembly: 2 Currently Not Available
5	SEAL, CALIPER, INNER Part #: 5412907 Required per assembly: 4 Currently Not Available
6	SCREW, BLEEDER Part #: 7081343 Required per assembly: 1 Currently Not Available

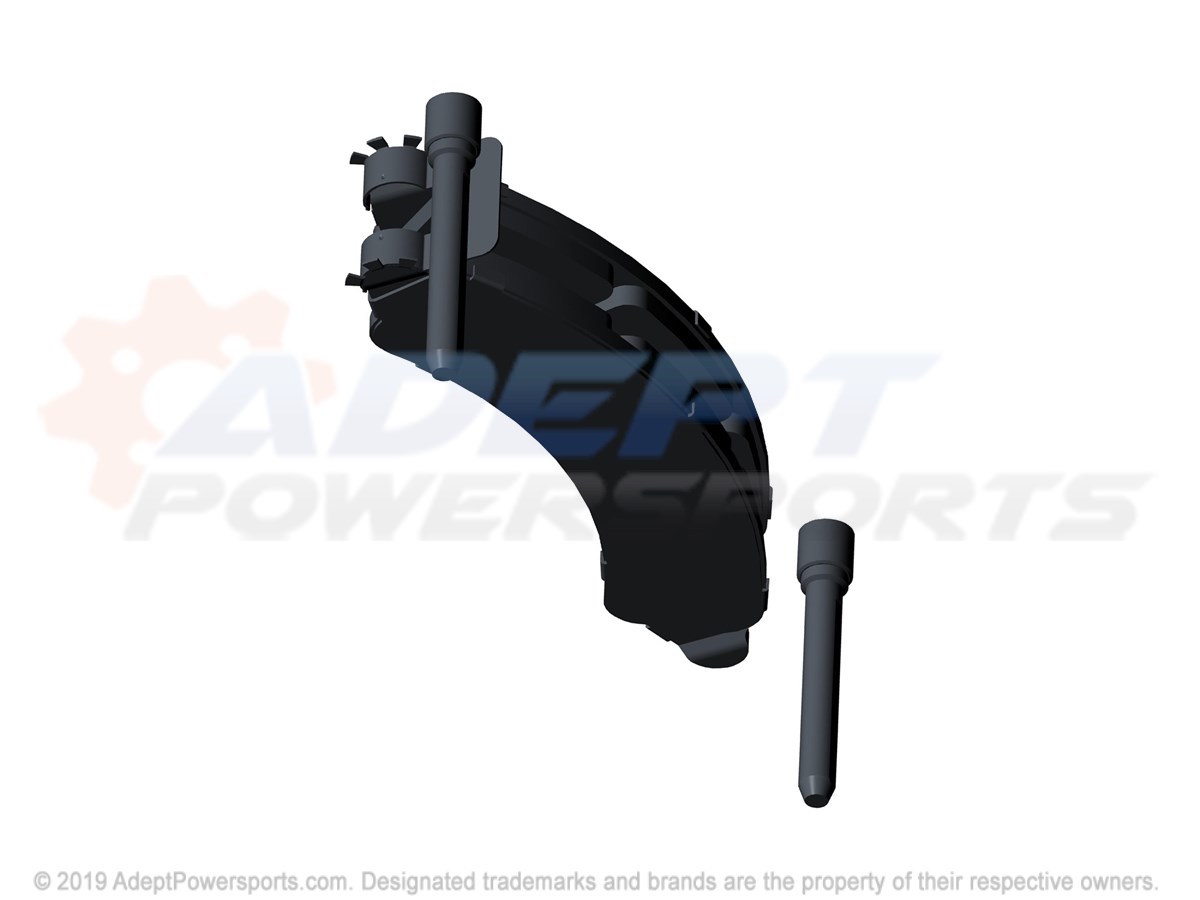

7	K, BRAKE-PADS Part #: 2207667 Required per assembly: 1 Note: INCL. 2 PADS, 8,9 Currently Not Available
8	PIN, BRACKET-SLIDE Part #: 1913339 Required per assembly: 2 Currently Not Available
10	CALIPER, CARRIER, LEFT Part #: 5143107 Required per assembly: 1 Currently Not Available
11	BOOT, PIN, SEAL Part #: 5412506 Required per assembly: 2 Currently Not Available
