Front Shock Mounting replacement parts for 2020 Polaris RZR XP 4 Turbo S (R04)

OEM Parts Polaris 2020 Polaris RZR XP 4 Turbo S (R04) Front Shock Mounting

FRONT SHOCK MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SPACER-SPRING, 2.5" Part #: 5456620 Required per assembly: 2 Currently Not Available

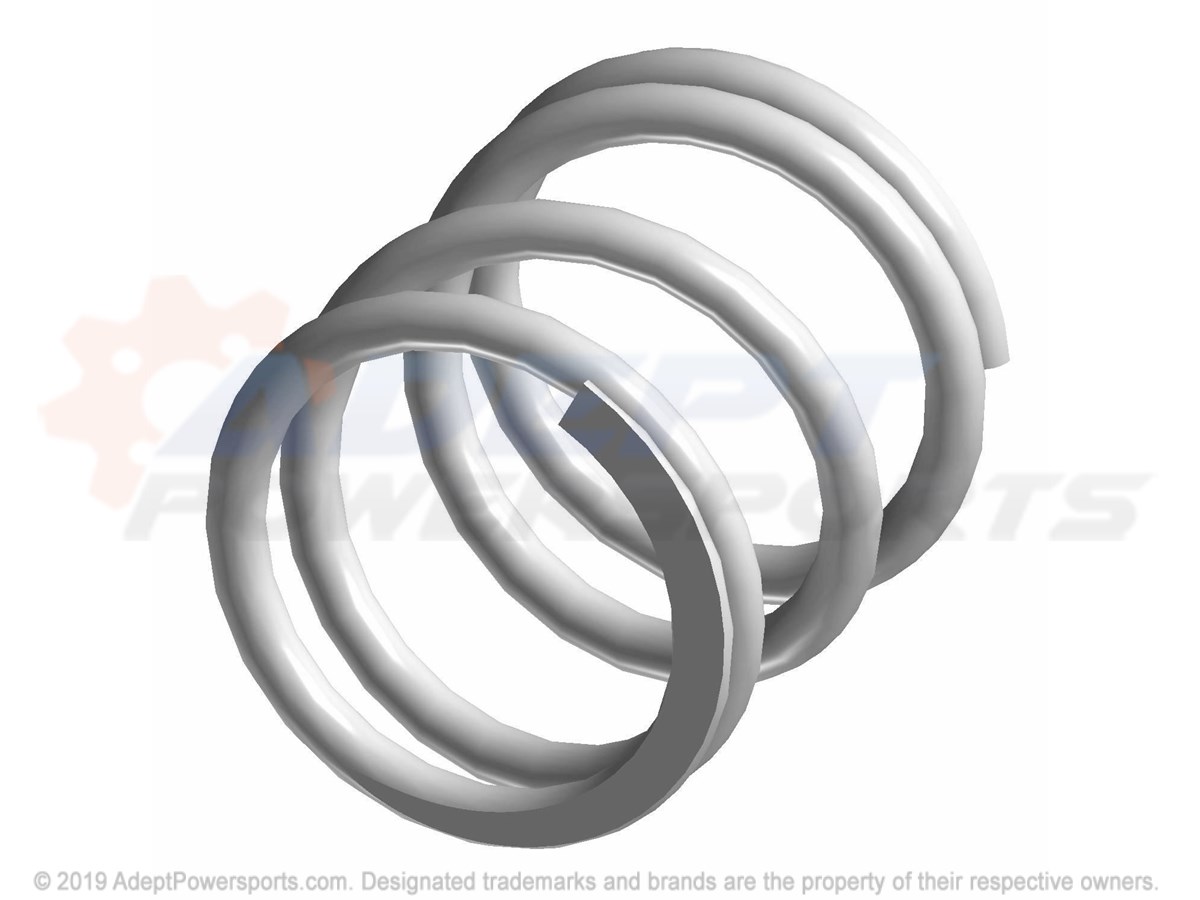

2	SPR-FRONT, TENDER, GHOST, GRAY Part #: 7045141-728 Required per assembly: 2 Note: L92AG Currently Not Available
2	SPR-FRONT, TENDER, I.S.BLUE Part #: 7045141-737 Required per assembly: 2 Note: L92AP Currently Not Available

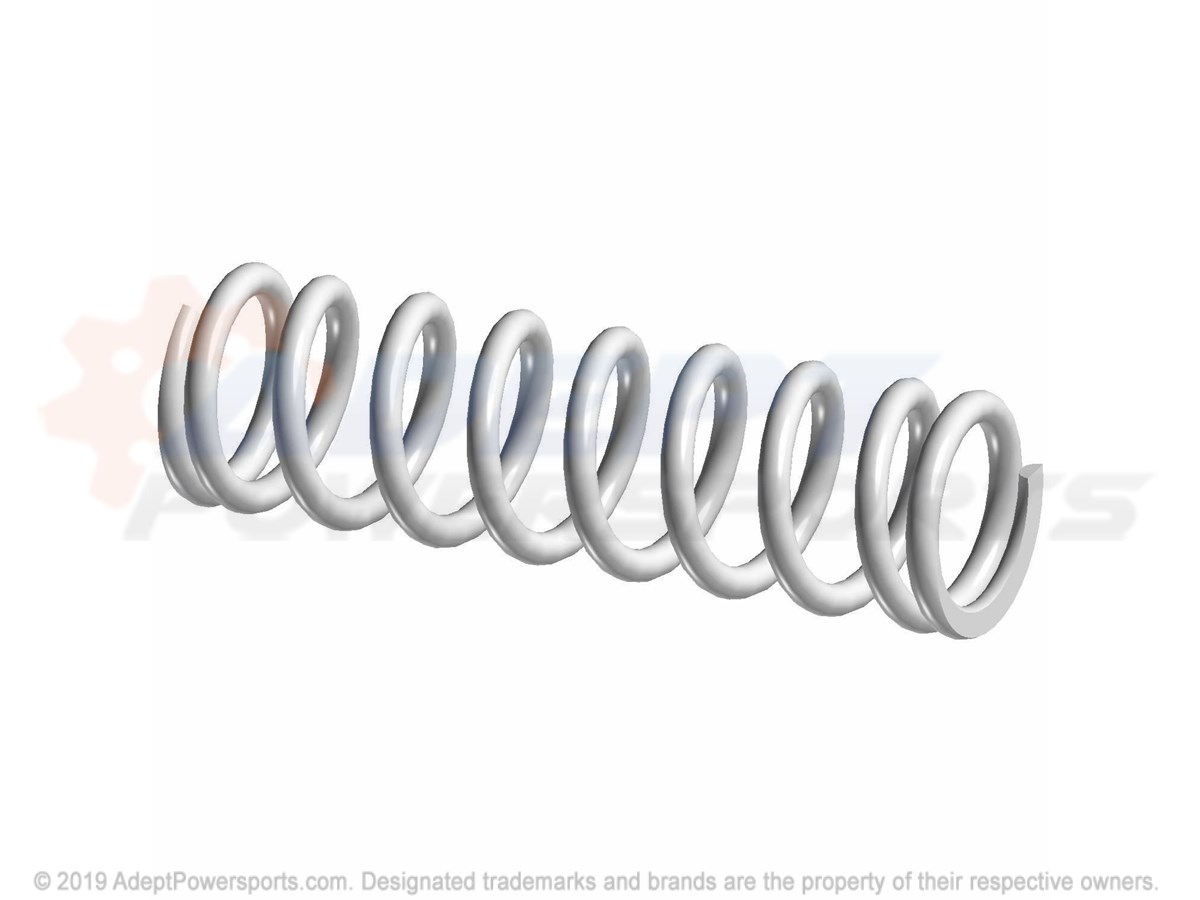

3	SPR-FRONT, MAIN, GHOST, GRAY Part #: 7045142-728 Required per assembly: 2 Note: L92AG Currently Not Available
3	SPR-FRONT, MAIN, I.S.BLUE Part #: 7045142-737 Required per assembly: 2 Note: L92AP Currently Not Available
4	SHOCK-FRONT, 72, IBPLV, LTD, LH Part #: 7045406 Required per assembly: 1 Currently Not Available
5	SHOCK-FRONT, 72, IBPLV, LTD, RH Part #: 7045407 Required per assembly: 1 Currently Not Available
6	SCR-HXFL-M12X1.5X65 10.9 ZOD Part #: 7520477 Required per assembly: 4 Currently Not Available
7	NUT, NYLOK Part #: 7547334 Required per assembly: 4 Currently Not Available
8	WASHER-FL, 13X2.5 Part #: 7556287 Required per assembly: 4 Currently Not Available
9	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 2 Currently Not Available
