Brake Lines And Master Cylinder replacement parts for 2020 Polaris RZR PRO XP (R05)

OEM Parts Polaris 2020 Polaris RZR PRO XP (R05) Brake Lines And Master Cylinder

BRAKE LINES AND MASTER CYLINDER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available
2	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
3	ASM-MASTER, CYL, TANDEM, 3-4BORE Part #: 1913289 Required per assembly: 1 Currently Not Available
4	LINE-BRK, FL Part #: 1913453 Required per assembly: 1 Currently Not Available
5	LINE-BRK, FR Part #: 1913477 Required per assembly: 1 Currently Not Available
6	LINE-BRK, RL, 60, 90F, 90D75B, 106? Part #: 1913557 Required per assembly: 1 Currently Not Available
7	LINE-BRK, RR Part #: 1913558 Required per assembly: 1 Currently Not Available
8	LINE-BRK, MCT, 71, 70B, 20F, 210?, J Part #: 1913200 Required per assembly: 1 Currently Not Available
9	SWITCH-BRK, M10X1.25, DBL Part #: 4081117 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available
12	GUIDE, BRAKE, LINE, REAR, LH Part #: 5455385 Required per assembly: 1 Currently Not Available
13	GUIDE, BRAKE, LINE, REAR, RH Part #: 5455386 Required per assembly: 1 Currently Not Available

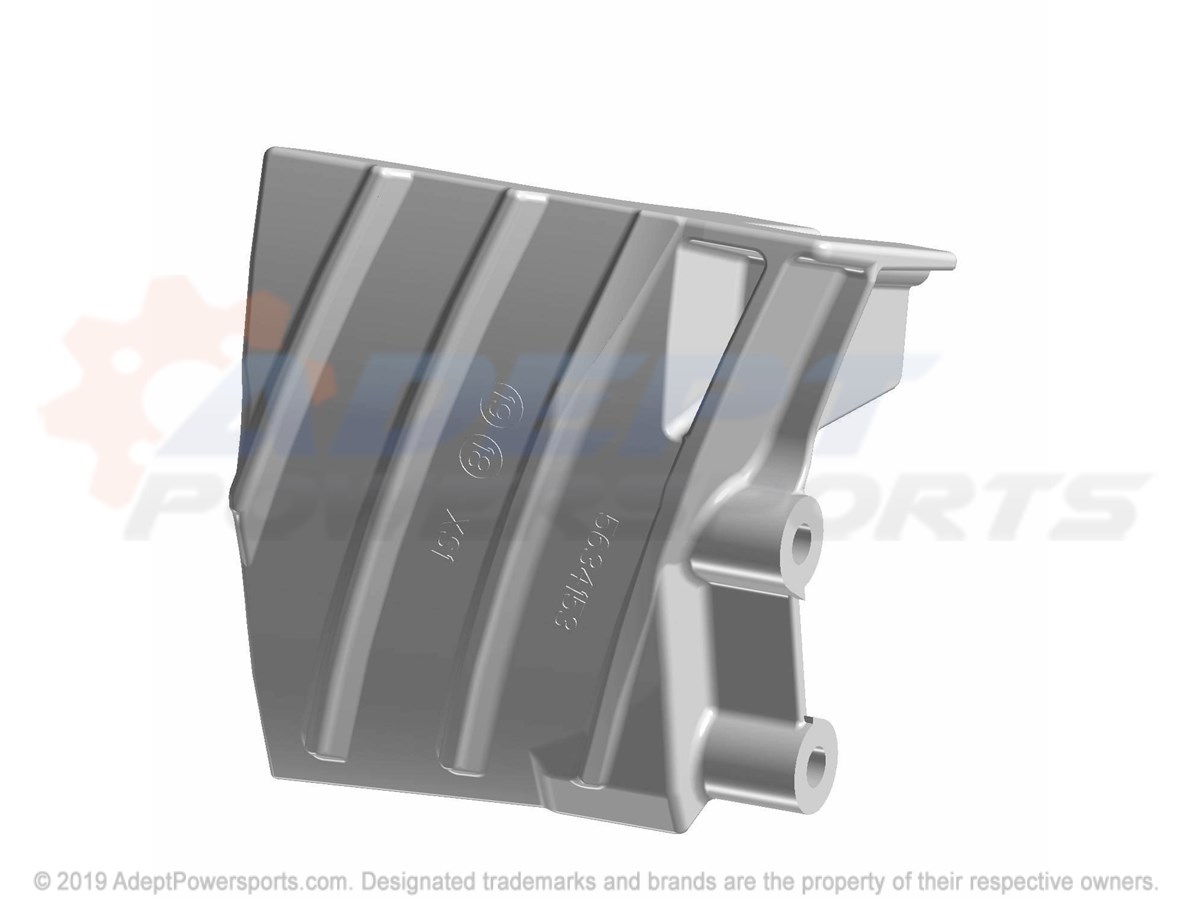

14	SCRAPER, RZR, T, FRONT, LH Part #: 5634153 Required per assembly: 1 Currently Not Available

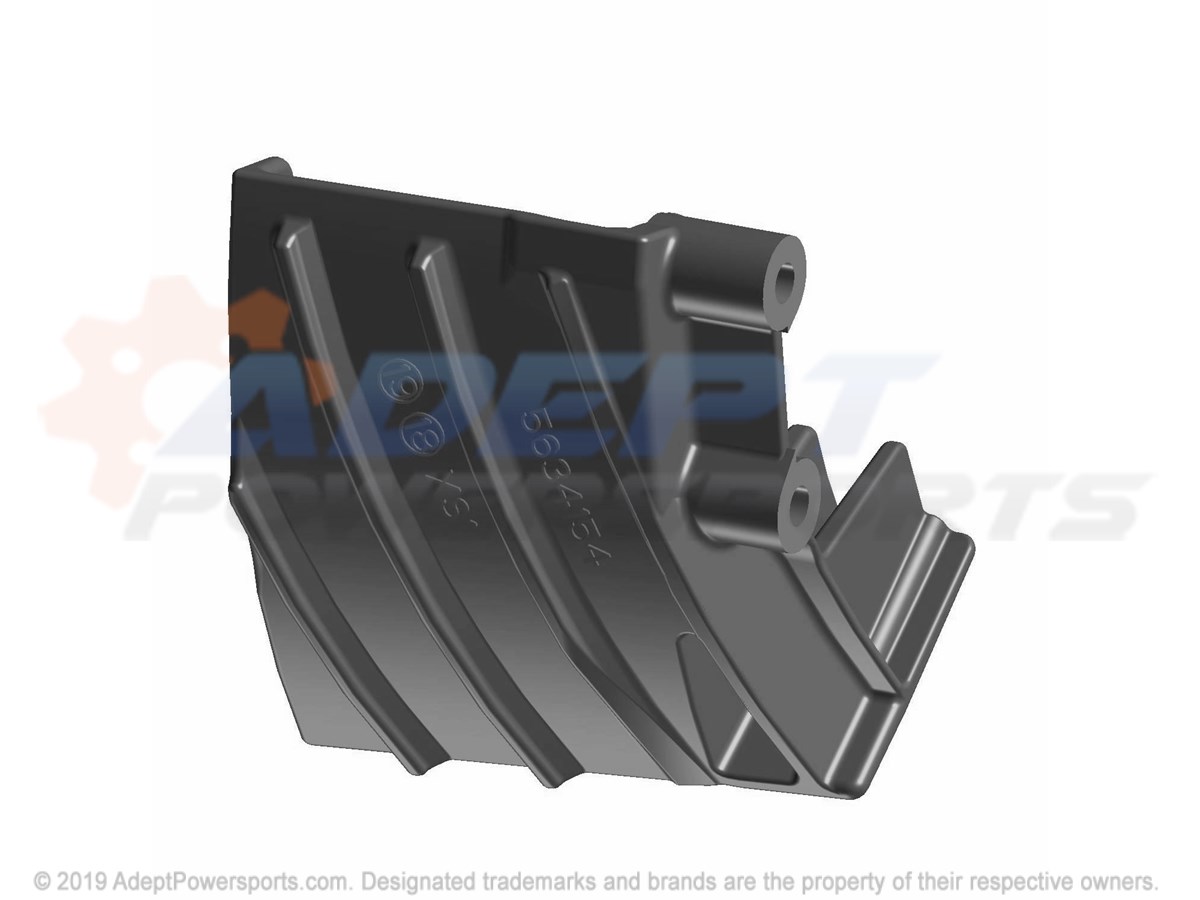

15	SCRAPER, RZR, T, FRONT, RH Part #: 5634154 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7512025 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7516823 Required per assembly: 4 Currently Not Available
18	SCREW, FLANGE Part #: 7518559 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
19	BOLT Part #: 7518760 Required per assembly: 4 Note: Bolt Currently Not Available
20	SCREW Part #: 7519280 Required per assembly: 4 Currently Not Available
21	SCREW, FLANGE Part #: 7519298 Required per assembly: 2 Currently Not Available
22	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
23	NUT, FLANGE Part #: 7547453 Required per assembly: 4 Currently Not Available
24	CLIP-NYLON, C, FIR-TREE Part #: 7662310 Required per assembly: 11 ~~$3.99~~ $2.30 - + Add to cart
25	RIVET-POP 5/32(.188-.250)-LF-B Part #: 7662408 Required per assembly: 19 Currently Not Available
