Main Frame And Skid Plates replacement parts for 2020 Polaris RZR PRO XP (R05)

OEM Parts Polaris 2020 Polaris RZR PRO XP (R05) Main Frame And Skid Plates

MAIN FRAME AND SKID PLATES Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-MAINFRAME, ISO, 64, BLK Part #: 1023857-458 Required per assembly: 1 Currently Not Available
2	WELD-MOUNT, PROPSHAFT, ECOAT Part #: 1023970-329 Required per assembly: 1 Currently Not Available
3	SCREW, FLANGE Part #: 7518450 Required per assembly: 4 Currently Not Available

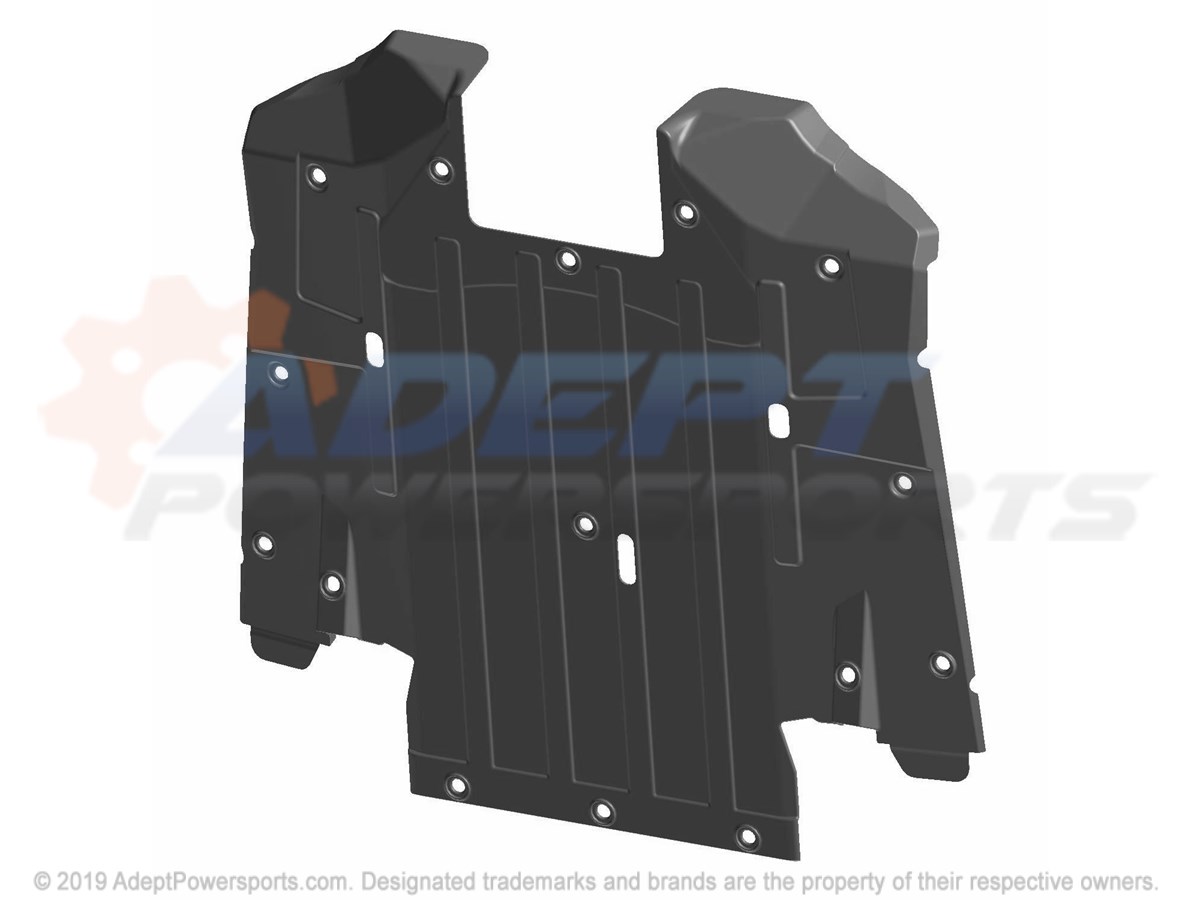

4	PLATE-SKID, FRONT, BLK Part #: 5456058-070 Required per assembly: 1 Currently Not Available
5	PLATE-SKID, REAR, BLK Part #: 5456082-070 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7518529 Required per assembly: 19 ~~$2.99~~ $1.73 - + Add to cart
7	WASHER-SKID PLATE Part #: 7556065 Required per assembly: 19 Note: Washer Currently Not Available
8	WELD-MOUNT, SHIFT/SCM, ECOAT Part #: 1024690-329 Required per assembly: 1 Currently Not Available
9	WELD-SEAT, BASE, ECOAT Part #: 1024740-329 Required per assembly: 1 Currently Not Available
10	WELD-SEAT, BASE, FRONT, ECOAT Part #: 1024840-329 Required per assembly: 1 Currently Not Available
11	SCREW, FLANGE Part #: 7516732 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
12	SCREW, FLANGE Part #: 7516733 Required per assembly: 2 Currently Not Available
13	SCR-M10X1.50X50 HX/FL-Y Part #: 7518687 Required per assembly: 2 Currently Not Available
14	SCR-HXFL-M6X1.0X16 8.8 ZYL NYL Part #: 7519236 Required per assembly: 8 Currently Not Available
15	SCR-HXFL-M8X1.25X50 DP ZODP30 Part #: 7519245 Required per assembly: 8 Currently Not Available
16	BRKT-CLOSE, OFF, SUPPORT, ECOAT Part #: 5267561-329 Required per assembly: 1 Currently Not Available
17	WELD-MOUNT, BOX Part #: 1023962 Required per assembly: 2 Note: INCL 26 Currently Not Available
18	NUT-RIVNUT, HEX, M6X1.00 Part #: 7547790 Required per assembly: 12 Currently Not Available
19	SCREW, FLANGE Part #: 7517281 Required per assembly: 4 Note: Screw Currently Not Available
