Cooling Routing Manifold replacement parts for 2020 Polaris RZR PRO XP (R05)

OEM Parts Polaris 2020 Polaris RZR PRO XP (R05) Cooling Routing Manifold

COOLING ROUTING MANIFOLD Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-PUMP, WATER, ELECTRIC Part #: 2413045 Required per assembly: 1 Currently Not Available

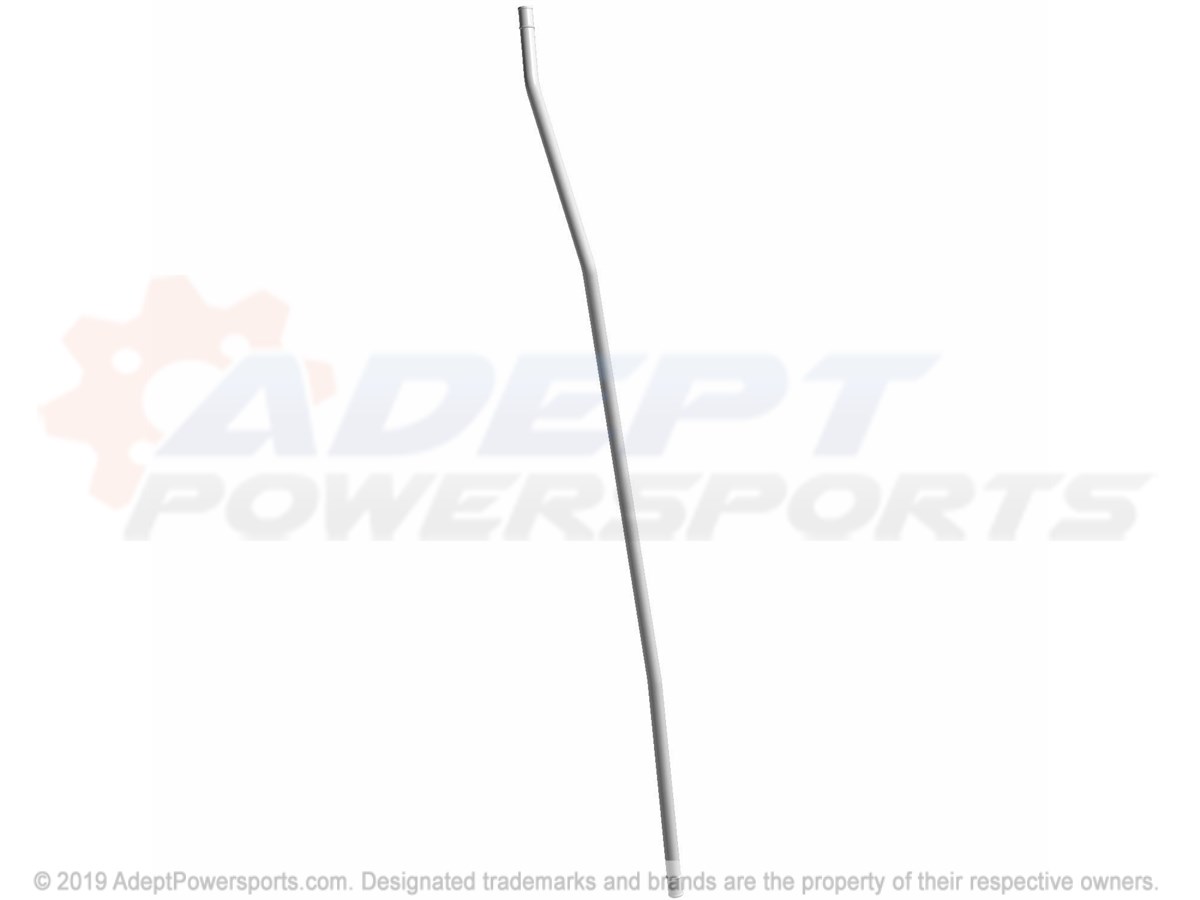

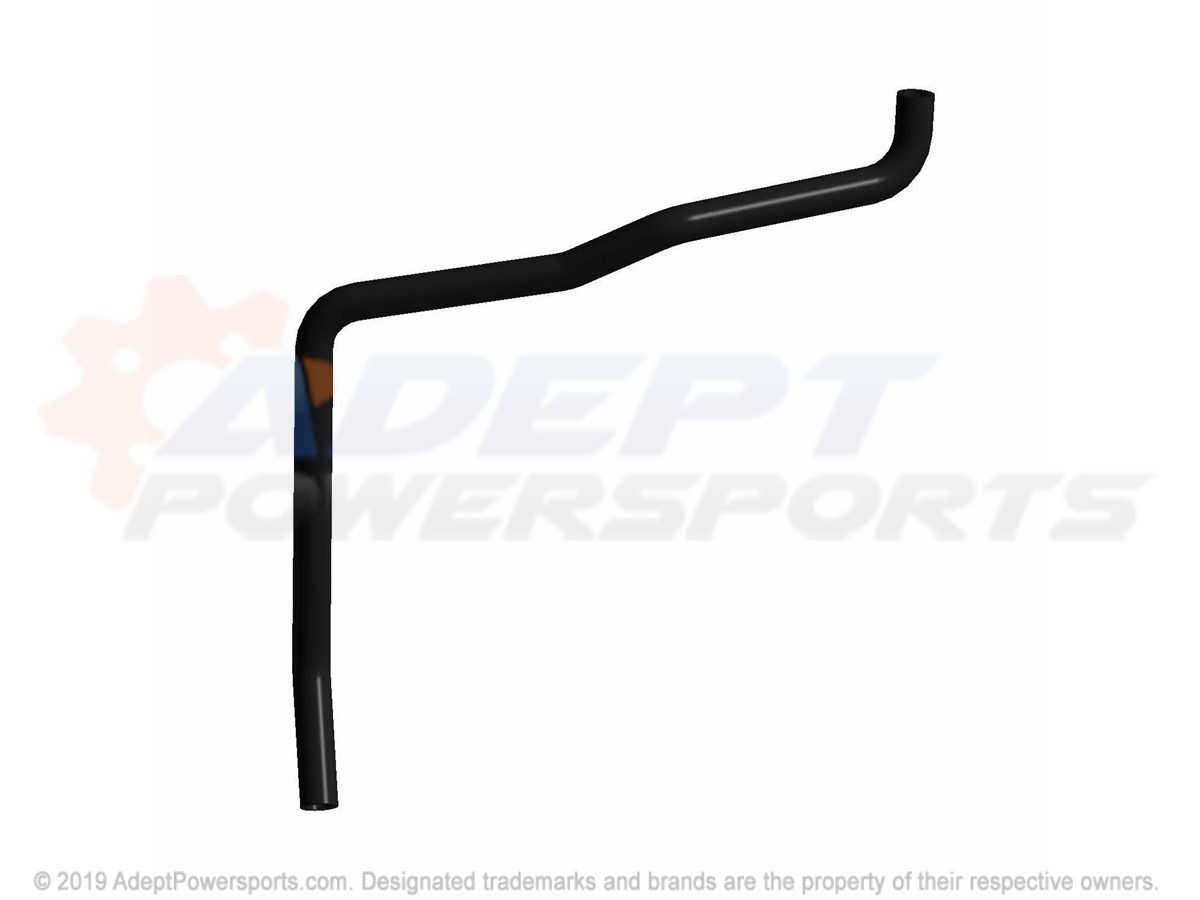

2	TUBE-COOLANT, LT, UPPER Part #: 5141928 Required per assembly: 1 Currently Not Available

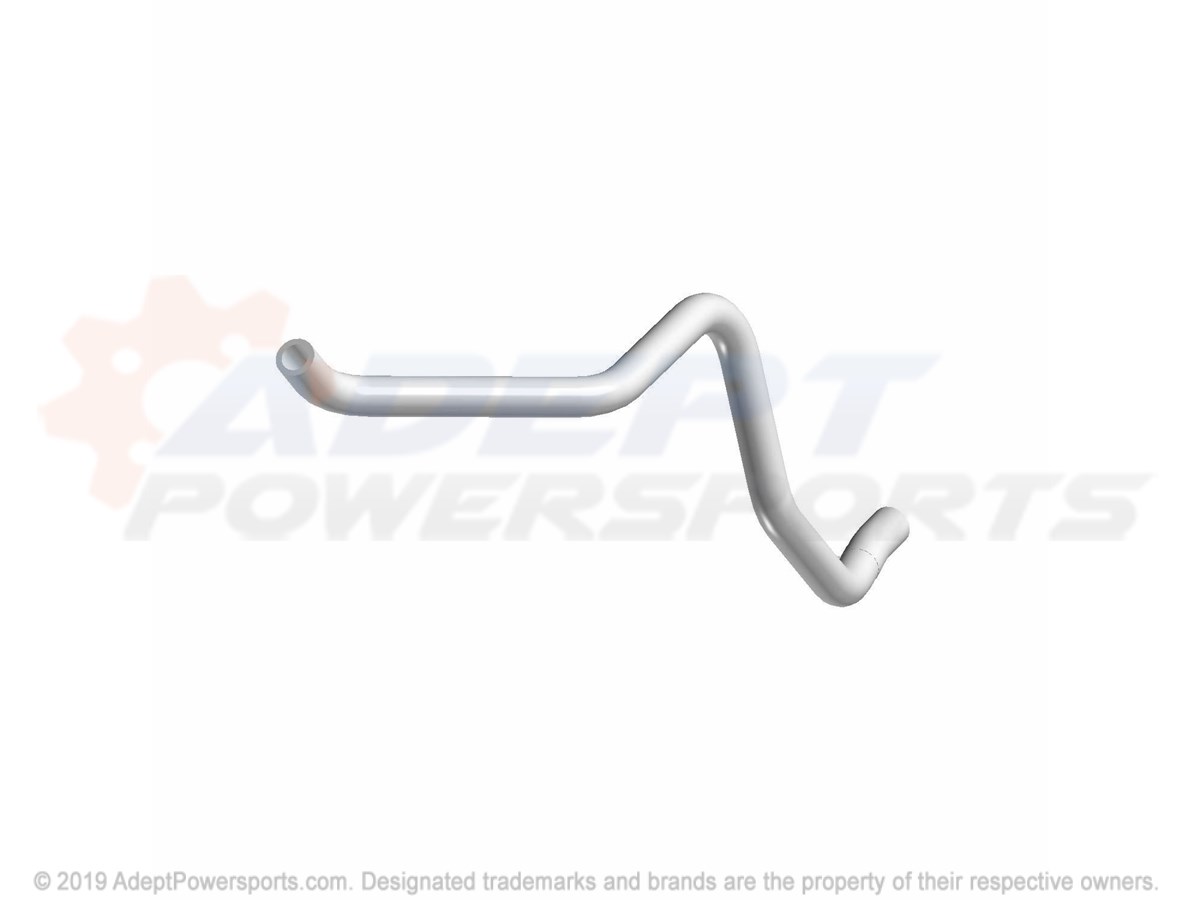

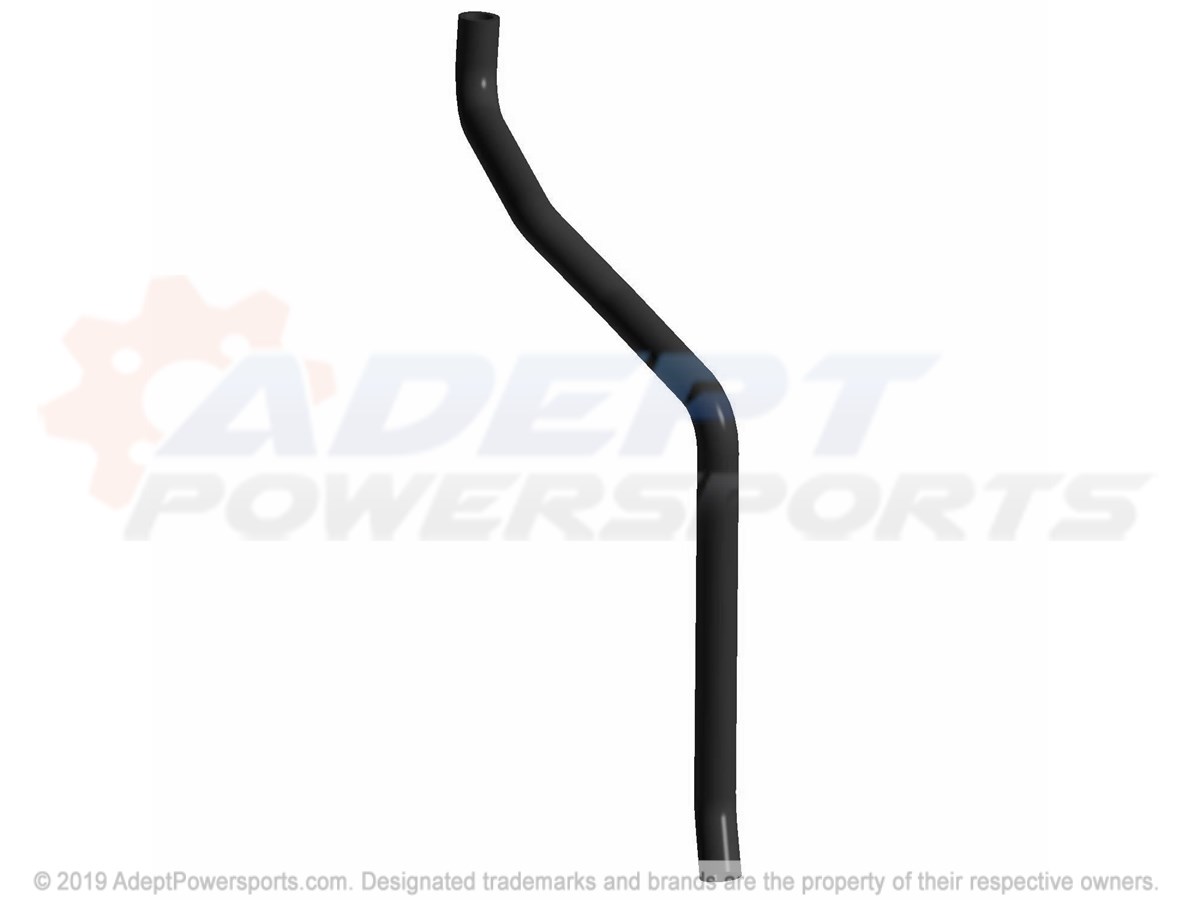

3	TUBE-COOLANT, LT, LOWER Part #: 5143253 Required per assembly: 1 Currently Not Available

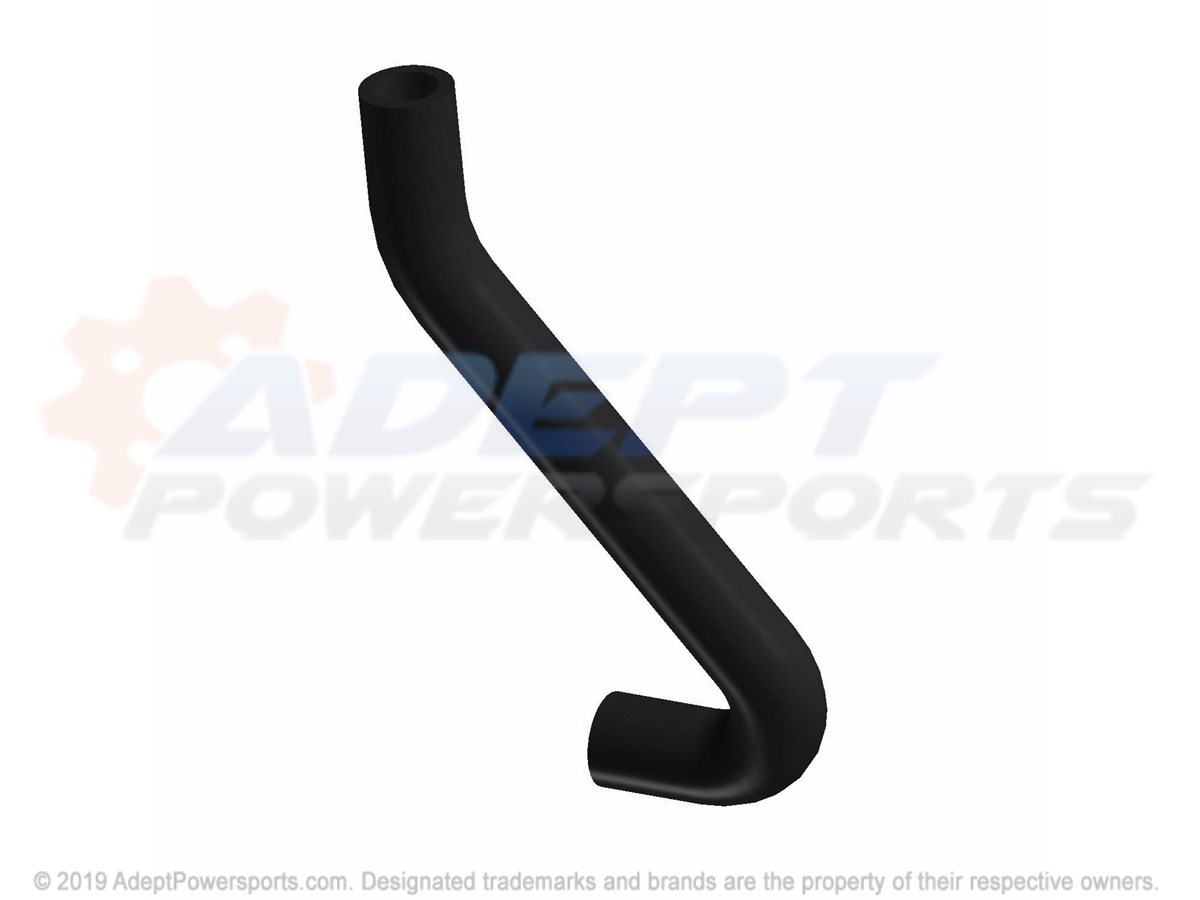

4	HOSE-RADIATOR, LT, IN Part #: 5416574 Required per assembly: 1 Currently Not Available
5	HOSE-RADIATOR, LT, OUT Part #: 5416575 Required per assembly: 1 Currently Not Available
6	HOSE-PUMP, IN, TUBE/T Part #: 5416576 Required per assembly: 1 Currently Not Available
7	HOSE-PUMP, IN, T/PUMP Part #: 5416577 Required per assembly: 1 Currently Not Available
8	HOSE-PUMP, SURGE/T Part #: 5416578 Required per assembly: 1 Currently Not Available
9	HOSE-PUMP TO LCAC Part #: 5417197 Required per assembly: 1 Currently Not Available
10	HOSE-LCAC, OUT Part #: 5417198 Required per assembly: 1 Currently Not Available
11	BRACKET-COOLANT, TUBE, 3/4" Part #: 5451785 Required per assembly: 3 Currently Not Available
12	BRKT-MNT, WATER, PUMP Part #: 5452166 Required per assembly: 1 Currently Not Available
13	CLIP-ROUTING, 0.75 Part #: 5454911 Required per assembly: 2 Currently Not Available
14	CLIP-ROUTING Part #: 5454912 Required per assembly: 1 Currently Not Available

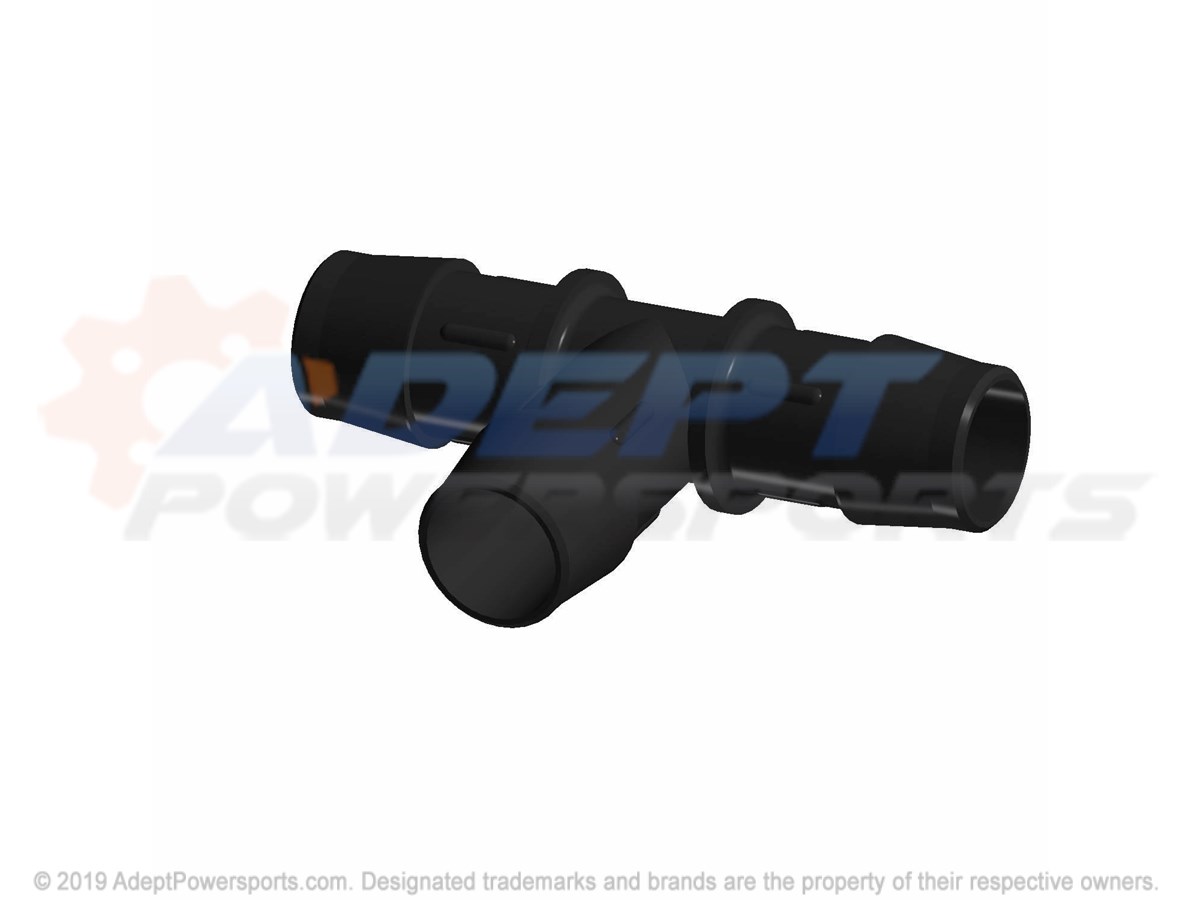

15	FITTING-.75, IN, T Part #: 7052727 Required per assembly: 1 Currently Not Available
16	STRAP PANDUIT Part #: 7080138 Required per assembly: 6 ~~$1.99~~ $1.15 - + Add to cart
17	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 12 Currently Not Available
18	CLAMP-CONSTANT TENSION 16-27 Part #: 7081415 Required per assembly: 2 Currently Not Available
19	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 1 Currently Not Available
20	SCREW Part #: 7512026 Required per assembly: 3 Note: Screw Currently Not Available
21	SCREW Part #: 7518514 Required per assembly: 2 Note: Bolt Currently Not Available
22	SCREW Part #: 7518936 Currently Not Available
23	SCREW Part #: 7519001 Required per assembly: 3 Currently Not Available
24	SCREW Part #: 7519840 Required per assembly: 6 Currently Not Available
25	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available

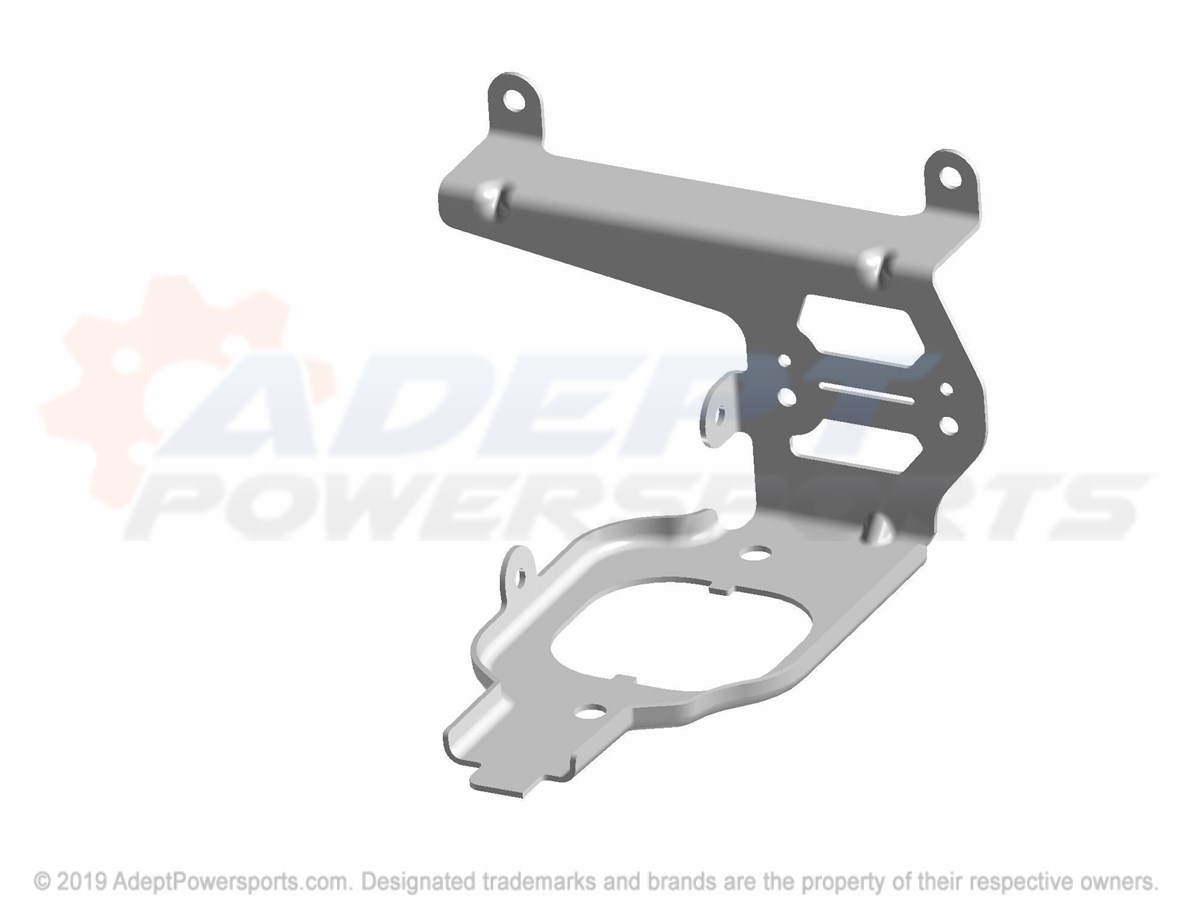

26	BRKT-WATER, PUMP, ECOAT Part #: 5266650-329 Required per assembly: 1 Currently Not Available
