Wire Harness replacement parts for 2020 Polaris RZR RS1 (R02)

OEM Parts Polaris 2020 Polaris RZR RS1 (R02) Wire Harness

WIRE HARNESS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, EPS, RZS, 64 Part #: 2413436 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 2 Currently Not Available
3	LABEL, FUSE, BOX Part #: 7186283 Required per assembly: 1 Currently Not Available

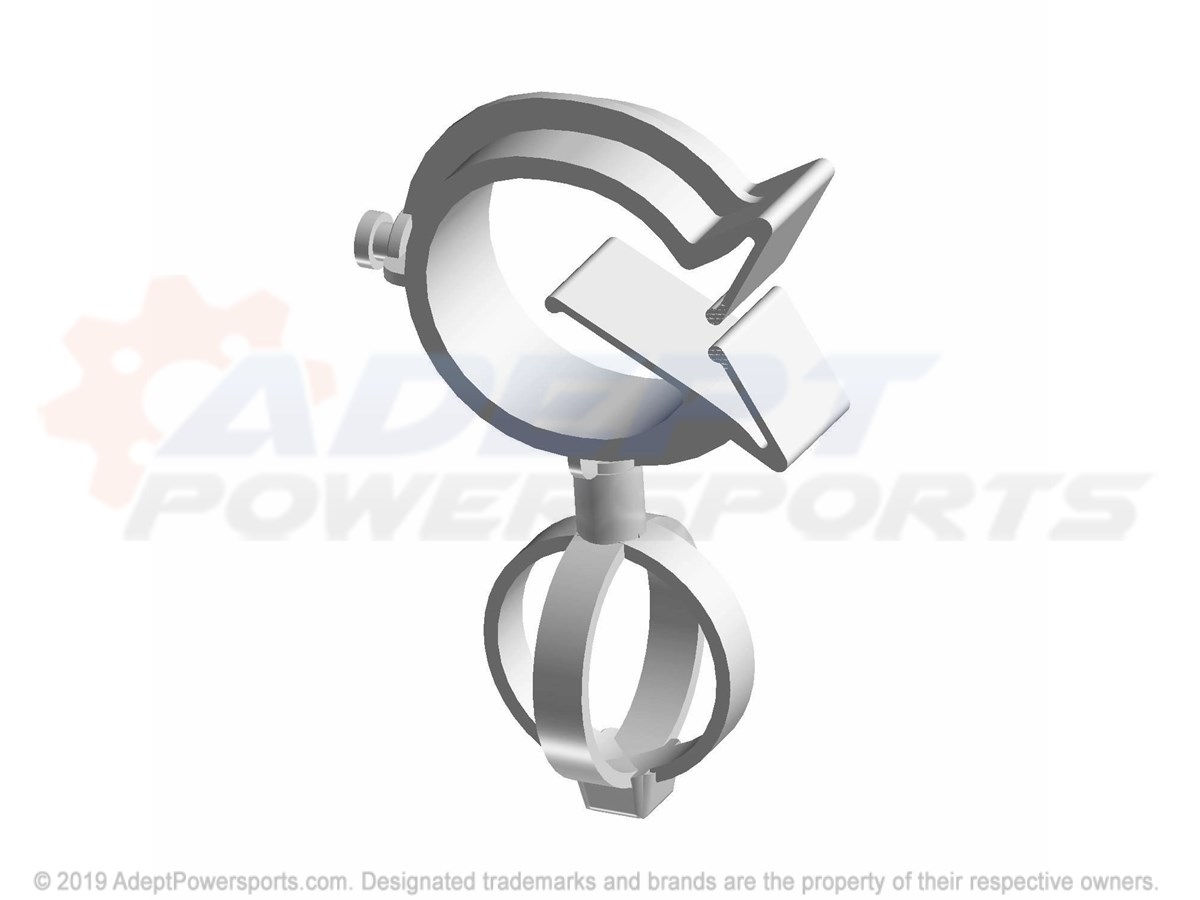

4	CLIP-OMEGA, CABLE, 19-25.4MM, DIA Part #: 7082343 Required per assembly: 1 Currently Not Available
5	CLIP-ROUTING Part #: 7082073 Required per assembly: 1 Currently Not Available
6	CABLE TIE-FIR TREE Part #: 7082003 Required per assembly: 1 Currently Not Available
7	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 3 Currently Not Available
8	CLIP-ROUTING Part #: 7081496 Required per assembly: 33 Currently Not Available

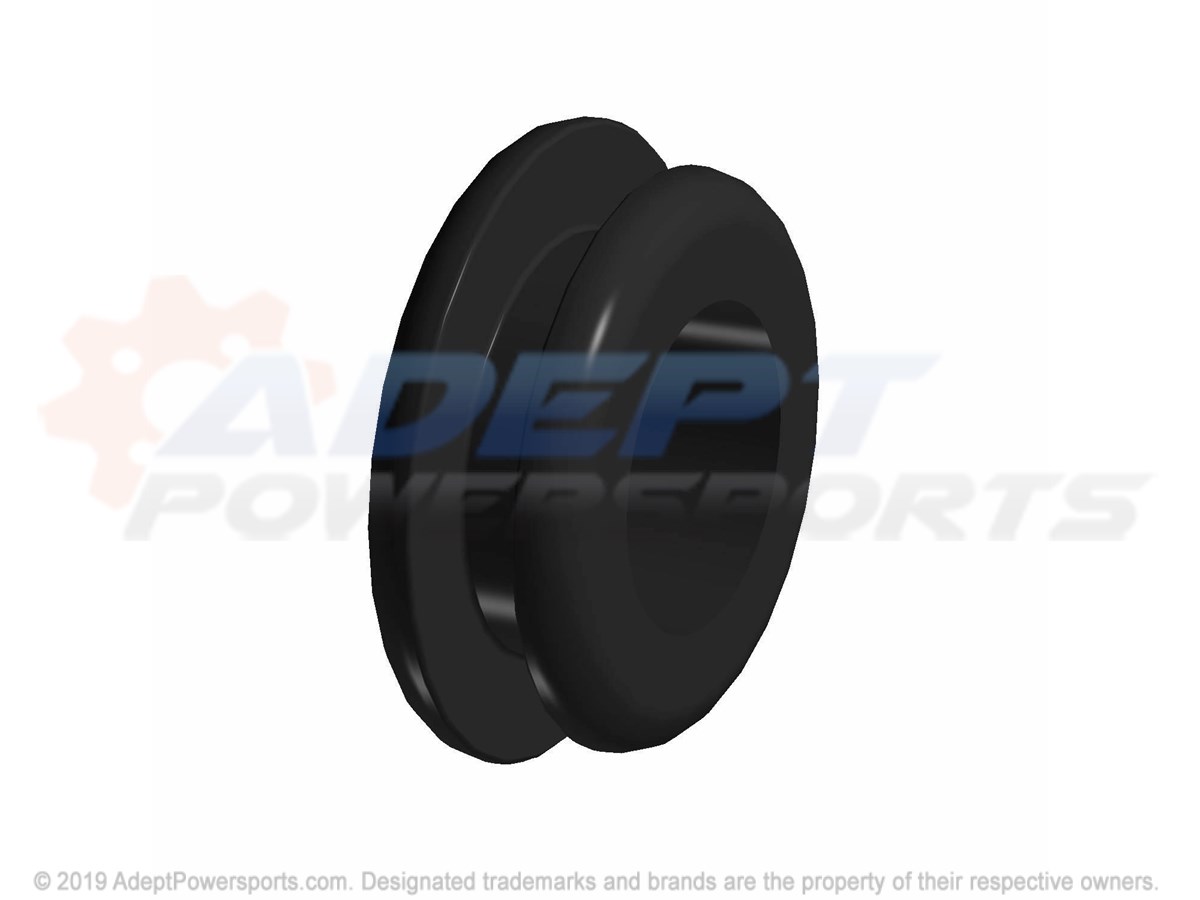

9	GROMMET-65MM, BLK Part #: 5813954 Required per assembly: 1 Currently Not Available
10	GROMMET-SPEAKER, VOLUME Part #: 5413027 Required per assembly: 1 Currently Not Available
11	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 9 Currently Not Available
12	COVER-FUSEBOX, 72WAY Part #: 4014047 Required per assembly: 1 Currently Not Available
13	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
14	FUSE, 25, AMP Part #: 4011653 Required per assembly: 2 Currently Not Available
15	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 2 Currently Not Available
16	FUSE, 7.5, AMP Part #: 4011068 Required per assembly: 3 Currently Not Available
17	FUSE, 10AMP Part #: 2434016 Required per assembly: 6 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
