OEM Parts Polaris 2020 Polaris RZR RS1 (R02) Owners Manual And Tool Kit

2020 Polaris RZR RS1 (R02) Z20S1E99AG/AK/BG/BK - Owners Manual And Tool Kit

OWNERS MANUAL AND TOOL KIT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-

GAUGE-TIRE PRESSURE 30 PSI

Part #: 2878518 Required per assembly: 1 Note: NOT ILLUSTRATED
Currently Not Available
1
Polaris 2881524 Kit-Accessory, Tool, Ranger

KIT-ACCESSORY, TOOL, RANGER

Part #: 2881524 Required per assembly: 1 Note: (Description)
INCL. 2-4
Currently Not Available
2

N/A, USE, ASM/KITS

Part #: 9990005 Required per assembly: 1
Currently Not Available
3

N/A, USE, ASM/KITS

Part #: 9990005 Required per assembly: 1
Currently Not Available
4
Polaris 2879339 Wrench, Torx, T-40

WRENCH, TORX, T-40

Part #: 2879339 Required per assembly: 1
Currently Not Available
5
Polaris 2682572 Pouch, Toolkit, 9"

POUCH, TOOLKIT, 9"

Part #: 2682572 Required per assembly: 1
Currently Not Available
6
Polaris 2885157-329 Wrench-Span/Spreader, Blk

WRENCH-SPAN/SPREADER, BLK

Part #: 2885157-329 Required per assembly: 1
Currently Not Available
7

MAN-OWN, 20, RZR, SOLO

Part #: 9929971 Required per assembly: 1
Currently Not Available
8
Polaris 2875911 Tool, Belt, Removal

TOOL, BELT, REMOVAL

Part #: 2875911 Required per assembly: 1 Note: TO 6/1/19
Currently Not Available
8
Polaris 2883577 Tool-Belt Removal

TOOL-BELT REMOVAL

Part #: 2883577 Required per assembly: 1 Note: FROM 6/1/19
Currently Not Available
9

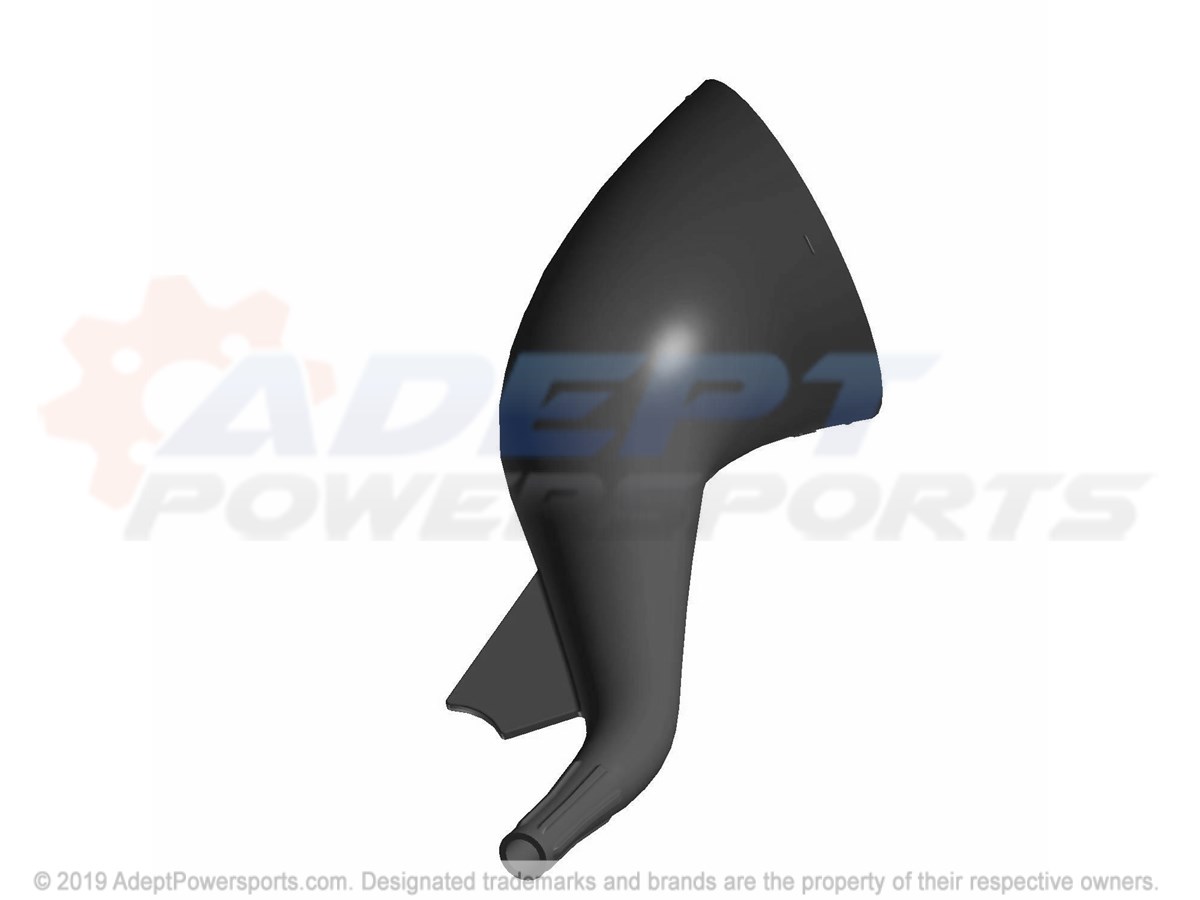

Polaris 5454681 Funnel-Oil Fill

FUNNEL-OIL FILL

Part #: 5454681 Required per assembly: 1
Currently Not Available
