Cooling Radiator Mounting replacement parts for 2020 Polaris RZR RS1 (R02)

OEM Parts Polaris 2020 Polaris RZR RS1 (R02) Cooling Radiator Mounting

COOLING RADIATOR MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

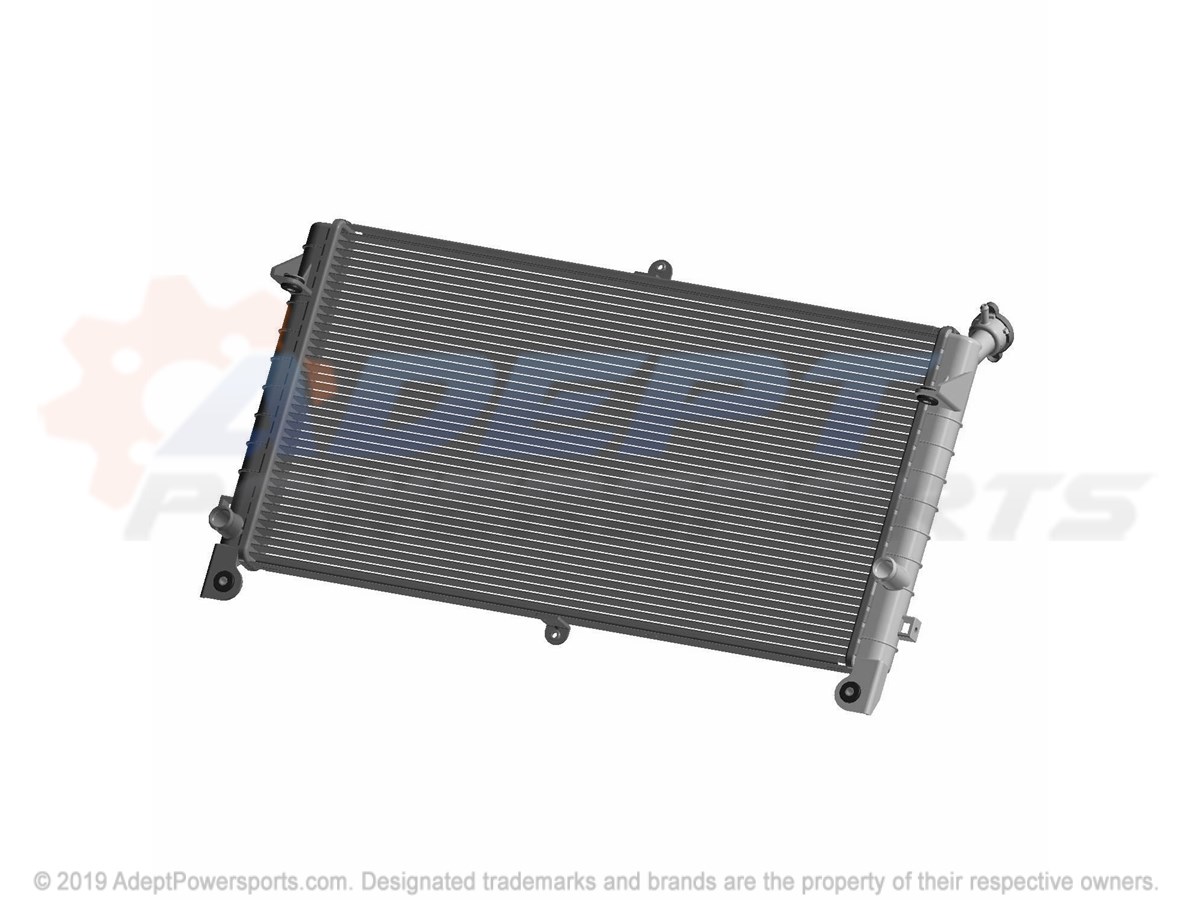

1	ASM-RADIATOR, CORE Part #: 1241481 Required per assembly: 1 Currently Not Available

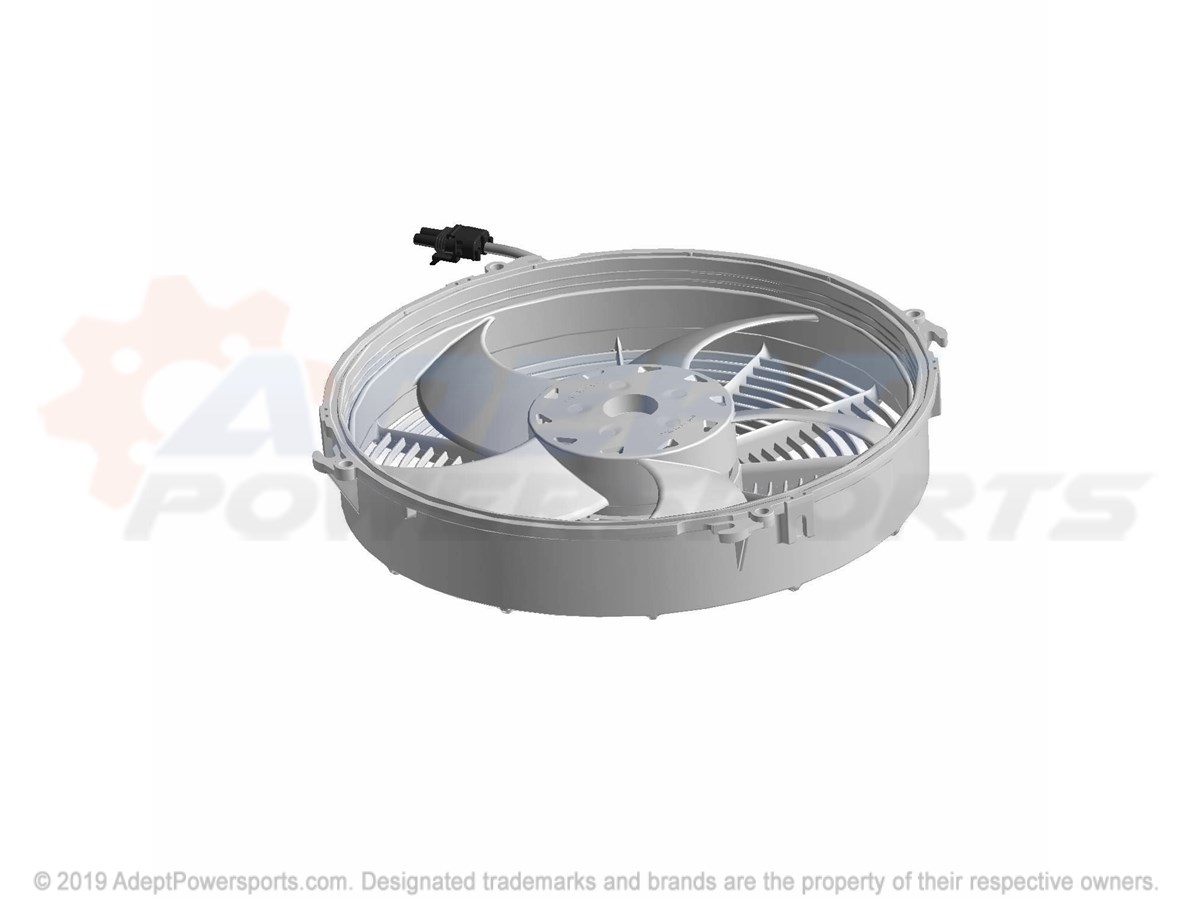

2	FAN-ASSEMBLY Part #: 2413794 Required per assembly: 2 Currently Not Available

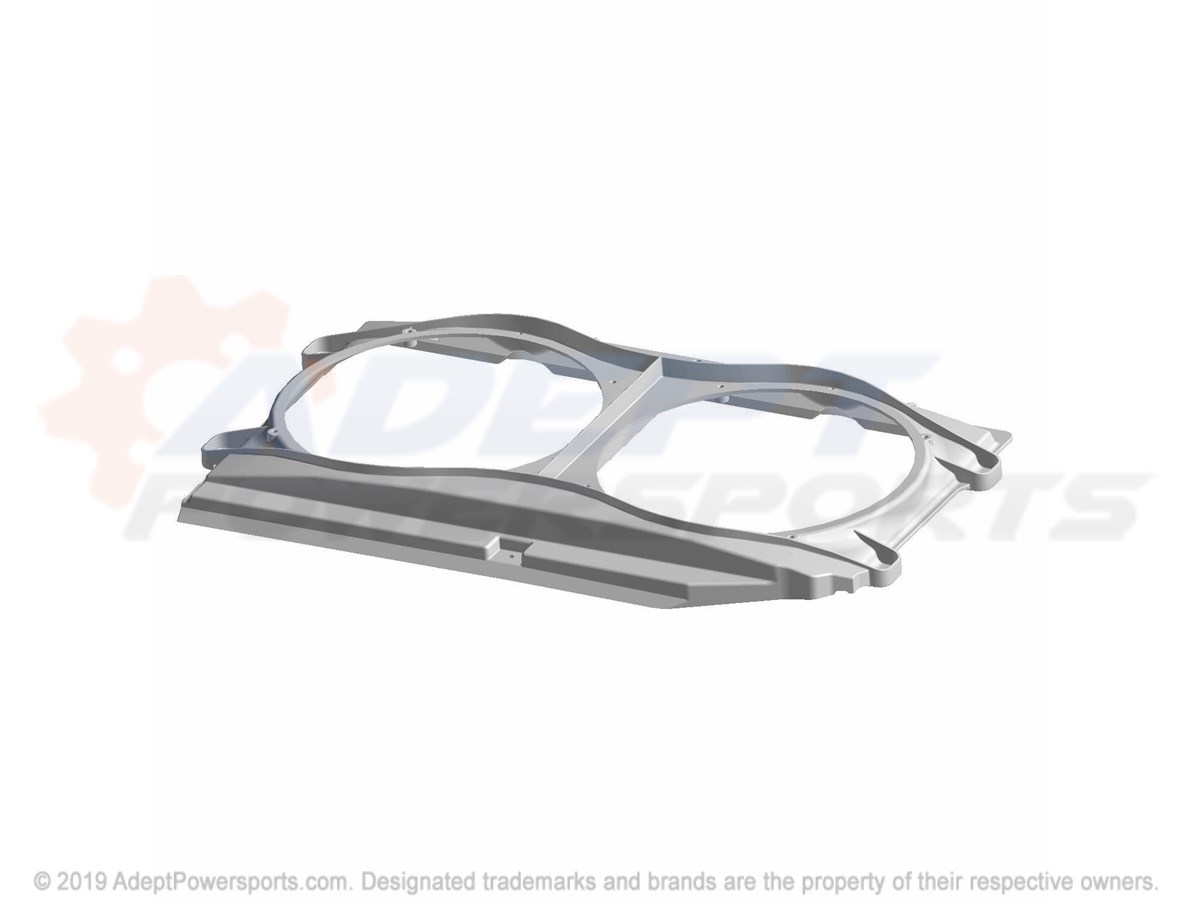

3	SHROUD-RADIATOR, REAR, BLK Part #: 5453917-070 Required per assembly: 1 Currently Not Available
4	SCR-HXFLGHD, M6X16, 0600086 Part #: 7518591 Required per assembly: 4 Currently Not Available
5	SCREW Part #: 7518936 Required per assembly: 4 Currently Not Available
6	SCREW Part #: 7519330 Required per assembly: 8 ~~$2.50~~ $1.73 - + Add to cart

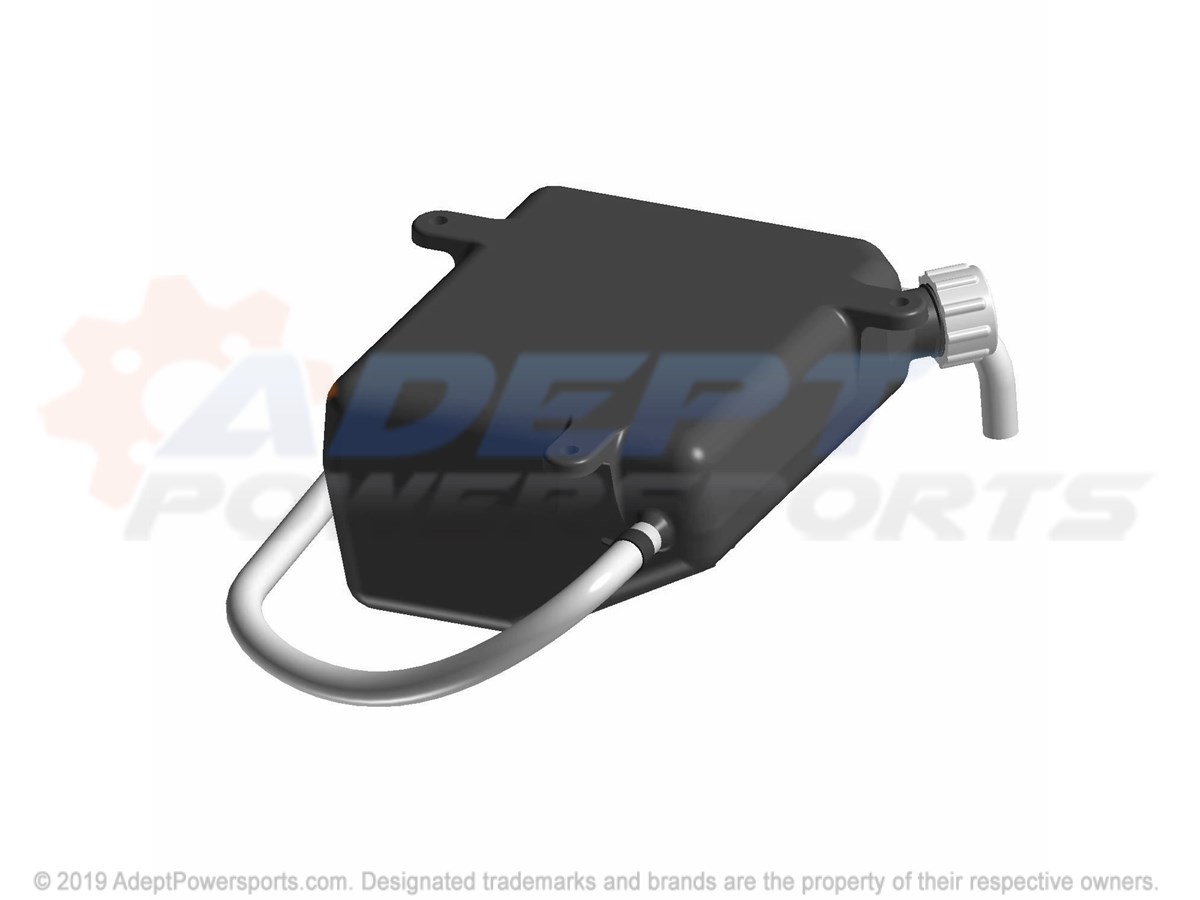

7	ASM-SURGE, TANK, W/HOSE&CAP Part #: 1241168 Required per assembly: 1 Note: INCL. 8-11, 1 QTY OF 12 Currently Not Available
8	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
9	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
10	HOSE Part #: 8450120-600 Required per assembly: 1 Currently Not Available
11	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
12	CLAMP, HOSE Part #: 7081432 Required per assembly: 2 Currently Not Available
13	BOLT, FLANGE Part #: 7518612 Required per assembly: 4 Note: Bolt Currently Not Available
14	NUT Part #: 7547274 Required per assembly: 4 Note: Nut, Flange Currently Not Available
15	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
16	CLIP, ROUTING, .472, B.D., HINGED Part #: 7670116 Required per assembly: 2 Note: Clip, Routing Currently Not Available
