OEM Parts Polaris 2021 Polaris RZR XP 1000 Trails & Rocks (R02) Rock Slider

2021 Polaris RZR XP 1000 Trails & Rocks (R02) Z21NAR99AN/BN - Rock Slider

ROCK SLIDER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-ROCK, SLIDER, LH, RZN, ST, GRAY

Part #: 2635548-804 Required per assembly: 1
Currently Not Available
2

ASM-ROCK, SLIDER, RH, RZN, ST, GRAY

Part #: 2635549-804 Required per assembly: 1
Currently Not Available
3

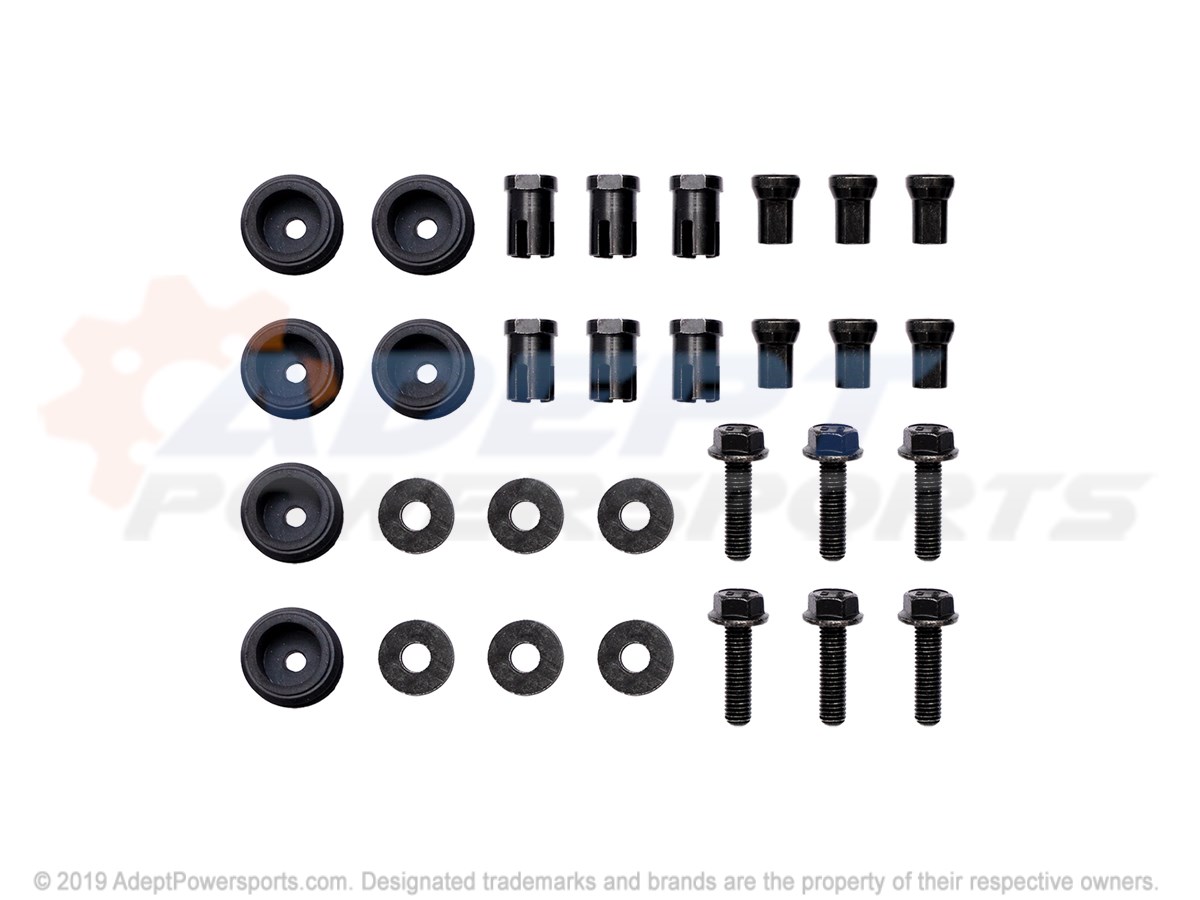

Polaris 2205116 Hrdwr-Rck, Sldr,

HRDWR-RCK, SLDR,

Part #: 2205116 Required per assembly: 1 Note: INCL. 3-7
Currently Not Available
3
Polaris 5337853 Tube-Expansion, Anchor, 125

TUBE-EXPANSION, ANCHOR, 125

Part #: 5337853 Required per assembly: 6
Currently Not Available
4
Polaris 5450653 Plug-End, Cap, 1.125", Dia, Ribbed

PLUG-END, CAP, 1.125", DIA, RIBBED

Part #: 5450653 Required per assembly: 6
Currently Not Available
5
Polaris 5632958 Wedge-Anchor, Cast, Threaded

WEDGE-ANCHOR, CAST, THREADED

Part #: 5632958 Required per assembly: 6
Currently Not Available
6
Polaris 7520234 Scr-Hxfl-M8 X 1.25 X 30 10.9 Zpb

SCR-HXFL-M8 X 1.25 X 30 10.9 ZPB

Part #: 7520234 Required per assembly: 6
Currently Not Available
7
Polaris 7556341 Washer, Flat

WASHER, FLAT

Part #: 7556341 Required per assembly: 6
Currently Not Available
