OEM Parts Polaris 2021 Polaris RZR XP 1000 Trails & Rocks (R02) Front

2021 Polaris RZR XP 1000 Trails & Rocks (R02) Z21NAR99AN/BN - Front

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1521982 Valve-Rim

VALVE-RIM

Part #: 1521982 Required per assembly: 2
Currently Not Available

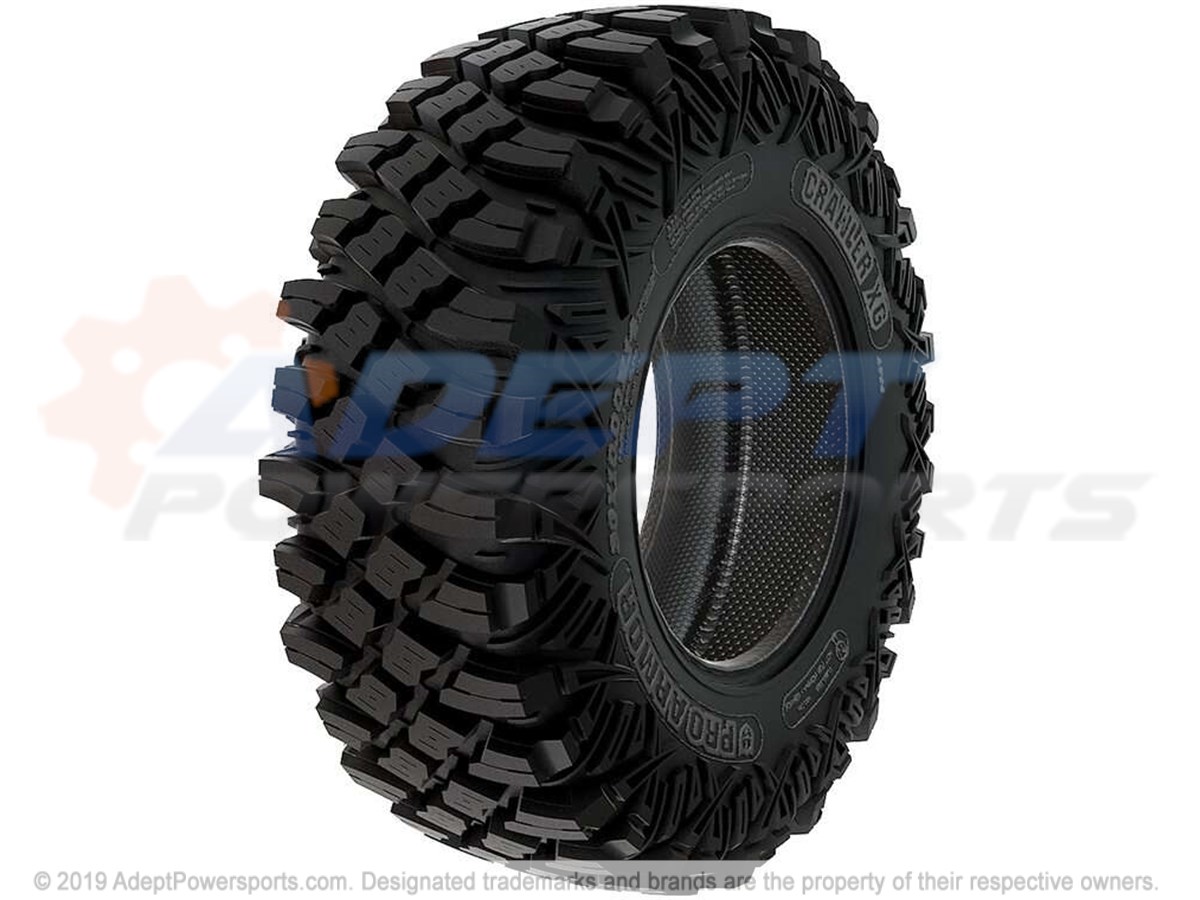

2
Polaris 5415616 Tire-30X10r14, Crawlerxg, Pa

TIRE-30X10R14, CRAWLERXG, PA

Part #: 5415616 Required per assembly: 2
Currently Not Available
3
Polaris 7518884 Scr-Hexflg, M8x30, Zpb, 0600086

SCR-HEXFLG, M8X30, ZPB, 0600086

Part #: 7518884 Required per assembly: 36
Currently Not Available
4
Polaris 7547489 Nut, Wheel

NUT, WHEEL

Part #: 7547489 Required per assembly: 8
Currently Not Available

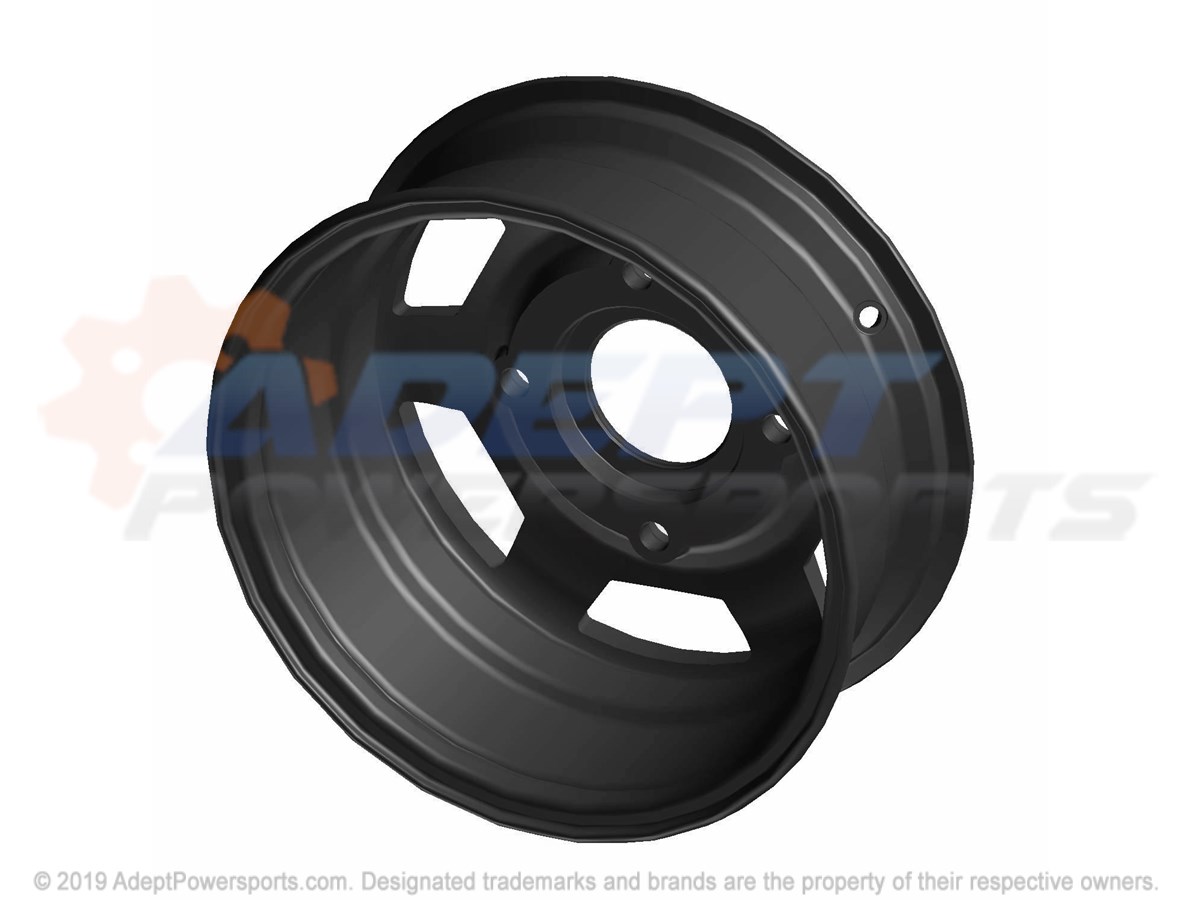

5
Polaris 1522788-655 Rim-Bdlk, 14X6, Cast, 53, Fb

RIM-BDLK, 14X6, CAST, 53, FB

Part #: 1522788-655 Required per assembly: 2
Currently Not Available

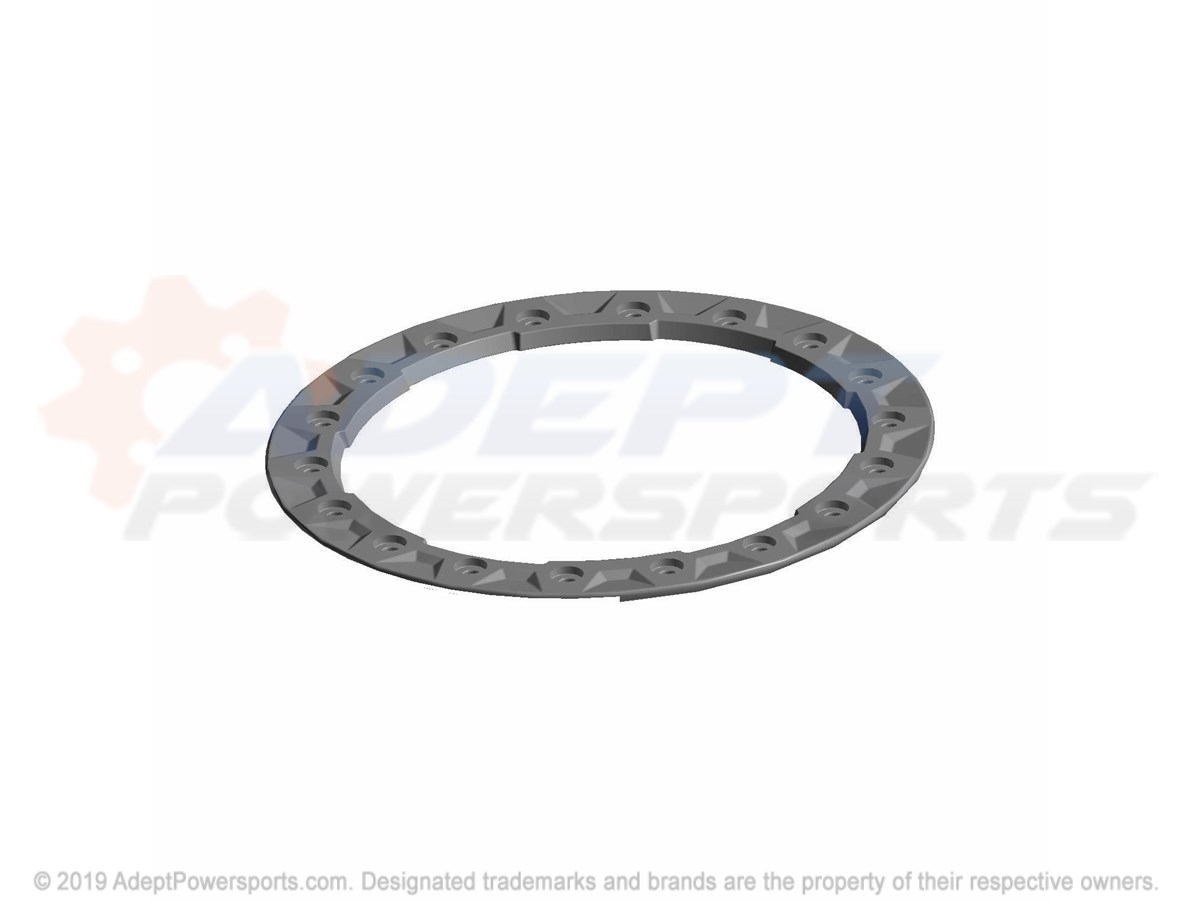

6
Polaris 1522789-751 Ring-14, Bdlck, Cast, Pii, Blue

RING-14, BDLCK, CAST, PII, BLUE

Part #: 1522789-751 Required per assembly: 2
Currently Not Available

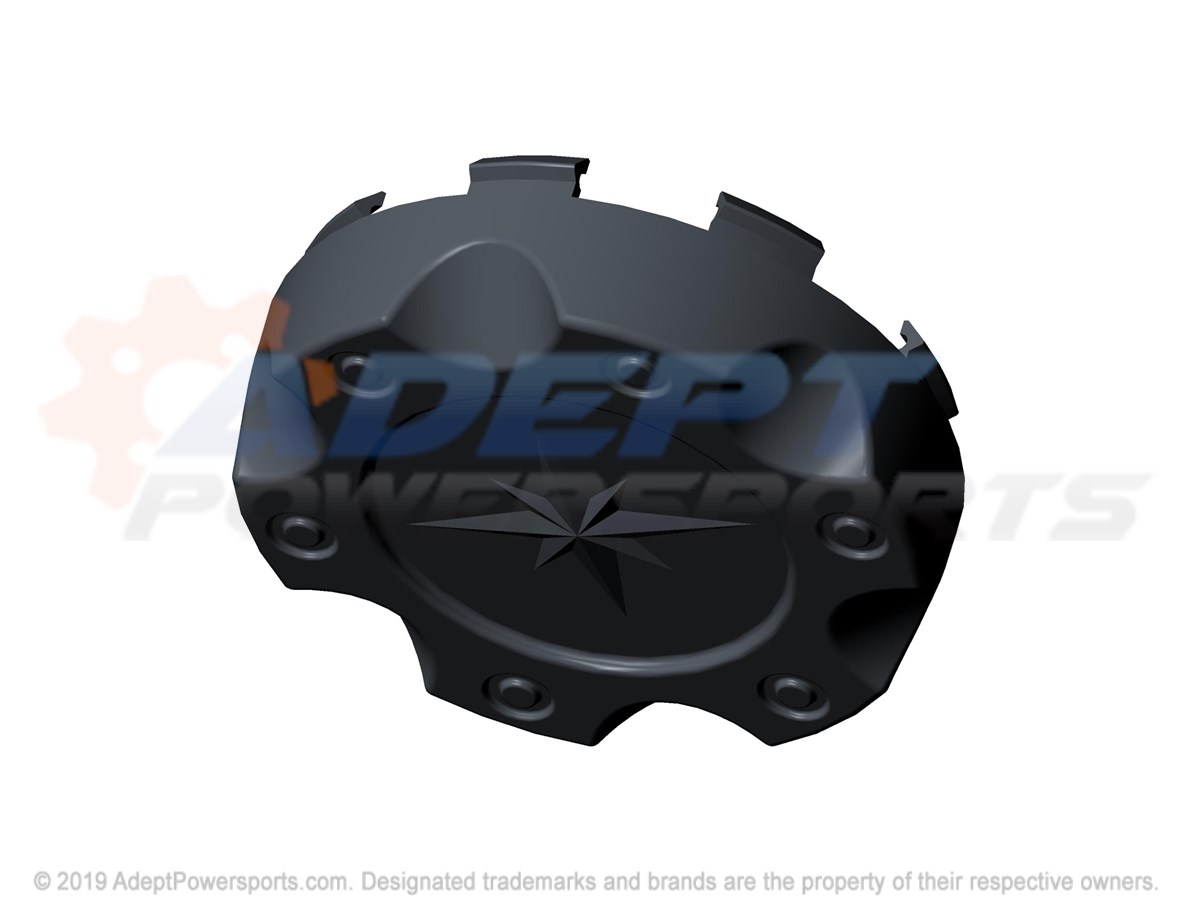

7
Polaris 1522853-655 Cap-Rim, Blk

CAP-RIM, BLK

Part #: 1522853-655 Required per assembly: 2
Currently Not Available
