Bodywork - Cockpit replacement parts for Triumph Sprint ST 208167 >

OEM Parts Triumph Sprint ST 208167 > Bodywork - Cockpit

Bodywork - Cockpit Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	COCKPIT, PAINTED, PHANTOM, BLACK Part #: T2301663PR Required per assembly: 1 Note: 440389 > $932.49 $847.72 - + Add to cart
1	COCKPIT, PAINTED, BRG Part #: T2301663HA Required per assembly: 1 Note: 472878 > $842.02 $765.47 - + Add to cart
1	COCKPIT, PAINTED, TORNADO, RED Part #: T2301663CM Required per assembly: 1 Note: 440389 > $943.49 $857.72 - + Add to cart
1	COCKPIT, PHANTOM, BLACK Part #: T2301563PR Required per assembly: 1 Note: 363103 > 440388 Not Available
1	COCKPIT, PHANTOM, BLACK Part #: T2301563PR Required per assembly: 1 Note: 281466 > 317417 Not Available
1	COCKPIT, PAINTED, GRAPHITE Part #: T2301563LC Required per assembly: 1 Note: 317418 > 440388 Not Available
1	COCKPIT, PACIFIC, BLUE Part #: T2301563JI Required per assembly: 1 Note: 317418 > 440388 Not Available
1	COCKPIT, CASPIAN, BLUE Part #: T2301563JD Required per assembly: 1 Note: > 317417 Not Available
1	COCKPIT, SUNSET, RED Part #: T2301563CP Required per assembly: 1 Note: > 281465 Not Available
1	COCKPIT, TORNADO, RED Part #: T2301563CM Required per assembly: 1 Note: 281466 > 363102 Not Available
1	COCKPIT, TORNADO, RED Part #: T2301563CM Required per assembly: 1 Note: 411984> 440388 Not Available
1	COCKPIT Part #: T2304663JD Required per assembly: 1 Note: 473836 > $932.49 $847.72 - + Add to cart
1	COCKPIT, ALUMINIUM, SILVER Part #: T2301563MH Required per assembly: 1 Note: > 281465 Not Available
2	BOLT, BUT/HD, M5X0.8X17, SHLD, SLV Part #: T3331063 Required per assembly: 6 $2.20 $2.00 - + Add to cart
3	WELLNUT MS Part #: T3350050 Required per assembly: 4 Note: > 379565 $6.79 $6.17 - + Add to cart
3	WELLNUT MS Part #: T3350050 Required per assembly: 4 Note: 379566 > $6.79 $6.17 - + Add to cart

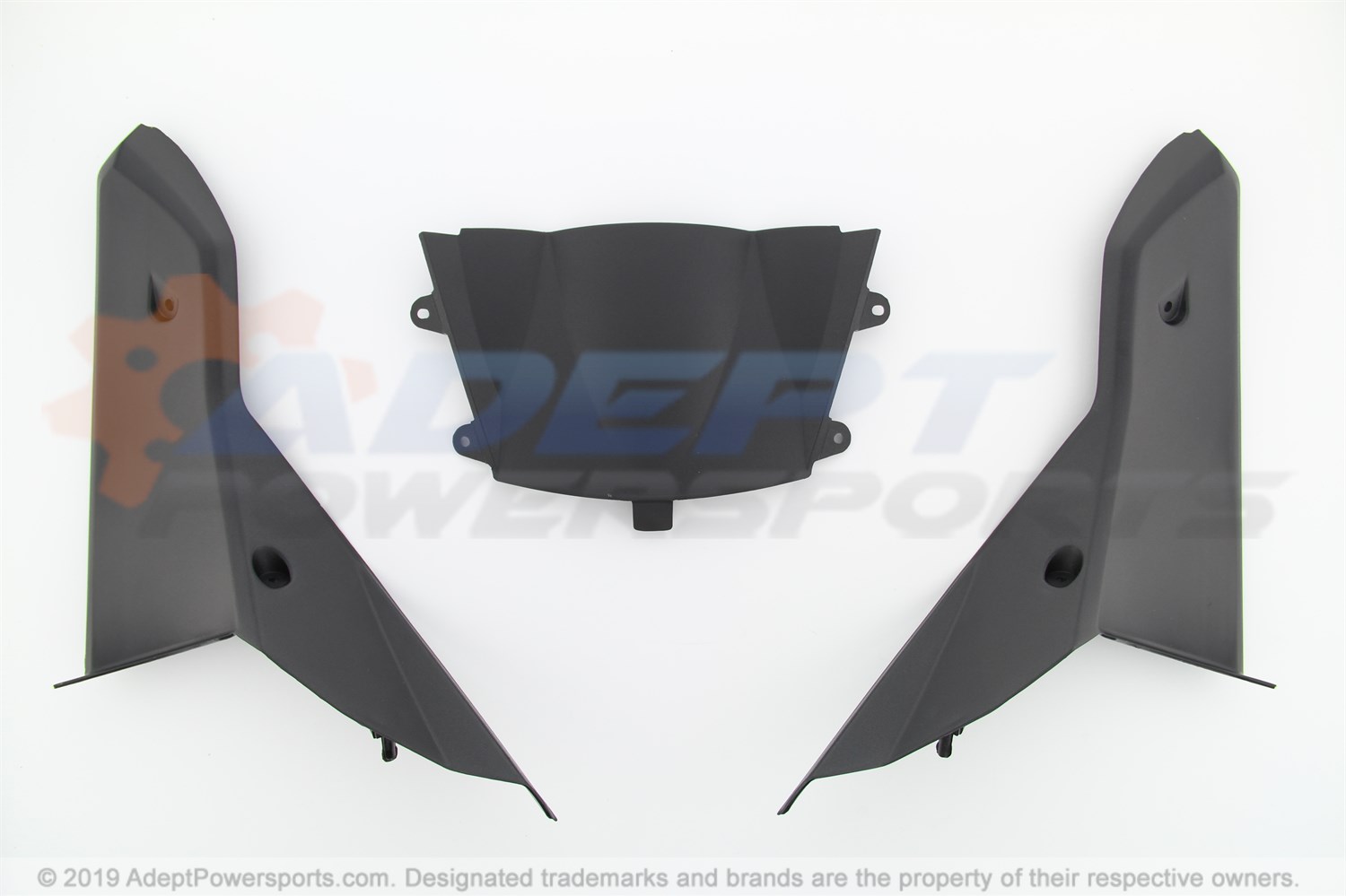

4	COCKPIT, INFILLS, SPARES, KIT Part #: T2301613 Required per assembly: 1 Note: > 440388 $77.75 $76.40 - + Add to cart
4	PANEL, UNDER, SCREEN, MOULDING Part #: T2301649 Required per assembly: 1 Note: 440389 > $87.69 $79.72 - + Add to cart
5	SCREW, BUT/HD, M5X0.8X16, SLV Part #: T3330941 Required per assembly: 12 $6.88 $6.25 - + Add to cart
6	SCREEN, SPARES, KIT Part #: T2301639 Required per assembly: 1 Note: 440389 > $177.74 $174.68 - + Add to cart
6	SCREEN, SPARES, KIT Part #: T2304466 Required per assembly: 1 Note: 281466>379565 - All Mkts expt UK $177.74 $174.68 - + Add to cart
6	SCREEN, SPARES, KIT Part #: T2304466 Required per assembly: 1 Note: 291666>379656 - UK only $177.74 $174.68 - + Add to cart
6	SCREEN Part #: T2304455 Required per assembly: 1 Note: 379566 > 440388 $177.74 $174.68 - + Add to cart
6	SCREEN, MOULDING Part #: T2301590 Required per assembly: 1 Note: >281465 - All Mkts expt UK; >291665 - UK only $179.09 $162.81 - + Add to cart
7	SCREW, PHILIPS, M5X16, PLASTIC Part #: T3330646 Required per assembly: 4 Note: > 379565 $1.29 $1.18 - + Add to cart
7	SCREW, PHILIPS, M5X16, PLASTIC Part #: T3330646 Required per assembly: 6 Note: 379566 > $1.29 $1.18 - + Add to cart
8	PANEL, COCKPIT, LEFT, MOULDING Part #: T2301582 Required per assembly: 1 $52.49 $47.72 - + Add to cart
9	PANEL, COCKPIT, RH, MOULDING Part #: T2301583 Required per assembly: 1 $52.49 $47.72 - + Add to cart
10	PANEL, LEFT, FACIA, MOULDING Part #: T2301656 Required per assembly: 1 Note: 440389 > $77.75 $76.40 - + Add to cart
10	COCKPIT, INFILLS, SPARES, KIT Part #: T2301613 Required per assembly: 1 Note: > 440388 $77.75 $76.40 - + Add to cart
11	COCKPIT, INFILLS, SPARES, KIT Part #: T2301613 Required per assembly: 1 Note: > 440388 $77.75 $76.40 - + Add to cart
11	PANEL, RIGHT, FACIA, MOULDING Part #: T2301657 Required per assembly: 1 Note: 440389 > $77.75 $76.40 - + Add to cart
12	SCREW, BUT/HD, SKT, M5X0.8X8, SLV Part #: T3332568 Required per assembly: 1 $3.97 $3.61 - + Add to cart
13	MOULDING, STOWAGE, BOX Part #: T2301598 Required per assembly: 1 $52.96 $52.04 - + Add to cart
14	LID, COCKPIT, TRIM, MOULDING Part #: T2301599 Required per assembly: 1 $11.35 $11.14 - + Add to cart
15	NUT, CAPTIVE, M5, NON, SECURED Part #: T3350123 Required per assembly: 6 $2.52 $2.29 - + Add to cart
16	FOAM, COVER, INSTRUMENTS Part #: T2308462 Required per assembly: 1 $5.65 $5.14 - + Add to cart
17	GROMMET; 926 Part #: T3020131 Required per assembly: 2 $2.05 $1.86 - + Add to cart
19	LABEL, DAILY, CHECKS, DIAGRAMATIC Part #: T3900152 Required per assembly: 1 $5.81 $5.28 - + Add to cart
20	LABEL, NOT, WATERPROOF Part #: T3900227 Required per assembly: 1 $5.81 $5.28 - + Add to cart
21	SCREEN GASKET LH Part #: T3660234 Required per assembly: 1 Note: > 440388 $15.61 $15.33 - + Add to cart
21	GASKET, SCREEN, LH Part #: T3660172 Required per assembly: 1 Note: 440389 > $15.61 $15.33 - + Add to cart
22	GASKET, SCREEN, RH Part #: T3660173 Required per assembly: 1 Note: 440389 > $15.61 $15.33 - + Add to cart
22	SCREEN GASKET RH Part #: T3660232 Required per assembly: 1 Note: > 440388 $15.61 $15.33 - + Add to cart
