Footrests & Mountings replacement parts for Triumph Sprint ST 208167 >

OEM Parts Triumph Sprint ST 208167 > Footrests & Mountings

Footrests & Mountings Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CONTROL, PLATE, RH Part #: T2081603 Required per assembly: 1 ~~$119.69~~ $117.62 - + Add to cart
2	CONTROL, PLATE, LH Part #: T2081604 Required per assembly: 1 ~~$119.69~~ $117.62 - + Add to cart

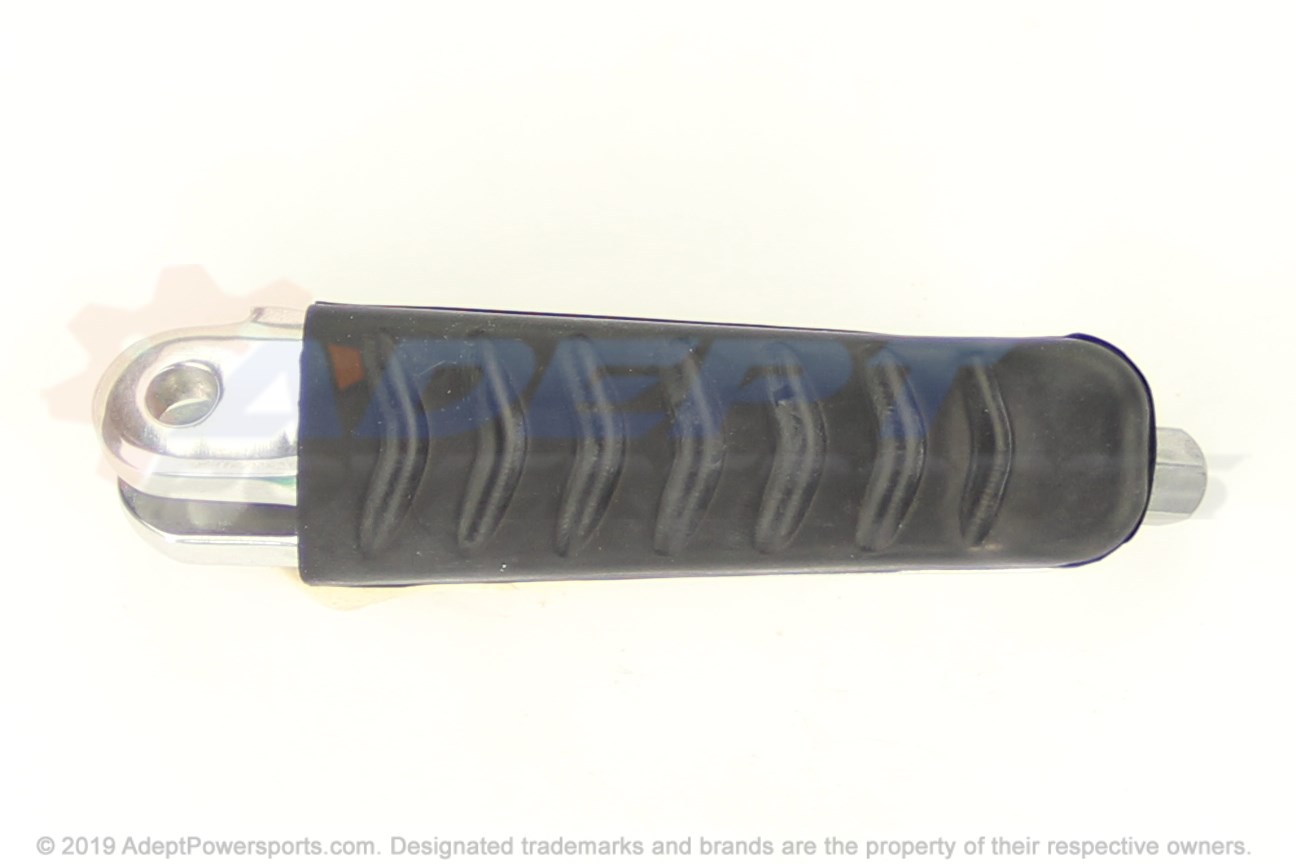

3	FOOTREST, ASSEMBLY, RH, FRONT Part #: T2081120 Required per assembly: 1 Note: 469739 > ~~$66.90~~ $65.74 - + Add to cart
3	FOOTREST, RH, SPARES, KIT Part #: T2085003 Required per assembly: 1 Note: > 469738 ~~$72.14~~ $70.90 - + Add to cart
4	FOOTREST, LH, SPARES, KIT Part #: T2085002 Required per assembly: 1 Note: > 469738 ~~$72.14~~ $70.90 - + Add to cart
4	FOOTREST, ASSEMBLY, LH, FRONT Part #: T2081220 Required per assembly: 1 Note: 469739 > ~~$66.90~~ $65.74 - + Add to cart
5	RUBBER, FOOTREST Part #: T2081125 Required per assembly: 2 ~~$11.62~~ $11.42 - + Add to cart
6	PEG, BANK, ANGLE Part #: T2080981 Required per assembly: 2 Note: 469739 > ~~$13.03~~ $12.79 - + Add to cart
6	KIT, BANK, ANGLE, PEG Part #: T2085004 Required per assembly: 1 Note: > 469738 ~~$23.69~~ $23.27 - + Add to cart
7	SCREW, TORX, PAN, HD, M5X0.8X16 Part #: T3330173 Required per assembly: 4 ~~$5.18~~ $4.71 - + Add to cart
8	HEEL, GUARD, FRONT, PRESSED Part #: T2081605 Required per assembly: 2 ~~$45.75~~ $44.95 - + Add to cart
9	SCREW, CAP/HD, M8X1.25X20, SLV Part #: T3050321 Required per assembly: 4 ~~$7.80~~ $7.09 - + Add to cart
10	BOLT, RHHF, M6X1X10, S/S Part #: T3203201 Required per assembly: 8 Note: > 471776 RHS & > 472907 LHS ~~$7.09~~ $6.44 - + Add to cart
10	BOLT, RHHF, M6X1X10, S/S Part #: T3203201 Required per assembly: 8 Note: 471777 > RHS & 472908 > LHS ~~$7.09~~ $6.44 - + Add to cart
11	PIN, PIVOT, DIA, 8 Part #: T2083123 Required per assembly: 4 ~~$5.90~~ $5.36 - + Add to cart
12	SPRING, FOOTREST, RETURN Part #: T2081130 Required per assembly: 2 ~~$6.39~~ $5.80 - + Add to cart
13	CIRCLIP, EXT, 8X0.89 Part #: T3500207 Required per assembly: 4 ~~$2.99~~ $2.72 - + Add to cart
14	PIN, SPIROL, DIA, 3, X, 14 Part #: T3000095 Required per assembly: 4 ~~$5.28~~ $4.80 - + Add to cart
15	FOOTREST, HANGER, LH, FINISHED Part #: T2081620 Required per assembly: 1 ~~$116.17~~ $114.17 - + Add to cart
16	FOOTREST, REAR, HPDC, LH Part #: T2081622 Required per assembly: 1 ~~$85.42~~ $83.95 - + Add to cart
17	FOOTREST, HANGER, RH, FINISHED Part #: T2081625 Required per assembly: 1 ~~$116.17~~ $114.17 - + Add to cart
18	FOOTREST, REAR, HPDC, RH Part #: T2081627 Required per assembly: 1 ~~$85.42~~ $83.95 - + Add to cart
19	SPRING, DETENT, 6.2, X, 14 Part #: T2081674 Required per assembly: 2 ~~$6.72~~ $6.11 - + Add to cart
20	BALL, DETENT, DIA, 6.3 Part #: T2081675 Required per assembly: 2 ~~$2.01~~ $1.83 - + Add to cart
21	DETENT, PLATE, LH Part #: T2081623 Required per assembly: 1 ~~$4.99~~ $4.53 - + Add to cart
22	DETENT, PLATE, RH Part #: T2081628 Required per assembly: 1 ~~$4.99~~ $4.53 - + Add to cart
23	BOLT, RHHF, M8X1.25X30, SLV Part #: T3205653 Required per assembly: 4 ~~$1.26~~ $1.15 - + Add to cart
24	HEEL, GUARD, REAR, PRESSED Part #: T2081655 Required per assembly: 2 Not Available
26	SPACER, DIA, 17, X, 8.4, X, 5.0 Part #: T2081629 Required per assembly: 2 Note: > 234486 ~~$10.71~~ $10.52 - + Add to cart
