Headlight Assembly replacement parts for Triumph Sprint ST 208167 >

OEM Parts Triumph Sprint ST 208167 > Headlight Assembly

Headlight Assembly Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HEADLIGHT, REFLECTOR, SYM, DIP Part #: T2700648 Required per assembly: 1 Note: All Markets; 440389 > ~~$704.17~~ $692.06 - + Add to cart
1	ASSEMBLY, HEADLIGHT, SYM, DIP Part #: T2700383 Required per assembly: 1 Note: US, CA & AR; > 440388 ~~$598.53~~ $588.23 - + Add to cart
1	SUB-HARNESS, TEMP, GAUGE Part #: T2700382 Required per assembly: 1 Note: DE, SE, IT, ES, PT, GR, TW, NL & FR; > 440388 ~~$598.53~~ $588.23 - + Add to cart
1	HEADLIGHT ASSEMBLY LH DIP Part #: T2700381 Required per assembly: 1 Note: All Except DE, SE, IT, ES, PT, GR, NL, FR, US, CA, TW, AR, > 440388 ~~$598.53~~ $588.23 - + Add to cart

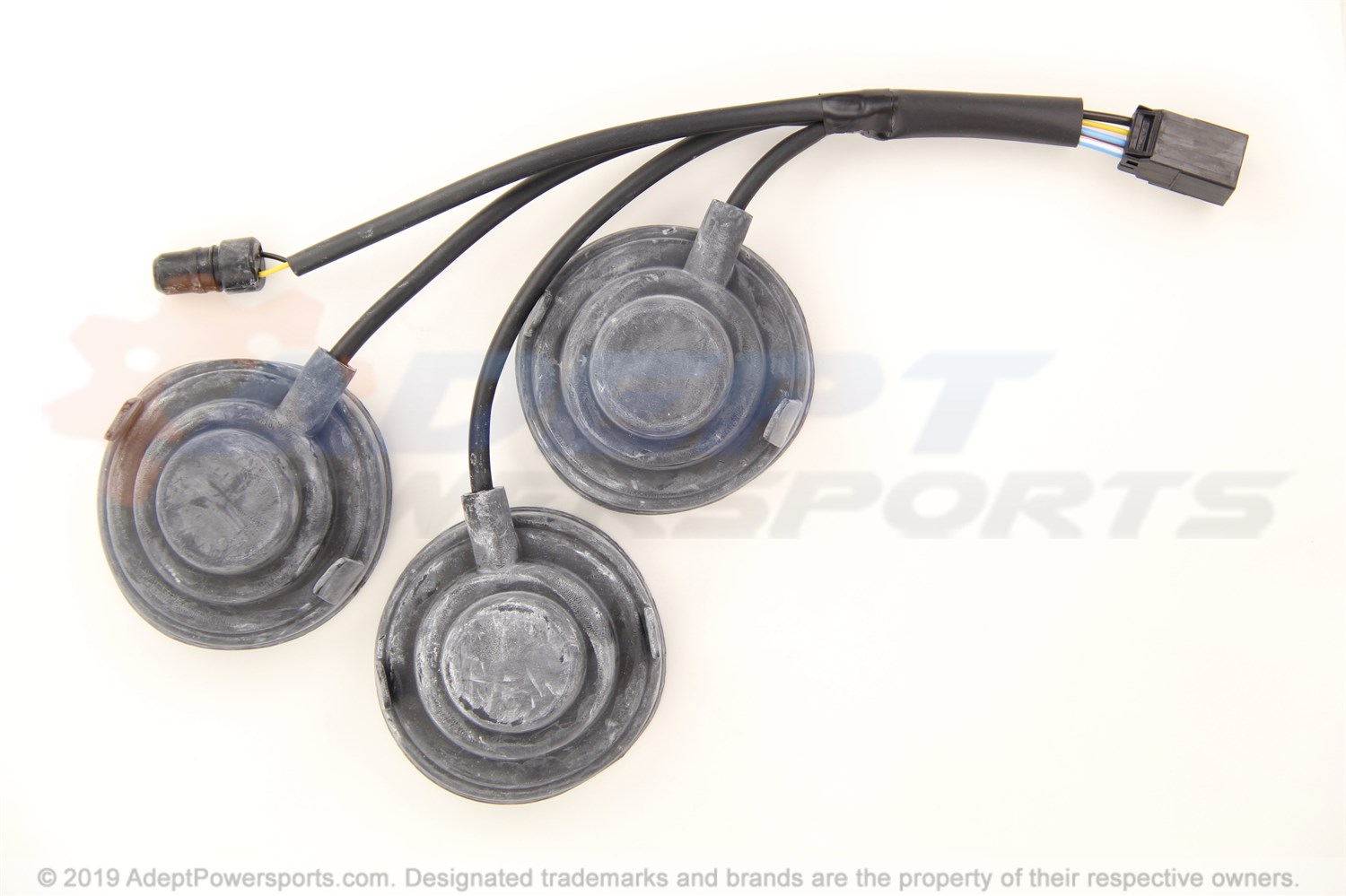

2	SUB-HARNESS, HEADLIGHT Part #: T2700474 Required per assembly: 1 Note: > 440388 ~~$48.42~~ $47.58 - + Add to cart
2	HARNESS, HEADLIGHT Part #: T2700649 Required per assembly: 1 Note: 440389 > Not Available
3	BULB, HEADLIGHT, H7, 55, WATT Part #: T2701384 Required per assembly: 2 Note: > 440388 ~~$15.84~~ $15.56 - + Add to cart
3	BULB, HEADLIGHT, H7, 55, WATT Part #: T2701384 Required per assembly: 3 Note: 440389 > ~~$15.84~~ $15.56 - + Add to cart
4	BULB, W5W, 5W, 12V, CLEAR Part #: T2700938 Required per assembly: 1 Note: > 440388 ~~$4.51~~ $4.10 - + Add to cart
4	BULB, W5W, 5W, 12V, CLEAR Part #: T2700938 Required per assembly: 2 Note: 440389 > ~~$4.51~~ $4.10 - + Add to cart
5	SCREW, BUT/HD, M5, X, 20, SILVER Part #: T3338989 Required per assembly: 4 ~~$7.10~~ $6.46 - + Add to cart
6	WASHER, 5.3, X, 18, X, 1.6 Part #: T3555023 Required per assembly: 4 ~~$1.33~~ $1.21 - + Add to cart
7	BOLT, RHHF, M5X0.8X12, S5041 Part #: T3330891 Required per assembly: 4 ~~$3.41~~ $3.10 - + Add to cart
8	BULB, HEADLIGHT, H7 Part #: T2700406 Required per assembly: 1 Note: > 440388 ~~$15.76~~ $15.48 - + Add to cart
