Rear Wheel & Final Drive replacement parts for Triumph Sprint ST 208167 >

OEM Parts Triumph Sprint ST 208167 > Rear Wheel & Final Drive

Rear Wheel & Final Drive Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WHEEL, ASSEMBLY, REAR, 5.5X17 Part #: T2010074 Required per assembly: 1 $1,051.09 $1,033.00 - + Add to cart
2	VALVE, ASSEMBLY, ALUMINIUM, 90, SLV Part #: T2006615 Required per assembly: 1 $14.43 $14.17 - + Add to cart
3	CLIP, LOCKING Part #: T3700207 Required per assembly: 1 $2.90 $2.64 - + Add to cart
4	NUT, M38X1.5, SLV Part #: T2012596 Required per assembly: 1 $36.05 $35.43 - + Add to cart
5	WASHER, CONICAL, 38.5X55.5X3.5 Part #: T3555036 Required per assembly: 1 $14.28 $14.03 - + Add to cart
6	THRUST, WASHER, PLATED Part #: T3550955 Required per assembly: 1 $10.26 $10.07 - + Add to cart
7	CONICAL, SPACER, ANODISED Part #: T2012575 Required per assembly: 1 $26.41 $25.95 - + Add to cart
8	AXLE, REAR, ASSEMBLY Part #: T2012299 Required per assembly: 1 $589.65 $579.50 - + Add to cart
9	DRIVE PIN Part #: T2012297 Required per assembly: 4 $32.40 $31.84 - + Add to cart
10	M6, BOLT, PAN, HEAD Part #: T3050211 Required per assembly: 4 $3.10 $2.82 - + Add to cart
11	CIRCLIP Part #: T3500050 Required per assembly: 1 $2.13 $1.94 - + Add to cart
12	ECCENTRIC ASSEMBLY Part #: T2012432 Required per assembly: 1 $350.35 $344.31 - + Add to cart
13	SEAL, CUSH, DRIVE Part #: T3600145 Required per assembly: 2 Note: > 388246 $4.37 $3.98 - + Add to cart
14	SNAP, RING, NOM, BORE, 55, DIA Part #: T3501055 Required per assembly: 1 $1.64 $1.49 - + Add to cart

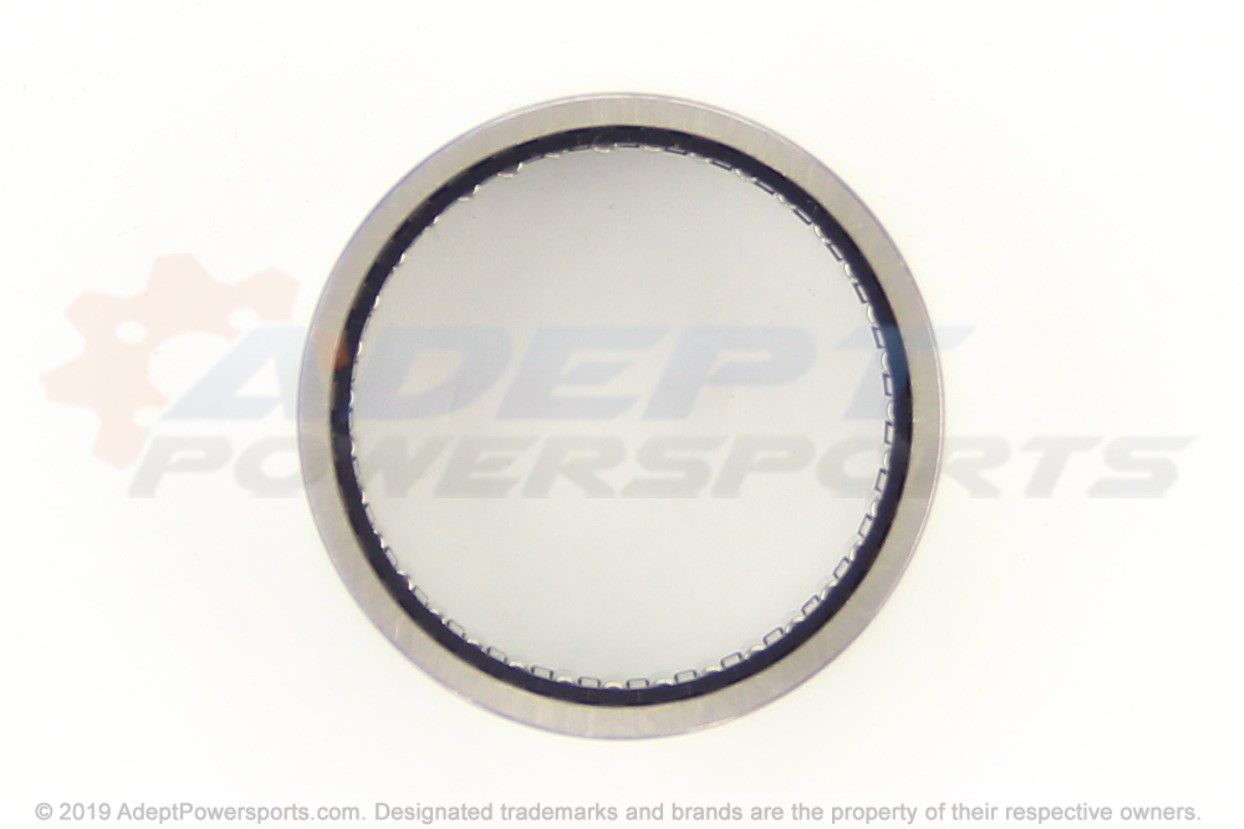

15	BEARING, NEEDLE, ROLLER, 45X55X20 Part #: T3800220 Required per assembly: 1 Note: > 388246 $58.09 $57.08 - + Add to cart
15	BEARING, NEEDLE, 45X55X25, SEALED Part #: T3800221 Required per assembly: 1 Note: 388247 > $95.79 $94.14 - + Add to cart
16	CIRCLIP, INT, 55X2 Part #: T3500209 Required per assembly: 1 $5.13 $4.66 - + Add to cart
17	BEARING, TWIN, BALL, 40X62X24 Part #: T3800170 Required per assembly: 1 $84.60 $83.14 - + Add to cart
18	SNAP, RING, BORE, 62, DIA Part #: T3501062 Required per assembly: 1 $3.10 $2.82 - + Add to cart
19	WASHER, 40, X, 46.5, X, 1.6, SLV Part #: T2016667 Required per assembly: 1 $4.55 $4.14 - + Add to cart
20	CUSH DRIVE ASSEMBLY Part #: T2012386 Required per assembly: 1 $657.99 $646.67 - + Add to cart
21	CUSH, CENTRE, M/C Part #: T2012360 Required per assembly: 1 $138.43 $136.03 - + Add to cart
22	CUSH RUBBER TYPE B Part #: T2012400 Required per assembly: 5 $20.43 $20.06 - + Add to cart
23	O-RING, CUSH, DRIVE Part #: T3600155 Required per assembly: 1 $7.77 $7.06 - + Add to cart
24	BEARING SPACER Part #: T2012620 Required per assembly: 1 $14.14 $13.90 - + Add to cart
25	CUSH, OUTER, M/C Part #: T2012381 Required per assembly: 1 $376.01 $369.53 - + Add to cart
26	BEARING, TWIN, BALL, 55X35X20 Part #: T3800150 Required per assembly: 1 $57.26 $56.26 - + Add to cart
27	BOLT, PAN, HD, SHLD, M8, X, 32 Part #: T3050265 Required per assembly: 6 $6.53 $5.93 - + Add to cart
28	SPROCKET, REAR, 42T Part #: T2012493 Required per assembly: 1 Note: 440389 > $45.32 $43.24 - + Add to cart
28	SPROCKET, REAR, 42T Part #: T2012495 Required per assembly: 1 Note: > 440388 $45.32 $43.24 - + Add to cart
29	LOCKNUT, FLANGED, M8 Part #: T3350004 Required per assembly: 6 $2.33 $2.12 - + Add to cart
30	FLANGED, SLEEVE, 30, X, 45, X, 7.5 Part #: T2012614 Required per assembly: 1 $7.77 $7.06 - + Add to cart
31	CONICAL, WASHER, 35.5, 51, 5.3 Part #: T3555034 Required per assembly: 1 $16.41 $16.12 - + Add to cart
32	NUT, M35X1.5, SLV Part #: T2012536 Required per assembly: 1 $28.12 $27.62 - + Add to cart
33	CHAIN, F/DRIVE, 106L, DID Part #: T2010330 Required per assembly: 1 $225.09 $224.78 - + Add to cart
33	530, CHAIN, 106L, SPARES, KIT Part #: T2017335 Required per assembly: 1 $175.62 $172.59 - + Add to cart
36	SEAL, CUSH, DRIVE Part #: T3600145 Required per assembly: 1 $4.37 $3.98 - + Add to cart
37	CHAIN, &, SPROCKET, KIT, 106/42/19 Part #: T2017313 Required per assembly: 1 Note: 440389 > $259.09 $235.54 - + Add to cart
37	CHAIN, &, SPROCKET, KIT, 106/42/19 Part #: T2017580 Required per assembly: 1 Note: > 440388 $231.12 $198.79 - + Add to cart
