OEM Parts Bmw 1992-1997 Bmw K1100LT (89V2) Engine

1992-1997 Bmw K1100LT (89V2) 02/92-03/97 USA - Engine

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

BLACK ENGINE - 1100CCM

Part #: 11001464589 Required per assembly: 1
Not Available
01

ENGINE - 1100CCM

Part #: 11001464590 Required per assembly: 1
Not Available
02

SET: SEAL AND GASKET SET, ENGINE

Part #: 11001464567 Required per assembly: 1
Currently Not Available
03

SET: REPAIR KIT FOR OIL CHANGE

Part #: 11002300053 Required per assembly: 1
Currently Not Available
03

SET: REPAIR SET INSPECTION

Part #: 11002300054 Required per assembly: 1
Currently Not Available
03

SET: REPAIR KIT SEAL RINGS

Part #: 11009062736 Required per assembly: 1
Currently Not Available
04

PASTE MP 3 - 100G

Part #: 07559062476 Required per assembly: 1 Note: FG* 11/79 R 65 USA / R 45, R 65 MODEL L 81
Currently Not Available
06

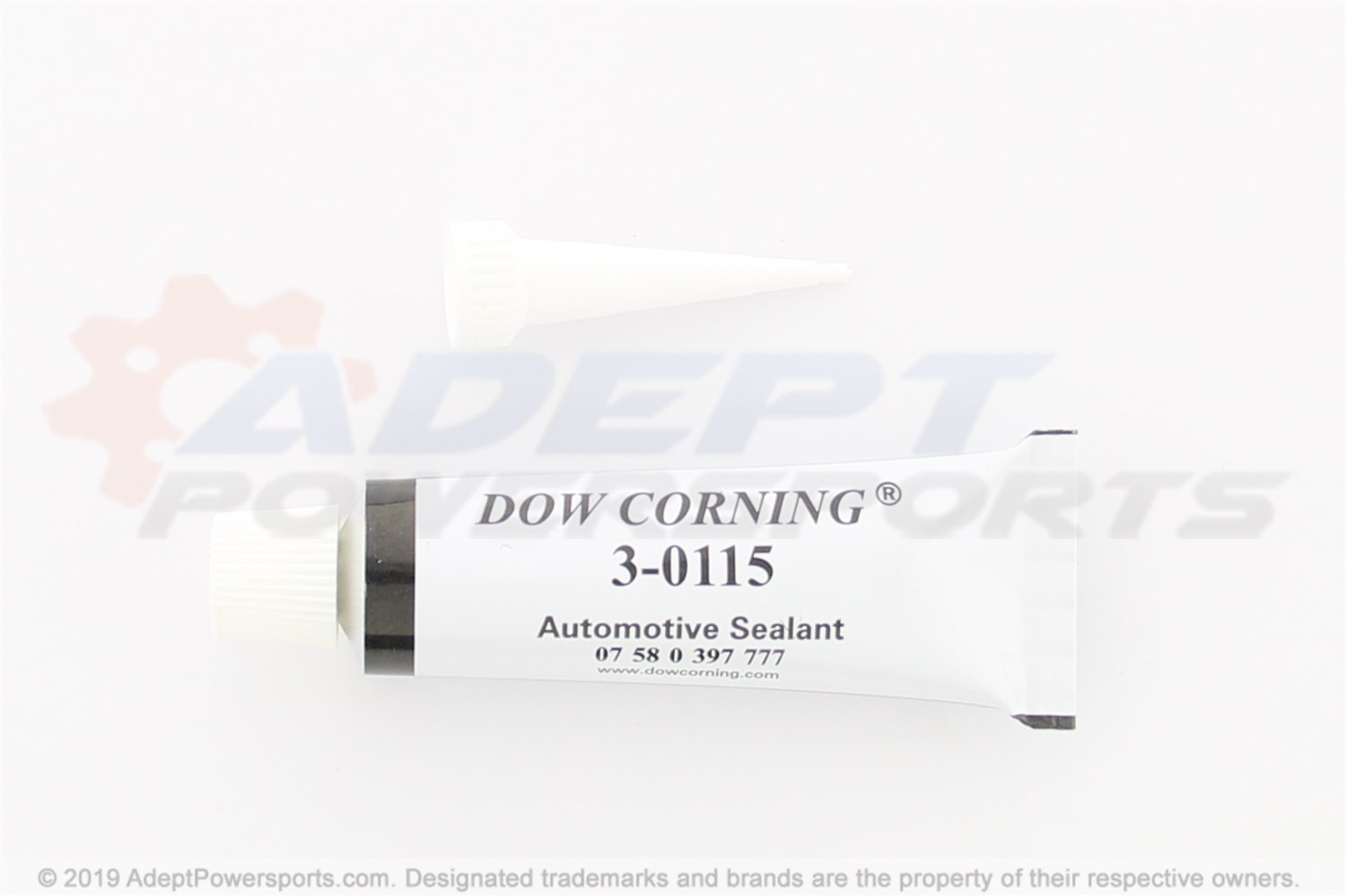

SEALING COMPOUND DOW CORNING - 35ML

Part #: 07580397777 Required per assembly: 1
Currently Not Available
07

MOTOR OIL SUPER POWER SAE 5W-40 - 1000ML

Part #: 81229407547 Required per assembly: 1 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A)
Not Available
