Reflectors replacement parts for 1992-1997 BMW K1100LT (89V2)

OEM Parts Bmw 1992-1997 Bmw K1100LT (89V2) Reflectors

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	FILLISTER-HEAD SCREW - M6X45 Part #: 46612322495 Required per assembly: 4 Note: FOR VEHICLES WITH SWITZERLAND VERSION Currently Not Available
02	BUSH Part #: 63142305029 Required per assembly: 4 Currently Not Available

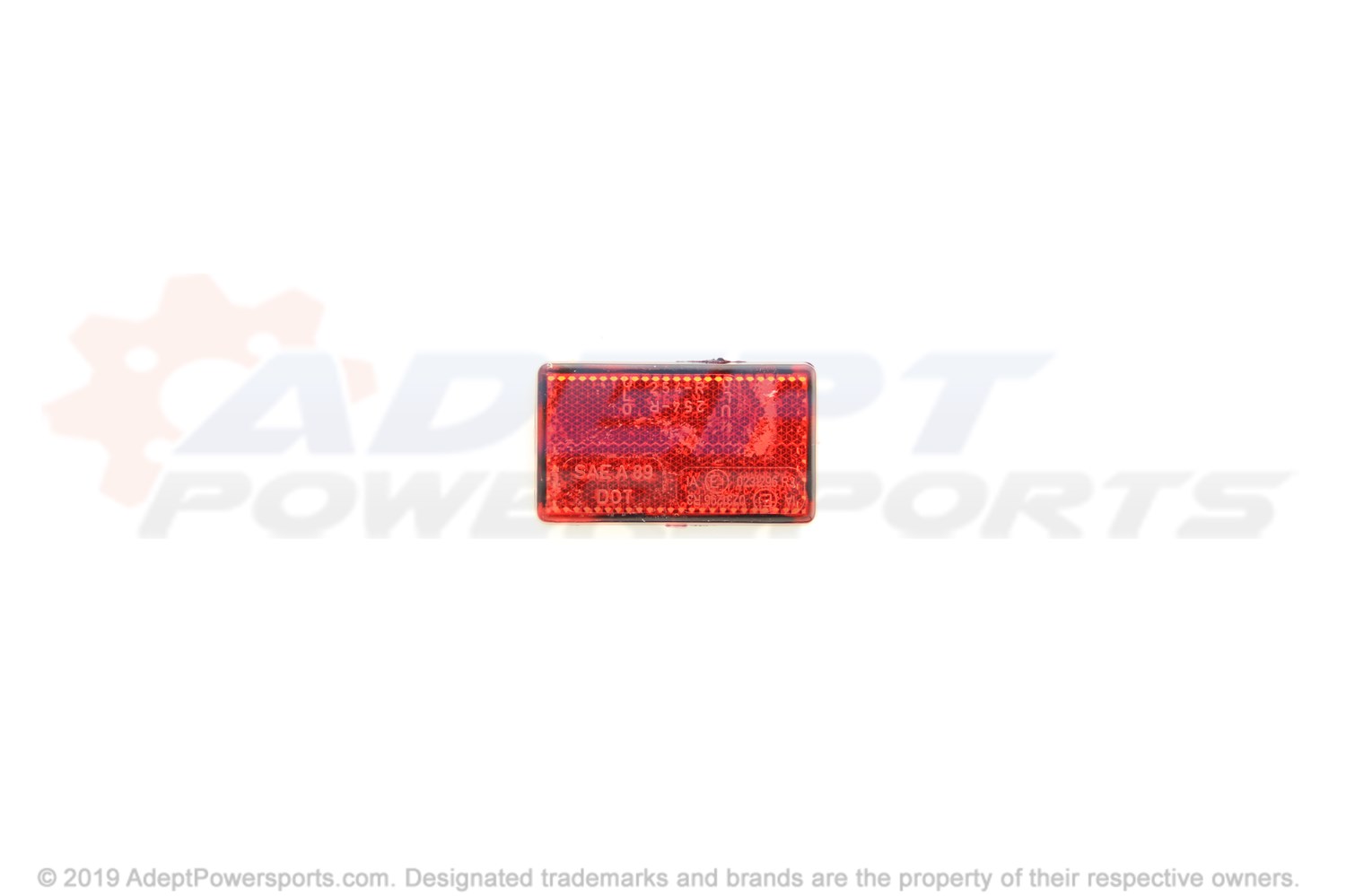

03	REFLECTOR, YELLOW Part #: 63141459035 Required per assembly: 2 Note: FOR VEHICLES WITH SWITZERLAND VERSION Currently Not Available
03	REFLECTOR, RED Part #: 63141459995 Required per assembly: 2 Note: FOR VEHICLES WITH SWITZERLAND VERSION Currently Not Available
03	REFLECTOR, YELLOW Part #: 63141459994 Required per assembly: 2 Note: FOR VEHICLES WITH SWITZERLAND VERSION Currently Not Available
05	WASHER - A6,4-ZNS Part #: 07119931018 Required per assembly: 6 Currently Not Available
06	HEX NUT - M6-8-ZNNIV SI Part #: 07129905817 Required per assembly: 4 Currently Not Available
07	BRACKET LEFT Part #: 63142305037 Required per assembly: 1 Currently Not Available
07	BRACKET RIGHT Part #: 63142305038 Required per assembly: 1 Currently Not Available
--	BRACKET Part #: 63141459168 Required per assembly: 1 Note: ONLY APPLIES TO Currently Not Available
