Theft Alarm, Basic Unit replacement parts for 1992-1997 BMW K1100LT (89V2)

OEM Parts Bmw 1992-1997 Bmw K1100LT (89V2) Theft Alarm, Basic Unit

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	SET: BASIC UNIT, THEFT ALARM Part #: 65752337481 Required per assembly: 1 Note: NOT FOR VEHICLES WITH NATIONAL VERSION JAPAN (CODE: Y742A) Not Available
02	CONTROL UNIT Part #: 65752337477 Required per assembly: 1 Not Available
03	CODING PLUG Part #: 65752337406 Required per assembly: 2 Currently Not Available
04	MOTION SENSOR Part #: 65752337405 Required per assembly: 1 Currently Not Available
05	TRANSMITTER - 433 MHZ Part #: 65752337407 Required per assembly: 1 Note: NOT FOR VEHICLES WITH NATIONAL VERSION JAPAN (CODE: Y742A) Currently Not Available
06	LED BASIC UNIT, THEFT ALARM Part #: 65752337403 Required per assembly: 1 Not Available
07	RECEIVER, BASIC UNIT, THEFT ALARM - DWA Part #: 65752337408 Required per assembly: 1 Currently Not Available
08	HEX NUT - M6-8-ZNNIV SI Part #: 07129905817 Required per assembly: 1 Currently Not Available

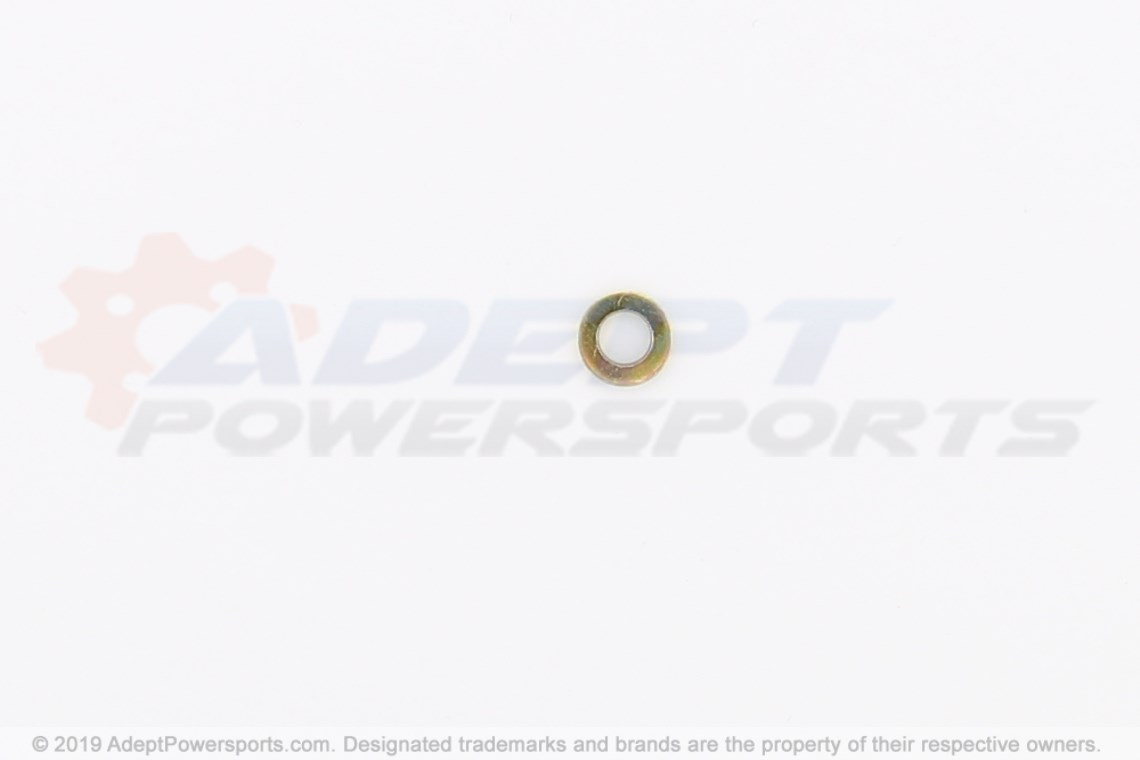

09	WASHER - A6,4-ZNS Part #: 07119931018 Required per assembly: 1 Currently Not Available
10	BATTERY - 3V Part #: 65752337504 Required per assembly: 1 Currently Not Available
