OEM Parts Polaris 2000 Polaris RANGER (A10RD50AA) Foot Brake - A10rd50aa

2000 Polaris RANGER (A10RD50AA) - Foot Brake - A10rd50aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

NUT-LOCK

Part #: 7542439 Required per assembly: 1
$1.99
$1.43
-
+
Add to cart
2

BUSHING, PEDAL, PIVOT

Part #: 5431107 Required per assembly: 2
Currently Not Available
3

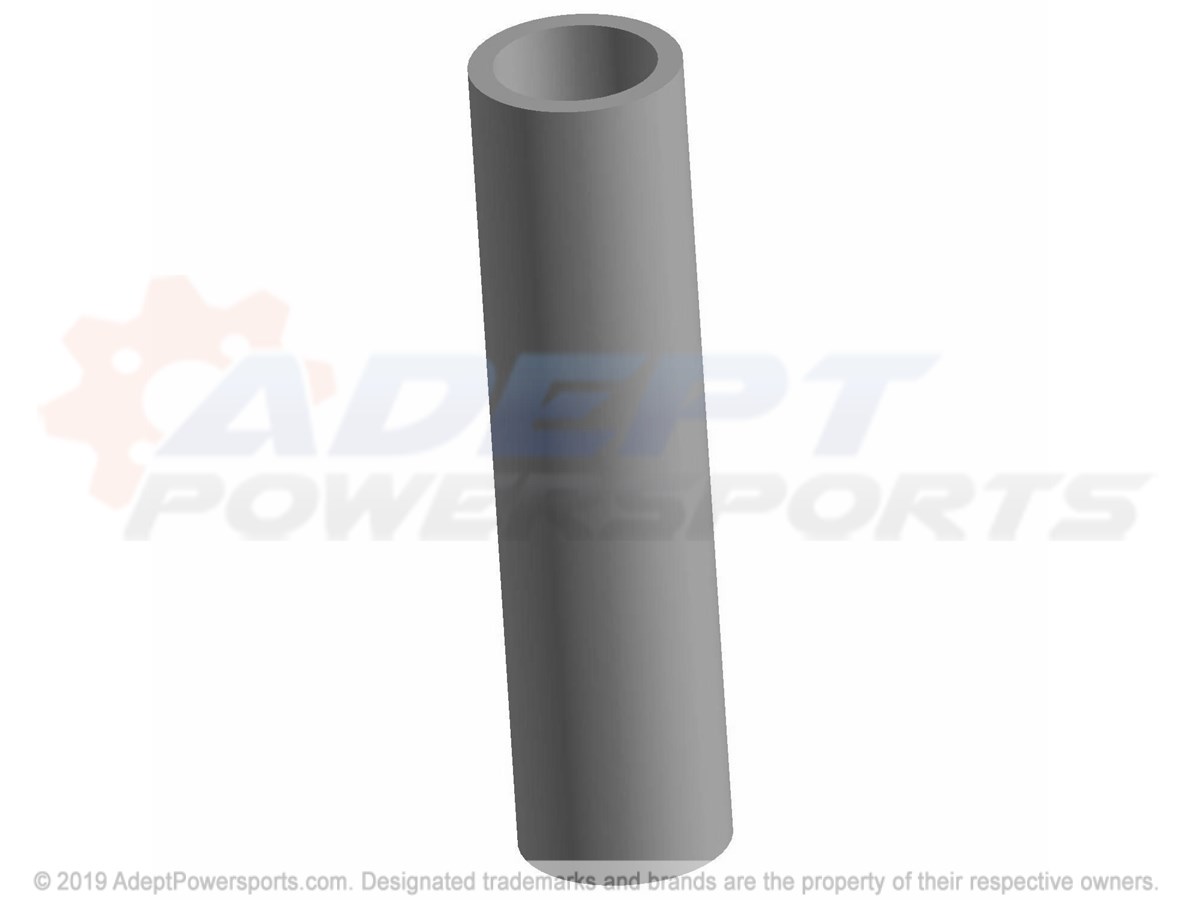

TUBE, BRAKE, PEDAL, BUSHING

Part #: 5334030 Required per assembly: 1
Currently Not Available
4

BOLT

Part #: 7515417 Required per assembly: 1 Note: Screw
Currently Not Available
5

PIN

Part #: 5910110 Required per assembly: 1 Note: PIN, CLEVIS (If built after 1/07/02)
Currently Not Available
5

PIN-5/16X1 CLEVIS

Part #: 7661106 Required per assembly: 1 Note: PIN-5/16X1 CLEVIS (If built before 1/07/02)
Currently Not Available
6

PEDAL, BRAKE

Part #: 1013521-067 Required per assembly: 1 Note: PEDAL BRAKE,RANGER,BLK
Currently Not Available
7

PIN-COTTER

Part #: 7661205 Required per assembly: 1
$35.99
$1.15
-
+
Add to cart
8

PIN, CLIP

Part #: 7661140 Required per assembly: 1
Currently Not Available
