Rear Gearcase - A10rd50aa replacement parts for 2000 Polaris RANGER (A10RD50AA)

OEM Parts Polaris 2000 Polaris RANGER (A10RD50AA) Rear Gearcase - A10rd50aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	ASSEMBLY, REAR, GEARCASE Part #: 1341442 Required per assembly: 1 Note: ASM., REAR GEARCASE (If built after 4/01/02) Currently Not Available

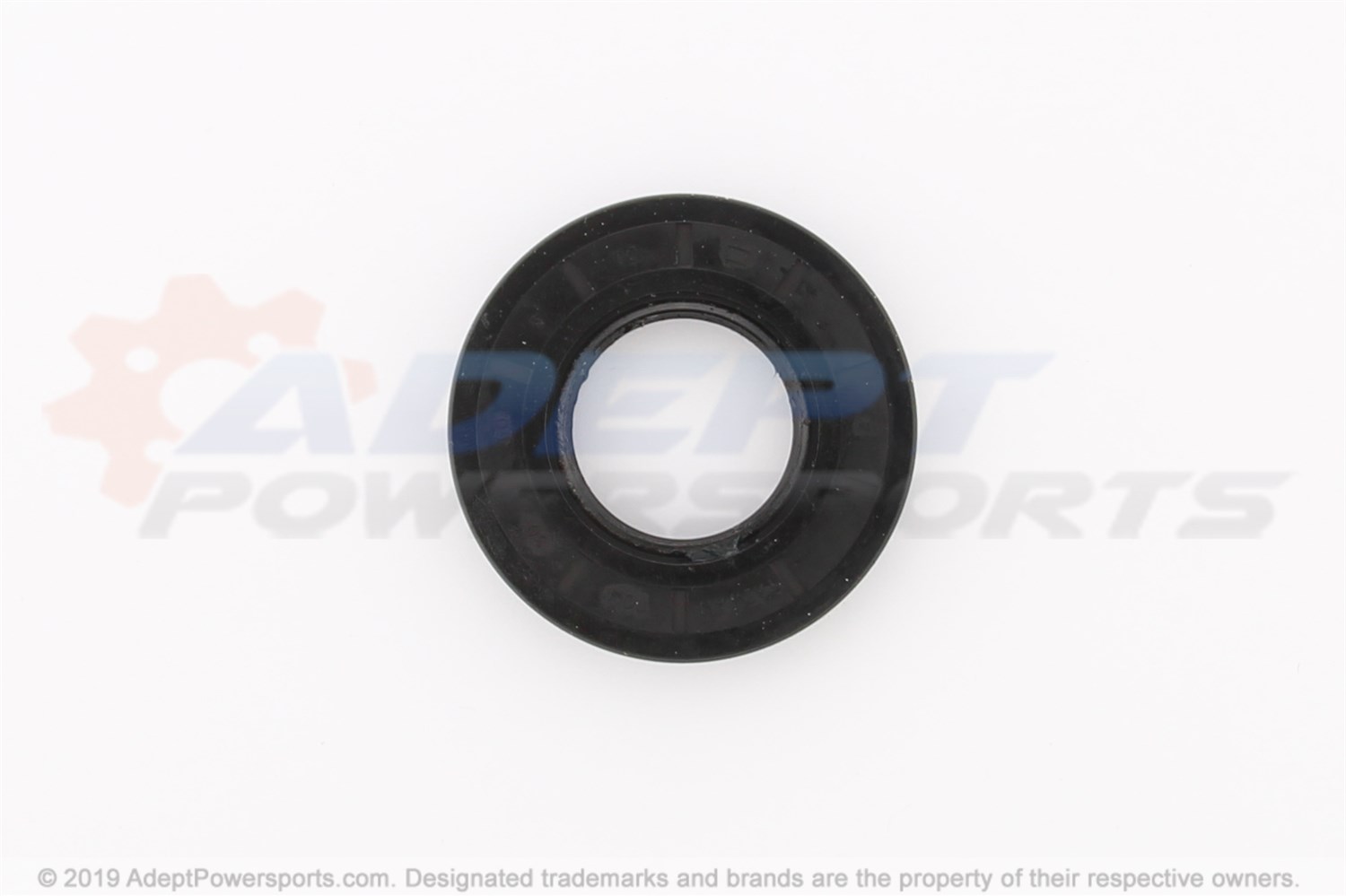

1	SEAL-TRIPLE LIP (FB) Part #: 3233785 Required per assembly: 1 Note: Seal, Triple Lip Currently Not Available
2	COVER, INPUT Part #: 3233800 Required per assembly: 1 Currently Not Available
3	O-RING Part #: 3233801 Required per assembly: 1 Currently Not Available
4	BEARING, BALL Part #: 3233589 Required per assembly: 1 Note: Bearing, Ball Currently Not Available
5	PINION, 10T Part #: 3233802 Required per assembly: 1 Currently Not Available
6	BUSHING Part #: 3233577 Required per assembly: 1 Currently Not Available
7	SEAL Part #: 3233803 Required per assembly: 2 Currently Not Available
8	CASE, FRONT Part #: 3233804 Required per assembly: 1 Currently Not Available
9	PIPE, KNOCK Part #: 3233529 Required per assembly: 1 Note: Pipe, Knock Sold in multiples of 5 only Currently Not Available
10	O-RING Part #: 3234017 Required per assembly: 1 Currently Not Available
11	BEARING, BALL Part #: 3233806 Required per assembly: 1 Currently Not Available
12	RING, RETAINING, DIFFERENTIAL Part #: 3233807 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
13	HOUSING, DIFFERENTIAL, LOCK Part #: 3233810 Required per assembly: 1 Currently Not Available
14	GEAR, OUTPUT, SHAFT, 14T, RH Part #: 3234022 Required per assembly: 1 Currently Not Available
15	GEAR, OUTPUT, SHAFT, 14T, LH Part #: 3234023 Required per assembly: 1 Currently Not Available
16	GEAR, RING, 37T Part #: 3233813 Required per assembly: 1 Currently Not Available
17	COLLAR, SPINED Part #: 3233815 Required per assembly: 1 Note: Collar, Splined Currently Not Available
18	WASHER, THRUST Part #: 3233378 Required per assembly: 1 Currently Not Available
19	BEARING, BALL Part #: 3233268 Required per assembly: 1 Currently Not Available
20	ACTUATOR, CAM Part #: 3233822 Required per assembly: 1 Currently Not Available
21	SPRING, TORSION Part #: 3233820 Required per assembly: 1 Currently Not Available

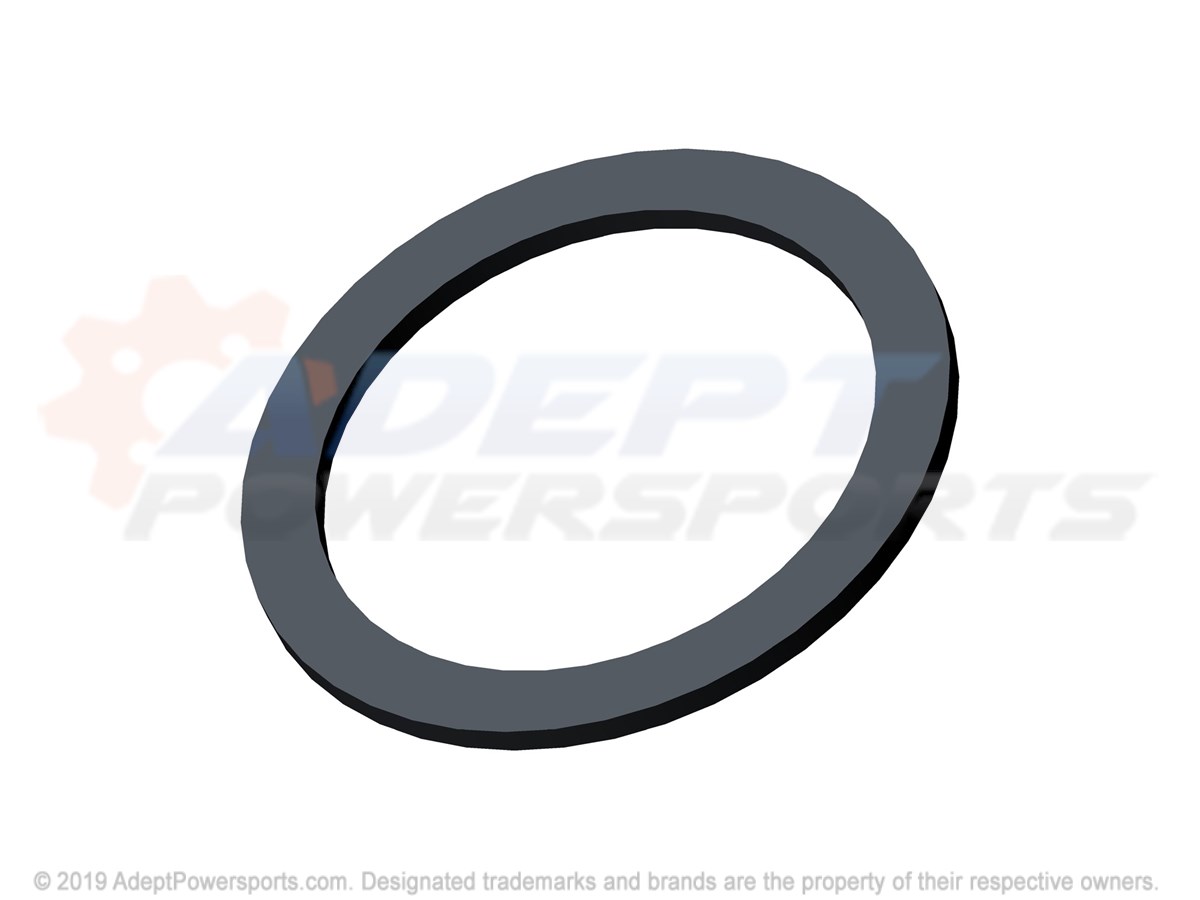

22	WASHER Part #: 7555923 Required per assembly: 1 Note: Washer $4.99 $2.88 - + Add to cart
23	PIN, CLIP Part #: 7661140 Required per assembly: 1 Currently Not Available
24	SEAL Part #: 3233823 Required per assembly: 1 Currently Not Available
25	ACTUATOR Part #: 3233818 Required per assembly: 1 Currently Not Available
26	O RING Part #: 5410440 Required per assembly: 1 Note: O-Ring Currently Not Available
27	RING, RETAINING Part #: 3233819 Required per assembly: 1 Currently Not Available
28	RING, RETAINING Part #: 3233821 Required per assembly: 1 Currently Not Available
29	COVER, OUTPUT Part #: 3233817 Required per assembly: 1 Currently Not Available
30	TUBE, VENT Part #: 3233524 Required per assembly: 1 Note: Tube, Vent Currently Not Available
31	CLIP, SILENCER, Part #: 7670102 Required per assembly: 3 Note: Clip Currently Not Available
33	CLAMP Part #: 7080307 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
34	PLUG, DRAIN Part #: 3233805 Required per assembly: 2 Currently Not Available
35	SCREW Part #: 3233252 Required per assembly: 12 Currently Not Available
36	DOG, ENGAGEMENT Part #: 3233816 Required per assembly: 1 Currently Not Available
37	SHIM 3.1 X 2.5 Part #: 3233581 Note: Shim $49.27 $33.11 - + Add to cart
38	RING, RETAINING Part #: 3233377 Required per assembly: 1 Currently Not Available
39	SCREW, CAP Part #: 3233814 Required per assembly: 8 Currently Not Available
40	PINION, DIFFERENTIAL, 10T Part #: 3233809 Required per assembly: 2 Currently Not Available
41	PIN, DIFFERENTIAL, PINION Part #: 3233808 Required per assembly: 1 Currently Not Available
