Gearcase - A10rd50aa replacement parts for 2000 Polaris RANGER (A10RD50AA)

OEM Parts Polaris 2000 Polaris RANGER (A10RD50AA) Gearcase - A10rd50aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, FLEXLOC Part #: 3233961 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 3233826 Required per assembly: 5 $10.99 $6.33 - + Add to cart
3	COVER Part #: 3233827 Required per assembly: 1 Currently Not Available
4	PAWL, DETENT Part #: 3233829 Required per assembly: 1 Currently Not Available
5	O-RING Part #: 3233828 Required per assembly: 1 Currently Not Available
6	SHAFT, SHIFT Part #: 3233831 Required per assembly: 1 Currently Not Available

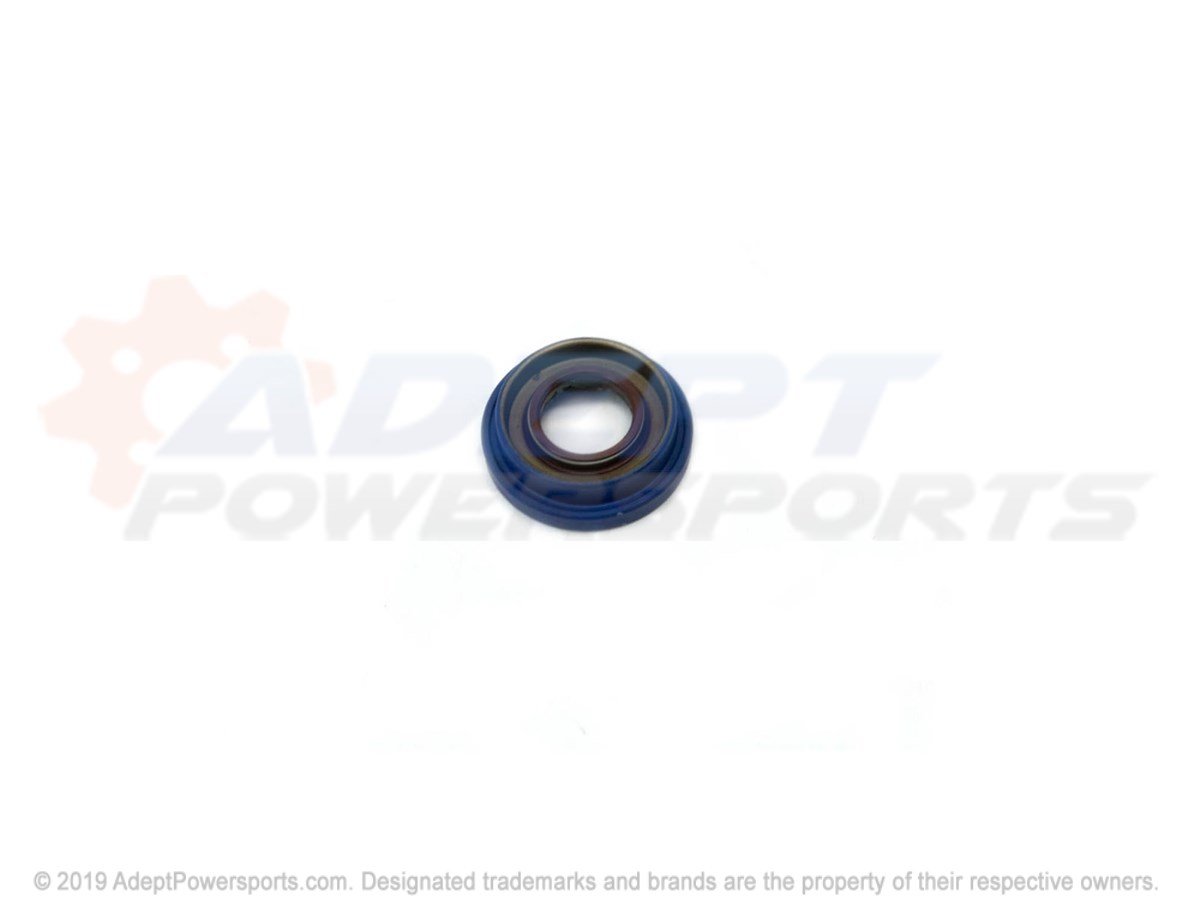

7	SEAL, TRIPLE, LIP Part #: 3234892 Required per assembly: 2 Currently Not Available
8	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available
9	PLUG, OIL, FILL Part #: 3233711 Required per assembly: 1 Note: Plug Currently Not Available
10	TUBE, VENT Part #: 3233524 Required per assembly: 1 Note: Tube, Vent Currently Not Available
11	BEARING Part #: 3233018 Required per assembly: 4 Currently Not Available
12	CHAIN, SILENT, 34P Part #: 3233036 Required per assembly: 1 Currently Not Available
13	SHAFT, INPUT Part #: 3233889 Required per assembly: 1 Note: Shaft, Input [Built 4/14/08 and Before] Currently Not Available
14	BEARING Part #: 3233019 Required per assembly: 4 Currently Not Available
15	PIPE, KNOCK Part #: 3233529 Required per assembly: 4 Note: Pipe, Knock Sold in multiples of 5 only Currently Not Available
16	COVER, LH Part #: 3233865 Required per assembly: 1 Note: Cover, Main, LH Currently Not Available
17	SEAL Part #: 3234851 Required per assembly: 1 Currently Not Available
18	DRUM, SHIFT Part #: 3233841 Required per assembly: 1 Currently Not Available
19	FORK, SHIFT, W/PIN Part #: 3234141 Required per assembly: 2 Note: Subasm., Shift Fork w/Pin [Incl. 28] Currently Not Available
21	RAIL, SHIFT, SHAFT Part #: 3233860 Required per assembly: 1 Currently Not Available
22	ENGAGEMENT DOG Part #: 3233875 Required per assembly: 4 Currently Not Available
23	SPRING, WAVE Part #: 3233849 Required per assembly: 2 Currently Not Available
24	RING, RETAINING Part #: 3233850 Required per assembly: 2 Currently Not Available
25	WASHER Part #: 3233851 Required per assembly: 1 Currently Not Available
26	GEAR, 33T Part #: 3233852 Required per assembly: 1 Currently Not Available
27	BEARING, NDL, SPLIT, CAGE Part #: 3233718 Required per assembly: 2 Note: Bearing, Needle Currently Not Available
28	SHAFT, REVERSE Part #: 3233892 Required per assembly: 1 Currently Not Available
29	BEARING, NEEDLE Part #: 3233103 Required per assembly: 1 Currently Not Available
30	SPROCKET, 24T Part #: 3233893 Required per assembly: 1 Note: Sprocket, 24T [Built 4/14/08 and Before] Currently Not Available
31	WASHER Part #: 3233894 Required per assembly: 1 Currently Not Available
32	WASHER Part #: 3233855 Required per assembly: 1 Currently Not Available
33	GEAR, 30T Part #: 3233856 Required per assembly: 1 Note: Gear, 30T [Built 4/14/08 and Before] Currently Not Available
34	GEAR, 37T Part #: 3233857 Required per assembly: 1 Currently Not Available
35	GEAR, 47T Part #: 3233847 Required per assembly: 1 Currently Not Available
36	SCREW Part #: 3233608 Required per assembly: 4 Note: Screw (Qty. 8 for FB) (Qty. 8 for FB) Currently Not Available
37	COVER, BEARING Part #: 3233609 Required per assembly: 1 Note: Cover, Bearing Currently Not Available
38	RING, SNAP Part #: 3233106 Required per assembly: 1 Currently Not Available
39	SPACER Part #: 3233357 Required per assembly: 1 Currently Not Available
40	BEARING, BALL Part #: 3233607 Required per assembly: 1 Note: Bearing, Ball Currently Not Available
41	SUBASM., GROUND, SPIRAL, BEVEL Part #: 3234912 Required per assembly: 1 Note: Subasm., Ground Spiral Bevel [Incl. 54] Currently Not Available
42	WASHER, THRUST Part #: 3233619 Required per assembly: 1 Note: Washer, Thrust Currently Not Available
43	SPROCKET, 19T, [4X4][6X6] Part #: 3233843 Required per assembly: 1 Note: Sprocket, 19T Currently Not Available
44	SUBASM., GROUND, SPIRAL, BEVEL Part #: 3234912 Required per assembly: 1 Note: Subasm., Ground Spiral Bevel [Incl. 54] Currently Not Available
45	SHAFT, REAR, OUTPUT Part #: 3233622 Required per assembly: 1 Note: Shaft, Rear Output Currently Not Available
46	THRUST BUTTON Part #: 3233582 Required per assembly: 1 Note: Button, Thrust Currently Not Available

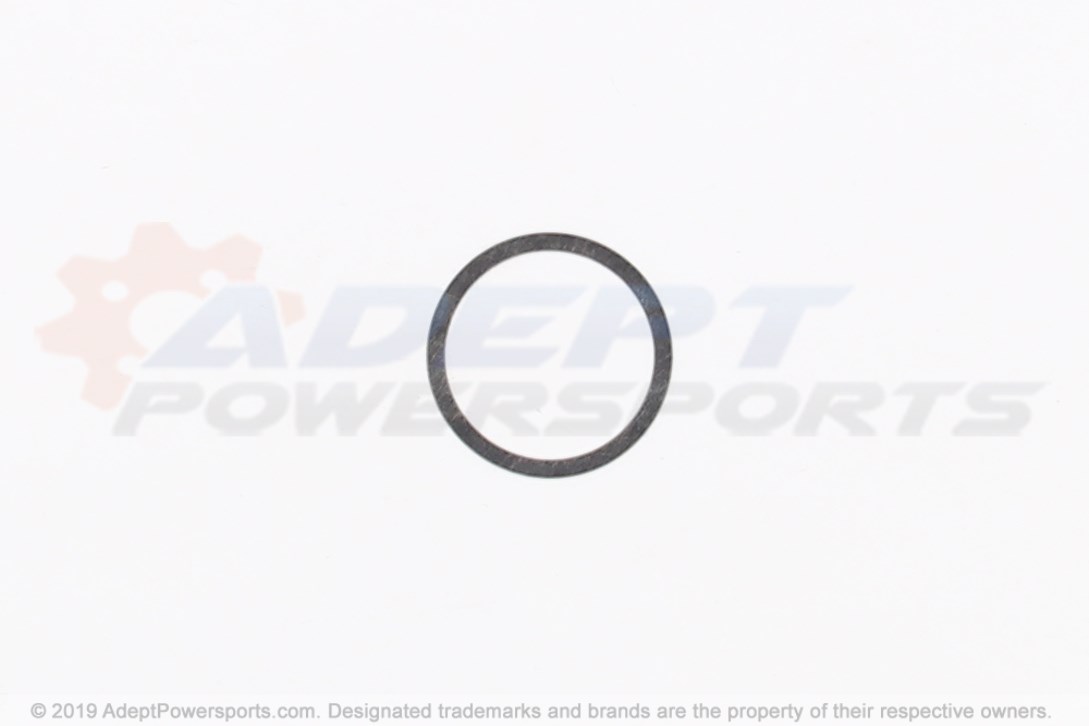

47	SHIM .450 X .265 Part #: 3233583 Note: Shim $30.79 $22.99 - + Add to cart
48	SHIM Part #: 3233611 $30.79 $22.99 - + Add to cart
49	COVER, OUTPUT, FRONT Part #: 3233845 Required per assembly: 1 Currently Not Available
50	SCREW Part #: 3234114 Required per assembly: 15 Currently Not Available
51	PLUG, DRAIN Part #: 3233777 Required per assembly: 1 Currently Not Available
52	PLUG, WASHER Part #: 3233254 Required per assembly: 1 Note: Washer Currently Not Available
53	SHAFT, FRONT, OUTPUT Part #: 3233625 Required per assembly: 1 Note: Shaft, Output Currently Not Available
54	CHAIN, SILENT, [4X4][6X6] Part #: 3233408 Required per assembly: 1 Note: Chain, Silent Currently Not Available
55	SPROCKET, 22T Part #: 3233844 Required per assembly: 1 Currently Not Available
56	BUSHING, GARLOCK Part #: 3233552 Required per assembly: 1 Note: Bushing Currently Not Available
57	GEARCASE, MAIN Part #: 3234046 Required per assembly: 1 Currently Not Available
58	WASHER Part #: 3233324 Required per assembly: 1 $8.92 $6.43 - + Add to cart
59	O-RING Part #: 3233840 Required per assembly: 1 Currently Not Available
60	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
61	DISC, LOCKOUT Part #: 3233838 Required per assembly: 1 Currently Not Available
62	STAR, DETENT Part #: 3233837 Required per assembly: 1 Currently Not Available
63	O-RING Part #: 3233836 Required per assembly: 1 Currently Not Available
64	SPRING, COMPRESSION Part #: 3233830 Required per assembly: 1 Currently Not Available
65	SWITCH Part #: 3236115 Required per assembly: 1 Currently Not Available
66	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
67	BELLCRANK Part #: 3233825 Required per assembly: 1 Currently Not Available
68	ASSEMBLY, MAIN, GEARCASE Part #: 1341464 Required per assembly: 1 Currently Not Available
