Rear Rack And Fenders - M09vh76md/Mx replacement parts for 2009 Polaris MILITARY RANGER RZR "S"

OEM Parts Polaris 2009 Polaris MILITARY RANGER RZR "S" M09VH76MD/MX Rear Rack And Fenders - M09vh76md/Mx

Rear Rack and Fenders - M09VH76MD/MX Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

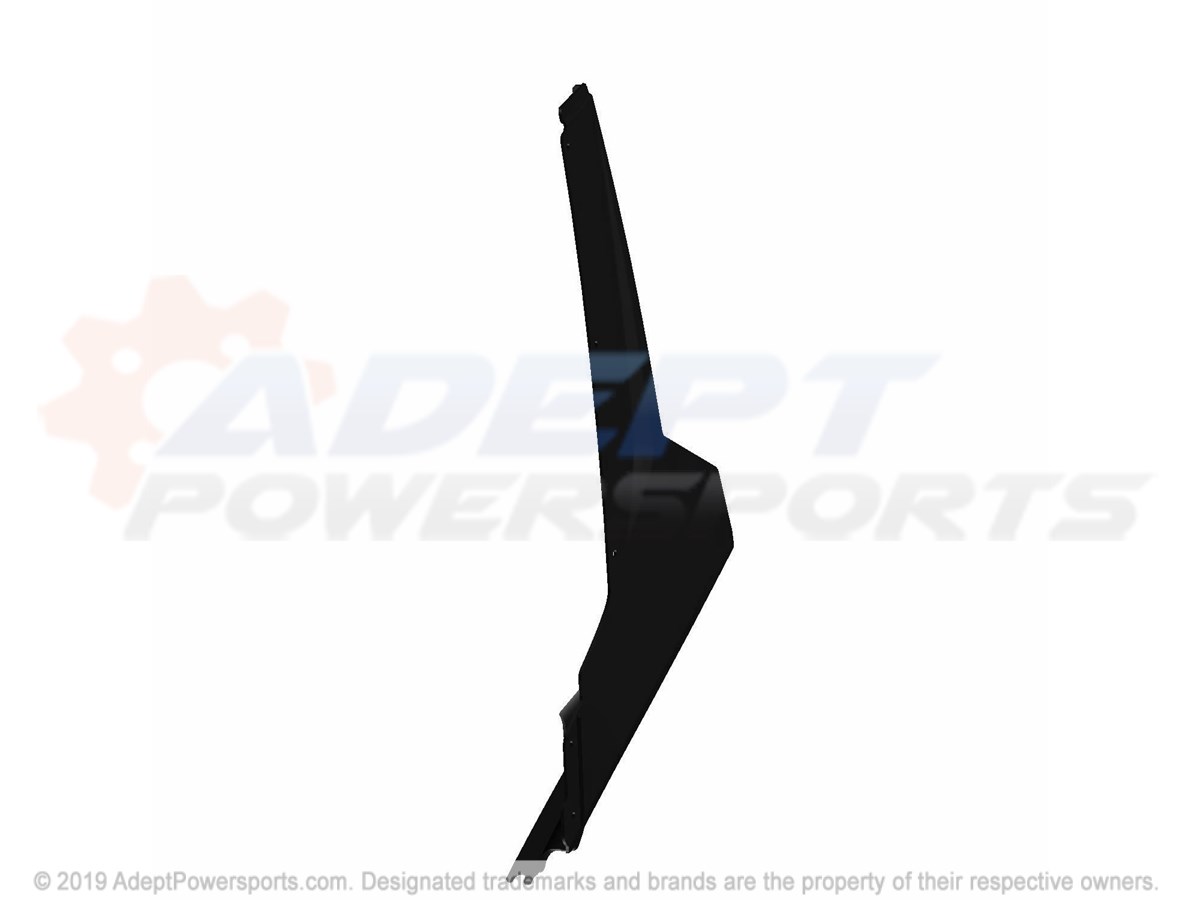

1	FLAIR, FENDER, REAR, LT, RH, BLACK Part #: 5437662-070 Required per assembly: 1 Currently Not Available
2	REAR FENDER-PAINTED RH MIL TAN Part #: 5437474-686 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, RACK, REAR, BLACK Part #: 2633982-070 Required per assembly: 1 Note: Incl. Warning Decals Currently Not Available
4	REAR FENDER-PAINTED LH MIL TAN Part #: 5437472-686 Required per assembly: 1 Currently Not Available

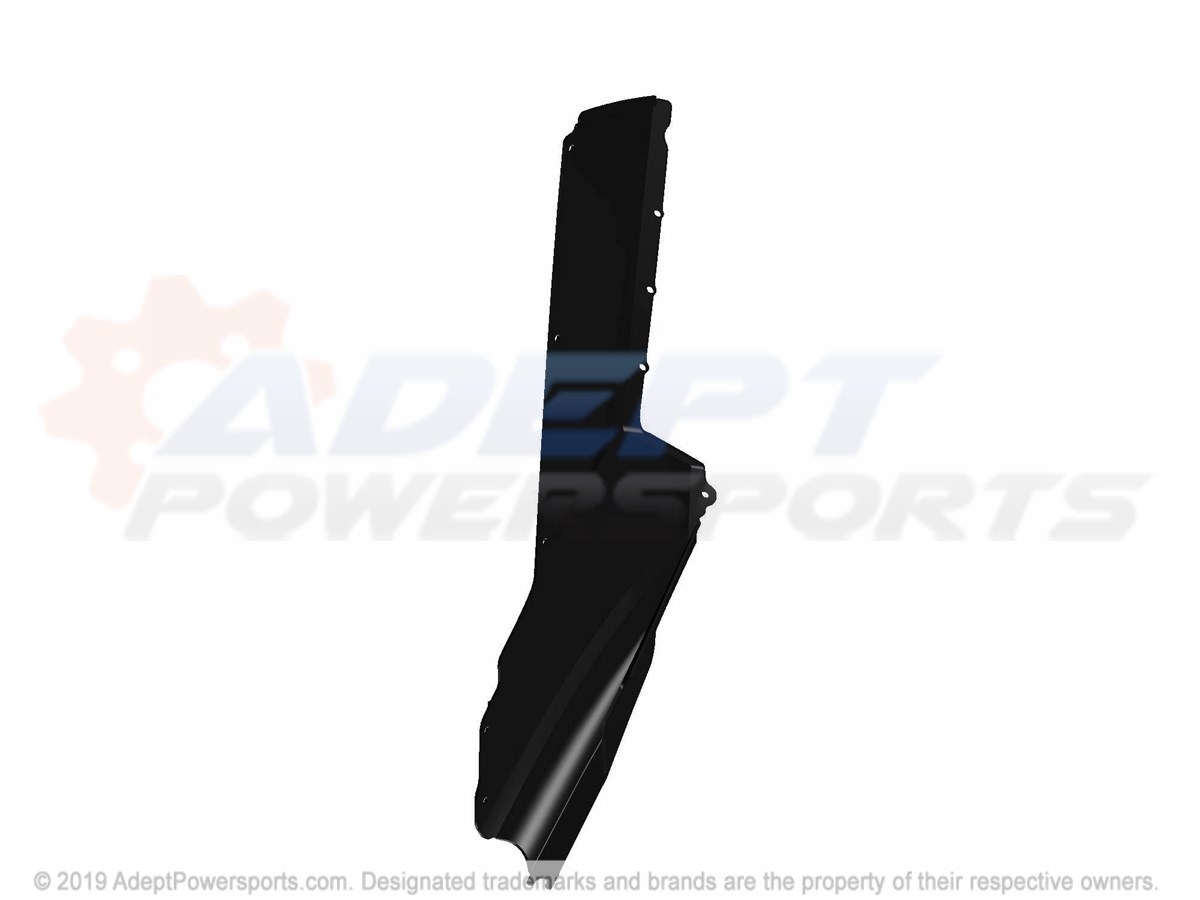

5	FLAIR, FENDER, REAR, LH, BLACK Part #: 5437661-070 Required per assembly: 1 Currently Not Available
6	BRACKET, RACK, TIE, DOWN, LH, BLACK Part #: 5436849-070 Required per assembly: 1 Currently Not Available
7	BRACKET, RACK, TIE, DOWN, RH, BLACK Part #: 5436850-070 Required per assembly: 1 Currently Not Available
8	PANEL, DIVIDER, REAR, LH, BLACK Part #: 5437395-070 Required per assembly: 1 Currently Not Available
9	PANEL, DIVIDER, REAR, MAIN, BLACK Part #: 5437394-070 Required per assembly: 1 Currently Not Available
10	PANEL, DIVIDER, REAR, RH, BLACK Part #: 5437396-070 Required per assembly: 1 Currently Not Available
11	SUPPORT, RACK, REAR, BLACK Part #: 1015565-329 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7517561 Required per assembly: 6 Currently Not Available
13	RIVET Part #: 7661855 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
14	SCREW Part #: 7517230 Required per assembly: 8 ~~$1.99~~ $1.15 - + Add to cart
15	NUT Part #: 7542153 Required per assembly: 8 Note: Nut, Flanged, Nylok ~~$3.47~~ $2.30 - + Add to cart
16	FOAM, SOUND, ATTENTION, CUT Part #: 5813298 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7512084 Required per assembly: 6 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
18	WASHER Part #: 7555919 Required per assembly: 3 Note: Washer Currently Not Available
19	LATCH, 1/4, TURN Part #: 7081500 Required per assembly: 3 Currently Not Available
20	SCREW Part #: 7517685 Required per assembly: 6 Note: Screw Currently Not Available
21	SCREW Part #: 7518382 Required per assembly: 4 Currently Not Available
22	PLATE, SHIELD, BOX Part #: 5256351 Required per assembly: 1 Currently Not Available
23	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
24	SCREW Part #: 7517686 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
25	COVER, STORAGE, BLACK Part #: 5437822-070 Required per assembly: 1 Currently Not Available
26	SEAL, STORAGE Part #: 5813400 Required per assembly: 1 Currently Not Available
27	GROMMET, STORAGE Part #: 5813401 Required per assembly: 1 Currently Not Available
28	FOIL, RH, PANEL Part #: 5813380 Required per assembly: 1 Currently Not Available
29	SCREW Part #: 7518375 Required per assembly: 8 Currently Not Available
30	NUT, U-TYPE Part #: 7670145 Required per assembly: 8 Note: Sold in multiples of 10 only Currently Not Available
31	GROMMET, CAPLUG Part #: 5413582 Required per assembly: 1 Currently Not Available
32	RING, TIE, DOWN Part #: 7081195 Required per assembly: 4 Currently Not Available
