Cooling System - M09vh76md/Mx replacement parts for 2009 Polaris MILITARY RANGER RZR "S"

OEM Parts Polaris 2009 Polaris MILITARY RANGER RZR "S" M09VH76MD/MX Cooling System - M09vh76md/Mx

Cooling System - M09VH76MD/MX Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLAMP, HOSE Part #: 7081174 Required per assembly: 2 Currently Not Available
2	HOSE, ENGINE, OUTLET, REAR Part #: 5413148 Required per assembly: 1 Currently Not Available
3	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 9 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available

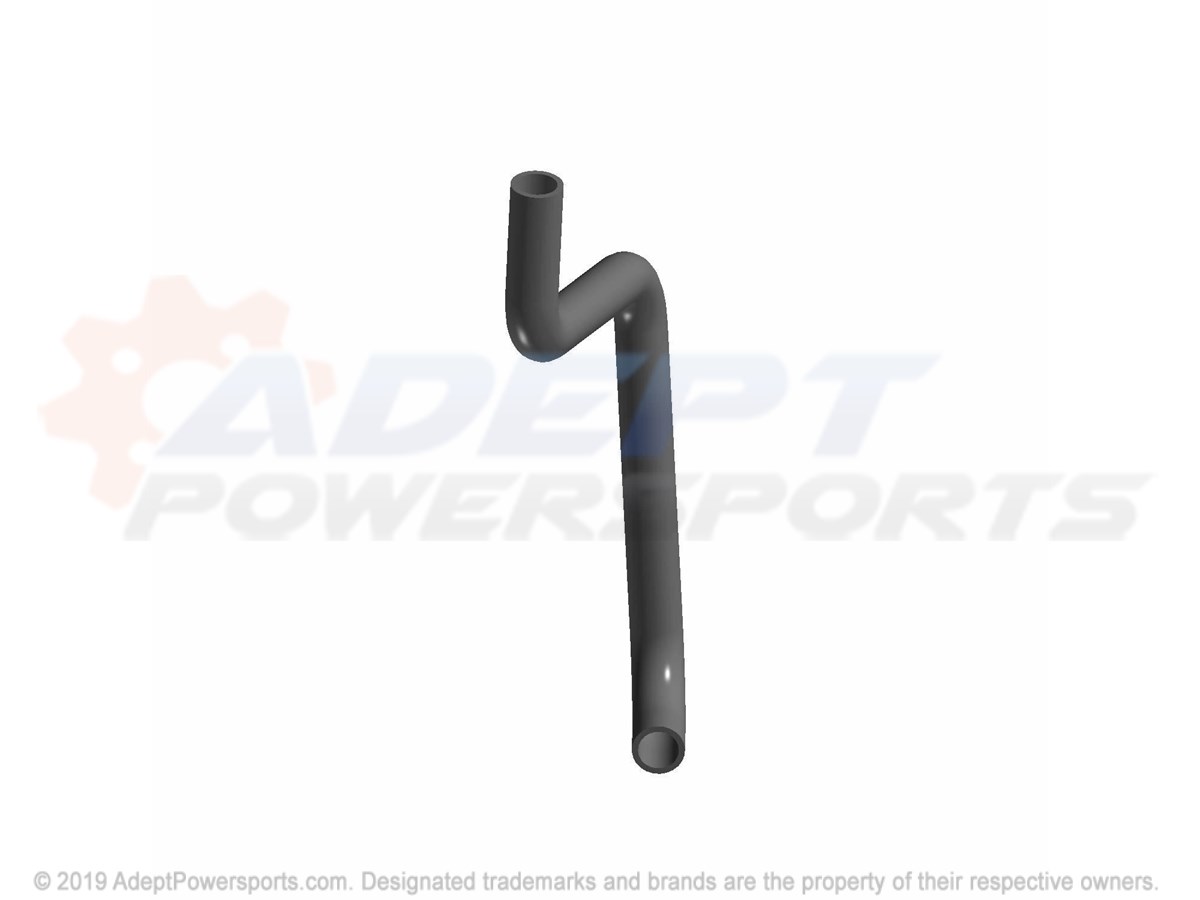

4	HOSE-90 D LWR RADIATOR Part #: 5414202 Required per assembly: 1 Currently Not Available
5	CLAMP Part #: 7080307 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
6	ASSEMBLY, TUBE, COOLANT Part #: 1240544 Required per assembly: 1 Currently Not Available
7	HOSE-LWR FRONT Part #: 5414204 Required per assembly: 1 Currently Not Available
8	HOSE, ENGINE, INLET, REAR Part #: 5413147 Required per assembly: 1 Currently Not Available
9	MOUNT, RADIATOR, LOWER, MATTE', BLACK Part #: 5253550 Required per assembly: 1 Currently Not Available
10	HOSE-REMOTE FILL NECK Part #: 5414203 Required per assembly: 1 Currently Not Available
11	T-CONNECTOR Part #: 7052373 Required per assembly: 1 Note: T-Connector Currently Not Available
12	SCREW Part #: 7516822 Required per assembly: 8 Currently Not Available
13	KIT, FAN Part #: 2204347 Required per assembly: 1 Note: Kit, Fan [Incl. Circuit Breaker] Currently Not Available
14	SHROUD, FAN Part #: 5437845 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7517386 Required per assembly: 10 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
16	GROMMET Part #: 5411975 Required per assembly: 2 Note: Asm., Grommet and Insert Currently Not Available
17	FILLER, REMOTE, COOLANT Part #: 5438110 Required per assembly: 1 Note: Filler, Remote Currently Not Available
18	CAP, PRESSURE Part #: 1240508 Required per assembly: 1 Currently Not Available
19	ASM-RADIATOR, CORE Part #: 1241480 Required per assembly: 1 Currently Not Available
20	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
21	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 2 Currently Not Available
22	U-CLIP Part #: 7547366 Required per assembly: 4 Note: Clip, U ~~$5.39~~ $3.89 - + Add to cart
23	SCREW Part #: 7515179 Required per assembly: 2 Note: Screw ~~$3.99~~ $2.30 - + Add to cart
24	HOSE-UPPER RADIATOR Part #: 5414201 Required per assembly: 1 Currently Not Available
25	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
26	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
27	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE ~~$11.99~~ $6.90 - + Add to cart
28	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart

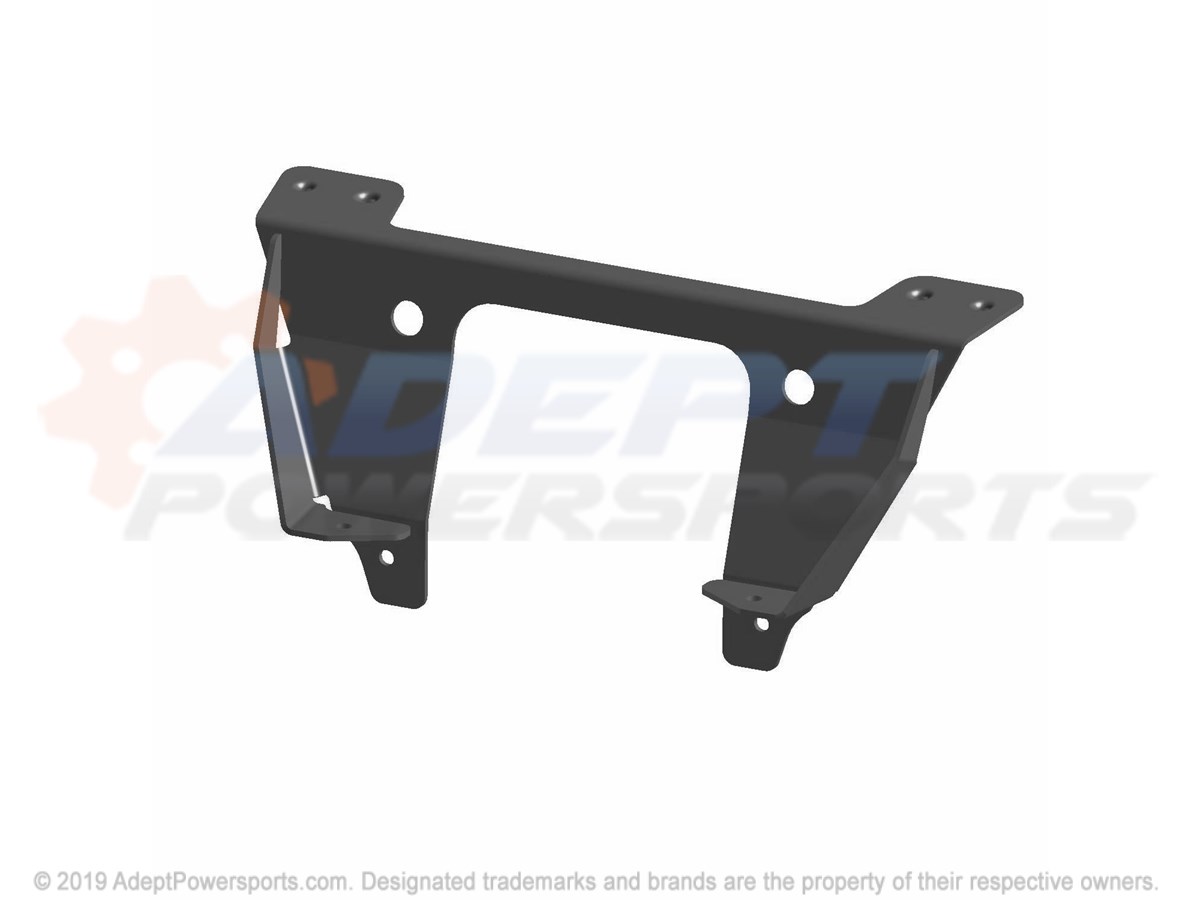

29	BRACKET, FILLER, NECK Part #: 5253450 Required per assembly: 1 Currently Not Available
30	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
31	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
32	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
33	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
34	BRKT-UPPER MNT RADIATOR M BLK Part #: 5254710-458 Required per assembly: 1 Currently Not Available
