Wire Harness - M09vh76md/Mx replacement parts for 2009 Polaris MILITARY RANGER RZR "S"

OEM Parts Polaris 2009 Polaris MILITARY RANGER RZR "S" M09VH76MD/MX Wire Harness - M09vh76md/Mx

Wire Harness - M09VH76MD/MX Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

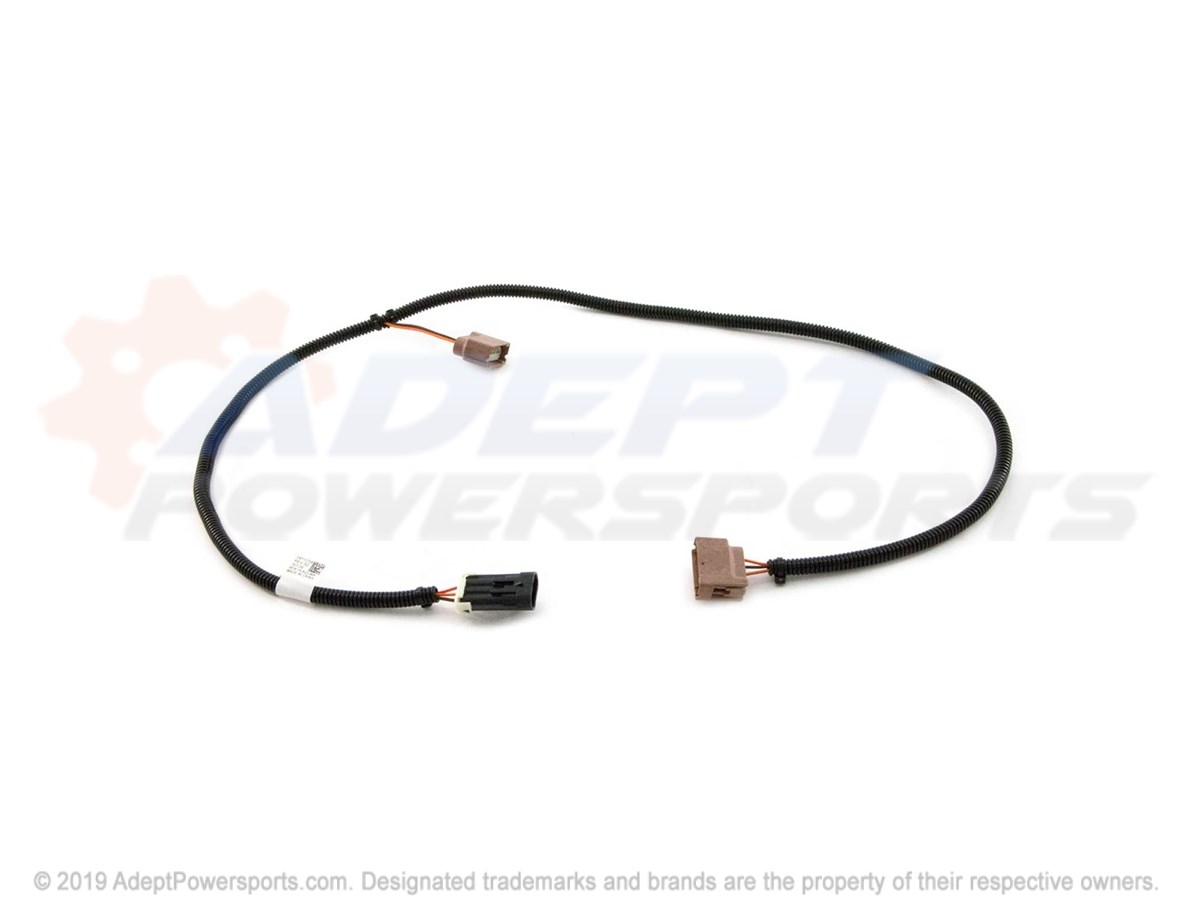

1	KIT, HARNESS, TPS Part #: 2203801 Required per assembly: 1 Currently Not Available
1	KIT, HARNESS, ENGINE, TEMP Part #: 2875543 Required per assembly: 1 Currently Not Available
1	HARNESS, CHASSIS Part #: 2411404 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS, T-BAP, T-MAP Part #: 2878494 Required per assembly: 1 Currently Not Available
2	KIT, FUSIBLE, LINK, .8MM Part #: 2202607 Required per assembly: 2 Currently Not Available
3	KIT, FUSIBLE, LINK, 1.0MM Part #: 2202670 Required per assembly: 2 Note: Kit, Fusible Link Currently Not Available
4	BREAKER, CIRCUIT, 20, AMP Part #: 2410881 Required per assembly: 1 Currently Not Available
5	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
6	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 5 Currently Not Available
7	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
8	REGULATOR Part #: 4012384 Required per assembly: 1 Note: Regulator Currently Not Available
9	BRACKET, REGULATOR, MOUNT Part #: 5252587 Required per assembly: 1 Currently Not Available
10	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 2 Currently Not Available
11	PLATE, FUSE, MOUNT Part #: 5253675 Required per assembly: 1 Note: Plate, Fuse Mount Currently Not Available
12	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
13	HARNESS, BOX Part #: 2411234 Required per assembly: 1 Currently Not Available
14	CLIP-ROUTING Part #: 7670109 Required per assembly: 1 Note: Clip, Routing Currently Not Available
15	CLIP, ROSEBUD Part #: 4020149 Required per assembly: 1 Note: Clip, Rosebud Currently Not Available
16	STRAP, TREE, MOUNT, CABLE, TIE Part #: 7081334 Required per assembly: 2 Note: Strap, Tree Mount, Cable Tie Currently Not Available
17	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 7 Note: Cable Tie Currently Not Available
18	SCR-1/4-20X3/4-TR/TX/TAP-M Part #: 7517916 Required per assembly: 4 Note: Screw ~~$6.99~~ $4.03 - + Add to cart
19	DECAL, FUSE/RELAY, BLOCK Part #: 7176216 Required per assembly: 1 Currently Not Available
20	FUSE, MINI, BLADE, 5, AMP Part #: 4011652 Required per assembly: 1 Note: Fuse, Mini Blade, 5 Amp. Currently Not Available
21	RELAY Part #: 4011998 Required per assembly: 1 Currently Not Available
22	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
