Drive Train, Front Gearcase Internal Components - M09vh76md/Mx replacement parts for 2009 Polaris MILITARY RANGER RZR "S"

OEM Parts Polaris 2009 Polaris MILITARY RANGER RZR "S" M09VH76MD/MX Drive Train, Front Gearcase Internal Components - M09vh76md/Mx

DRIVE TRAIN, FRONT GEARCASE INTERNAL COMPONENTS - M09VH76MD/MX Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

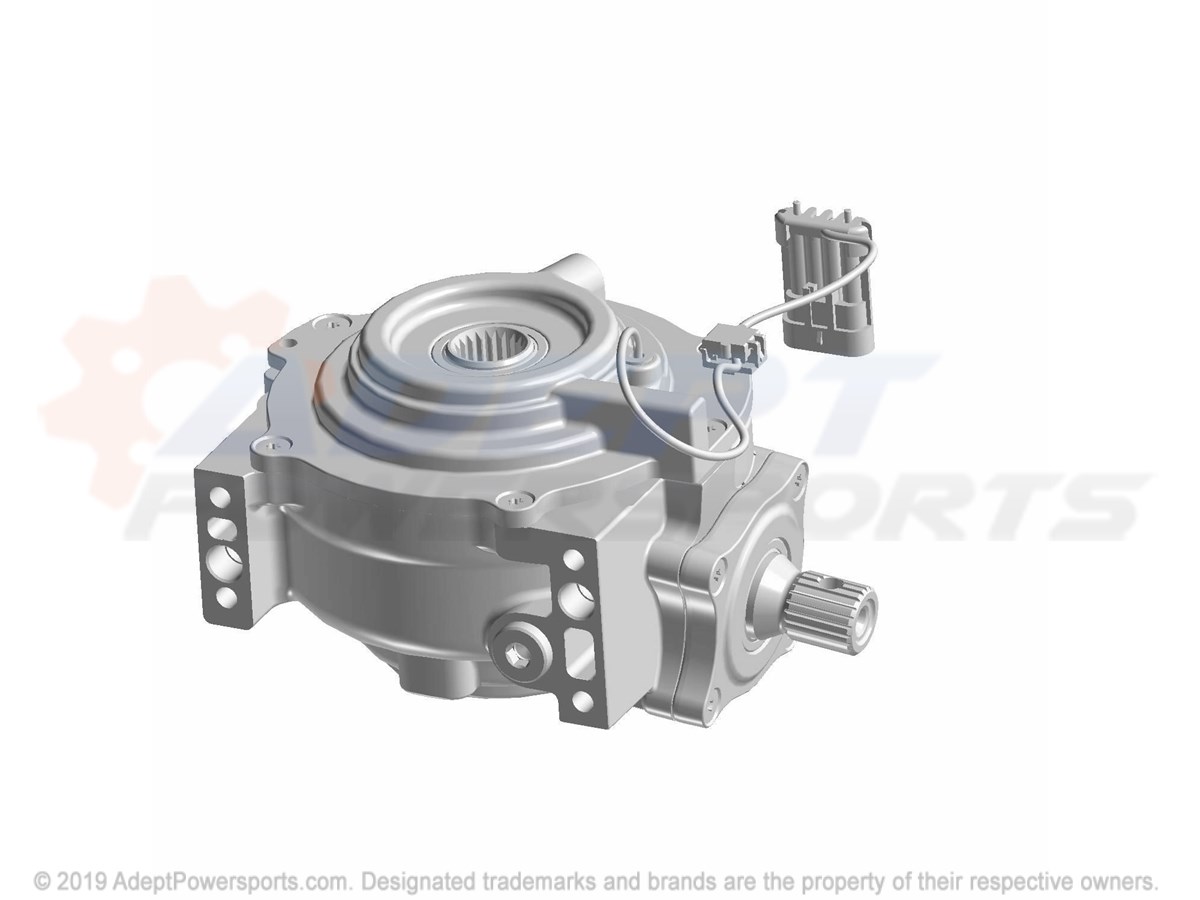

-	ASSEMBLY, GEARCASE, FRONT Part #: 1332803 Required per assembly: 1 Currently Not Available

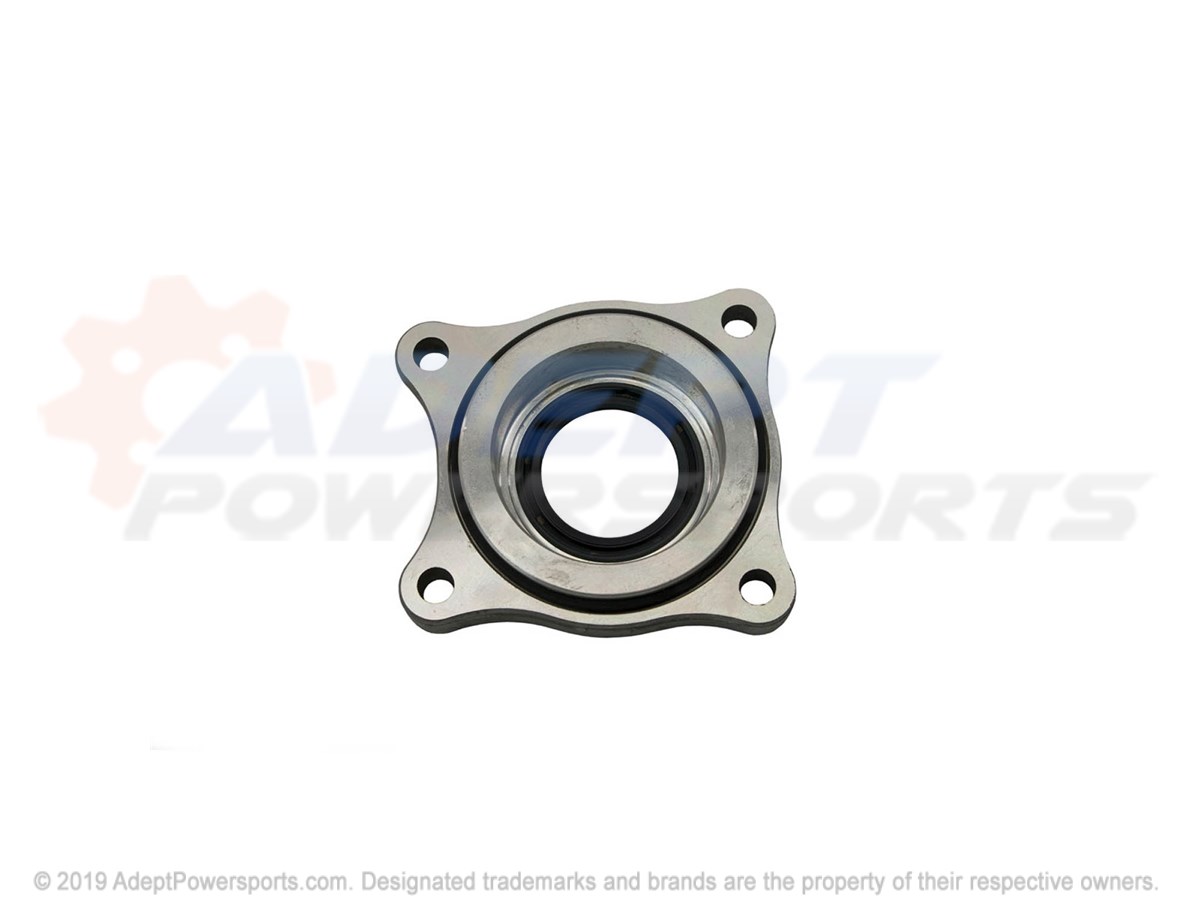

1	ASSEMBLY, OUTPUT, COVER Part #: 2203726 Required per assembly: 1 Currently Not Available
8	SCREW, SET Part #: 2203731 Required per assembly: 1 Currently Not Available
9	BUTTON, THRUST, [MUST, ALSO, ORDER, 2203733] Part #: 2203732 Required per assembly: 1 Note: Button, Thrust Currently Not Available
10	K-HUB, ASM Part #: 3236683 Required per assembly: 1 Currently Not Available

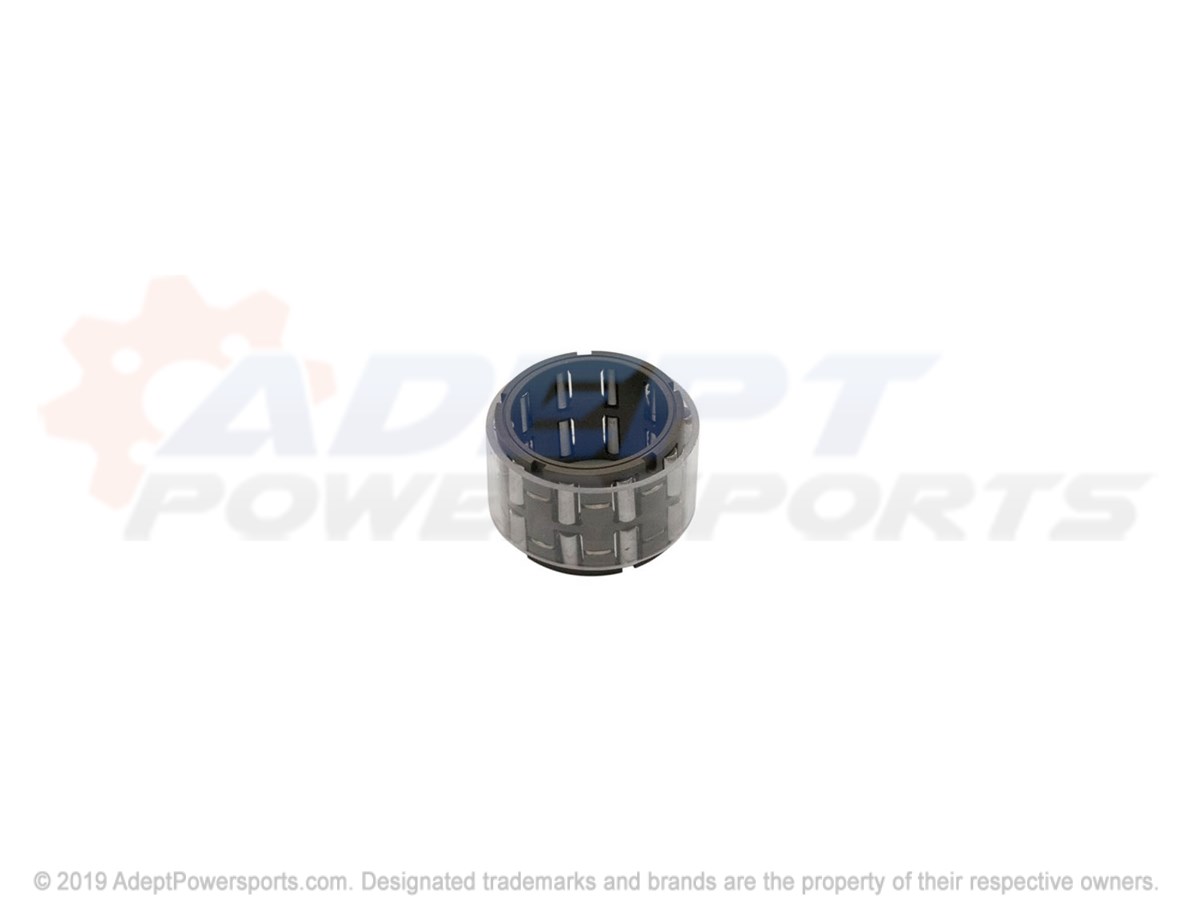

11	BEARING Part #: 3234390 Required per assembly: 3 Currently Not Available
15	K-HUB, ASM Part #: 3236683 Required per assembly: 1 Currently Not Available
17	KIT, FASTENERS Part #: 2203730 Required per assembly: 1 Note: Incl. 10 Screws Currently Not Available

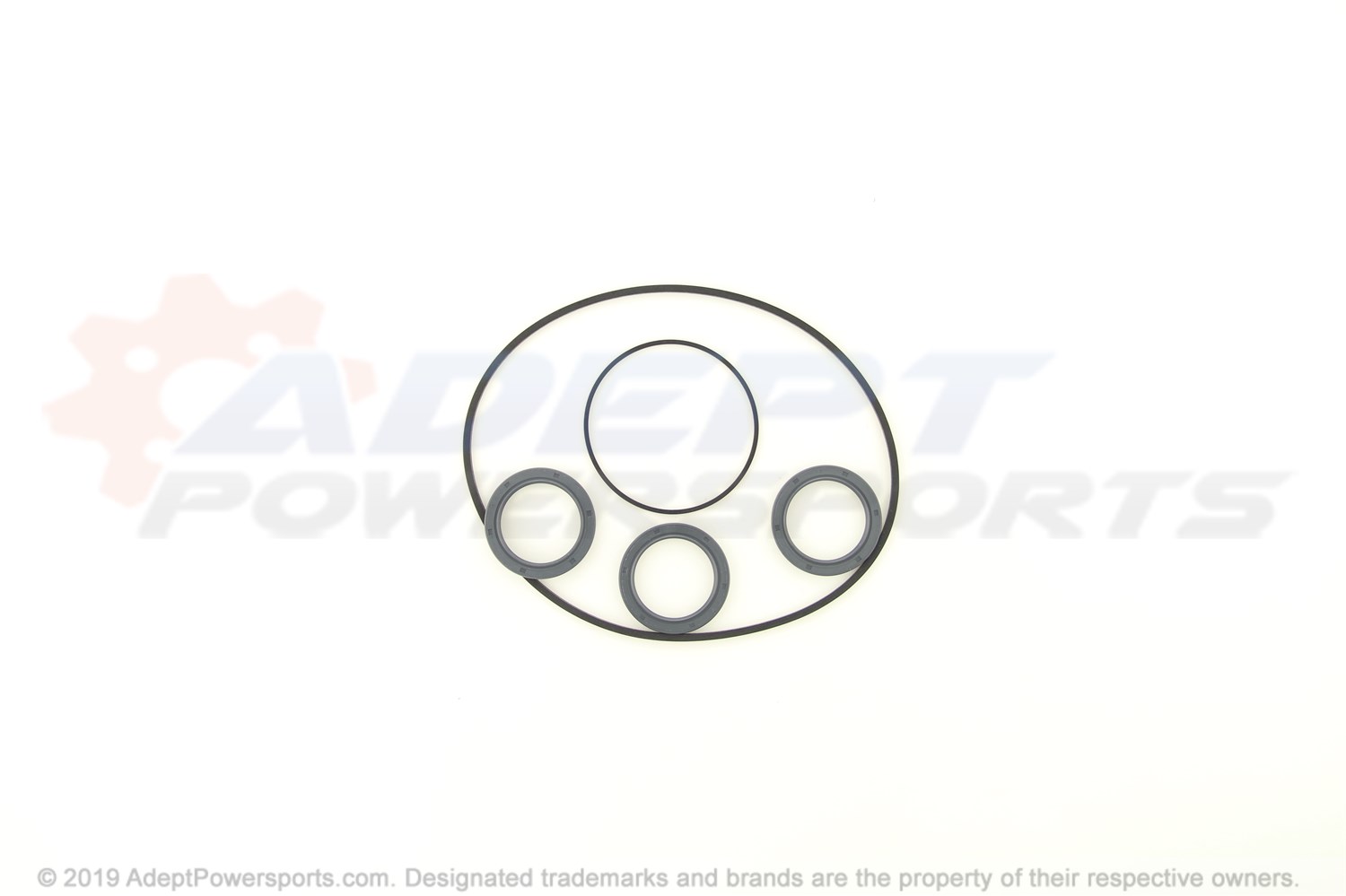

18	KIT, SEAL, REPAIR Part #: 2203729 Required per assembly: 1 Note: Incl. 2,4,19 Currently Not Available
20	PLATE, ARMATURE Part #: 3234407 Required per assembly: 1 Currently Not Available
21	BUTTON, THRUST, DC, [MUST, ALSO, ORDER, 2203732] Part #: 2203733 Required per assembly: 1 Note: Button, Thrust Currently Not Available
22	HOUSING, CLUTCH Part #: 2203734 Required per assembly: 1 Currently Not Available
23	ROLLER Part #: 3234393 Required per assembly: 1 Note: Incl. 20 Rollers ~~$3.99~~ $2.58 - + Add to cart
24	ASSEMBLY, ROLL, CAGE Part #: 3234466 Required per assembly: 1 Note: Incl. 25,26 Currently Not Available
24	ASSEMBLY, ROLL, CAGE, ALUMINUM, NT Part #: 3235263 Required per assembly: 1 Note: Opt Currently Not Available
27	ASSEMBLY, GEARCASE Part #: 2203735 Required per assembly: 1 Note: Incl. 28-32 Currently Not Available
31	PLUG, FILL Part #: 2203739 Required per assembly: 1 Note: w/o O-Ring Currently Not Available
32	PLUG, DRAIN Part #: 2203738 Required per assembly: 1 Currently Not Available

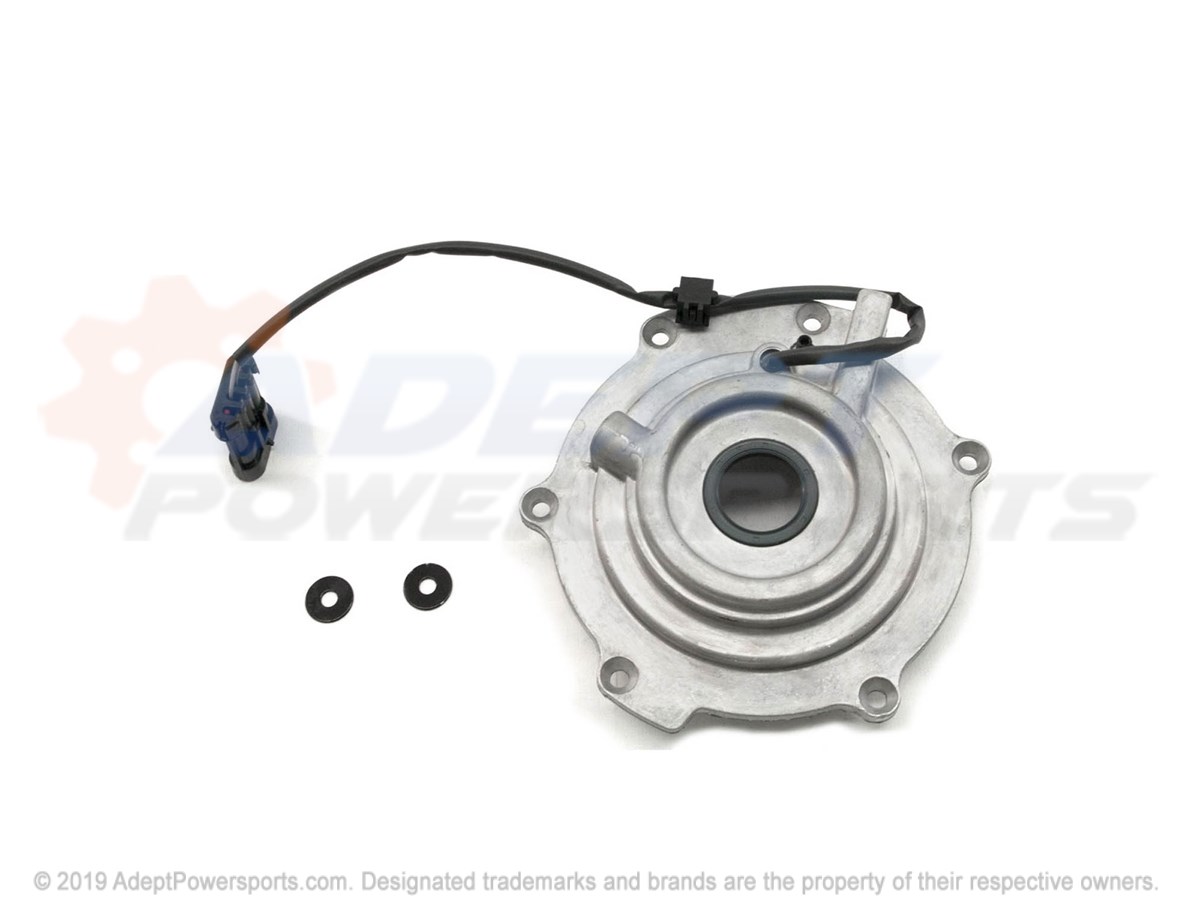

33	ASSEMBLY, INPUT, COVER Part #: 2203736 Required per assembly: 1 Note: Incl. 17,19,34 Currently Not Available

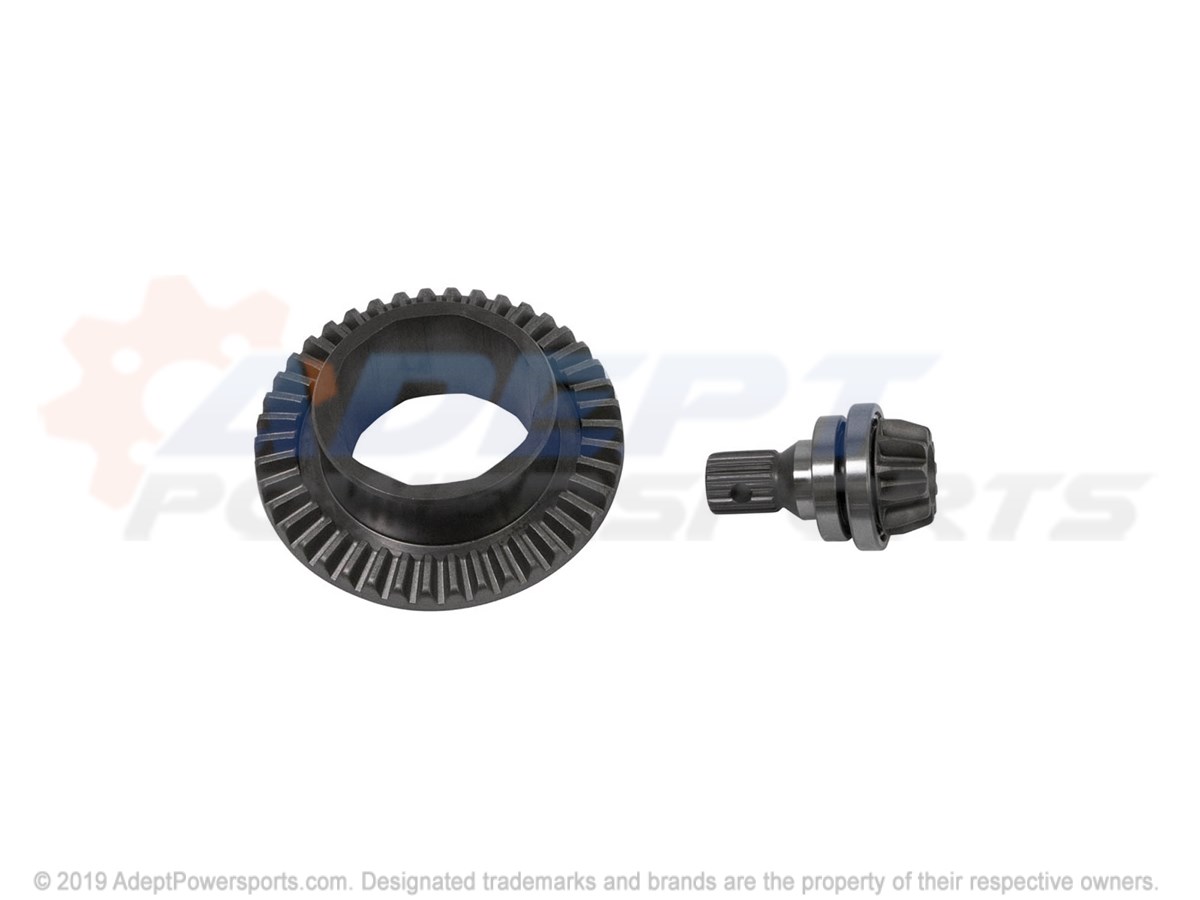

35	ASSEMBLY, PINION, GEAR Part #: 3235058 Required per assembly: 1 Note: Incl. 11,36,37,38 Currently Not Available
