Chassis, Frame And Front Bumper replacement parts for 2012 Polaris RANGER CREW 800 (R12WH76AG/AR/EAH/EAV)

OEM Parts Polaris 2012 Polaris RANGER CREW 800 (R12WH76AG/AR/EAH/EAV) Chassis, Frame And Front Bumper

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518555 Required per assembly: 43 Note: Bolt, Flange Currently Not Available
2	WELD-CAB/SEAT BASE BLK Part #: 1017809-067 Required per assembly: 1 Currently Not Available
3	SUPPORT, FLOOR, FRONT, BLACK, RH Part #: 1016865-329 Required per assembly: 1 Currently Not Available
4	SUPPORT-FRAME JOINT BLK Part #: 5632316-329 Required per assembly: 2 Currently Not Available
5	BRACKET, BUMPER, GUARD, BLACK Part #: 5438181-070 Required per assembly: 1 Currently Not Available
6	FOAM, HOOD, SUPPORT Part #: 5813421 Required per assembly: 1 Currently Not Available
7	WELD-CAB SUPPORT FRT EWB Part #: 1017325-521 Required per assembly: 1 Currently Not Available
8	BOLT, FLANGE Part #: 7518563 Required per assembly: 18 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 18 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	SCREW Part #: 7518981 Required per assembly: 2 ~~$2.89~~ $1.73 - + Add to cart
11	CAP, BUMPER Part #: 5434191 Required per assembly: 2 ~~$5.99~~ $3.81 - + Add to cart
12	SCREEN, FASCIA, BLACK Part #: 5438241-070 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7517685 Required per assembly: 2 Note: Screw Currently Not Available
14	SCREEN, BUMPER, UPPER, BLACK Part #: 5438240-070 Required per assembly: 1 Currently Not Available
15	NUT, FLANGE Part #: 7547313 Required per assembly: 2 ~~$2.79~~ $1.73 - + Add to cart
16	WASHER Part #: 7555806 Required per assembly: 32 ~~$1.99~~ $1.15 - + Add to cart
17	SCREW, FLANGE Part #: 7518473 Required per assembly: 2 Currently Not Available
18	BUMPER, BLACK Part #: 1016310-521 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7518158 Required per assembly: 3 Currently Not Available
20	SUPPORT, FLOOR, FRONT, BLACK, LH Part #: 1016864-329 Required per assembly: 1 Currently Not Available

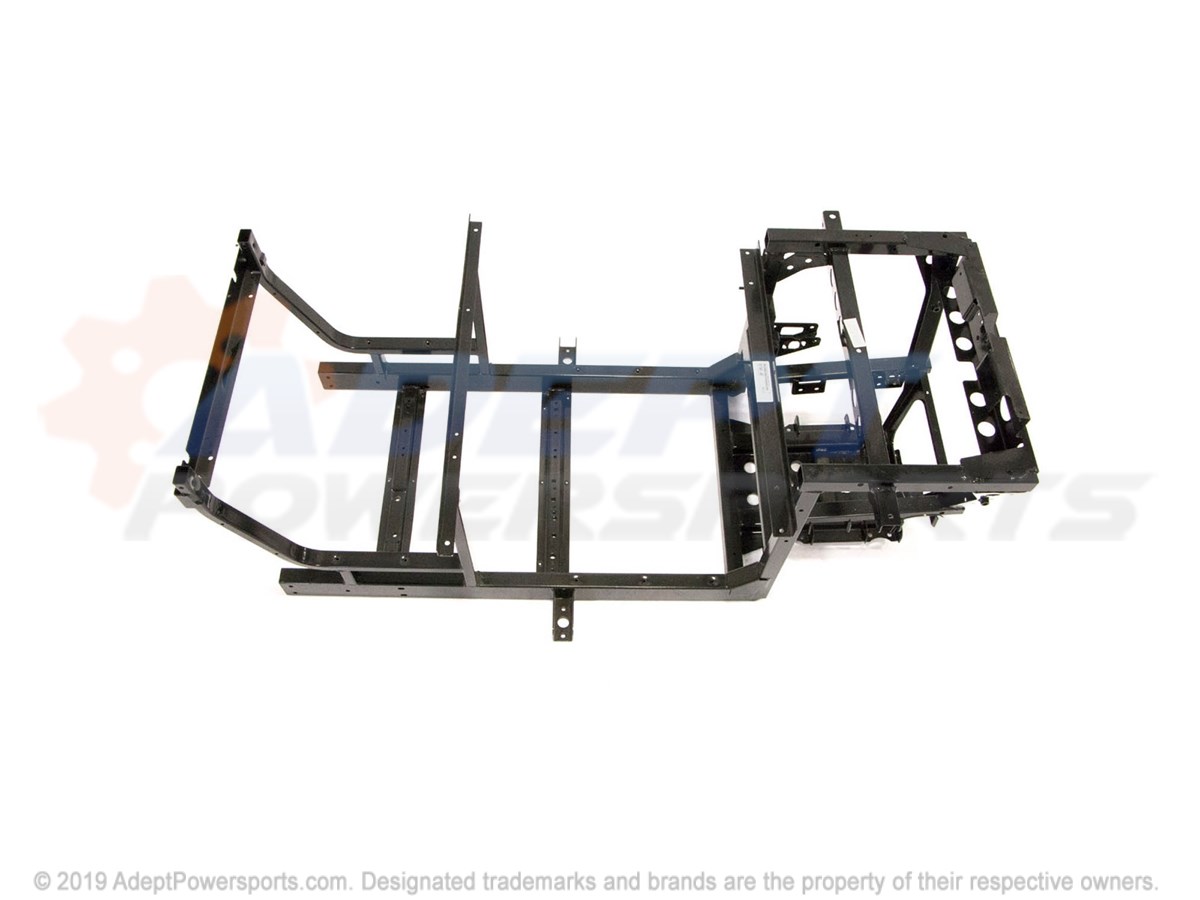

21	WELD-FRAME FRONT BLK Part #: 1017647-067 Required per assembly: 1 Currently Not Available
22	WELD-FRAME REAR BLK Part #: 1017648-067 Required per assembly: 1 Currently Not Available
23	WELD-CAB/SEAT BASE FRONT BLK Part #: 1017808-067 Required per assembly: 1 Currently Not Available
24	SCREW, FLANGE Part #: 7517281 Required per assembly: 4 Note: Screw Currently Not Available
25	NUT, FLANGE Part #: 7547317 Required per assembly: 4 Currently Not Available
