Electrical, Harnesses replacement parts for 2012 Polaris RANGER CREW 800 (R12WH76AG/AR/EAH/EAV)

OEM Parts Polaris 2012 Polaris RANGER CREW 800 (R12WH76AG/AR/EAH/EAV) Electrical, Harnesses

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

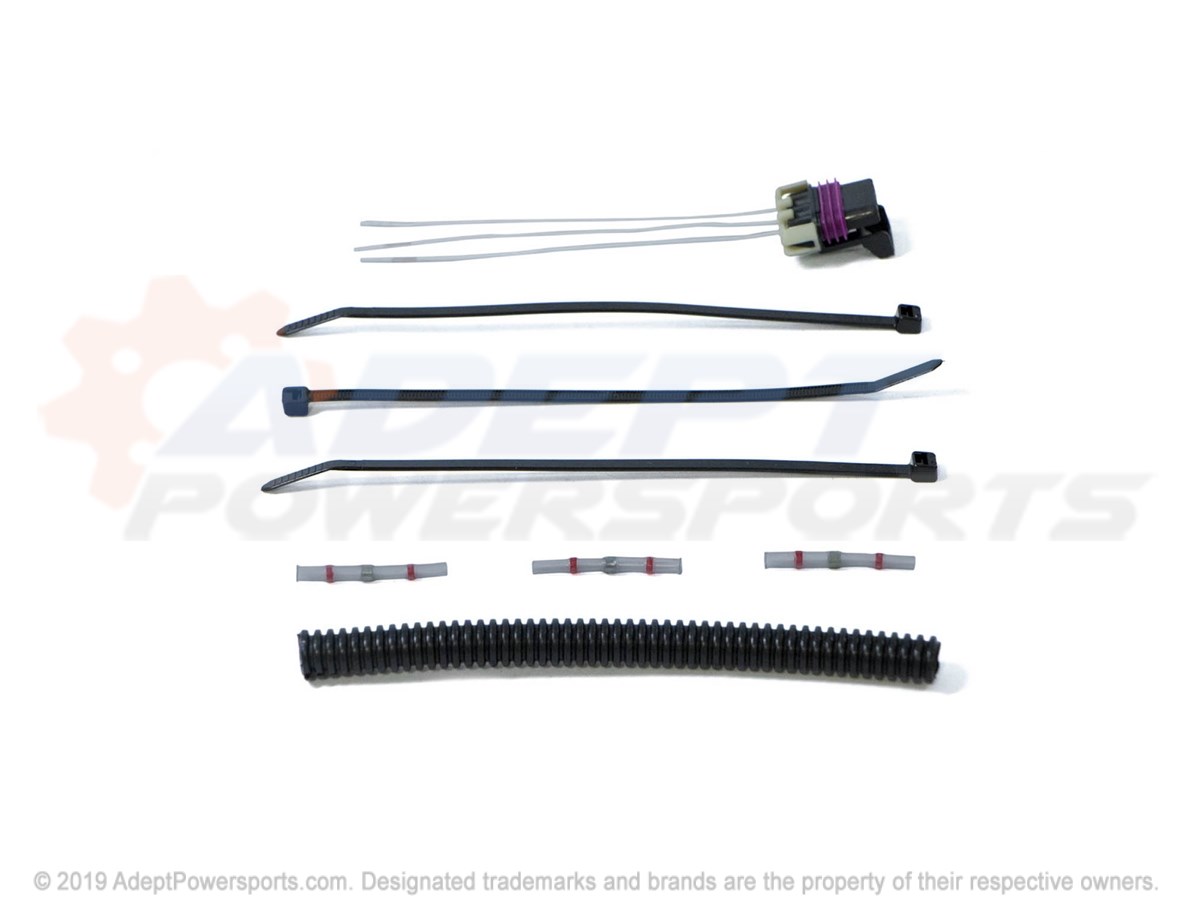

1	KIT-HARNESS TPS Part #: 2878498 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS FUEL PUMP/PFA Part #: 2878510 Required per assembly: 1 Currently Not Available
1	KIT-HEADLIGHT HI LOW Part #: 2878493 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS PHASE SENSOR Part #: 2878504 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS CPS Part #: 2878497 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS ENGINE TEMP Part #: 2878496 Required per assembly: 1 Currently Not Available

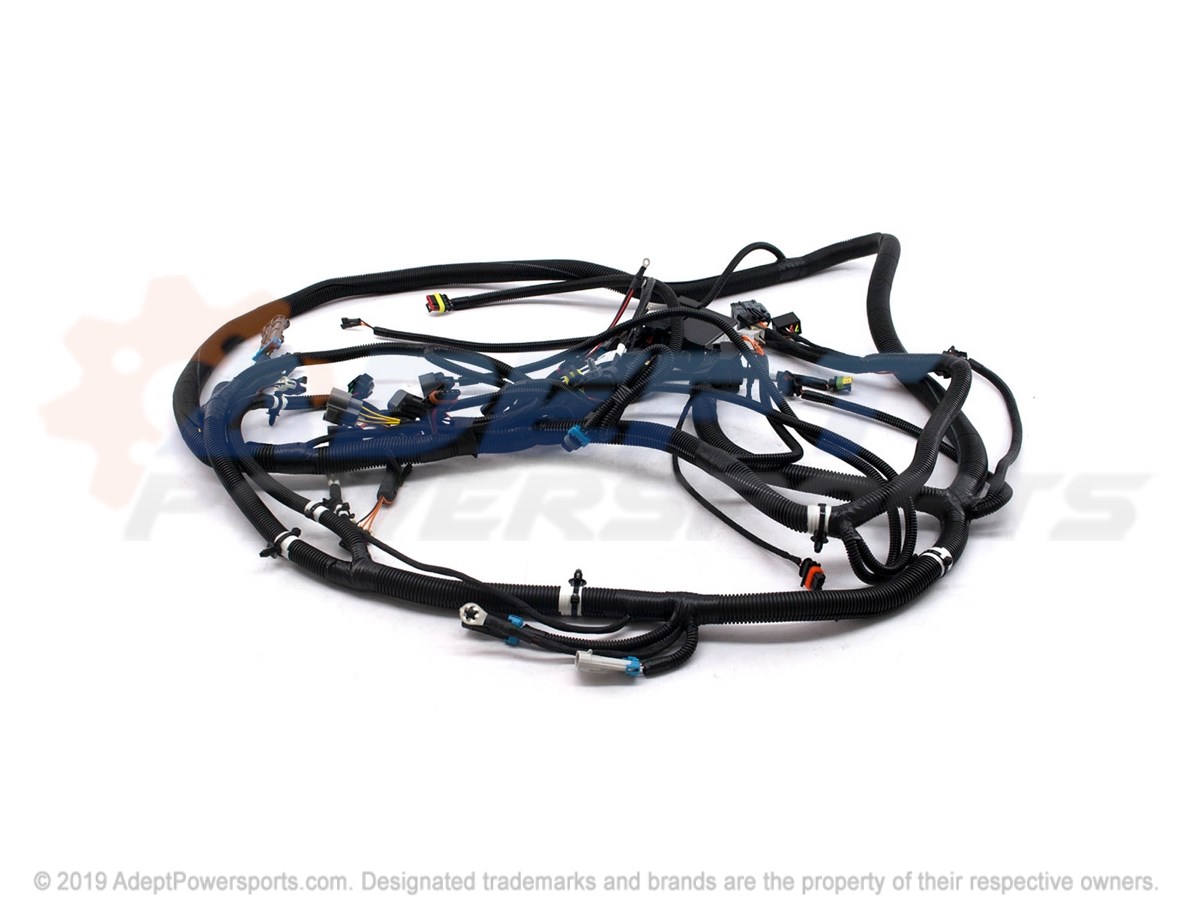

1	HARNESS-CHASSIS CREW Part #: 2411763 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS, T-BAP, T-MAP Part #: 2878494 Required per assembly: 1 Currently Not Available
2	FUSE, 10AMP Part #: 2434016 Required per assembly: 2 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
3	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available

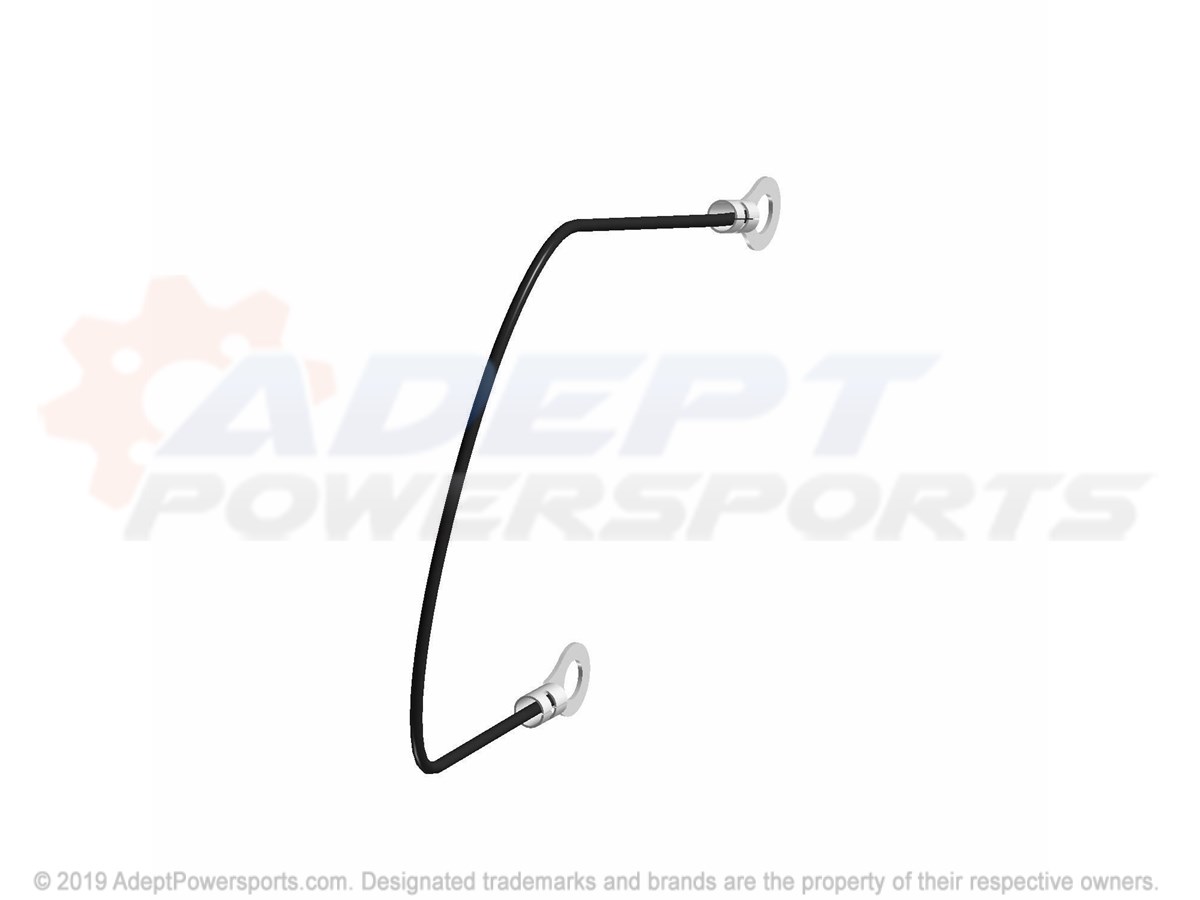

4	KIT, FUSIBLE, LINK, 1.0MM Part #: 2202670 Required per assembly: 1 Note: Kit, Fusible Link Currently Not Available
5	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 4 Currently Not Available
6	BREAKER, CIRCUIT, 20, AMP Part #: 2410881 Required per assembly: 1 Currently Not Available
7	PLATE, FUSE, MOUNT Part #: 5253675 Required per assembly: 1 Note: Plate, Fuse Mount Currently Not Available
8	SCREW Part #: 7512026 Required per assembly: 4 Note: Screw Currently Not Available
9	COVER-RELAY/FUSE CENTER Part #: 5438758 Required per assembly: 1 Currently Not Available
10	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 5 Currently Not Available
11	HARNESS, BOX Part #: 2412355 Required per assembly: 1 Currently Not Available
12	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
13	STRAP PANDUIT Part #: 7080138 Required per assembly: 7 $1.99 $1.15 - + Add to cart

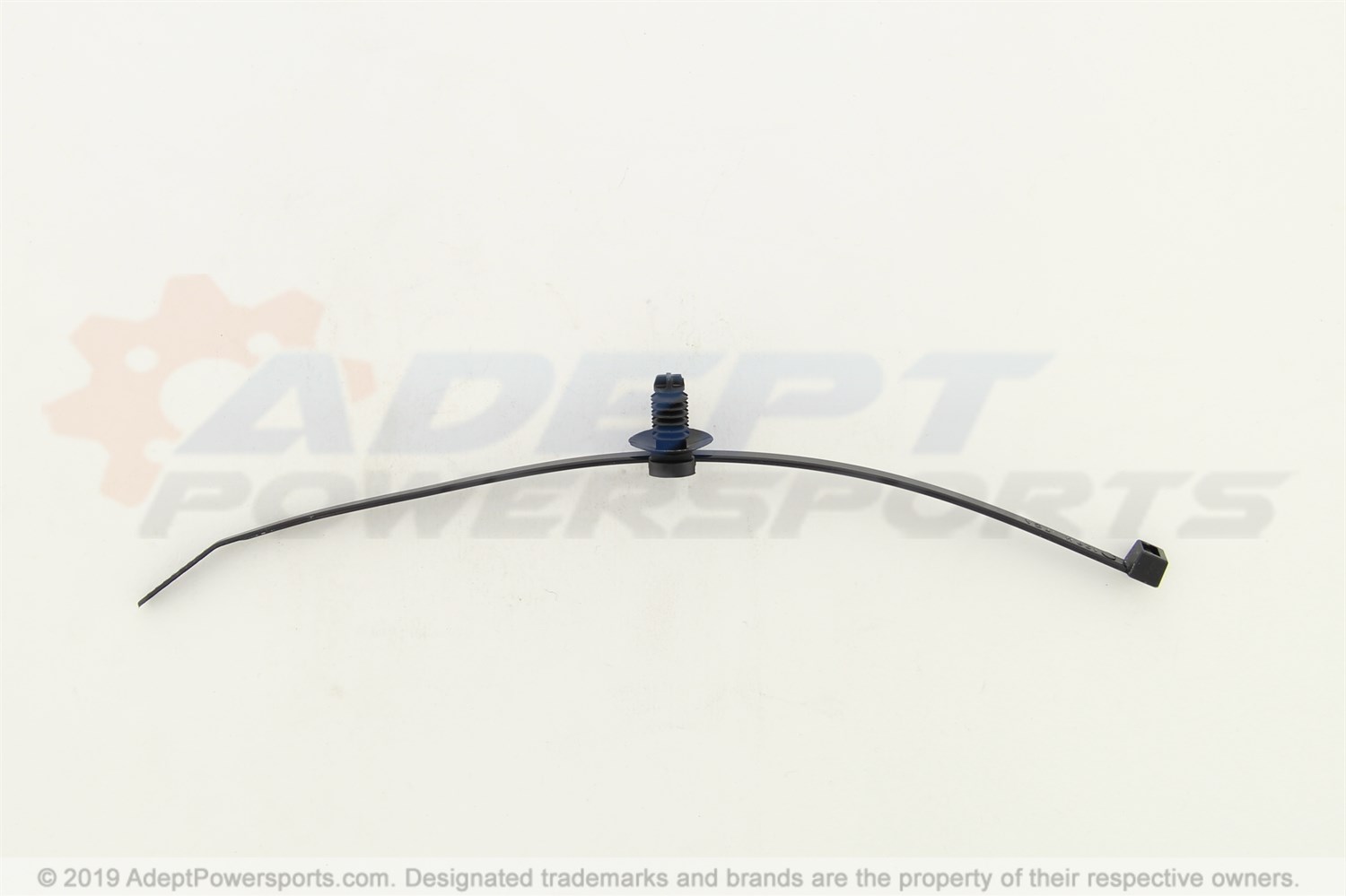

14	CLIP, ROSEBUD Part #: 4020149 Required per assembly: 1 Note: Clip, Rosebud Currently Not Available
16	HARNESS-JUMPER Part #: 2411605 Required per assembly: 1 Currently Not Available
17	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
18	HARNESS-EPS Part #: 2411619 Required per assembly: 1 Currently Not Available
20	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
21	RELAY Part #: 4011998 Required per assembly: 1 Currently Not Available
22	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 1 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
