2012 Polaris RANGER CREW 800 (R12WH76AG/AR/EAH/EAV) - Engine, Mounting

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ISOLATOR

Part #: 3022076 Required per assembly: 2
Currently Not Available
2

COVER-THROTTLE CAM

Part #: 5253974 Required per assembly: 1
Currently Not Available
3

WASHER

Part #: 7555823 Required per assembly: 2 Note: Washer, Flat
Currently Not Available
4

ISOLATOR-3/8-24M/M, 60DURO

Part #: 3024012 Required per assembly: 2
Currently Not Available
5

WASHER, FLAT

Part #: 7555815 Required per assembly: 2
Currently Not Available
6

SCR-M4X0.7X8MM TX

Part #: 7519292 Required per assembly: 4
Currently Not Available
7

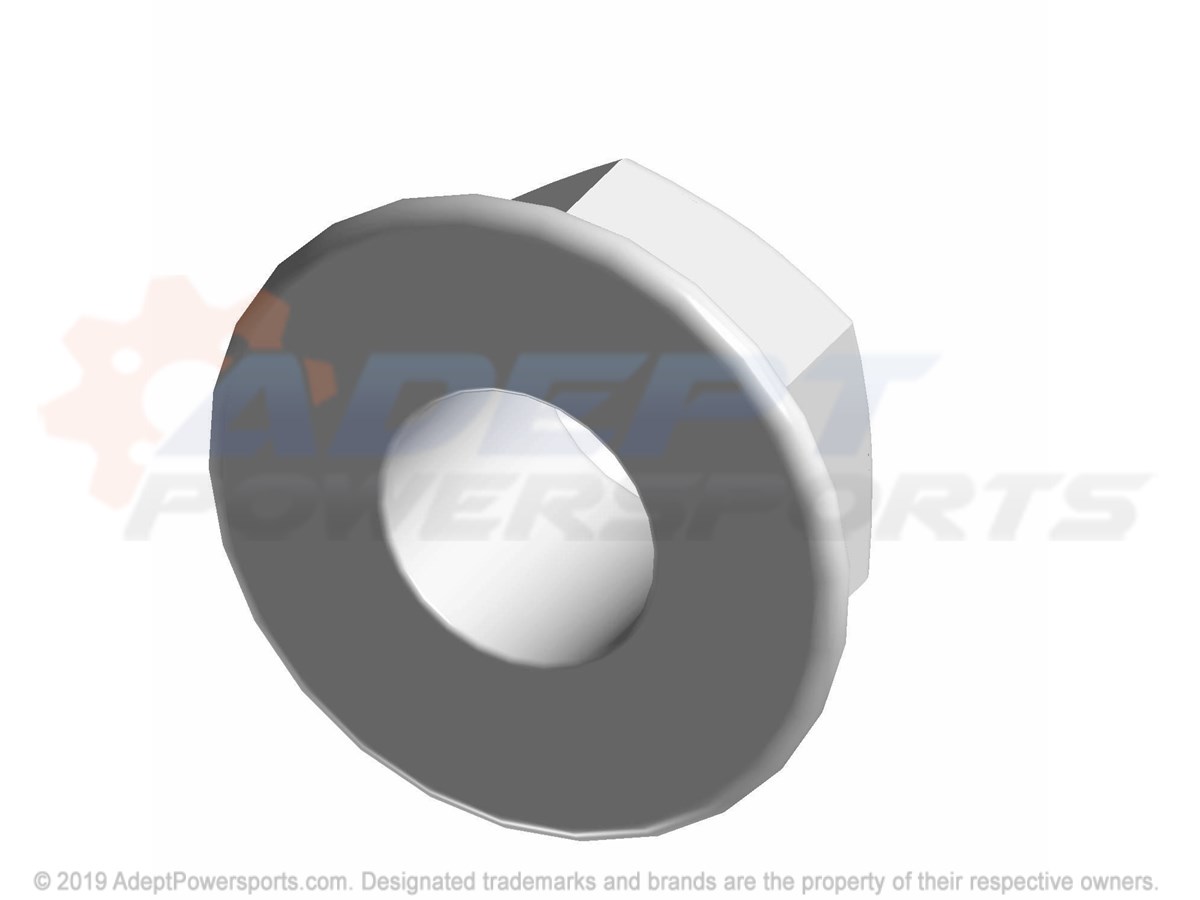

NUT, NYLOK

Part #: 7547263 Required per assembly: 6 Note: Nut, Flange
Currently Not Available
8

O-RING-THROTTLE CAM COVER

Part #: 5413898 Required per assembly: 1
Currently Not Available
9

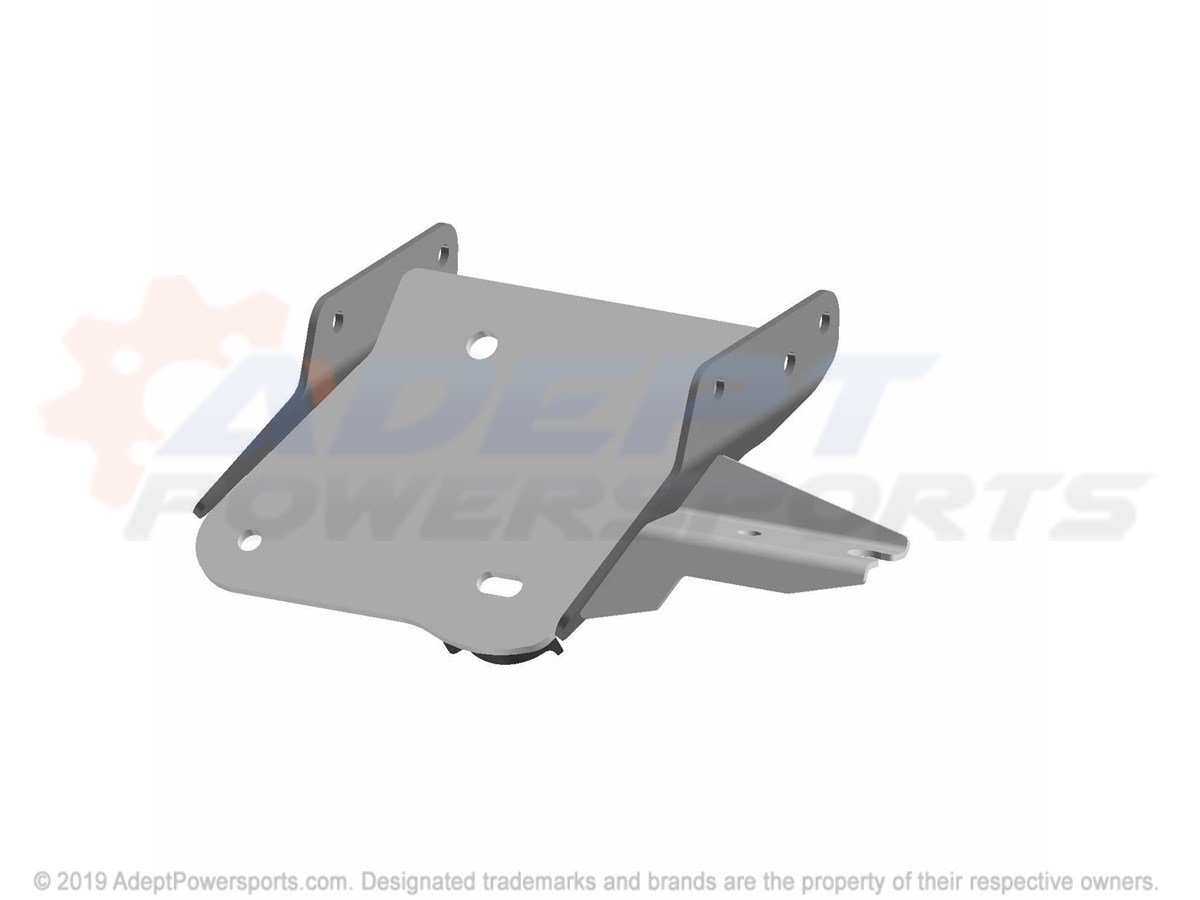

MOUNT, ENGINE, BLACK

Part #: 1017424-329 Required per assembly: 1
Currently Not Available
10

KIT-SHORT BLOCK RANGER M17

Part #: 2204394 Required per assembly: 1
Currently Not Available
11

CABLE-THROTTLE

Part #: 7081670 Required per assembly: 1
Currently Not Available
12

SCREW

Part #: 7518460 Required per assembly: 2 Note: Screw, Flange
Currently Not Available
13

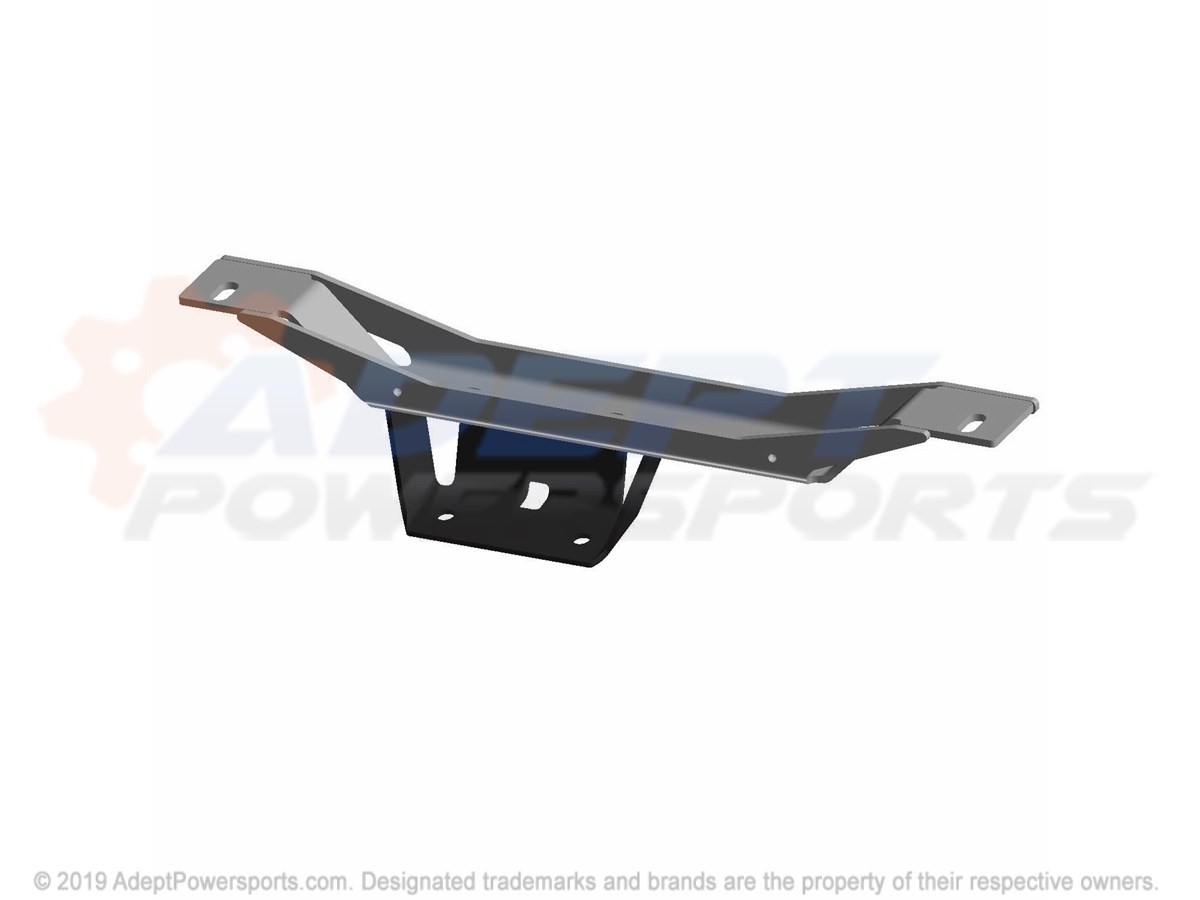

MOUNT, ENGINE, REAR, BLACK

Part #: 1017391-329 Required per assembly: 1
Currently Not Available
