Doors, Rear - R17rhe99nu (701470) replacement parts for 2017 Polaris General 1000 4P MD (R11)

OEM Parts Polaris 2017 Polaris General 1000 4P MD (R11) Doors, Rear - R17rhe99nu (701470)

DOORS, REAR - R17RHE99NU (701470) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

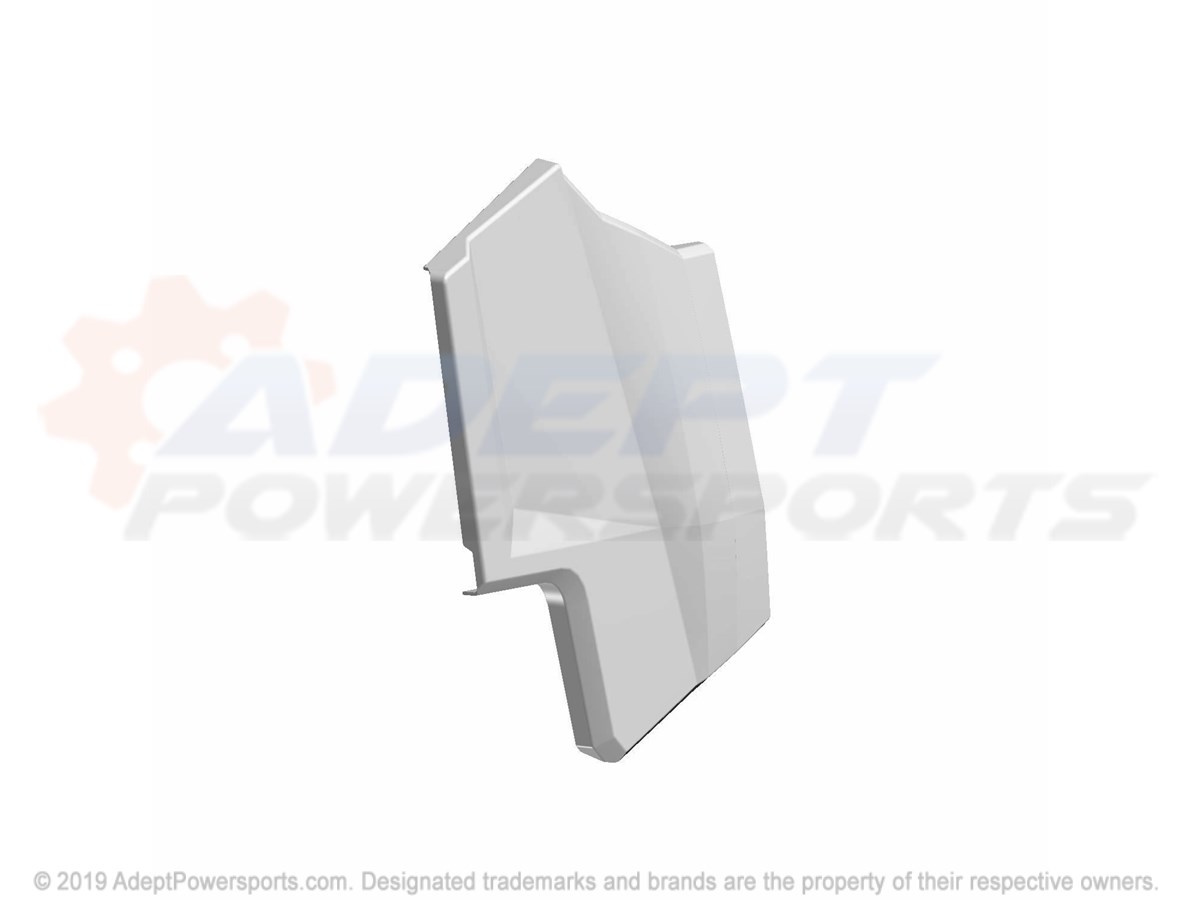

1	PANEL-DOOR, OTR, RR, PNT, LH, T.SIL Part #: 5454659-402 Required per assembly: 1 Currently Not Available
2	PANEL-DOOR, OTR, RR, PNT, LH, T.SIL Part #: 5454659-402 Required per assembly: 1 Currently Not Available
3	COVER-BOLSTER, BAR, PNT, LH, T.SIL Part #: 5452953-402 Required per assembly: 1 Currently Not Available
4	COVER-BOLSTER, BAR, PNT, RH, T.SIL Part #: 5452954-402 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7519045 Currently Not Available
6	WELD-BOLSTER, REAR, LH, BLK Part #: 1022761-458 Required per assembly: 1 Currently Not Available
7	WELD-BOLSTER, REAR, RH, BLK Part #: 1022762-458 Required per assembly: 1 Currently Not Available
8	BRKT-DOOR, REAR, HINGE, BLK Part #: 5263232-329 Required per assembly: 4 Currently Not Available

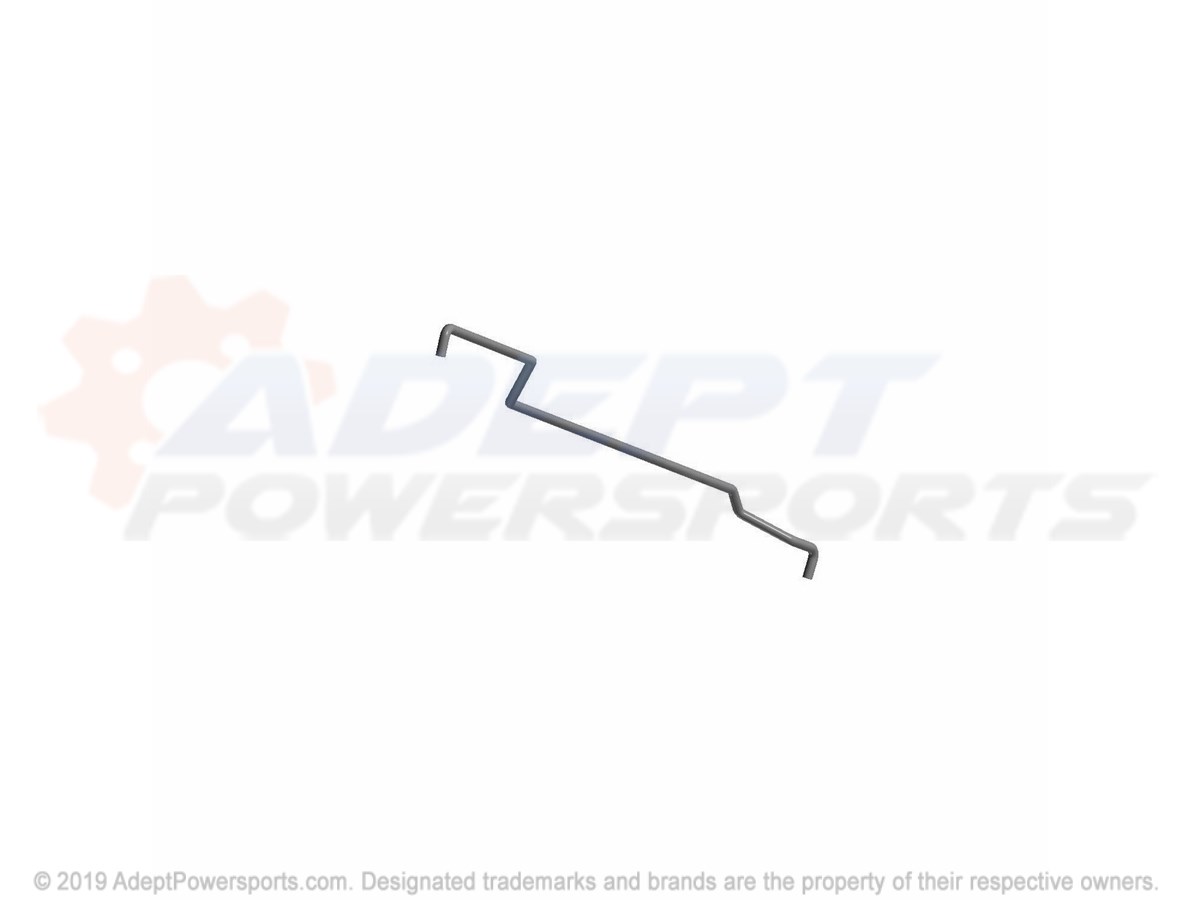

9	ROD-LATCH, REAR, LH Part #: 5339711 Required per assembly: 1 Currently Not Available
10	ROD-LATCH, REAR, RH Part #: 5339712 Required per assembly: 1 Currently Not Available

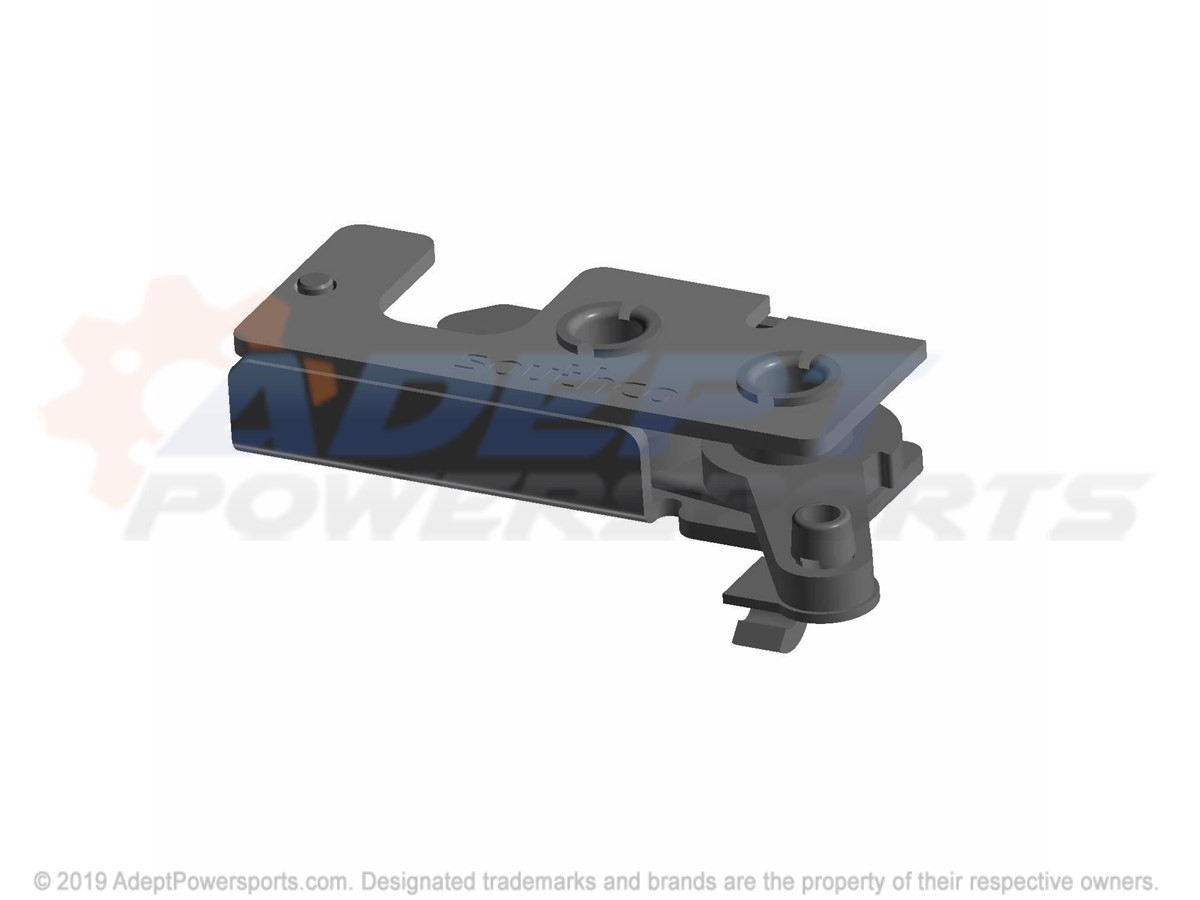

11	ASM-LATCH, ROTARY, LH Part #: 7082199 Required per assembly: 1 Currently Not Available

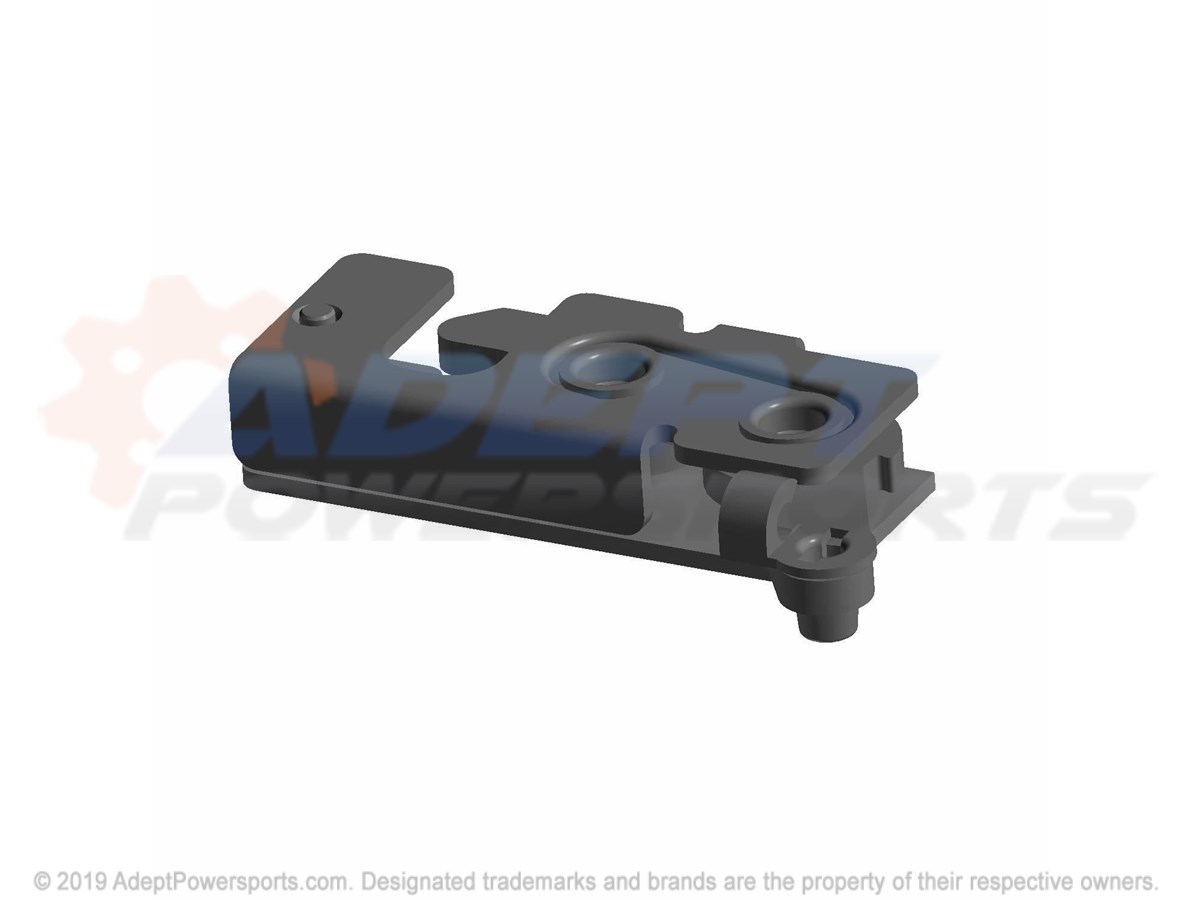

12	ASM-LATCH, ROTARY, RH Part #: 7082200 Required per assembly: 1 Currently Not Available

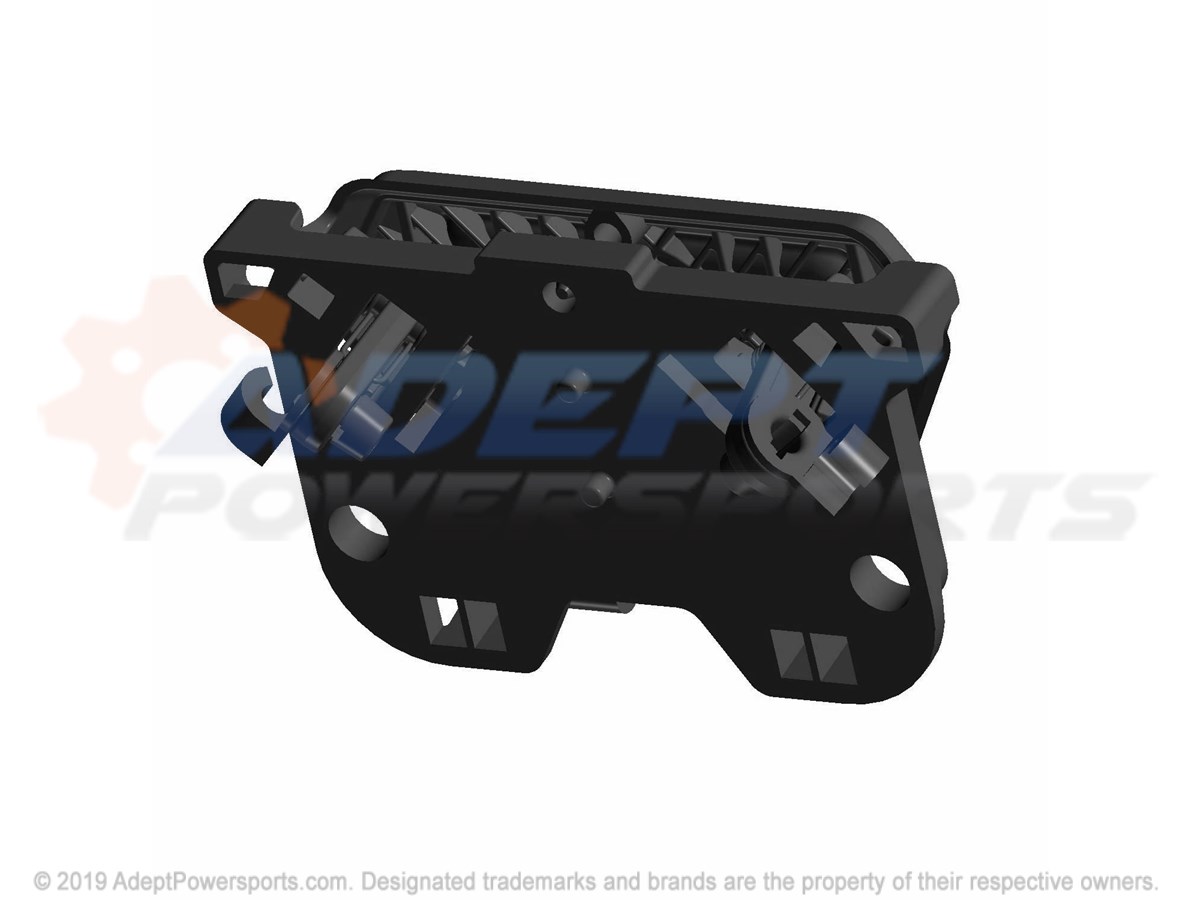

13	ASM-HANDLE, DOOR Part #: 7082201 Required per assembly: 2 Currently Not Available
14	SCREW Part #: 7518533 Required per assembly: 4 Note: Screw, Flange Currently Not Available
15	SCREW Part #: 7518613 Required per assembly: 4 Note: Bolt, Flange ~~$2.99~~ $1.73 - + Add to cart
16	NUT, FLANGE Part #: 7547453 Required per assembly: 4 Currently Not Available
17	PANEL-DOOR, INNER, REAR, LH, BLK Part #: 5454348-070 Required per assembly: 1 Currently Not Available
18	PANEL-DOOR, INNER, REAR, RH, BLK Part #: 5454349-070 Required per assembly: 1 Currently Not Available
19	SEAL-DOOR, REAR Part #: 5510932 Required per assembly: 2 Note: FROM 1/23/17 Currently Not Available
19	SEAL-DOOR, REAR Part #: 5510932 Required per assembly: 2 Note: TO 1/23/17 Currently Not Available
20	SCR-HEXFLGHD, M8, X, 20, 0600086 Part #: 7517838 Required per assembly: 8 Currently Not Available
21	BUSHING, DOOR, PIVOT Part #: 5450592 Required per assembly: 8 Currently Not Available
22	SCREW Part #: 7519650 Required per assembly: 8 Currently Not Available
23	SCREW Part #: 7519781 Required per assembly: 8 Currently Not Available
24	NUT-HEX-M8X1.25 8 ZOD NYL Part #: 7547480 Required per assembly: 8 Currently Not Available
25	SCR-HXFL-M8X1.25X50 8.8 ZODP30 Part #: 7519077 Required per assembly: 2 Currently Not Available
26	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
27	WELD-STRIKER, REAR Part #: 1022873 Required per assembly: 2 Currently Not Available
28	NUT, U-TYPE Part #: 7547674 Required per assembly: 5 ~~$2.99~~ $1.73 - + Add to cart

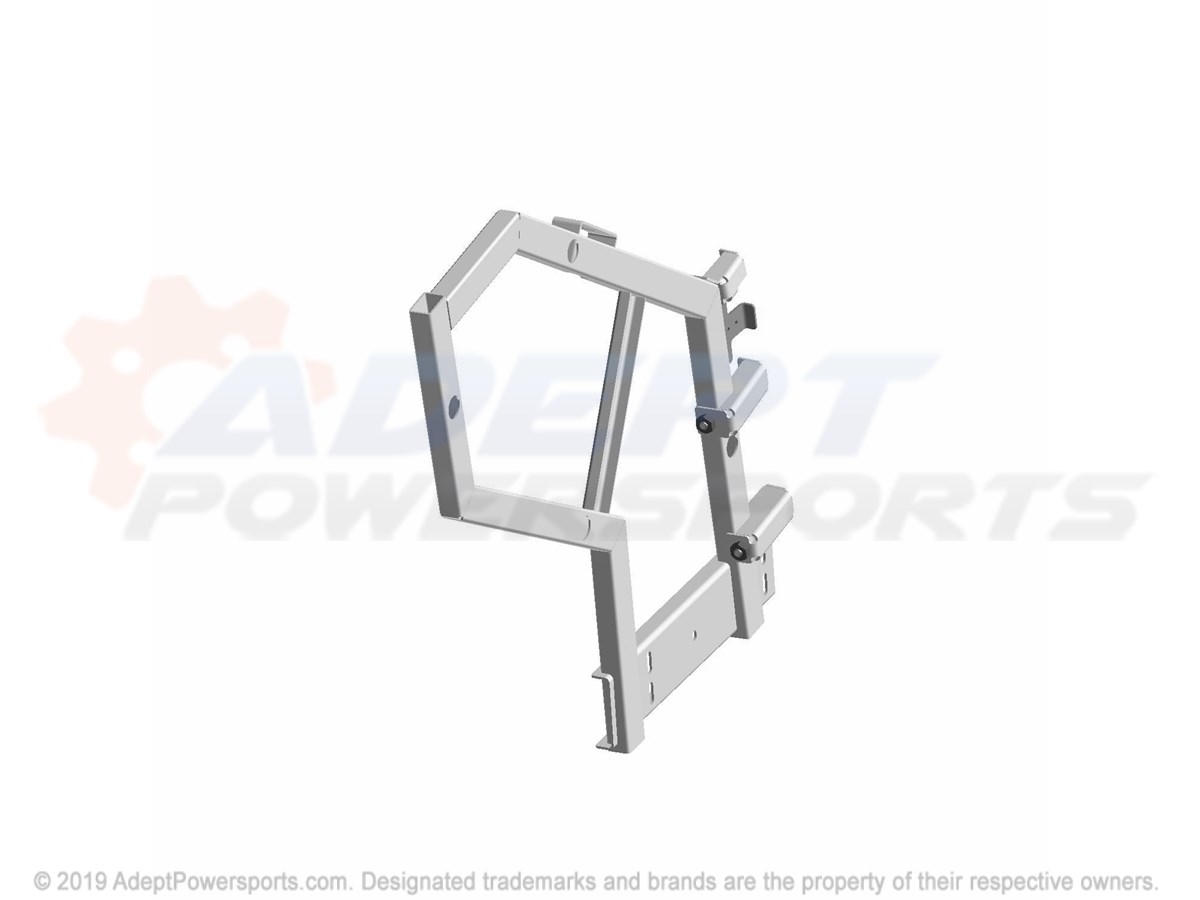

29	WELD-DOOR, FRAME, REAR, LH, BLK Part #: 1022270-458 Required per assembly: 1 Currently Not Available

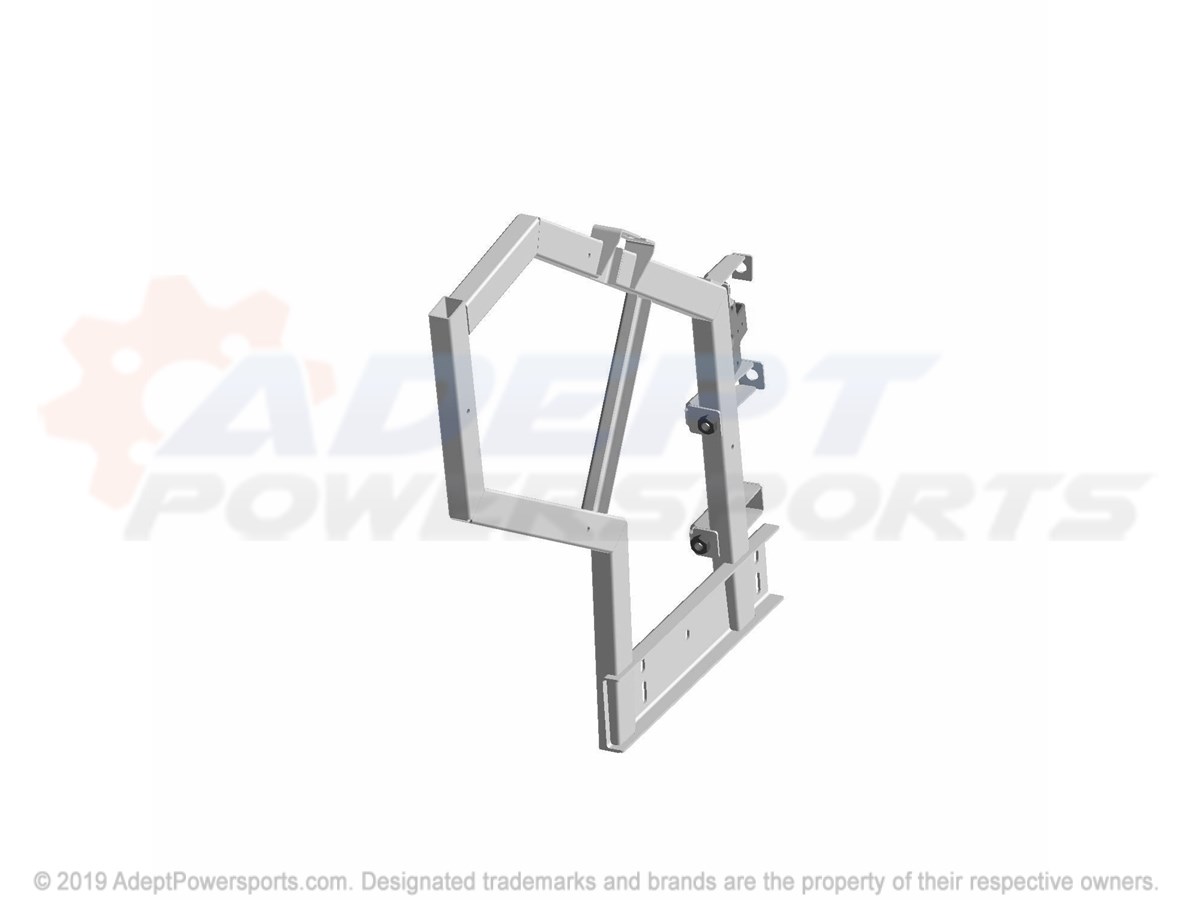

30	WELD-DOOR, FRAME, REAR, RH, BLK Part #: 1022271-458 Required per assembly: 1 Currently Not Available
