Front Shock Internals - R17rhe99nu (701475) replacement parts for 2017 Polaris General 1000 4P MD (R11)

OEM Parts Polaris 2017 Polaris General 1000 4P MD (R11) Front Shock Internals - R17rhe99nu (701475)

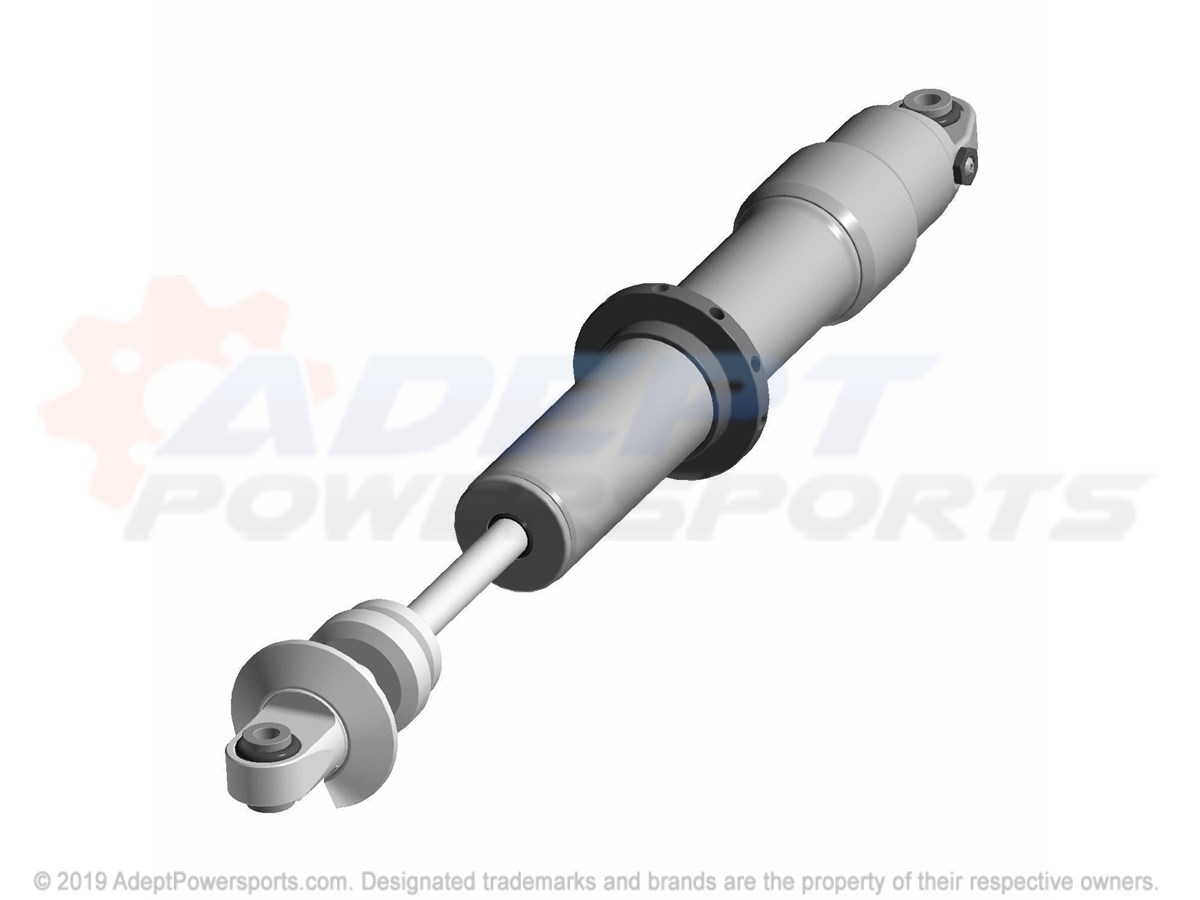

FRONT SHOCK INTERNALS - R17RHE99NU (701475) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	SHOCK-FRONT, BULB Part #: 7044710 Required per assembly: 2 Currently Not Available
1	SHAFT LOOP Part #: 1800792 Required per assembly: 1 Currently Not Available
2	SHAFT Part #: 1800793 Required per assembly: 1 Currently Not Available
3	CAP, WIPER Part #: 1800794 Required per assembly: 1 Currently Not Available
4	RING, SNAP Part #: 1800041 Required per assembly: 2 ~~$5.99~~ $3.51 - + Add to cart
5	RING, RETAINING, WIRE Part #: 1800795 Required per assembly: 1 Currently Not Available
6	NUT, CRIMP Part #: 1800164 Required per assembly: 1 Currently Not Available
7	PISTON, NO, BLEEED Part #: 1800604 Required per assembly: 1 Currently Not Available
8	WASHER Part #: 1800393 Required per assembly: 1 Currently Not Available
9	UNION MONOTUBE BASE VALVE Part #: 1800796 Required per assembly: 1 Currently Not Available
10	BODY, LOOP-RESERVOIR, BASSE, VALVE Part #: 1800797 Required per assembly: 1 Currently Not Available
11	PISTON, RESERVOIR, BASE, VALVE Part #: 1800798 Required per assembly: 1 Currently Not Available
12	BASE VALVE Part #: 1800799 Required per assembly: 1 Currently Not Available
13	BODY, MONOTUBE, BASE, VALVE, LOWER Part #: 1800800 Required per assembly: 1 Currently Not Available
14	ASM, SEAL, HEAD Part #: 1800801 Required per assembly: 1 Currently Not Available
15	RETAINER-SPRING Part #: 1501194 Required per assembly: 1 Currently Not Available
16	SPRING ADJUSTER Part #: 1800802 Required per assembly: 1 Currently Not Available
17	SHIM Part #: 1800631 Required per assembly: 1 Currently Not Available
18	ORING Part #: 1800803 Required per assembly: 2 Currently Not Available
18	ORING Part #: 1800803 Required per assembly: 2 Currently Not Available
19	O-RING Part #: 1800184 Required per assembly: 1 Currently Not Available
20	WIPER D/TYPE Part #: 1800322 Required per assembly: 1 Currently Not Available
21	BALL, CHECK, (1100608) Part #: 1800570 Required per assembly: 1 Currently Not Available
22	SCREW, CHECK, BALL Part #: 1800804 Required per assembly: 1 Currently Not Available
23	BAND-PISTON Part #: 1800185 Required per assembly: 1 Currently Not Available
24	ASM-CHARGE PORT Part #: 1800805 Required per assembly: 1 Currently Not Available
25	ORING Part #: 1800806 Required per assembly: 1 Currently Not Available
26	NUT, NYLOCK Part #: 1800807 Required per assembly: 1 Currently Not Available
27	BUMPER Part #: 1800593 Required per assembly: 1 Currently Not Available
28	BEARING Part #: 1800808 Required per assembly: 1 Currently Not Available
29	BEARING Part #: 1800809 Required per assembly: 1 Currently Not Available
29	BEARING Part #: 1800809 Required per assembly: 1 Currently Not Available
30	O-RING Part #: 1800810 Required per assembly: 4 Currently Not Available
30	O-RING Part #: 1800810 Required per assembly: 4 Currently Not Available
31	RING, RETAINING Part #: 1800482 Required per assembly: 2 Currently Not Available
32	O-RING BODY Part #: 1800030 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
