Rear Shock Mounting - R17rhe99nu (701378) replacement parts for 2017 Polaris General 1000 4P MD (R11)

OEM Parts Polaris 2017 Polaris General 1000 4P MD (R11) Rear Shock Mounting - R17rhe99nu (701378)

REAR SHOCK MOUNTING - R17RHE99NU (701378) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER-SPRING Part #: 1501194 Required per assembly: 2 Currently Not Available
2	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
2	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
3	SHOCK-REAR, BULB Part #: 7044711 Required per assembly: 2 Currently Not Available

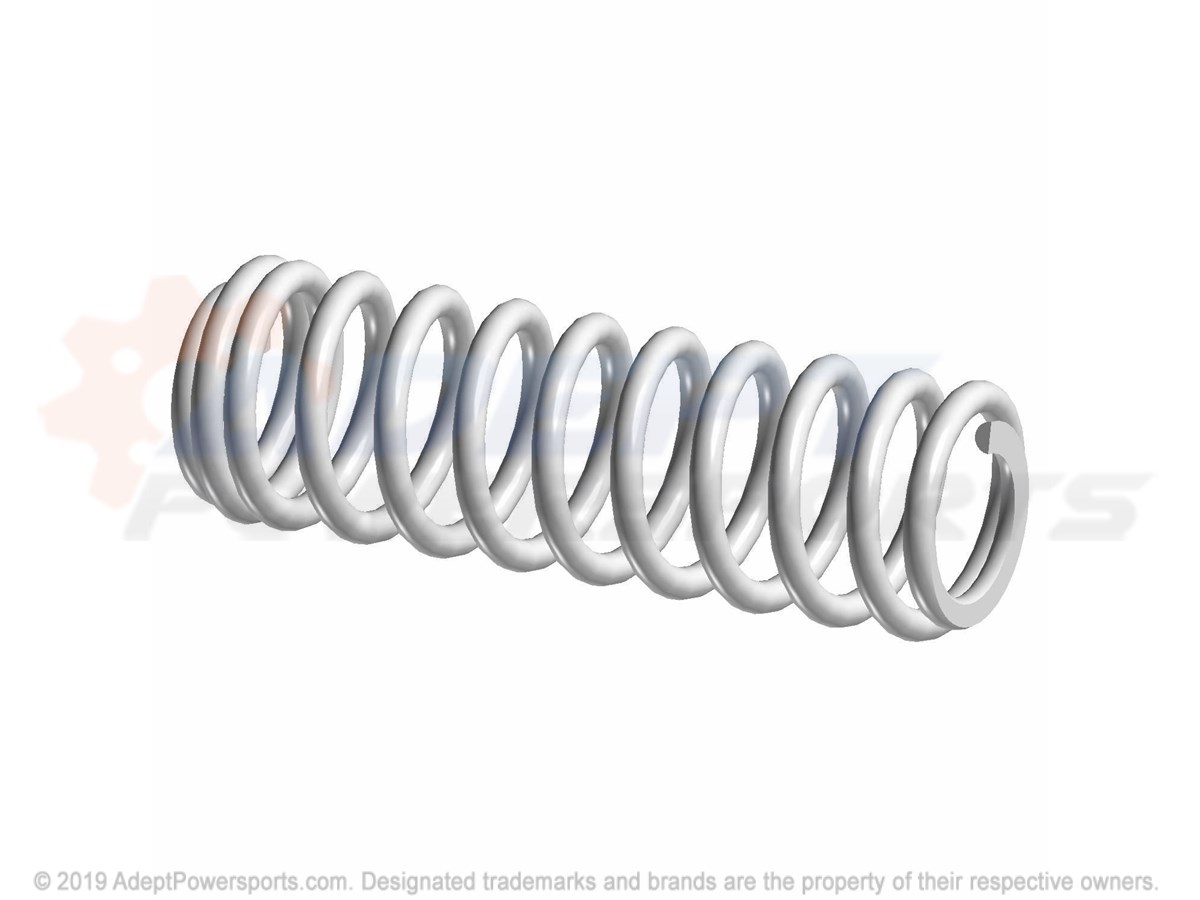

4	SPR-265-400#15.25FL2.3-2.3ID, R Part #: 7044692-293 Required per assembly: 2 Currently Not Available
5	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
6	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
