Rear Shock Internals - R17rhe99nu (701508) replacement parts for 2017 Polaris General 1000 4P MD (R11)

OEM Parts Polaris 2017 Polaris General 1000 4P MD (R11) Rear Shock Internals - R17rhe99nu (701508)

REAR SHOCK INTERNALS - R17RHE99NU (701508) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

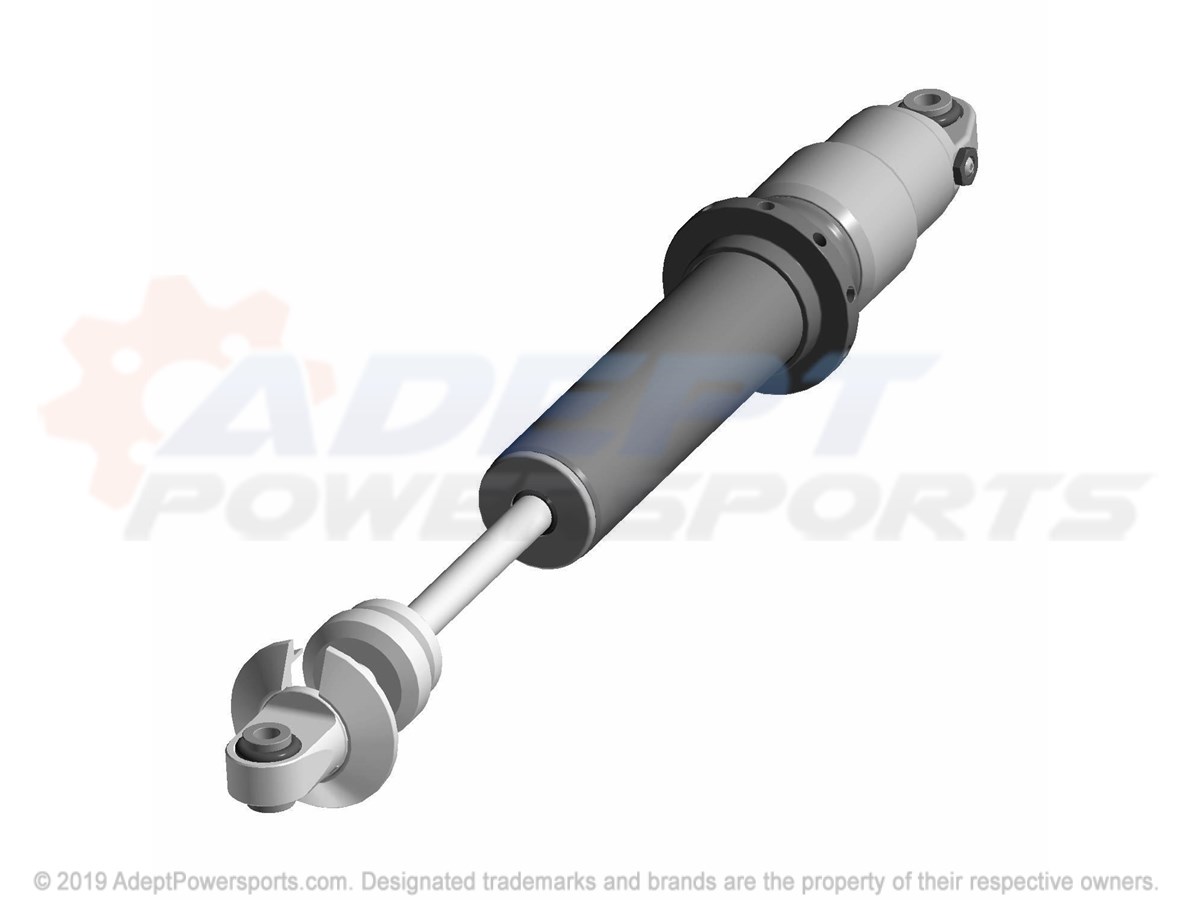

-	SHOCK-REAR, BULB Part #: 7044711 Required per assembly: 2 Currently Not Available
1	SHAFT LOOP Part #: 1800792 Required per assembly: 1 Currently Not Available
2	SHAFT Part #: 1800813 Required per assembly: 1 Currently Not Available
3	NUT, CRIMP Part #: 1800164 Required per assembly: 1 Currently Not Available
4	RING, RETAINING, WIRE Part #: 1800795 Required per assembly: 1 Currently Not Available
5	PISTON, RESERVOIR, BASE, VALVE Part #: 1800798 Required per assembly: 1 Currently Not Available
6	SHIM Part #: 1800631 Required per assembly: 1 Currently Not Available
7	SCREW, CHECK, BALL Part #: 1800804 Required per assembly: 1 Currently Not Available
8	BALL, CHECK, (1200123) Part #: 1800531 Required per assembly: 1 Currently Not Available
9	CAP, WIPER Part #: 1800794 Required per assembly: 1 Currently Not Available
10	NUT, NYLOCK Part #: 1800807 Required per assembly: 1 Currently Not Available
11	BODY, MONOTUBE, BASE, VALVE, LOWER Part #: 1800814 Required per assembly: 1 Currently Not Available
12	BODY, LOOP-RESERVOIR, BASSE, VALVE Part #: 1800797 Required per assembly: 1 Currently Not Available
13	BASE VALVE Part #: 1800799 Required per assembly: 1 Currently Not Available
14	UNION MONOTUBE BASE VALVE Part #: 1800796 Required per assembly: 1 Currently Not Available
15	SPRING ADJUSTER Part #: 1800802 Required per assembly: 1 Currently Not Available
16	ASM, SEAL, HEAD Part #: 1800801 Required per assembly: 1 Currently Not Available
17	RETAINER-SPRING Part #: 1501194 Required per assembly: 1 Currently Not Available
18	WASHER Part #: 1800393 Required per assembly: 1 Currently Not Available
19	ORING Part #: 1800803 Required per assembly: 2 Currently Not Available
19	ORING Part #: 1800803 Required per assembly: 2 Currently Not Available
20	O-RING Part #: 1800184 Required per assembly: 1 Currently Not Available
21	WIPER D/TYPE Part #: 1800322 Required per assembly: 1 Currently Not Available
22	BAND-PISTON Part #: 1800185 Required per assembly: 1 Currently Not Available
23	NUT, CRIMP Part #: 1800164 Required per assembly: 1 Currently Not Available
24	ASM-CHARGE PORT Part #: 1800805 Required per assembly: 1 Currently Not Available
25	RING, SNAP Part #: 1800041 Required per assembly: 2 ~~$5.99~~ $3.51 - + Add to cart
26	BUMPER Part #: 1800593 Required per assembly: 1 Currently Not Available
27	ORING Part #: 1800806 Required per assembly: 1 Currently Not Available
28	BEARING Part #: 1800808 Required per assembly: 1 Currently Not Available
29	BEARING Part #: 1800809 Required per assembly: 1 Currently Not Available
30	RING, RETAINING Part #: 1800482 Required per assembly: 2 Currently Not Available
31	WASHER Part #: 1800187 Required per assembly: 1 Currently Not Available
32	O-RING Part #: 1800810 Required per assembly: 4 Currently Not Available
32	O-RING Part #: 1800810 Required per assembly: 4 Currently Not Available
32	O-RING Part #: 1800810 Required per assembly: 4 Currently Not Available
33	O-RING BODY Part #: 1800030 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
