Brake Lines And Master Cylinder - Z17vje57ar (701344) replacement parts for 2017 Polaris RZR 570 S (R02)

OEM Parts Polaris 2017 Polaris RZR 570 S (R02) Brake Lines And Master Cylinder - Z17vje57ar (701344)

BRAKE LINES and MASTER CYLINDER - Z17VJE57AR (701344) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, TANDEM, MASTER, CYLINDER Part #: 1911982 Required per assembly: 1 Note: INCL 2-4 Currently Not Available
2	K-SERVICE, CAP, TMC, TWO-CAPS Part #: 2205788 Required per assembly: 1 Currently Not Available
3	KIT, CLEVIS Part #: 2203456 Required per assembly: 1 Currently Not Available
4	KIT, NUT Part #: 2203457 Required per assembly: 1 Note: Kit, Nut [Incl. 2 Jam Nuts] Currently Not Available

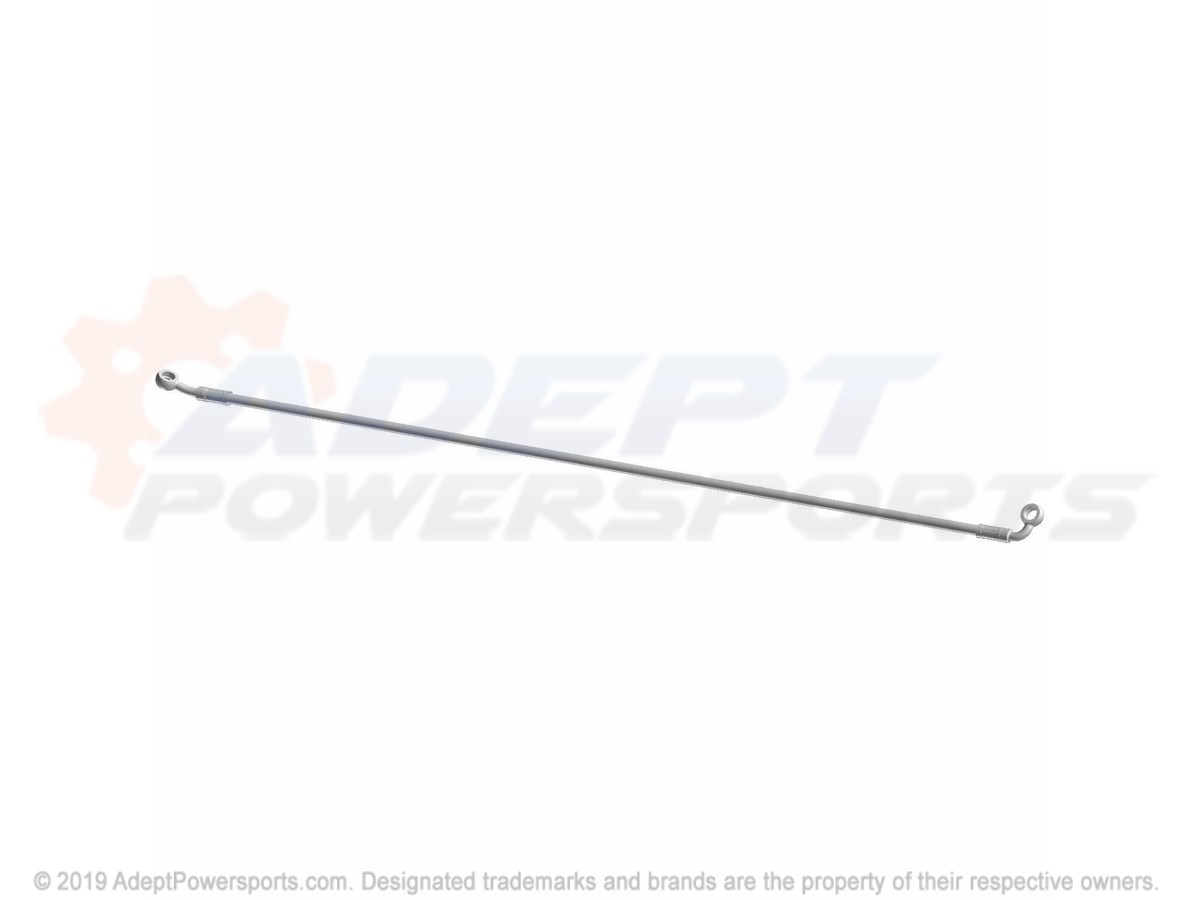

5	LINE-BRK, LR, 39.8, 90F, 70B, 280?J Part #: 1912721 Required per assembly: 1 Currently Not Available

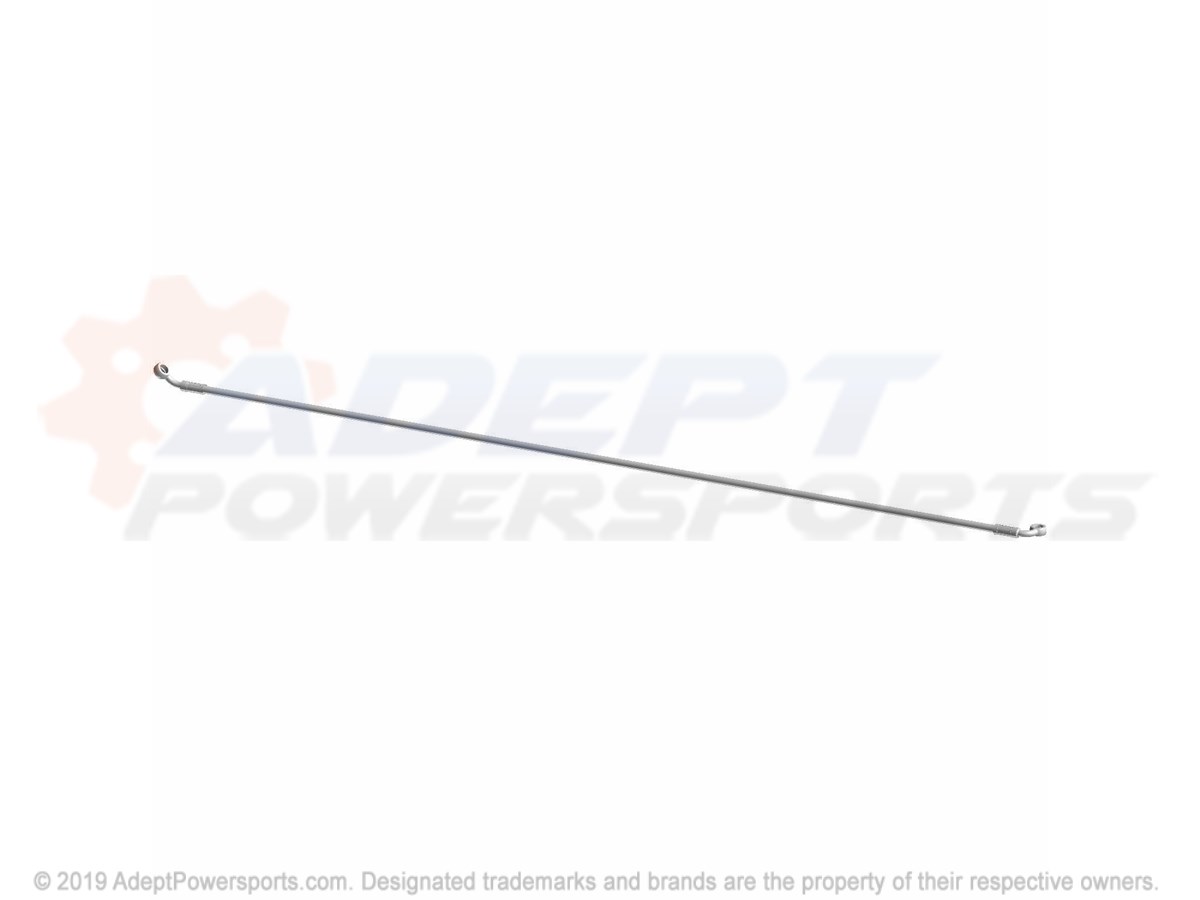

6	LINE-BRK, FR, 38, 45B, 90SB, 100, JF Part #: 1912790 Required per assembly: 1 Currently Not Available
7	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available
8	BOLT-BANJO, 10MMX1.00 Part #: 1910499 Required per assembly: 4 Note: Bolt, Banjo Currently Not Available

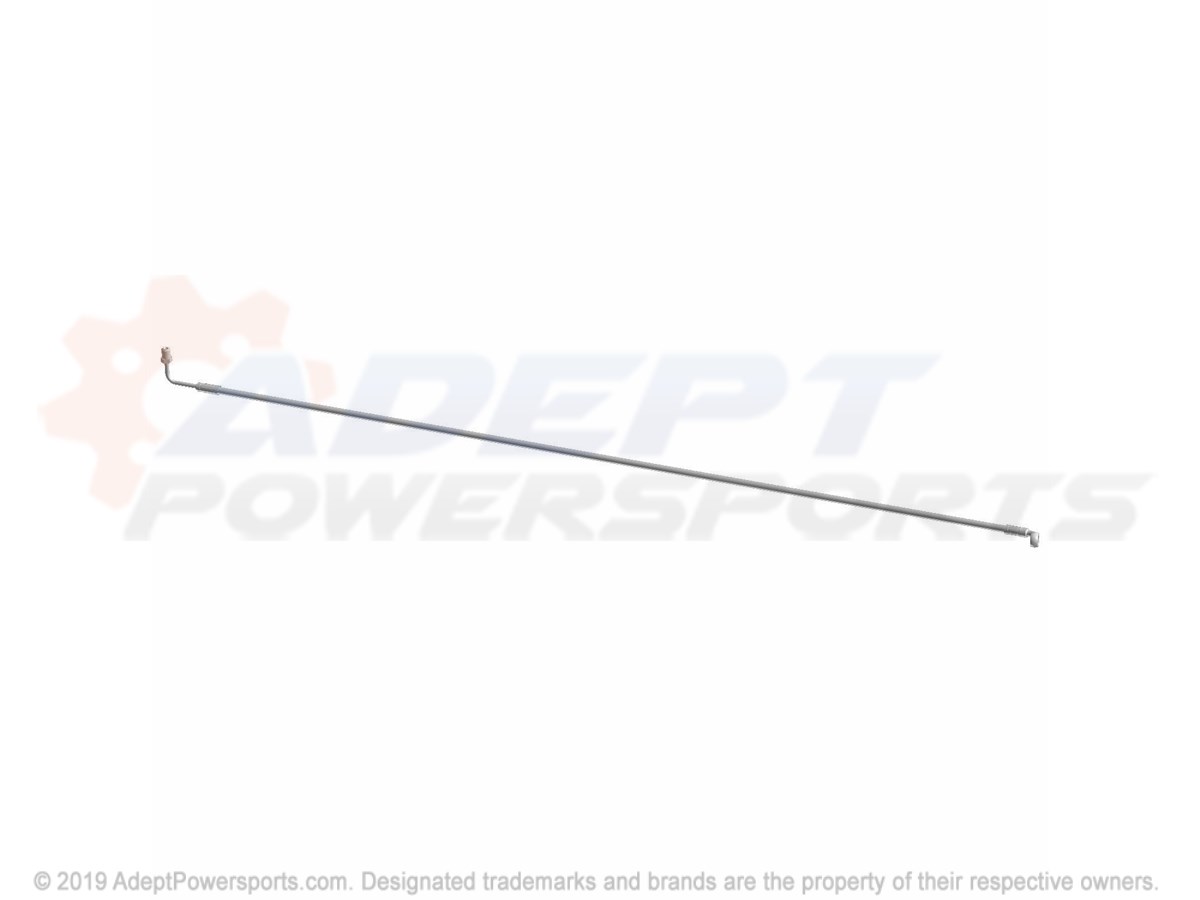

9	LINE, BRAKE, RR, LT Part #: 1911449 Required per assembly: 1 Currently Not Available
10	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
11	TEE, FITTING, BRAKE Part #: 7052293 Required per assembly: 1 Note: Fitting, Tee, Brake Currently Not Available
12	SWITCH Part #: 4014225 Required per assembly: 1 Currently Not Available
13	CLAMP-HOSE, .625, DIA, VNL, COATED Part #: 7080880 Required per assembly: 2 Note: Clamp, Hose Currently Not Available
14	RETAINER-BRAKE LINE 1" Part #: 5439192 Required per assembly: 2 Currently Not Available
15	RIVET Part #: 7621323 Required per assembly: 2 ~~$1.99~~ $1.35 - + Add to cart
16	SCREW Part #: 7512025 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
18	CLAMP, WIRE/TUBE Part #: 7081246 Required per assembly: 4 Currently Not Available
19	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
20	CLIP, SILENCER, Part #: 7670102 Note: Clip Currently Not Available
21	LINE, BRAKE, MASTER, TO, REAR Part #: 1911919 Required per assembly: 1 Currently Not Available
22	LINE-BRK, FL, 27.5, 20B, 90SB, 45JF Part #: 1912789 Required per assembly: 1 Currently Not Available
23	SHIELD, MASTER, CYLINDER Part #: 5251507 Required per assembly: 1 Currently Not Available
24	SCREW Part #: 7518558 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
25	BOLT Part #: 7518760 Required per assembly: 4 Note: Bolt Currently Not Available
26	SCREW, FLANGE Part #: 7517281 Required per assembly: 2 Note: Screw Currently Not Available
27	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
28	SCREW Part #: 7518176 Required per assembly: 2 Note: Screw Currently Not Available
29	RIVET Part #: 7621472 Required per assembly: 2 Note: Rivet ~~$2.68~~ $1.93 - + Add to cart
