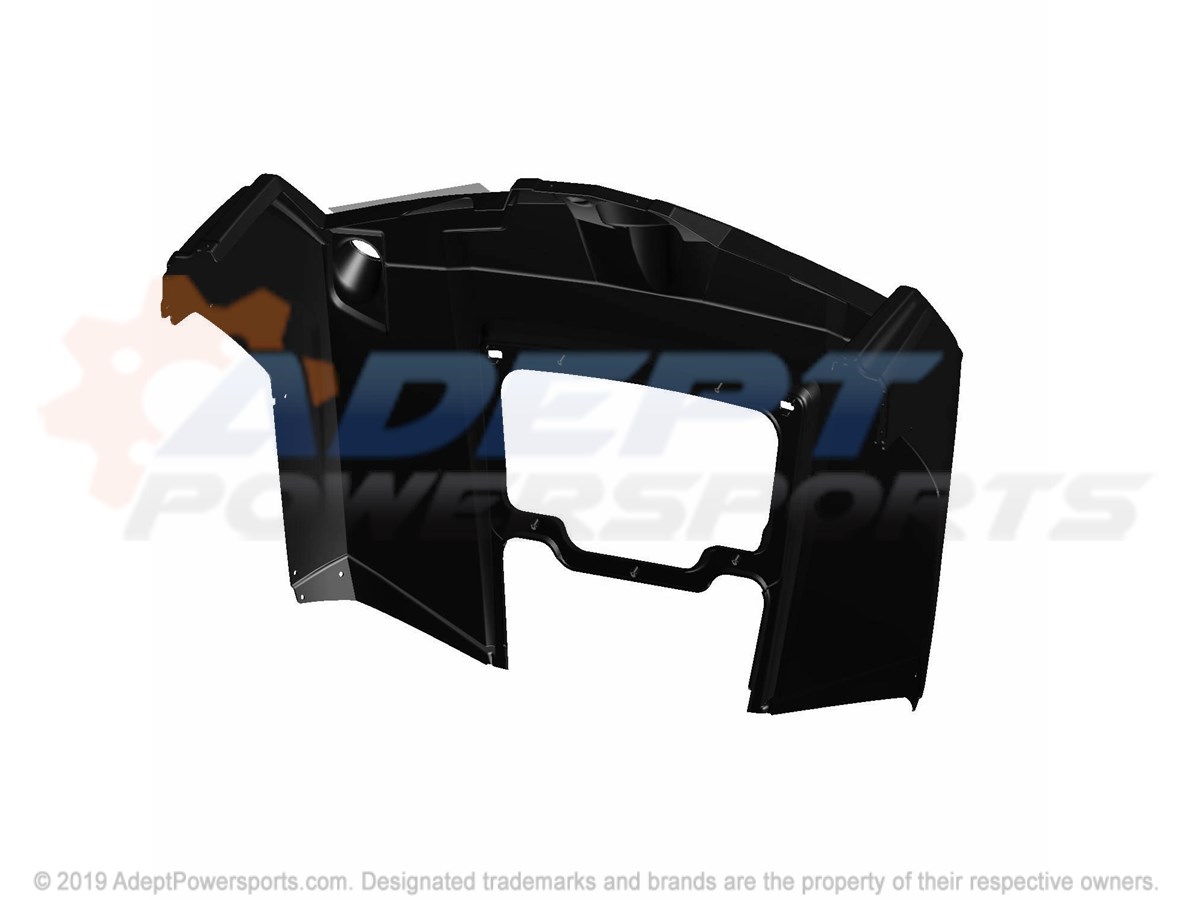

HOOD and FRONT BODY WORK - Z17VJE57AR (49RGRHOOD15RZR570) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HOOD-CENTER ACCESS PNTD.I.RED Part #: 5438581-293 Required per assembly: 1 Currently Not Available
2	LATCH, 1/4, TURN Part #: 7081500 Required per assembly: 2 Currently Not Available
3	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
4	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
6	ASM-HOOD, RZR, PNT, 2, OC, I.RED Part #: 2636414-293 Required per assembly: 1 Note: INCL. WARNING DECALS Currently Not Available
7	BUMPER, RUBBER Part #: 5813911 Required per assembly: 2 Currently Not Available
8	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
8	RIVET Part #: 7661855 ~~$2.99~~ $1.73 - + Add to cart
9	FLAIR, FENDER, FRONT, LT, LH, BLACK Part #: 5437659-070 Required per assembly: 1 Currently Not Available
10	FLAIR, FENDER, FRONT, LT, RH, BLACK Part #: 5437660-070 Required per assembly: 1 Currently Not Available
11	UNDERHOOD BOX Part #: 2879287 Required per assembly: 1 Note: (Description) Currently Not Available
12	MOUNT, STORAGE, BOX, UNDERHOOD Part #: 5450232 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7517685 Required per assembly: 2 Note: Screw Currently Not Available
