Rear Shock Mounting - Z17vje57ar (701360) replacement parts for 2017 Polaris RZR 570 S (R02)

OEM Parts Polaris 2017 Polaris RZR 570 S (R02) Rear Shock Mounting - Z17vje57ar (701360)

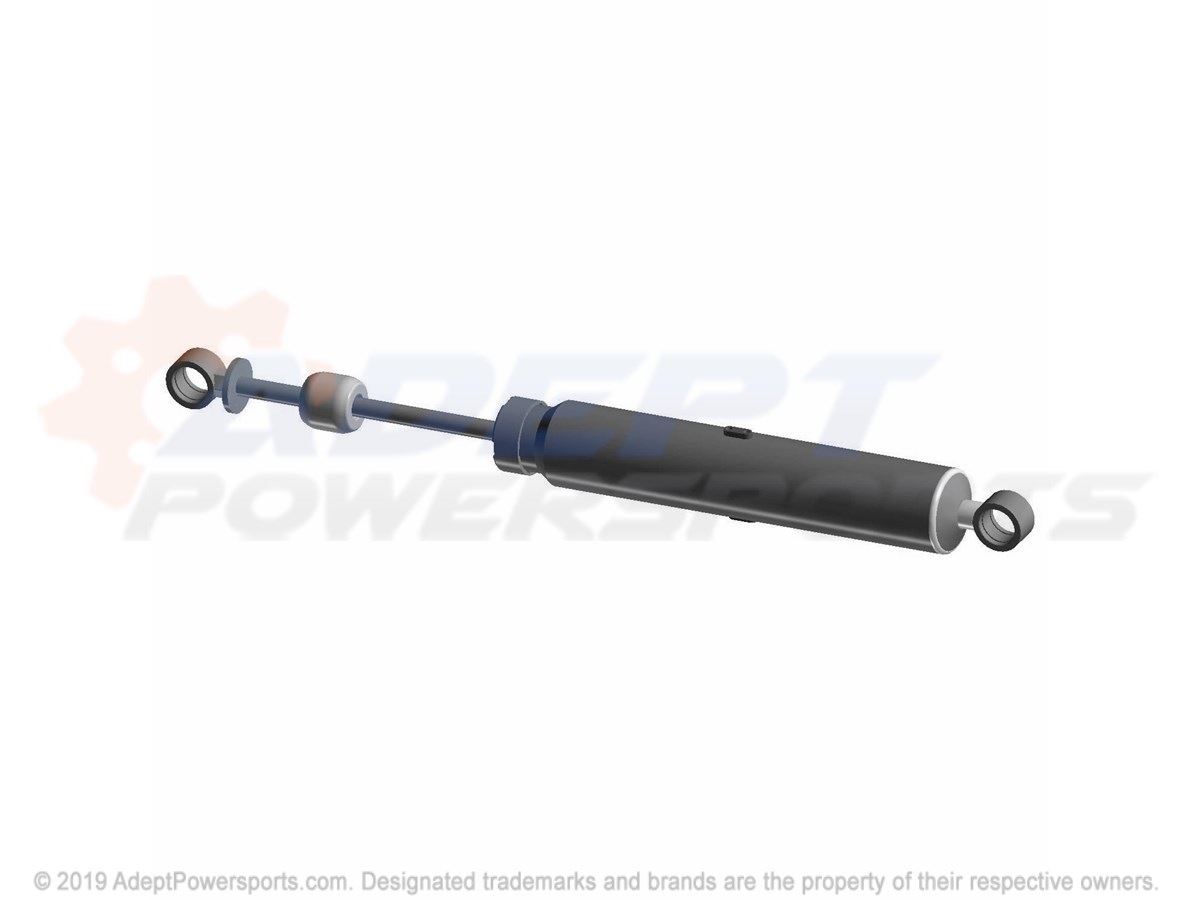

REAR SHOCK MOUNTING - Z17VJE57AR (701360) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
2	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 2 Currently Not Available
3	SCREW Part #: 7518610 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
4	BEARING, SPERICAL Part #: 1500919 Required per assembly: 4 Currently Not Available
5	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 4 ~~$7.99~~ $4.60 - + Add to cart
5	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 4 ~~$7.99~~ $4.60 - + Add to cart
6	BUSHING-REDUCER 10MM WIDE ZYW Part #: 5137877 Required per assembly: 4 Currently Not Available
7	RETAINER-SPRING, STEEL Part #: 5262756 Required per assembly: 2 Currently Not Available
8	O-RING Part #: 5412290 Required per assembly: 8 Currently Not Available
8	O-RING Part #: 5412290 Required per assembly: 8 Currently Not Available
9	CAM-ADJUSTER, ALUMN, 2.30 Part #: 5639455 Required per assembly: 2 Currently Not Available
10	SHOCK-REAR Part #: 7044646 Required per assembly: 2 Currently Not Available
11	RING, RETAINING Part #: 7710720 Required per assembly: 8 Currently Not Available
11	RING, RETAINING Part #: 7710720 Required per assembly: 8 Currently Not Available
12	S-100-180#, 14.10FL, 2.30ID, BLK Part #: 7044645-458 Required per assembly: 2 Currently Not Available
