Front Bumper And Mounting replacement parts for 2019 Polaris Sportsman 570 SP (R03)

OEM Parts Polaris 2019 Polaris Sportsman 570 SP (R03) Front Bumper And Mounting

FRONT BUMPER and MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BUMPER-FRONT FASCIA BLK Part #: 5438559-070 Required per assembly: 1 Currently Not Available
2	BRKT-RADIATOR, UPPER Part #: 5259852 Required per assembly: 1 Currently Not Available
3	BOLT, FLANGE Part #: 7518341 Required per assembly: 2 Currently Not Available
4	NUT, NYLOCK Part #: 7542343 Required per assembly: 4 Note: Nut, Flange Currently Not Available

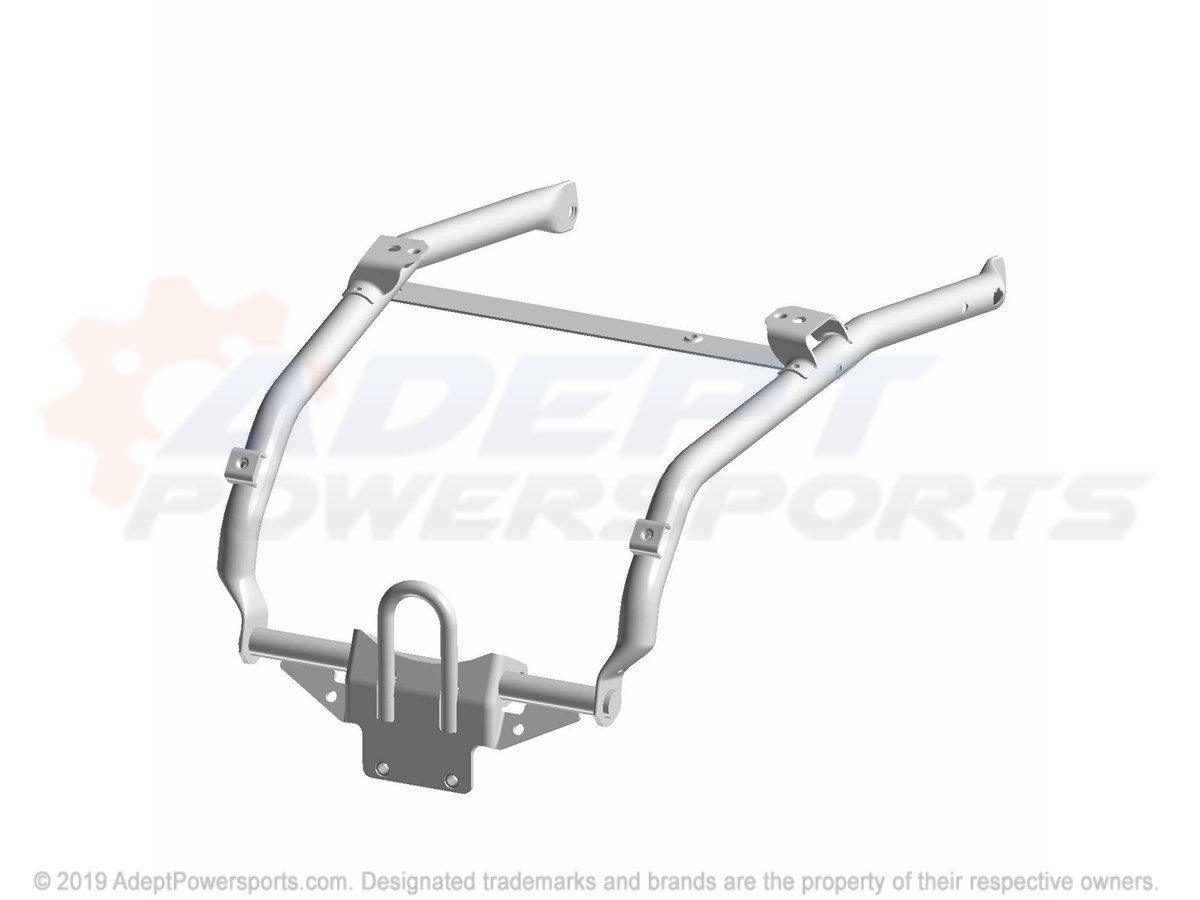

5	WELD-BUMPER, FRONT, BLK Part #: 1020923-067 Required per assembly: 1 Note: TO 9/3/2018 Currently Not Available
5	WELD-BUMPER, FRONT, BLK Part #: 1025069-067 Required per assembly: 1 Note: FROM 1/1/2019 Currently Not Available
5	WELD-BUMPER, FRONT, BLK Part #: 1025069-067 Required per assembly: 1 Note: FROM 9/3/2018 TO 1/1/2019 Currently Not Available
6	BOLT, FLANGE Part #: 7518341 Required per assembly: 2 Currently Not Available
7	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
8	COVER-FRONT, LOWER, BLK Part #: 5451442-070 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7517685 Required per assembly: 6 Note: Screw Currently Not Available
10	COVER-WINCH, BLK Part #: 5451441-070 Required per assembly: 1 Note: BJ Currently Not Available
11	SCREW Part #: 7519092 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7515399 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
