Front replacement parts for 2019 Polaris Sportsman 570 SP (R03)

OEM Parts Polaris 2019 Polaris Sportsman 570 SP (R03) Front

FRONT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-LCA, FRONT, LH, BLK Part #: 1020987-067 Required per assembly: 1 Currently Not Available
1	WELD-LCA, FRONT, RH, BLK Part #: 1020988-067 Required per assembly: 1 Currently Not Available
2	WELD-UCA, FRONT, LH, BLK Part #: 1020527-067 Required per assembly: 1 Currently Not Available
2	WELD-UCA, FRONT, RH, BLK Part #: 1020528-067 Required per assembly: 1 Currently Not Available
3	BOLT Part #: 7515472 Required per assembly: 4 Currently Not Available
4	NUT-LOCK Part #: 7542439 Required per assembly: 4 Currently Not Available
5	NUT, CASTLE Part #: 7547336 Required per assembly: 4 Currently Not Available
6	WASHER, FLAT Part #: 7556153 Required per assembly: 12 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
7	WASHER Part #: 7556212 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
8	PIN, COTTER Part #: 7661404 Required per assembly: 4 Currently Not Available
9	SHAFT-A-ARM, C-BORE Part #: 5139929 Required per assembly: 2 Currently Not Available
10	BUSHING, A-ARM, LONG, GREY Part #: 5436973 Required per assembly: 4 Note: Bushing, A-Arm, Long ~~$10.99~~ $6.33 - + Add to cart
10	ASSEMBLY, BUSHING, W/SEAL Part #: 1543326 Required per assembly: 4 Note: OPTIONAL Currently Not Available
11	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
12	SCR-3/8-24X1, 3/4, HX, GR8, P30, Y Part #: 7521149 Required per assembly: 4 Currently Not Available
13	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available
14	SHAFT-A-ARM 63.5MM Part #: 5137346 Required per assembly: 4 Currently Not Available
15	ASSEMBLY, BUSHING, HD, W/SEAL Part #: 1543367 Required per assembly: 8 Note: OPTIONAL Currently Not Available
15	BUSHING Part #: 5439874 Required per assembly: 8 Currently Not Available

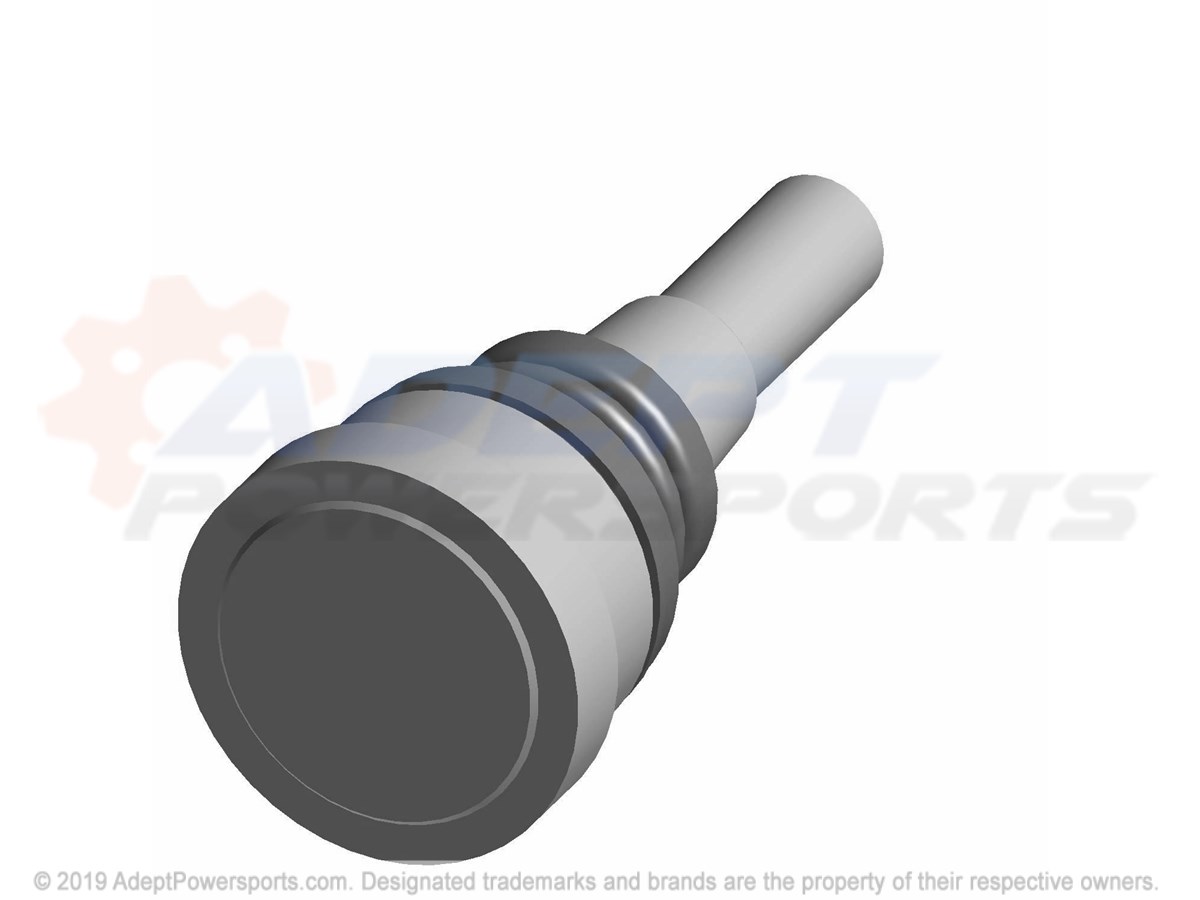

16	BALL-JOINT, M12X1.50, TAPERED Part #: 7061270 Required per assembly: 2 Currently Not Available
16	BALL-JOINT, M12X1.50, TAPERED Part #: 7061230 Required per assembly: 4 Note: QTY 2 FROM 10/22/2018 Currently Not Available
17	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 4 Note: FITTING, ZERK (90o) Currently Not Available
18	ASM-STEERING, KNUCKLE, RH Part #: 1824435 Required per assembly: 1 Note: INCL., KNUCKLE, 19, 20 Currently Not Available
18	KNUCKLE-STEERING, MACH, LH Part #: 5139686 Required per assembly: 1 Currently Not Available
18	KNUCKLE-STEERING, MACH, RH Part #: 5139687 Required per assembly: 1 Currently Not Available
18	ASM-STEERING, KNUCKLE, LH Part #: 1824434 Required per assembly: 1 Note: INCL., KNUCKLE, 19, 20 Currently Not Available
19	BEARING-WHEEL, 35X64X37MM Part #: 3515088 Required per assembly: 2 Note: OPTIONAL Currently Not Available
19	BEARING Part #: 3514634 Required per assembly: 2 Note: Bearing 35X64X37MM [Built 5/02/07 and After] Currently Not Available
20	RING, RET., 2.500, INTERNAL Part #: 7710507 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
21	SHIELD, CV, FRONT, RH Part #: 5435029-070 Required per assembly: 1 Note: Shield, CV Front, Black, RH Currently Not Available
21	SHIELD, CV, FRONT, LH Part #: 5435028-070 Required per assembly: 1 Note: Shield, CV Front, Black, LH Currently Not Available
22	SCREW Part #: 7512084 Required per assembly: 6 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
