VOLTAGE REGULATOR AND MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-JUMPER, REGULATOR, 1UP Part #: 2414818 Required per assembly: 1 Note: FROM 12/3/2018 Currently Not Available
2	K-SPMN, REGULATOR, BRKT, TRG Part #: 2208111 Required per assembly: 1 Note: TO 12/3/2018 Currently Not Available
2	COVER, VOLTAGE, REGULATOR Part #: 5253294 Required per assembly: 1 Note: TO 12/3/2018 Currently Not Available
2	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Note: FROM 12/3/2018 Currently Not Available

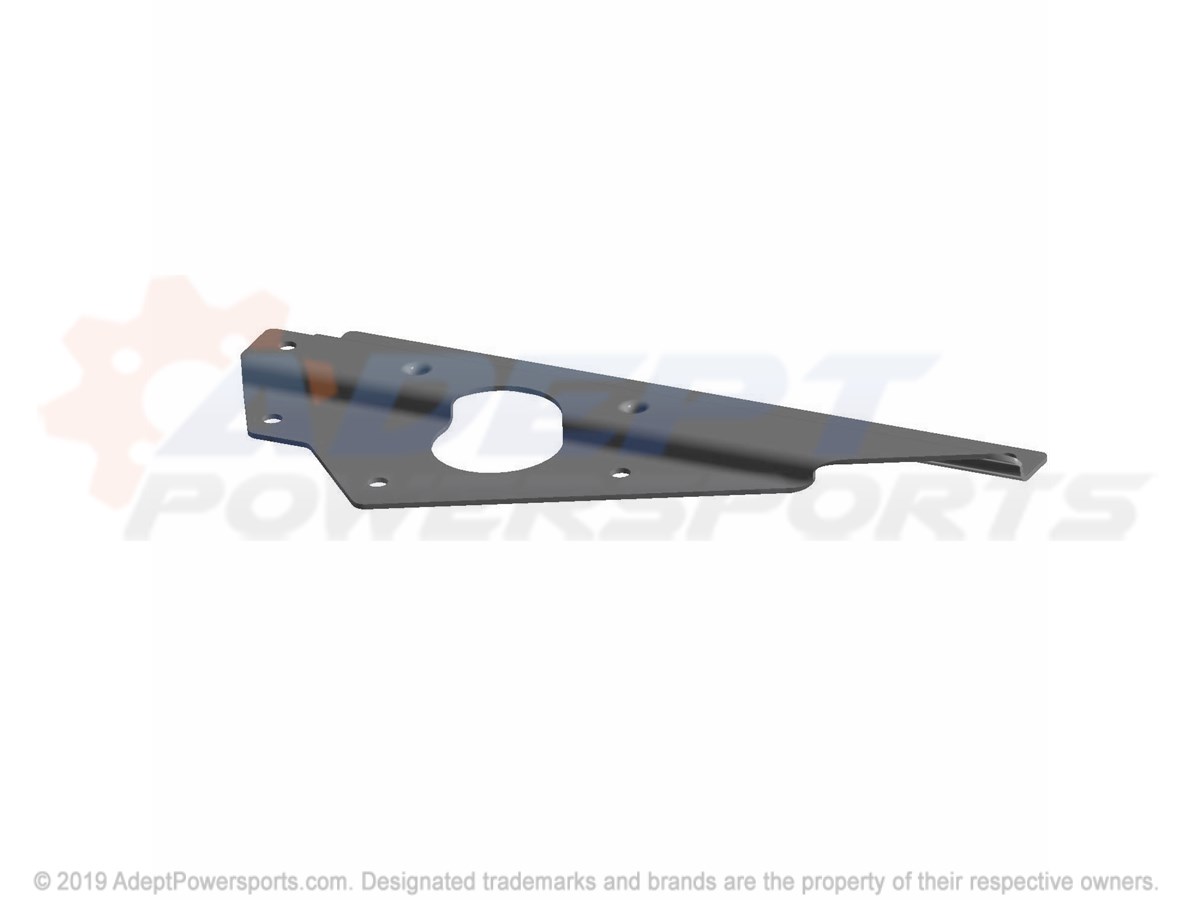

3	BRKT-REGULATOR, BLK Part #: 5267451-329 Required per assembly: 1 Note: FROM 12/3/2018 Currently Not Available
4	SCREW Part #: 7515179 Required per assembly: 4 Note: Screw ~~$3.99~~ $2.30 - + Add to cart
