OEM Parts Polaris 2019 Polaris Sportsman 570 SP (R03) Headlights

2019 Polaris Sportsman 570 SP (R03) A19SHD57B9/E57BJ/E57BW - Headlights

HEADLIGHTS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2410614 Assembly, Headlight, Pod

ASSEMBLY, HEADLIGHT, POD

Part #: 2410614 Required per assembly: 1 Note: INCL. BULB
Currently Not Available
2
Polaris 2410615 Assembly, Headlight, Bumper, Lh

ASSEMBLY, HEADLIGHT, BUMPER, LH

Part #: 2410615 Required per assembly: 1 Note: INCL. 6, BULB
$134.99
$89.96
-
+
Add to cart
3
Polaris 2410616 Assembly, Headlight, Bumper, Rh

ASSEMBLY, HEADLIGHT, BUMPER, RH

Part #: 2410616 Required per assembly: 1 Note: INCL. 6, BULB
Currently Not Available
4

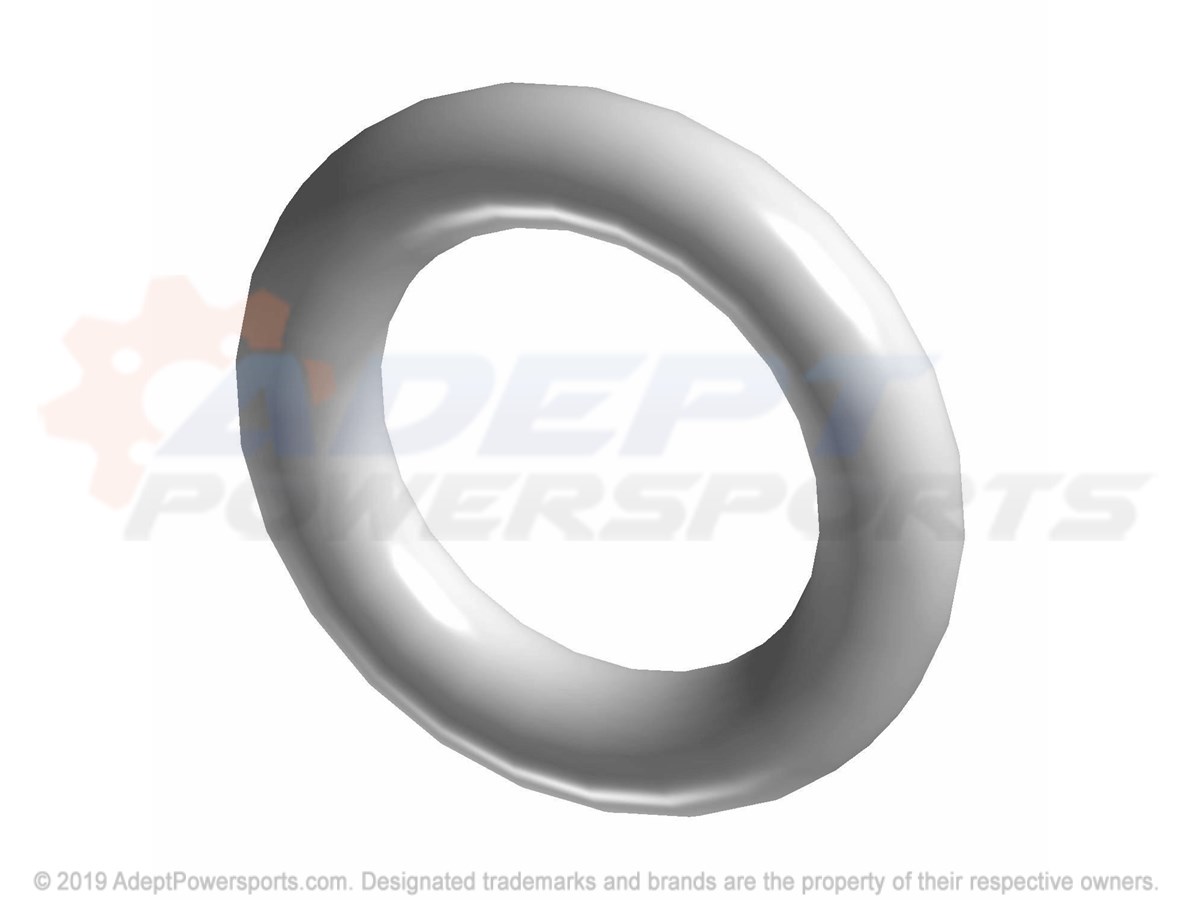

Polaris 5410163 O Ring

O RING

Part #: 5410163 Required per assembly: 2
$4.99
$2.92
-
+
Add to cart
5
Polaris 7517561 Screw

SCREW

Part #: 7517561 Required per assembly: 2
Currently Not Available
6

NUT

Part #: 7670112 Required per assembly: 2
Currently Not Available
7
Polaris 7518690 Screw, Headlight, Adjust

SCREW, HEADLIGHT, ADJUST

Part #: 7518690 Required per assembly: 1
Currently Not Available
8
Polaris 5415862 O-Ring-.484 Id X .139 Viton

O-RING-.484 ID X .139 VITON

Part #: 5415862 Required per assembly: 2
Currently Not Available
