Frame And Front Bumper replacement parts for 2019 Polaris Ranger EV MD (R01)

OEM Parts Polaris 2019 Polaris Ranger EV MD (R01) Frame And Front Bumper

FRAME and FRONT BUMPER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518555 Required per assembly: 24 Note: Bolt, Flange Currently Not Available

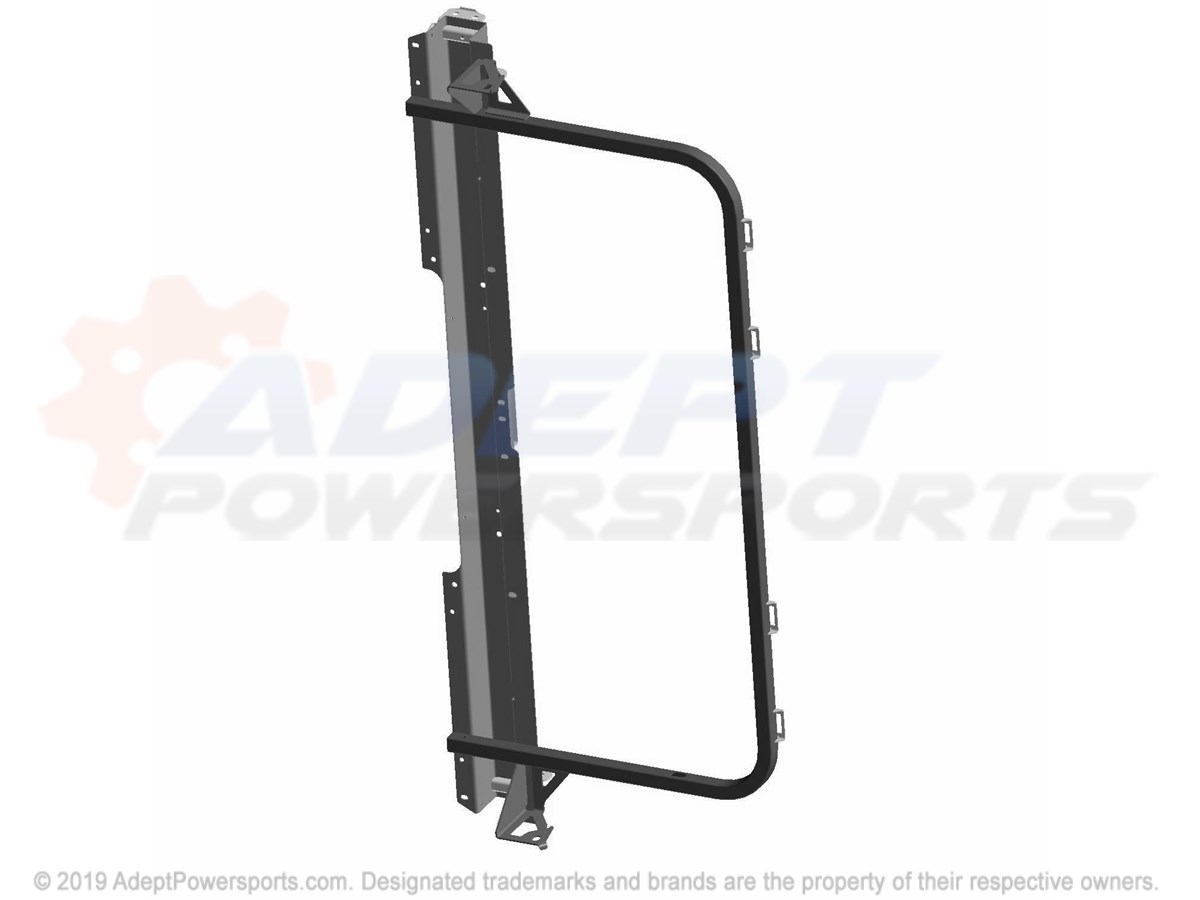

2	WELD-SEAT, BASE, CAB, SUPT, M.BLK Part #: 1022758-458 Required per assembly: 1 Currently Not Available

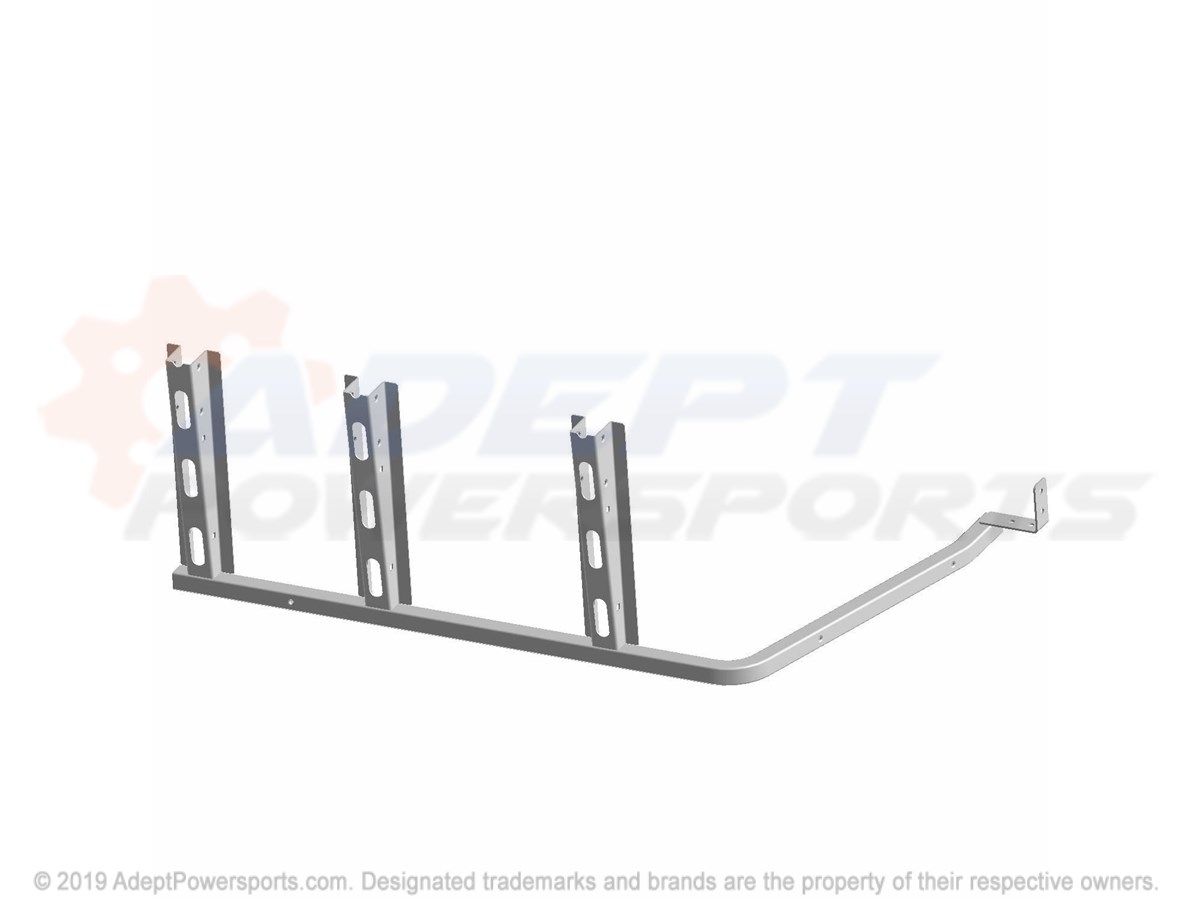

3	WELD-FLOOR, SUPT, RH, BLK Part #: 1020594-329 Required per assembly: 1 Currently Not Available
4	SCREEN, BUMPER, UPPER, BLACK Part #: 5438240-070 Required per assembly: 1 Currently Not Available
5	BRACKET, BUMPER, GUARD, BLACK Part #: 5438181-070 Required per assembly: 1 Currently Not Available
6	WELD-BUMPER, MATTE, BLACK Part #: 1020136-458 Required per assembly: 1 Currently Not Available
7	WELD-CAB, SUPPORT, FRONT, BLK Part #: 1020151-329 Required per assembly: 1 Currently Not Available

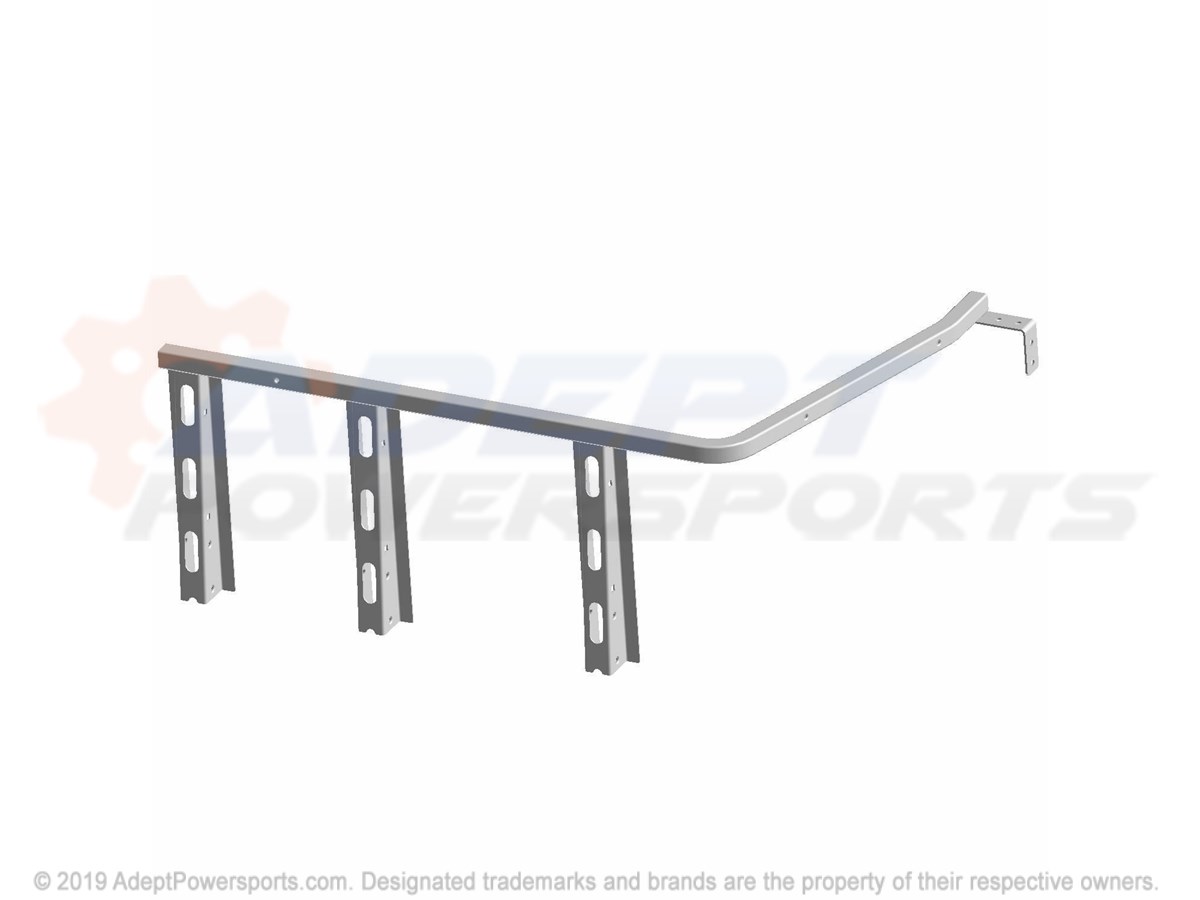

8	WELD-FLOOR, SUPT, LH, BLK Part #: 1020593-329 Required per assembly: 1 Currently Not Available
9	WELD-MAIN, FRAME, MATTE, BLK Part #: 1020591-458 Required per assembly: 1 Currently Not Available
10	WASHER-SKID PLATE Part #: 7556065 Required per assembly: 13 Note: Washer Currently Not Available
11	CAP, BUMPER Part #: 5434191 Required per assembly: 2 ~~$5.99~~ $3.81 - + Add to cart
12	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
13	SCREW Part #: 7518158 Required per assembly: 3 Currently Not Available
14	SCREW Part #: 7517386 Required per assembly: 13 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
15	SCREW, FLANGE Part #: 7517281 Required per assembly: 4 Note: Screw Currently Not Available
16	NUT, FLANGE Part #: 7547317 Required per assembly: 4 Currently Not Available
17	PLATE, SKID Part #: 5813381 Required per assembly: 1 Currently Not Available
