Front Drive Shaft replacement parts for 2019 Polaris Ranger EV MD (R01)

OEM Parts Polaris 2019 Polaris Ranger EV MD (R01) Front Drive Shaft

FRONT DRIVE SHAFT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

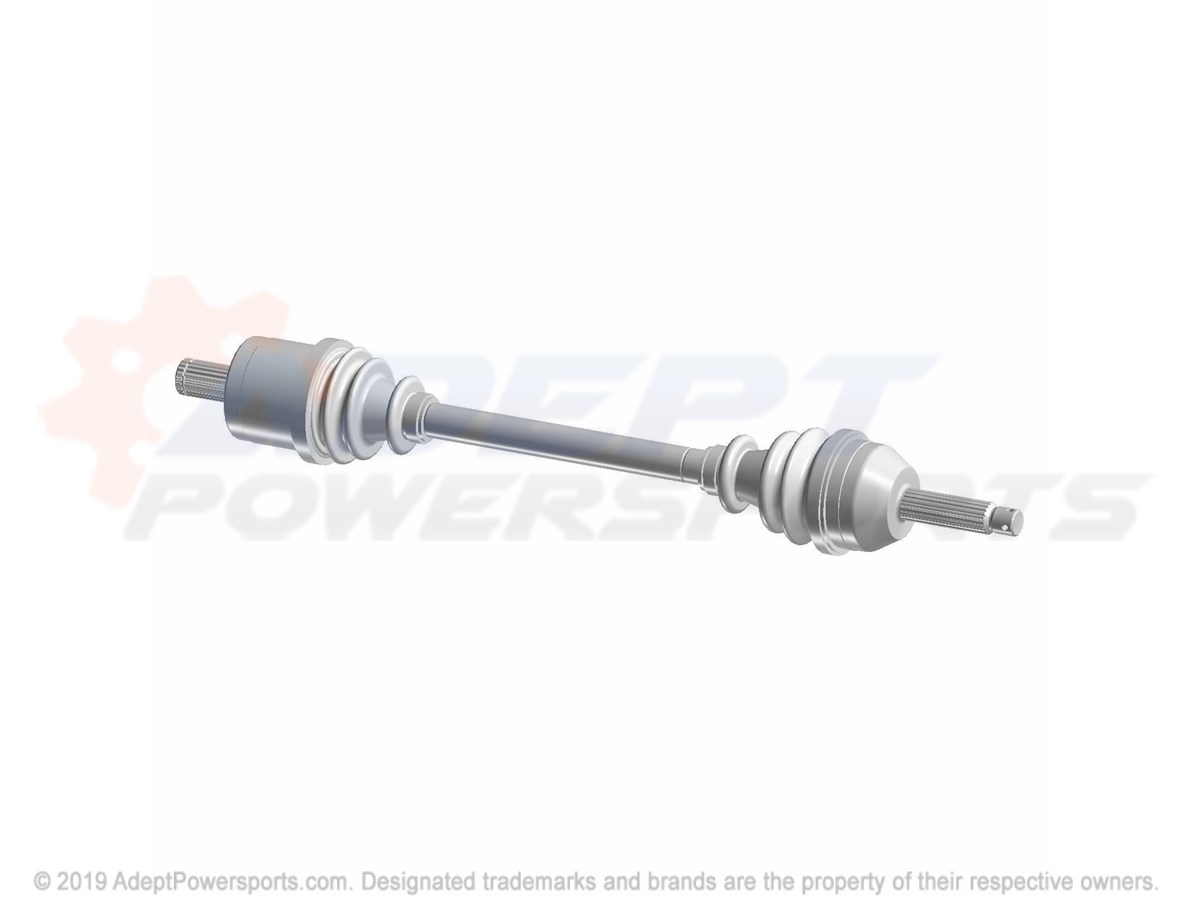

1	DRIVESHAFT, ASSEMBLY, FRONT Part #: 1334439 Required per assembly: 2 Note: INCL. ALL Currently Not Available
2	K-OUTER JOINT Part #: 2206579 Required per assembly: 1 Note: INCL. OUTER JOINT, CAGE, BALL, INNER JOINT Currently Not Available
3	KIT, BOOT Part #: 3236003 Required per assembly: 1 Note: INCL. LG CLAMP, BOOT, SM CLAMP, GREASE Currently Not Available
4	K-BAR Part #: 2206580 Required per assembly: 1 Note: CIRCLIPS, BAR Currently Not Available
5	BOOT KIT(SP ONLY) Part #: 3235934 Required per assembly: 1 Note: INCL. SM CLAMP, BOOT, LG CLAMP, GREASE Currently Not Available
6	K-INNER JOINT Part #: 2206581 Required per assembly: 1 Note: INCL. INNER JOINT, BALL, CAGE, CIRCLIP, OUTER JOINT Currently Not Available
7	CIRCLIP(SP ONLY) Part #: 3235936 Required per assembly: 1 Currently Not Available
8	CLIP-INNER JOINT Part #: 3236015 Required per assembly: 2 Currently Not Available
