Wire Harnesses replacement parts for 2019 Polaris Ranger EV MD (R01)

OEM Parts Polaris 2019 Polaris Ranger EV MD (R01) Wire Harnesses

WIRE HARNESSES Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, EV Part #: 2415131 Required per assembly: 1 Note: INCL 2-17 Currently Not Available
2	LABEL, FUSE, BOX Part #: 7181492 Required per assembly: 1 Currently Not Available
3	DECAL, FUSE, BOX Part #: 7177901 Required per assembly: 1 Currently Not Available
4	CLIP-ROUTING Part #: 7081496 Currently Not Available
5	COVER-RELAY/FUSE CENTER Part #: 5438758 Required per assembly: 1 Currently Not Available

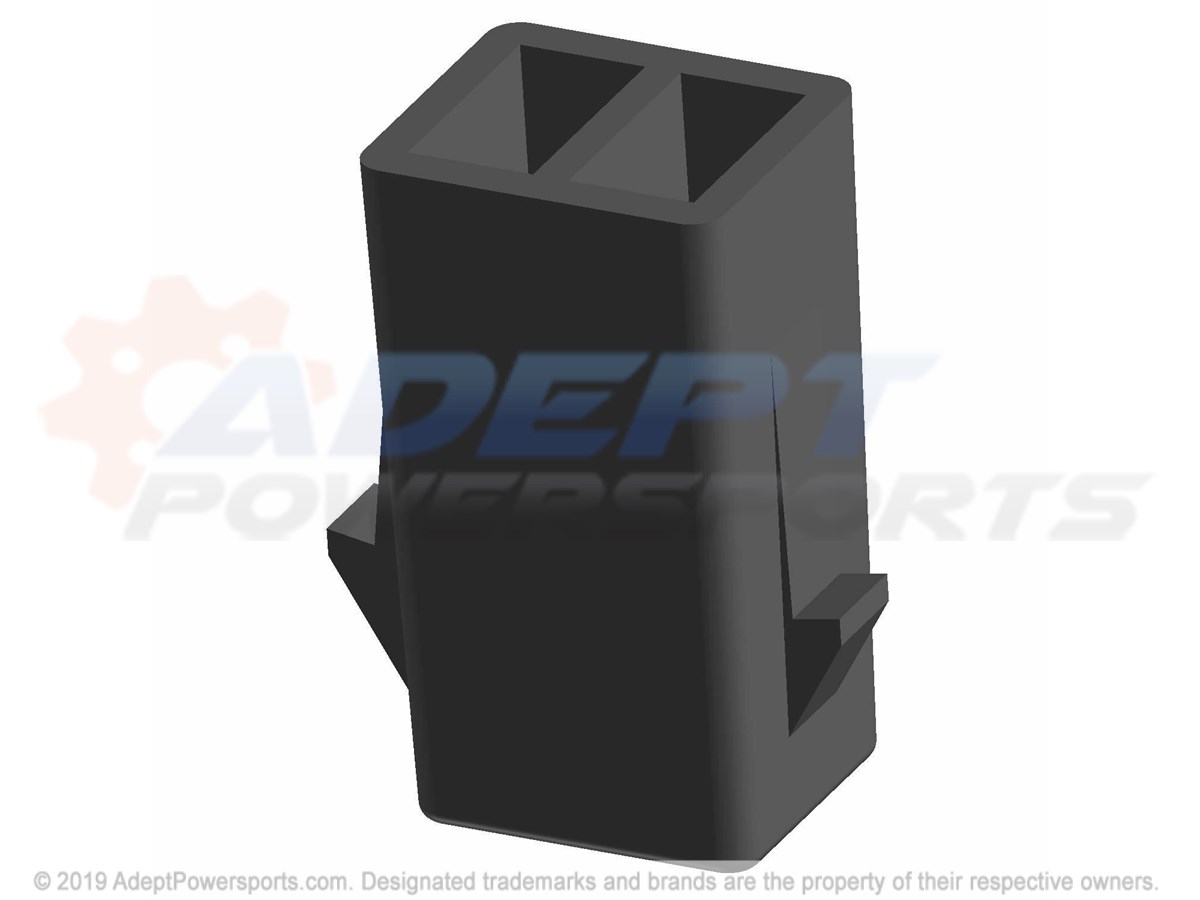

6	CONNECTOR-2F UNSEALED Part #: 4014797 Required per assembly: 1 Currently Not Available

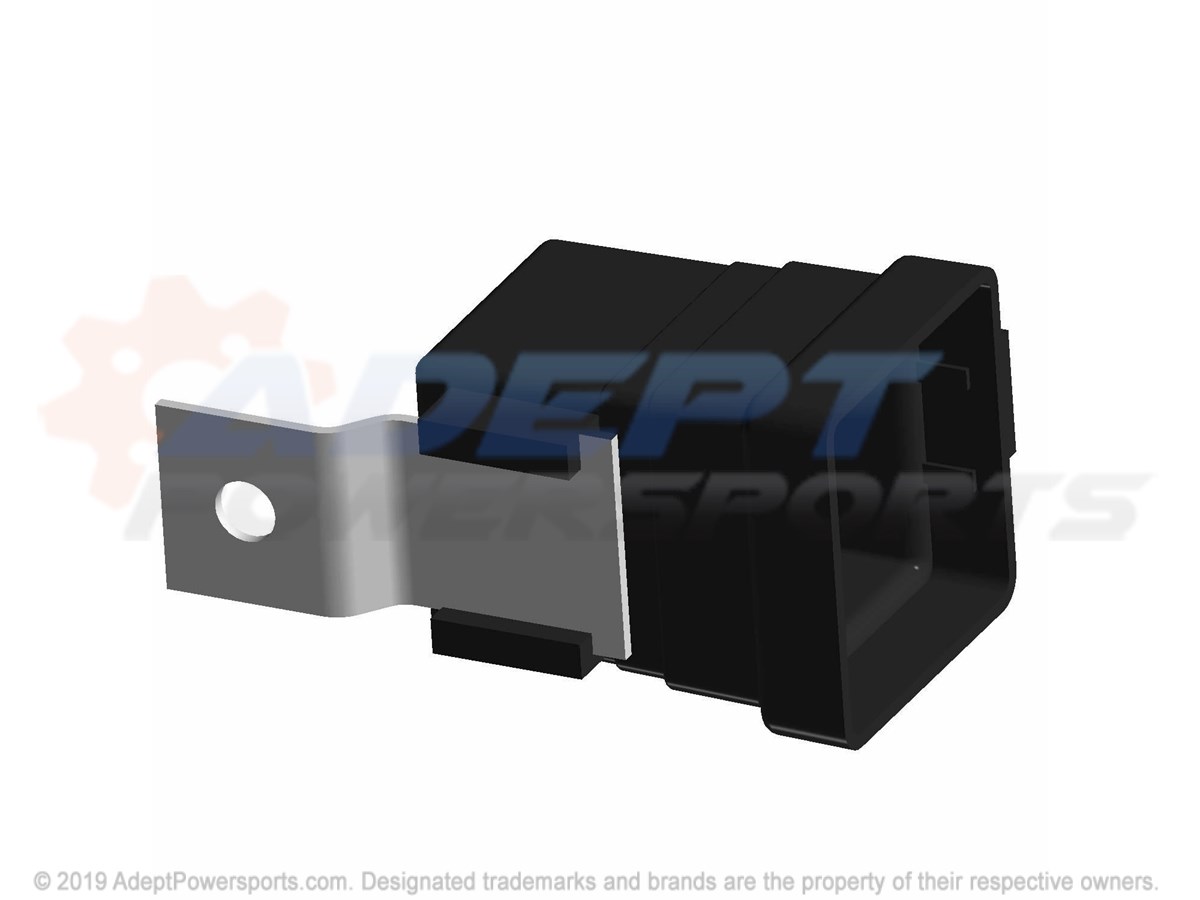

7	RELAY, 48V, EV Part #: 4014229 Required per assembly: 1 Currently Not Available
8	FUSE, 30, AMP Part #: 4013561 Required per assembly: 3 Currently Not Available
9	RELAY-SPST 303 48VDC COIL SEAL Part #: 4012851 Required per assembly: 2 Currently Not Available
10	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
11	COVER-FUSEHOLDER Part #: 4012260 Required per assembly: 2 Currently Not Available
12	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
13	FUSE-2AMP ATM BLADE STYLE MINI Part #: 4010752 Required per assembly: 5 Currently Not Available
14	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
15	FUSE, 10AMP Part #: 2434016 Required per assembly: 3 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
16	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
17	DIODE, 6, AMP Part #: 2411035 Required per assembly: 3 Currently Not Available
18	HARNESS, CARGO, BOX Part #: 2412288 Required per assembly: 1 Currently Not Available
19	BLOCK-TERMINAL, 3, POST, TALL Part #: 4015778 Required per assembly: 1 Currently Not Available
20	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
21	BRKT-FUSE BLOCK Part #: 5253928 Required per assembly: 1 Currently Not Available
22	STRAP PANDUIT Part #: 7080138 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
23	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 2 Note: Cable Tie Currently Not Available
24	SCREW Part #: 7512084 Required per assembly: 1 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
25	NUT, NYLOK Part #: 7546601 Required per assembly: 3 Note: Nut, Nylok Sold in multiples of 10 only Currently Not Available
26	CLIP Part #: 7670134 Required per assembly: 1 Note: Clip, Wire Currently Not Available
